100A/150A/200A/250A 12V Valve regulated lead acid battery for solar system. Best lead acid rv battery price is low, More types of lead acid battery for your option.
Product
ZAMDON best valve regulated lead acid battery price for solar
■ Valve Regulated Lead Acid Battery Feature
1. Lead acid battery cost-effective, Maintaince simple
2. Mature technology,high reliability, Stable output voltage,
3. Wide capacity range: Can be made as small as 1Ah to several thousand Ah of various sizes and structures
4. High rate discharge performance is good, Can be used for engine starting

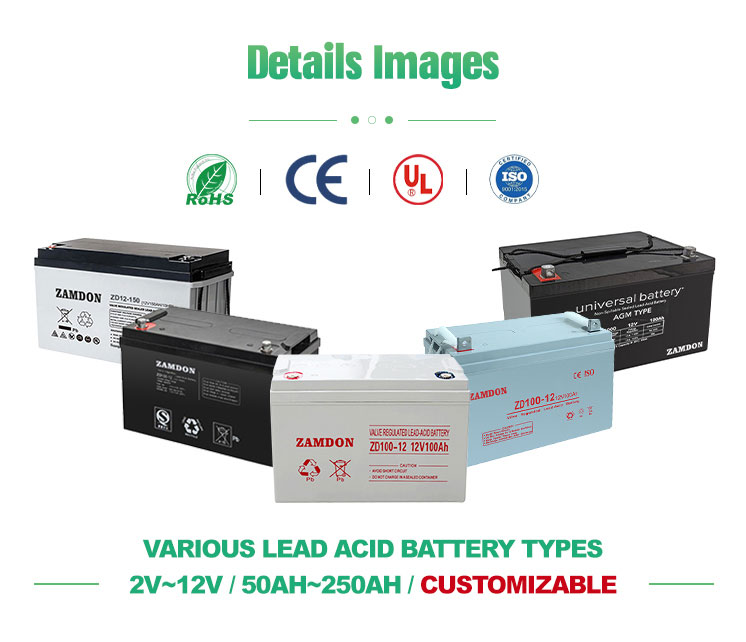

■ Valve Regulated Lead Acid Battery Details
■ Valve Regulated Lead Acid Battery Specification

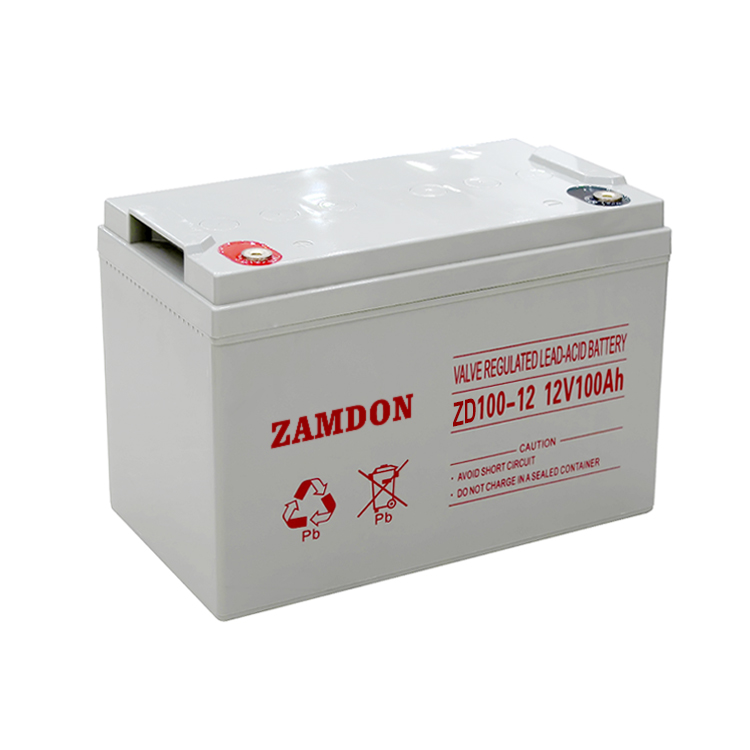

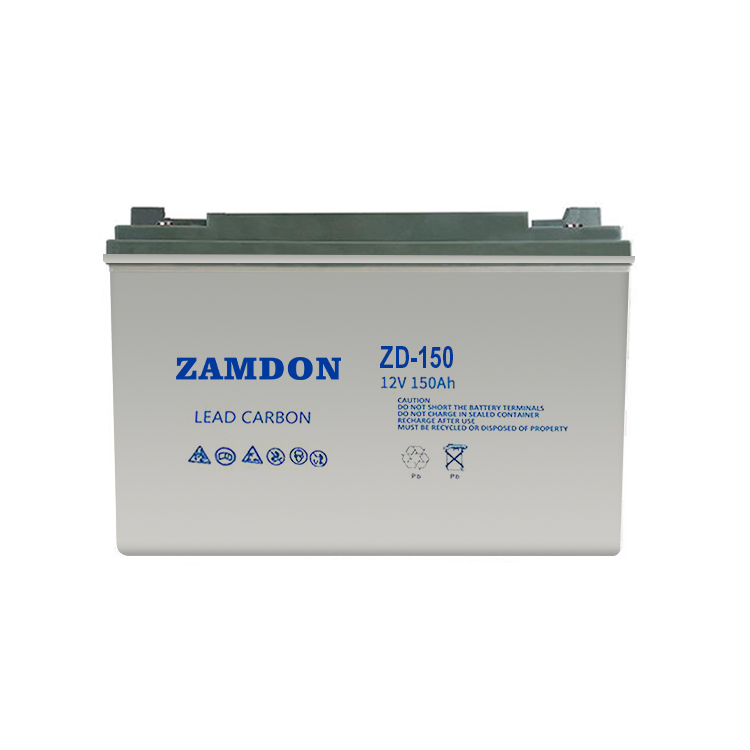

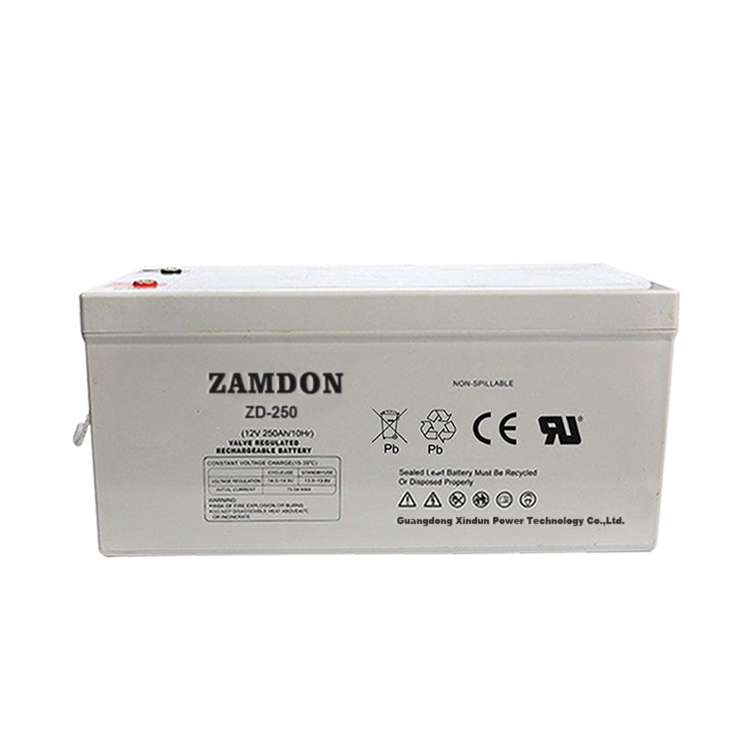

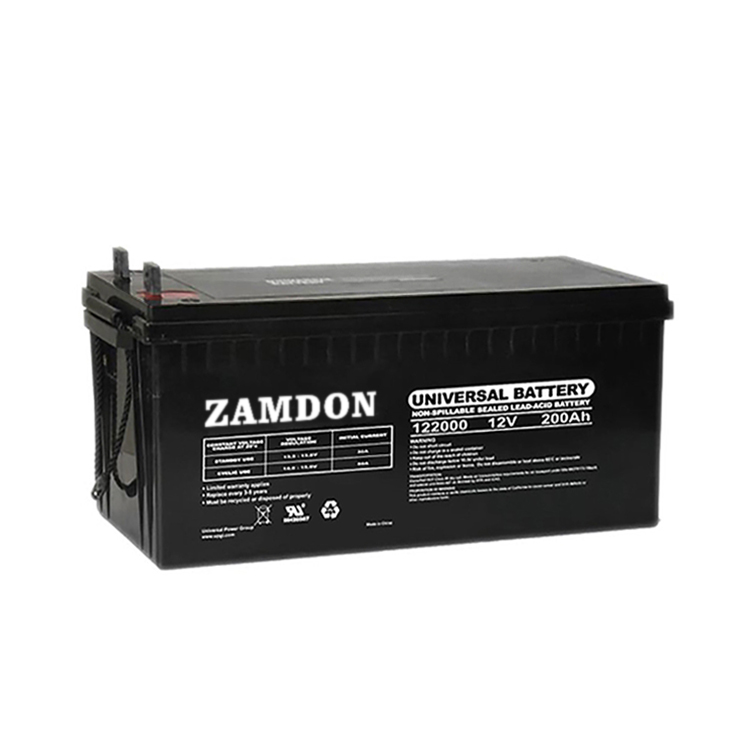

| Model | 12V,100A | 12v,150A | 12V,200A | 12V,250A |
| Cells Per Unit | 6 | 6 | 6 | 6 |
| Voltage Per Unit | 12 | 12 | 12 | 12 |
| Capacity | 100Ah@20hr-rate | 150Ah@20hr-rate | 200Ah@20hr-rate | 250Ah@25hr-rate |
| Size | 329*172*243mm | 483*170*240mm | 522*240*244mm | 520*269*249mm |
| Weight | Approx. 29.3Kg (Tolerance±1.5%) | Approx. 41.5Kg (Tolerance±1.5%) | Approx. 59.5Kg (Tolerance±1.5%) | Approx. 73.5 Kg (Tolerance±1.5%) |
| Internal Resistance | Approx. 5.2 mΩ | Approx. 5.2 mΩ | Approx. 5.2 mΩ | Approx. 5.2 mΩ |
| Terminal | F16(M8)/F10(M8) | F16(M8)/F10(M8) | F16(M8)/F10(M8) | F16(M8)/F10(M8) |
| Design Life | 15-20 years (floating charge) | 15-20 years (floating charge) | 15-20 years (floating charge) | 15-20 years (floating charge) |
| Maximum Charging Current | 20A | 30A | 40.0A | 50A |
| Float Charging Voltage | 13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell | 13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell | 13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell | 13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell |
| Cycle Use Voltage | 14.2 V~14.4 V @ 25℃ Temperature Compensation: -4mV/℃/Cell | 14.2 V~14.4 V @ 25℃ Temperature Compensation: -4mV/℃/Cell | 14.2 V~14.4 V @ 25℃ Temperature Compensation: -4mV/℃/Cell | 14.2 V~14.4 V @ 25℃ Temperature Compensation: -4mV/℃/Cell |
| Operating Temperature Range | Discharge: -40℃~60℃ Charge: -20℃~50℃ Storage: -40℃~60℃ | Discharge: -40℃~60℃ Charge: -20℃~50℃ Storage: -40℃~60℃ | Discharge: -40℃~60℃ Charge: -20℃~50℃ Storage: -40℃~60℃ | Discharge: -40℃~60℃ Charge: -20℃~50℃ Storage: -40℃~60℃ |
| Normal Operating Temperature Range | 25℃±5℃ | 25℃±5℃ | 25℃±5℃ | 25℃±5℃ |
| Self Discharge | Valve Regulated Lead Acid (VRLA) battery can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃. Please charged battery before using. |
Valve Regulated Lead Acid (VRLA) battery can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃. Please charged battery before using. |
Valve Regulated Lead Acid (VRLA) battery can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃. Please charged battery before using. |
Valve Regulated Lead Acid (VRLA) battery can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charged battery before using. |
| Container Material | A.B.S | A.B.S | A.B.S | A.B.S |
best rv battery specification

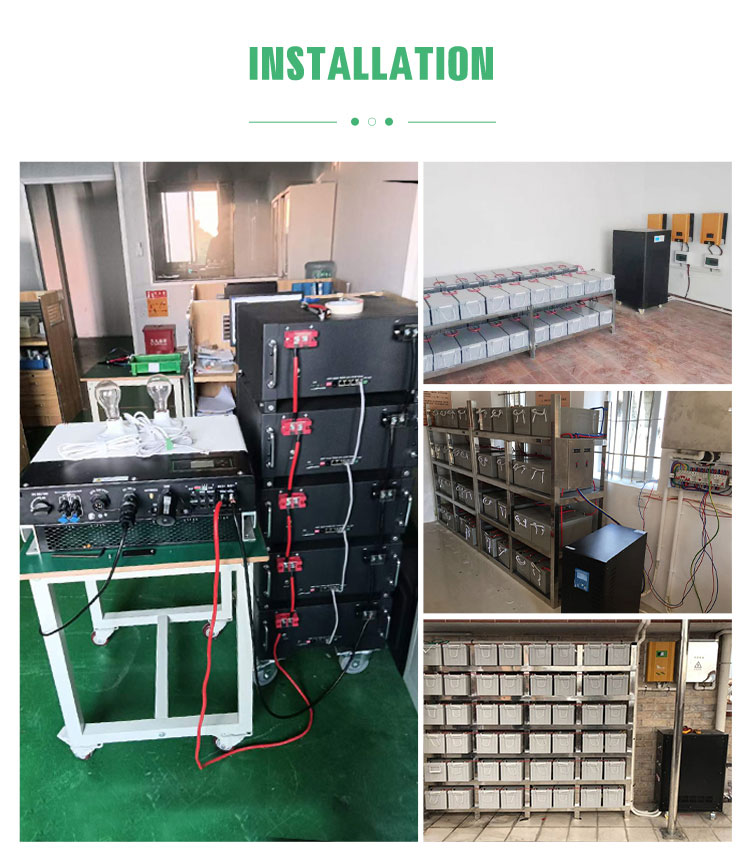

■ Valve Regulated Lead Acid Battery Application
lead acid battery application: rv battery, lead acid battery for solar, lead acid rv battery
■ About Zamdon - Battery Factory in China
■ FAQ
Q1. Which is better, lead acid battery or lithium ion battery?
A: Typically for lithium ion battery they are at least 95% efficient, whereas lead acid battery offer efficiencies around 80-85%. This is important as it allows the battery to charge faster and have a more effective battery capacity, which relates to how much energy can be stored by the battery. But lead acid battery is certainly cost-effective battery solutions, and ideal for small or inexpensive solar storage solutions.
Q2. Which is better, lead acid battery or gel battery?
A: High quality gel battery has much lower internal resistance than standard lead acid battery, which means they are more suitable for rapid charging and can provide higher burst power. While Lead acid battery is certainly cost-effective battery solutions.
Q3. What does valve regulated lead acid battery mean?
A: The valve regulated lead acid (known as VRLA battery) is considered the casing of the screen, because the screen is the most designed by the screen, and it will not overflow when worn. Valve regulated lead acid is considered a "maintenance-free" power source, with no added battery or water.
Q4. What other types of batteries do you sell?
A: We sell lead acid battery, gel battery, agm battery, lithium battery, li ion battery, etc. Contact ZAMDON for your need. Lead acid battery is one of the best types of rv inverter.
Q5. Is it OK to print my logo on the lead acid battery?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
