Best deep cycle gel battery for inverter. 50Ah 100Ah 150Ah 200Ah 250Ah 12v Gel battery price is affordable. AGM gel battery is customizable.
Product
ZAMDON best deep cycle battery
■ Deep Cycle Gel Battery Feature
1. AGM Gel battery cost-effective, Maintaince simple
2. Mature technology,high reliability, Stable output voltage,
3. Wide capacity range: Can be made as small as 1Ah to several thousand Ah of various sizes and structures
4. High rate discharge performance is good, Can be used for engine starting

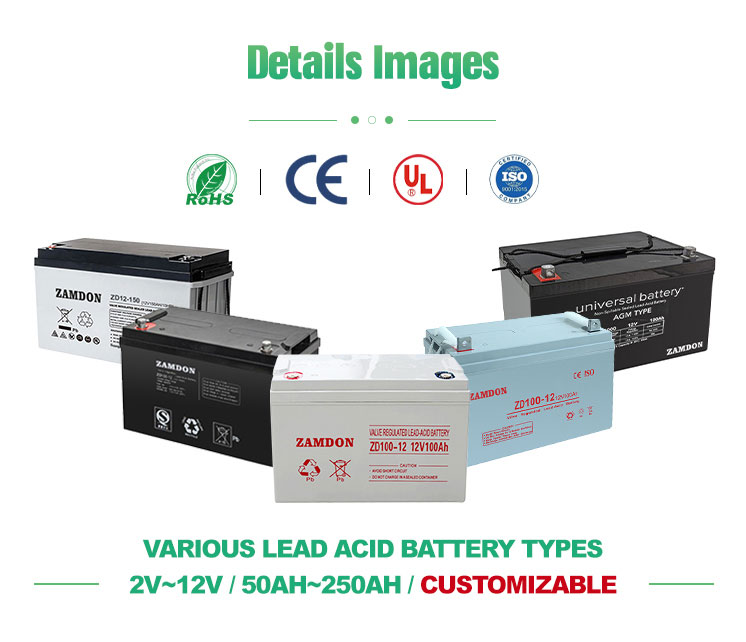

■ Deep Cycle Gel Battery Details
■ Deep Cycle Gel Battery Specification

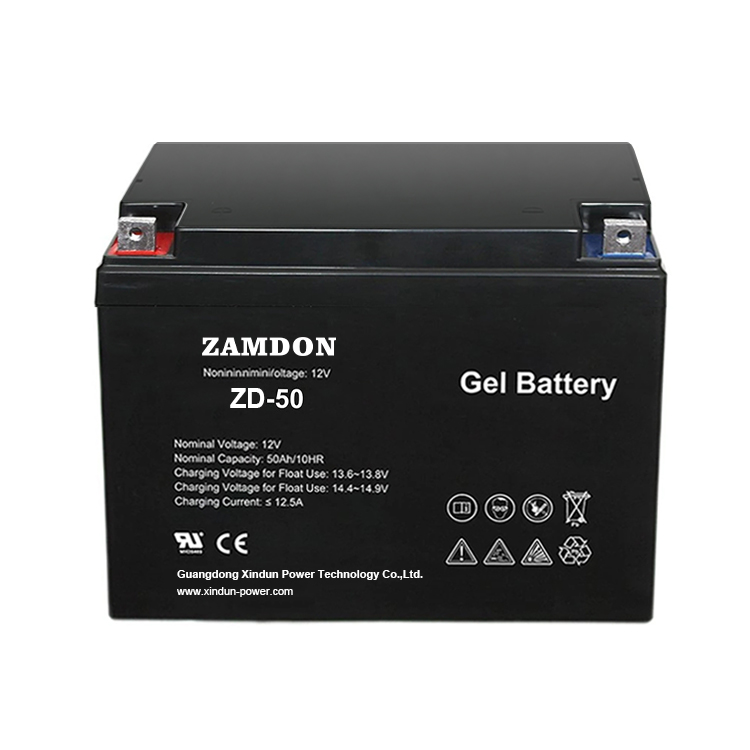

| 50Ah 12V Gel Battery | |||
| Nominal Voltage | 12V (6 cells per unit) | ||
| Design Floating Life @ 25℃ | 20 Years | ||
| Nominal Capacity @ 25℃ | 10 hour rate (0.1C, 10.8V) | 50Ah | |
| Capacity @ 25℃ | 3 hour rate (0.25C, 10.8V) | 43.4Ah | |
| 1 hour rate (0.55C, 10.5V) | 33Ah | ||
| Internal Resistance | Full Charged Battery@ 25℃ | 3.5mΩ | |
| Ambient Temperature | Discharge | -25℃~60℃ | |
| Charge | -25℃~60℃ | ||
| Storage | -25℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 280A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 108% | |
| 25℃ | 100% | ||
| 0℃ | 90% | ||
| -15℃ | 70% | ||
| Self-Discharge@25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than Voltage 13.6 - 13.8V | |
| Cycle Use | Initial Charging Current Less than Voltage 14.4~14.9V | ||
| Dimension (mm*mm*mm) | Length 230 * Width 137 * Height 210 (Total Height 215) | ||
| Weight (kg) | 16.3KG | ||
50ah 12v agm gel battery specification

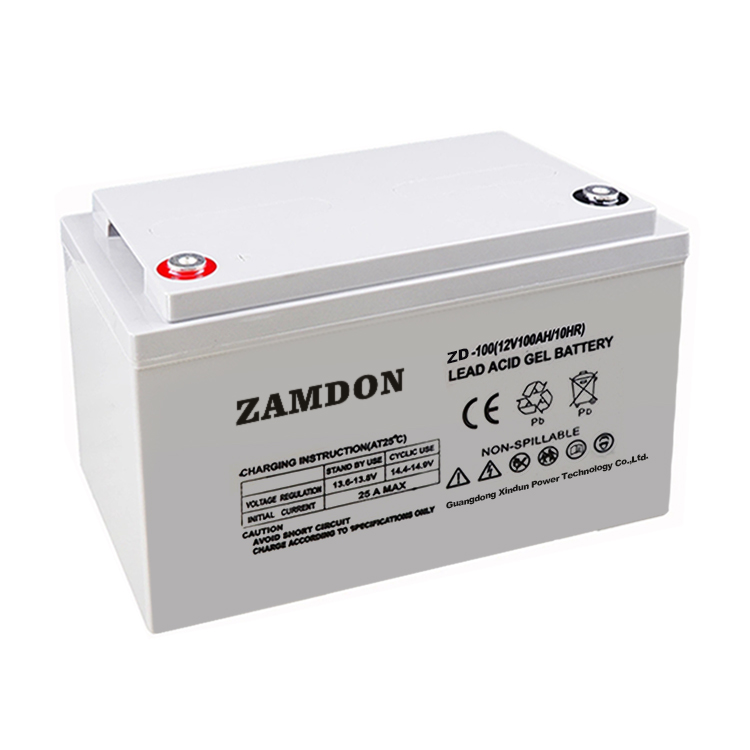

| 100Ah 12V Gel Battery | |||
| Nominal Voltage | 12V (6 cells per unit) | ||
| Design Floating Life @ 25℃ | 20 Years | ||
| Nominal Capacity @ 25℃ | 20 hour rate@ 21.0A, 5.4V | 100Ah | |
| Capacity @ 25℃ | 10 hour rate (37.8A, 5.4V) | 90Ah | |
| 5 hour rate (66.8A, 5.25V) | 79.5Ah | ||
| 1 hour rate (233.3A, 4.8V) | 55.6Ah | ||
| Internal Resistance | Full Charged Battery@ 25℃ | ≤5.3mΩ | |
| Ambient Temperature | Discharge | -25℃~60℃ | |
| Charge | -25℃~60℃ | ||
| Storage | -25℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 540A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 108% | |
| 25℃ | 100% | ||
| 0℃ | 90% | ||
| -15℃ | 70% | ||
| Self-Discharge@25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 22.5A Voltage 13.6 - 13.8V | |
| Cycle Use | Initial Charging Current Less than 22.5A Voltage 13.6 - 13.8V | ||
| Dimension (mm*mm*mm) | Length 307±1 * Width 169±1 * Height 211±1 (Total Height 216±1) | ||
| Weight (kg) | 30.5±3% | ||
100ah 12v agm gel battery specification

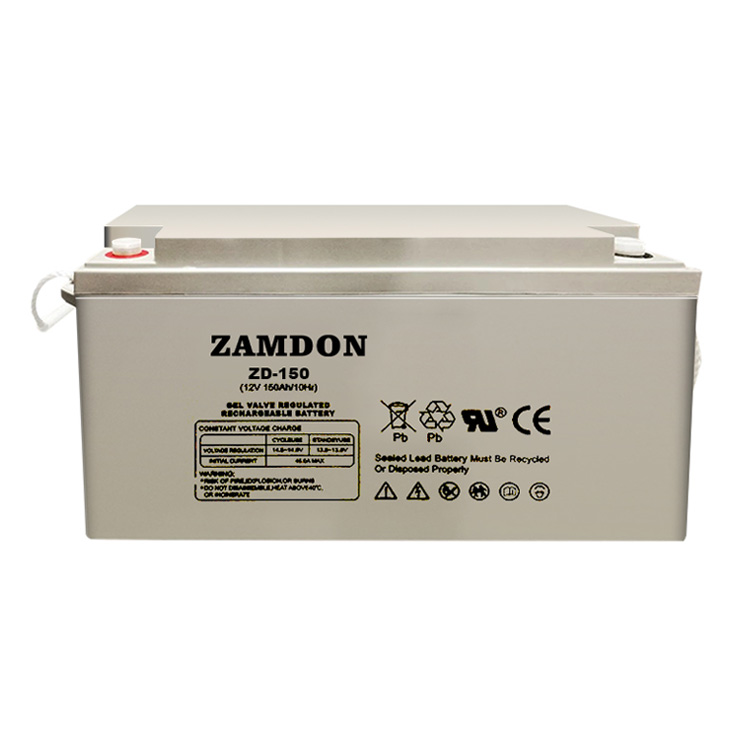

| 150Ah 12V Gel Battery | |||
| Nominal Voltage | 12V (6 cells per unit) | ||
| Design Floating Life @ 25℃ | 20 Years | ||
| Nominal Capacity @ 25℃ | 20 hour rate@ 21.0A, 5.4V | 150Ah | |
| Capacity @ 25℃ | 10 hour rate (37.8A, 5.4V) | 135Ah | |
| 5 hour rate (66.8A, 5.25V) | 119.5Ah | ||
| 1 hour rate (233.3A, 4.8V) | 86.6Ah | ||
| Internal Resistance | Full Charged Battery@ 25℃ | ≤4mΩ | |
| Ambient Temperature | Discharge | -25℃~60℃ | |
| Charge | -25℃~60℃ | ||
| Storage | -25℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 800A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 108% | |
| 25℃ | 100% | ||
| 0℃ | 90% | ||
| -15℃ | 70% | ||
| Self-Discharge@25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 33.75A Voltage 13.6 - 13.8V | |
| Cycle Use | Initial Charging Current Less than 33.75A Voltage 13.6 - 13.8V | ||
| Dimension (mm*mm*mm) | Length 484±1 * Width 171±1 * Height 241±1 (Total Height 241±1) | ||
| Weight (kg) | 45.7±3% | ||
150ah 12v agm gel battery specification

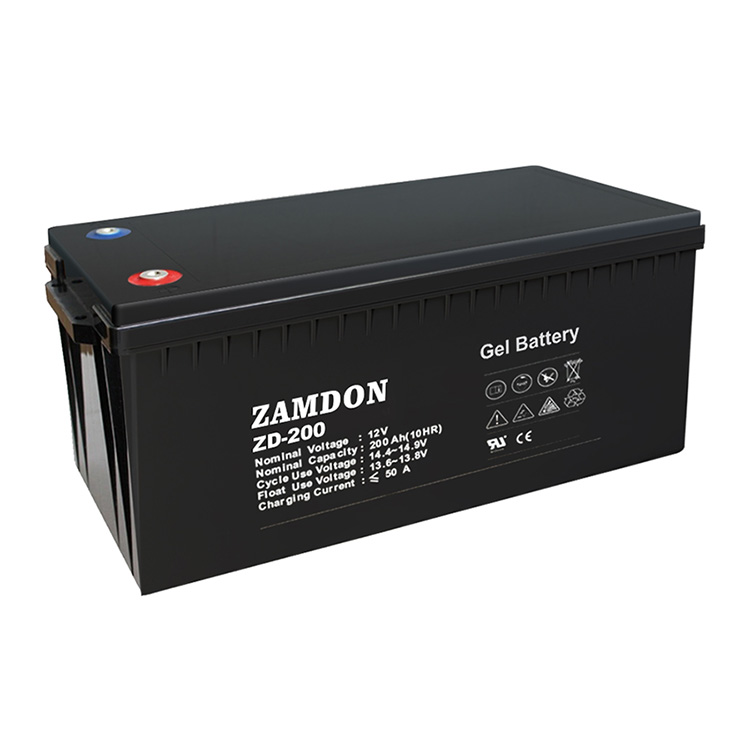

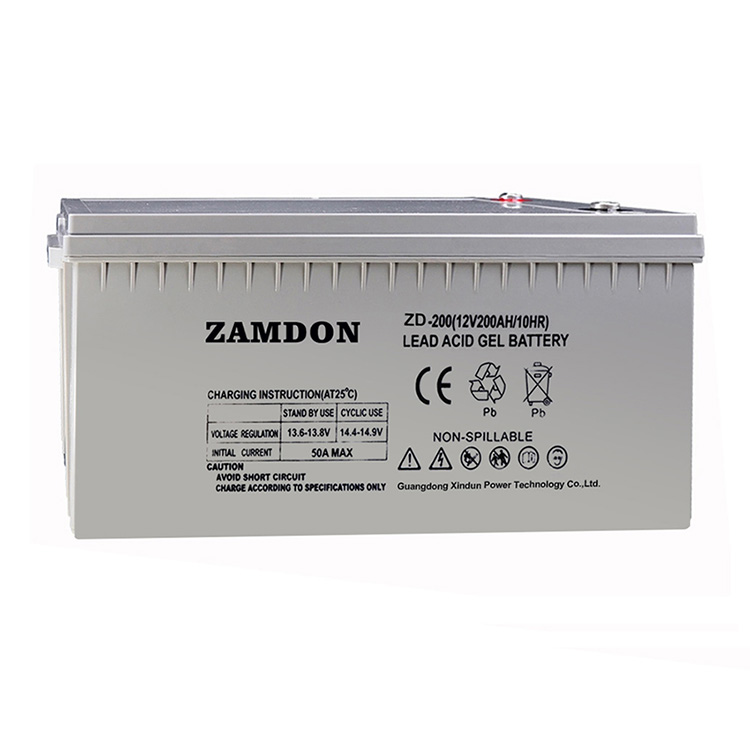

| 200Ah 12V Gel Battery | |||
| Nominal Voltage | 12V (6 cells per unit) | ||
| Design Floating Life @ 25℃ | 20 Years | ||
| Nominal Capacity @ 25℃ | 20 hour rate@ 21.0A, 5.4V | 200Ah | |
| Capacity @ 25℃ | 10 hour rate (37.8A, 5.4V) | 180Ah | |
| 5 hour rate (66.8A, 5.25V) | 159Ah | ||
| 1 hour rate (233.3A, 4.8V) | 115.5Ah | ||
| Internal Resistance | Full Charged Battery@ 25℃ | ≤3mΩ | |
| Ambient Temperature | Discharge | -25℃~60℃ | |
| Charge | -25℃~60℃ | ||
| Storage | -25℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 1200A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 108% | |
| 25℃ | 100% | ||
| 0℃ | 90% | ||
| -15℃ | 70% | ||
| Self-Discharge@25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 45.0A Voltage 13.6 - 13.8V | |
| Cycle Use | Initial Charging Current Less than 45.0A Voltage 13.6 - 13.8V | ||
| Dimension (mm*mm*mm) | Length 532±1 * Width 206±1 * Height 215±1 (Total Height 219±1) | ||
| Weight (kg) | 58.6±3% | ||
200ah 12v agm gel battery specification

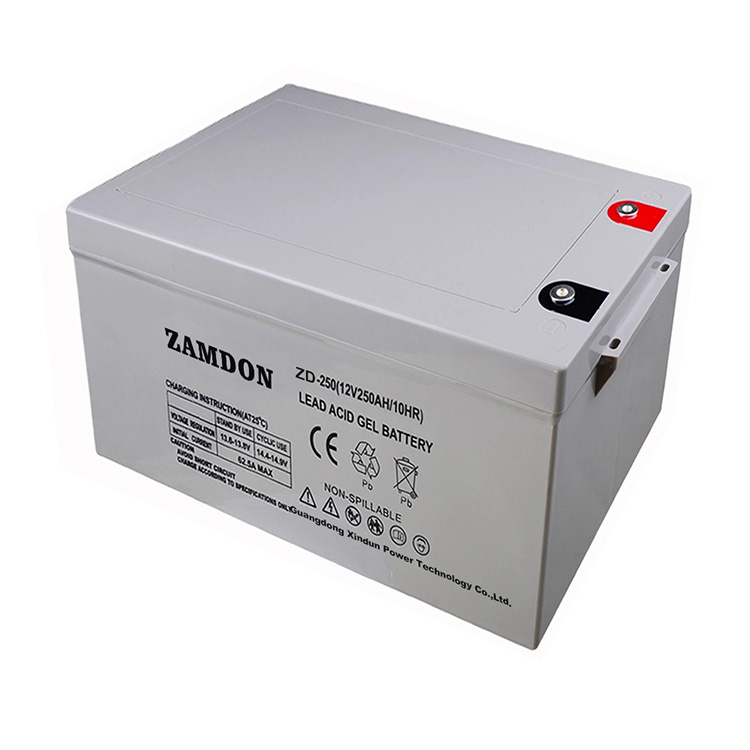

| 250Ah 12V Gel Battery | |||
| Nominal Voltage | 12V (6 cells per unit) | ||
| Design Floating Life @ 25℃ | 20 Years | ||
| Nominal Capacity @ 25℃ | 20 hour rate@ 21.0A, 5.4V | 250Ah | |
| Capacity @ 25℃ | 10 hour rate (37.8A, 5.4V) | 226Ah | |
| 5 hour rate (66.8A, 5.25V) | 191Ah | ||
| 1 hour rate (233.3A, 4.8V) | 138.2Ah | ||
| Internal Resistance | Full Charged Battery@ 25℃ | ≤1.5mΩ | |
| Ambient Temperature | Discharge | -25℃~60℃ | |
| Charge | -25℃~60℃ | ||
| Storage | -25℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 1440A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 108% | |
| 25℃ | 100% | ||
| 0℃ | 90% | ||
| -15℃ | 70% | ||
| Self-Discharge@25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 55A Voltage 13.6 - 13.8V | |
| Cycle Use | Initial Charging Current Less than 55A Voltage 13.6 - 13.8V | ||
| Dimension (mm*mm*mm) | Length 520±1 * Width 269±1 * Height 203±1 (Total Height 209±1) | ||
| Weight (kg) | 71.3±3% | ||
250ah 12v agm gel battery specification
■ Deep Cycle Gel Battery Application
12v gel battery for inverter use
■ About Zamdon - Battery Factory in China
■ FAQ
Q1. Which is better, gel battery or lithium battery?
A: Gel battery is the best choice for testing or low-cost solar projects. Lithium battery is suitable for long-term solar installation and help avoid frequent replacement.
Q2. Which is better, gel battery or lead acid battery?
A: Gel battery has a higher score because of low electrode wear, and gel battery service life is longer than that of traditional lead acid battery.
Q3. What\'s the difference between AGM battery and deep cycle battery?
A: The main difference between AGM battery and gel battery is that the deep cycle gel battery is constructed by using gel paste, in which the electrolyte is suspended in the battery shell. In AGM battery, the electrolyte is destroyed into glass matte inside, so it will not overflow, which is a huge safety advantage.
Q4. How to confirm the high quality of the battery you sent me?
A: Our batteries are all grade A, No matter how many you order, we will test each product before sending out.
Q5. Is it OK to print my logo on the gel battery?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
