2V 600Ah 1000Ah 2000Ah Solar Gel Batteries for Sale. Marine gel batteries applied to store energy for sailors, with the help of inverter, the DC in the sealed gel batteries converted into the AC.
Product
ZAMDON solar gel batteries for sale
■ Solar Gel Batteries Feature
1. Cost-effective, Maintaince simple
2. Mature technology,high reliability, Stable output voltage,
3. Wide capacity range: Can be made as small as 1Ah to several thousand Ah of various sizes and structures
4. Gel batteries have high rate discharge performance, Can be used for engine starting

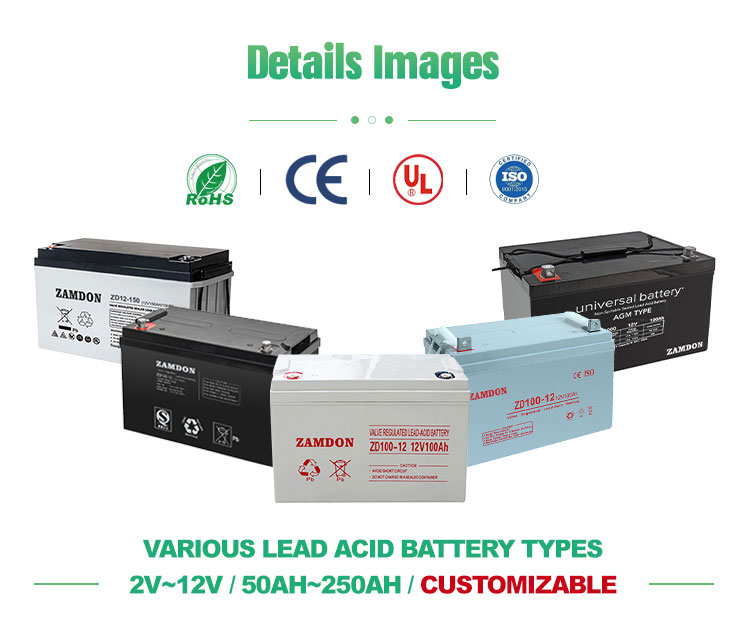

■ Solar Gel Batteries Details
■ Solar Gel Batteries Specification
| Gel Batteries 2V 600AH | |||
| Nominal Voltage | 2V(2 cells) | ||
| Design Floating Life @ 25℃ | 25Years | ||
| Nominal Capacity @ 25℃ | 10 hour rate (0.1C, 1.80V/cell) | 600Ah | |
| Capacity @ 25℃ | 3 hour rate (0.25C, 1.75V/cell) | 442Ah | |
| 1 hour rate (0.55C, 1.60V/cell) | 304Ah | ||
| Internal Resistance | Full Charged Battery@ 25℃ | 0.4mΩ | |
| Ambient Temperature | Discharge | -25℃~60℃ | |
| Charge | -25℃~60℃ | ||
| Storage | -25℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 700A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 102% | |
| 25℃ | 100% | ||
| 0℃ | 90% | ||
| -15℃ | 70% | ||
| Self-Discharge@25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Maximum charging current | 150A | |
| Temperature compensation | 5mV/ºC | ||
| Float use | 2.23~2.27V | ||
| Cycle Use | 2.35~2.4V | ||
| Dimension (mm*mm*mm) | Length 301 * Width 175 * Height 332 (Total Height 341) | ||
| Weight (kg) | 37 | ||

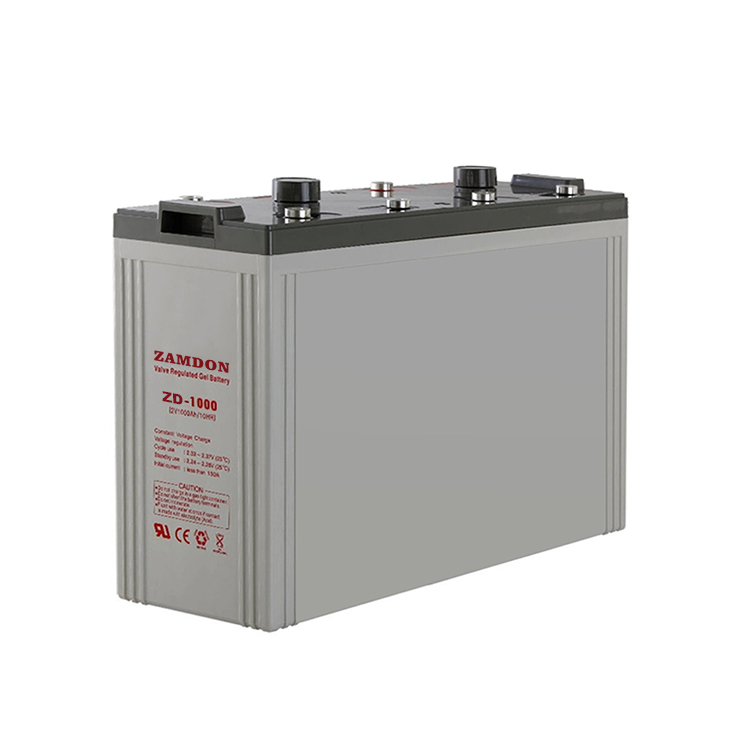

| Gel Batteries 2V 1000AH | |||
| Nominal Voltage | 2V(2 cells) | ||
| Design Floating Life @ 25℃ | 25 Years | ||
| Nominal Capacity @ 25℃ | 10 hour rate (0.1C, 1.80V/cell) | 1000Ah | |
| Capacity @ 25℃ | 3 hour rate (0.25C, 1.75V/cell) | 738Ah | |
| 1 hour rate (0.55C, 1.60V/cell) | 508Ah | ||
| Internal Resistance | Full Charged Battery@ 25℃ | 0.32mΩ | |
| Ambient Temperature | Discharge | -25℃~60℃ | |
| Charge | -25℃~60℃ | ||
| Storage | -25℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 1800A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 102% | |
| 25℃ | 100% | ||
| 0℃ | 90% | ||
| -15℃ | 70% | ||
| Self-Discharge@25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Maximum charging current | 250A | |
| Temperature compensation | 5mV/ºC | ||
| Float use | 2.23~2.27V | ||
| Cycle Use | 2.35~2.4V | ||
| Dimension (mm*mm*mm) | Length 480 * Width 175 * Height 332 (Total Height 341) | ||
| Weight (kg) | 59 | ||

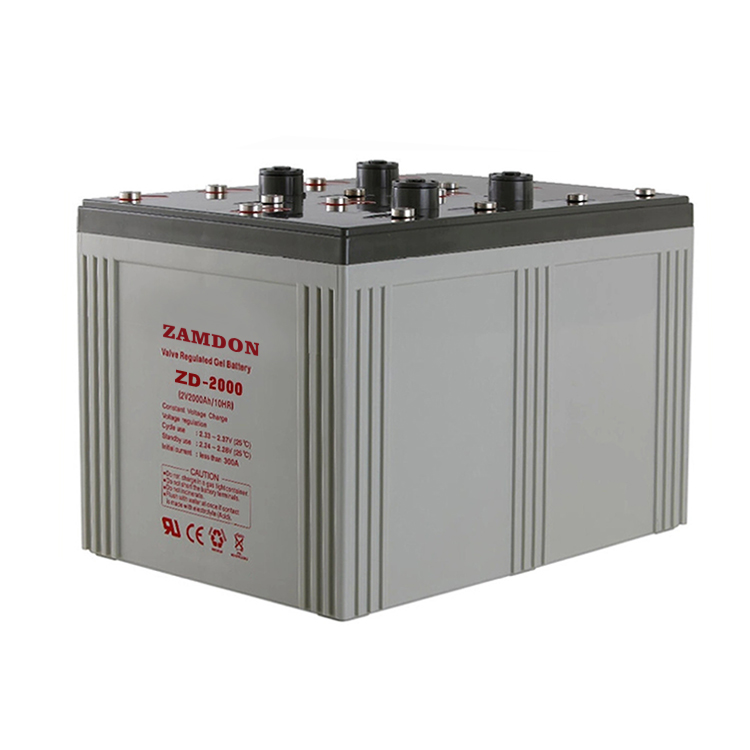

| Gel Batteries 2V 2000AH | |||
| Nominal Voltage | 2V(2 cells) | ||
| Design Floating Life @ 25℃ | 25 Years | ||
| Nominal Capacity @ 25℃ | 10 hour rate (0.1C, 1.80V/cell) | 2000Ah | |
| Capacity @ 25℃ | 3 hour rate (0.25C, 1.75V/cell) | 1476Ah | |
| 1 hour rate (0.55C, 1.60V/cell) | 1016Ah | ||
| Internal Resistance | Full Charged Battery@ 25℃ | 0.32mΩ | |
| Ambient Temperature | Discharge | -25℃~60℃ | |
| Charge | -25℃~60℃ | ||
| Storage | -25℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 1800A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 102% | |
| 25℃ | 100% | ||
| 0℃ | 90% | ||
| -15℃ | 70% | ||
| Self-Discharge@25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Maximum charging current | 500A | |
| Temperature compensation | 5mV/ºC | ||
| Float use | 2.23~2.27V | ||
| Cycle Use | 2.35~2.4V | ||
| Dimension (mm*mm*mm) | Length 490 * Width 353 * Height 343 (Total Height 353) | ||
| Weight (kg) | 125 | ||

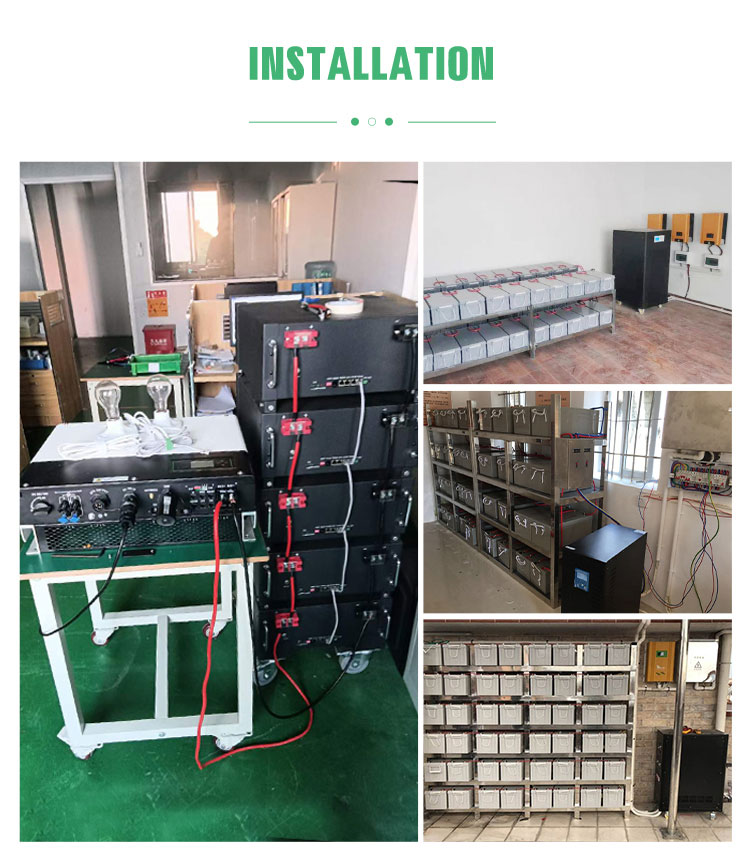

■ Solar Gel Batteries Application
gel batteries application: marine gel batteries, solar gel batteries
■ About Zamdon - Batteries Manufacturer in China
■ FAQ
Q1. Which is better, gel batteries or lead acid batteries?
A: Gel batteries have a higher score because of low electrode wear, and gel batteries\' service life is longer than that of traditional lead acid batteries.
Q2. Which is better, gel batteries or lithium batteries?
A: Gel batteries are the best choice for testing or low-cost solar projects. Lithium batteries are suitable for long-term solar installation and help avoid frequent replacement.
Q3. How to confirm the high quality of the batteries you sent me?
A: Our batteries are all grade A, No matter how many you order, we will test each product before sending out.
Q4. How about your solar gel batteries delivery time?
A: 3-20 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can the batteries be used on marine?
A: Yes. The batteries can be used in various occasions.
Q6. Is it OK to print my logo on the batteries?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
