Solar power system includes everything for a complete installation: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, cables and other terminals. 8KW solar system DC96V to AC110V/120V/220V/230V/240V optional, and has 42960Wh energy storage every day.
Product
Choose XINDUN off grid solar power system, you can get the following convenience:
· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, hybrid solar inverter, all duties to one company.
· Factory wholesales best solar power system for home at low price.
■ Solar Power System Description

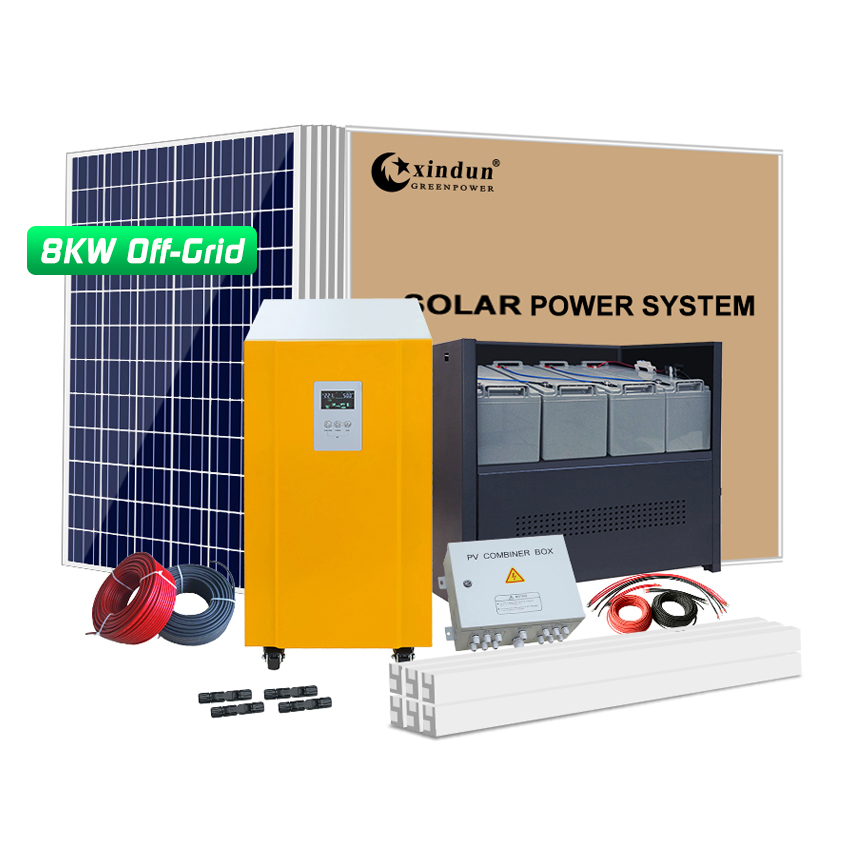

Xindun off grid solar power system is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, PV combiner box, solar battery, solar inverter, solar charge controller, pv cables, battery cables and other terminals. After the simple installation is complete, it can be directly used for household appliances.
Each set off grid solar power system has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.
Xindun off grid solar power system range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. This page introduces the best solar power system 8kw, which can be used for house ac loads with total power not exeed 8000w.
■ Solar Power System Configuration
| SESS802W 8KW Solar Power System Configuration | |||||
| Brand | Xindun | Model No. | SESS802W | Inverter Rated Power(W) | 8000 |
| Maximum Load(W) | 8000 | Batter Capacity(AH) | 1600 | Solar Panel Power(W) | 3960 |
| Product No. | SESS802W | Certification | CE | Sunshine Duration | 6 |
| Output Voltage (Optional) |
220V | Frequency (Optional) |
50Hz/60Hz | PV daily generating capacity（Wh） | 23760 |
| Actual Load（KW) | 8 | Actual Load day(s) | 1 | Actual Load time(hours) | 2.9 |
| G.W. | 1322 | Volume | 2.95 | 20GP Loading Quantity | Contact Xindun |
| N.W. | Contact Xindun | DC Voltage(VDC) | 96 | Customized or not | YES |
| Configuration Details | |||
| Product Name | Specifications | Quantity | Remark |
| Solar Panel | Polycrystalline 330W | 12 | 4pcs in series,3groups in parallel |
| Solar inverter | 96VDC 8KW | 1 | WD-T80296-W50 |
| Solar Charge Controller | 96VDC 50A | 1 | MPPT built-in solar inverter |
| Lead acid battery | 12V200AH | 8 | 8pcs in series |
| Battery connecting cable | 25mm² 60CM | 7 | connection between batteries |
| solar panel mounting bracket | Aluminum | 1 | Simple type |
| PV combiner | 3in1out | 1 | 500VDC |
| Lightning protection distribution box | without | 0 | |
| battery collecting box | 200AH*8 | 1 | |
| M4 plug (male and female) | 9 | 9 pairs 1 in 1 out | |
| PV Cable | 4mm² | 100 | PV Panel to PV combiner |
| PV Cable | 10mm² | 100 | PV combiner to Solar inverter |
| Battery cable | 16mm² | 11 | Solar Charge Controller to battery and PV combiner to Solar Charge Controller |
| Package | wooden case | 1 | |
| Electrical Load Reference List | ||||
| Electrical Appliance | Rated Power(pcs) | Quantity(pcs) | Working Hours | Total |
| LED bulbs | 20W | 10 | 8Hours | 1600Wh |
| Mobile phone charger | 10W | 4 | 5Hours | 200Wh |
| Fan | 60W | 3 | 6Hours | 1080Wh |
| TV | 50W | 1 | 8Hours | 400Wh |
| Satellite dish receiver | 50W | 1 | 8Hours | 400Wh |
| Computer | 200W | 1 | 8Hours | 1600Wh |
| Water pump | 600W | 1 | 1Hours | 600Wh |
| Washing machine | 300W | 1 | 1Hours | 300Wh |
| AC | 2P/1600W | 1 | 8Hours | 10000Wh |
| Microwave oven | 1000W | without | ||
| Printer | 30W | 1 | 1Hours | 30Wh |
| A4 copier (printing and copying combined) | 1500W | 1 | 1Hours | 1500Wh |
| Fax | 150W | 1 | 1Hours | 150Wh |
| Induction cooker | 2500W | without | ||
| Refrigerator | 200W | 1 | 24Hours | 1500Wh |
| Water heater | 2000W | 1 | 1Hours | 2000Wh |
| Total | 21360Wh | |||

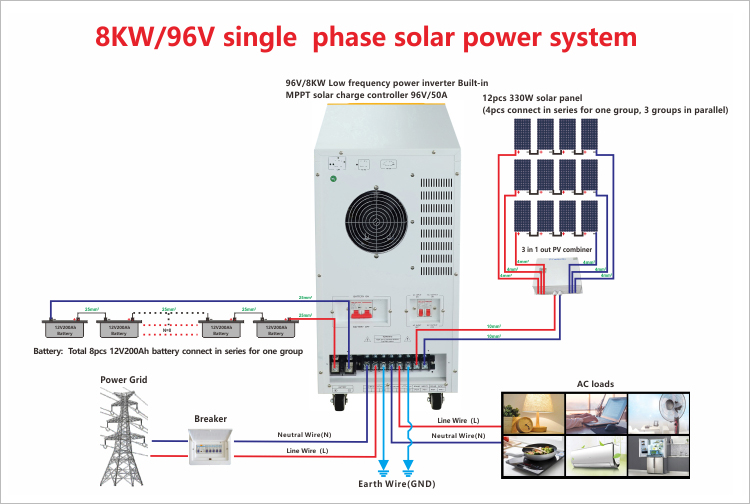

■ Solar Power System Wiring Diagram
Contact XINDUN for more high-definition wiring diagram.
■ Solar Power System Parts List
 |

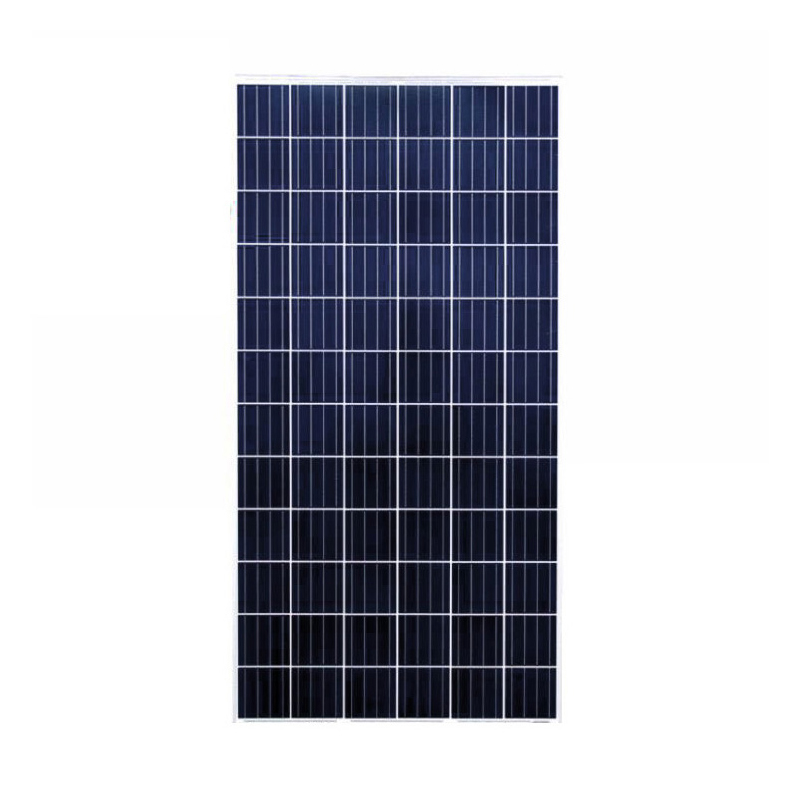

Solar panel: 1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass. 2. Frame: Anodized Aluminium Alloy. 3. Warranty: 25-years performance warranty. 12-years warranty on materials and workmanship. |

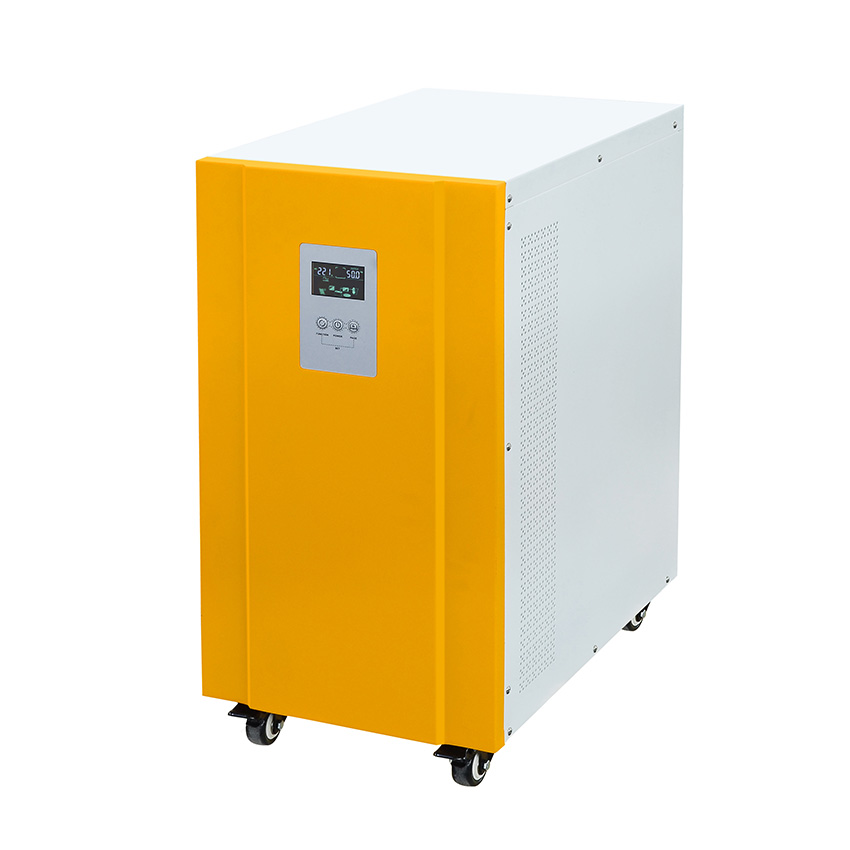

| Hybrid solar inverter: 1. 8KW hybrid solar inverter with built-in 96V/50A MPPT solar controller. 2. Low frequency pure sine wave output . 3. 3 times peak power, excellent loading capability. 4. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery.5. Automatic AC charger and AC mains switcher, switch time ≤ 4ms. 6. AC charging current 0-20A selectable. |
 |
 |

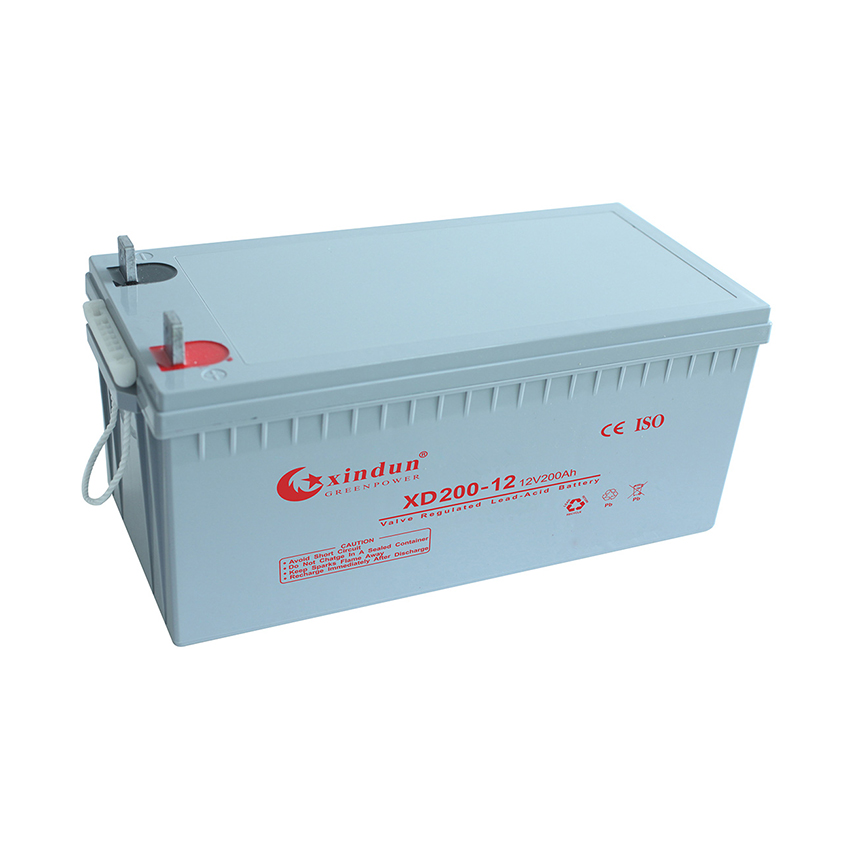

Battery and battery collecting box: 1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery. 2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range. 3. The deep discharge cycle life is increased 50% compared with the GP series battery. 4. Battery collecting box not only makes the batteries collection and sorting more neat, but also plays a protective role |
| Solar bracket: Description of Mounting 1. Aluminum Alloy 6005-T5. 2. Fasteners Material SUS304. 3. Easy Installation. 4. Can Be used in different forms，Tin Roofs，Flat Roofs. 5. The installation angle can be adjusted according to the demand. 6. 10 Years Warranty, Over 25 Years Service Life. |
 |
 |

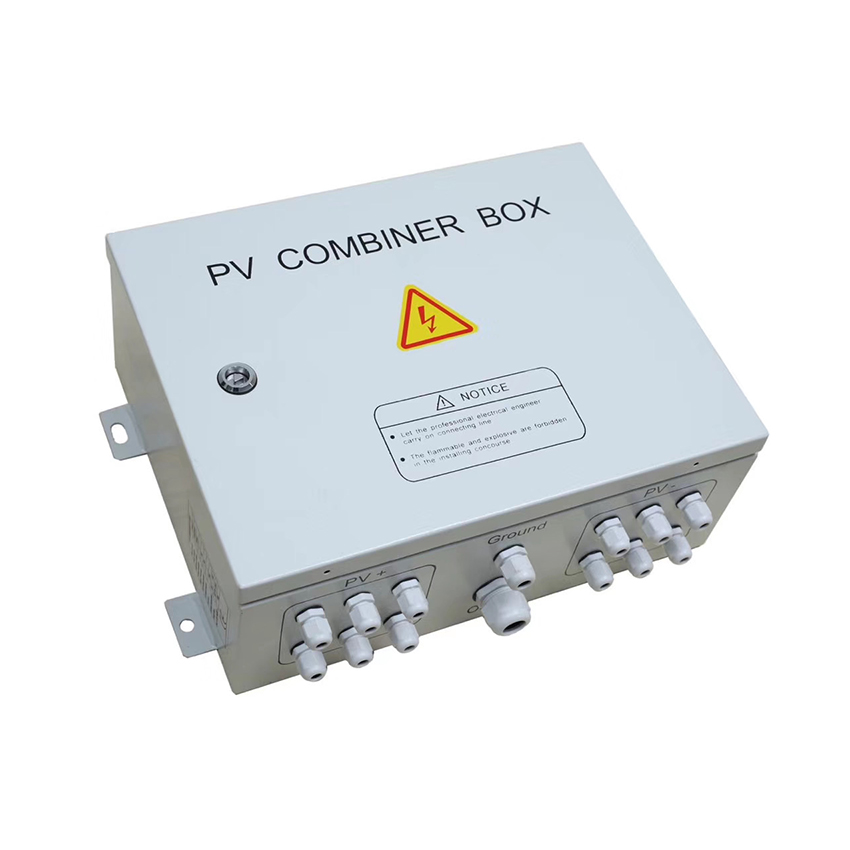

PV combiner box: 1. Multiple PV strings inputs. 2. Simplify wiring between solar panel and solar charge controller, protections to solar controller.3. Wide range of DC input voltage. 4. Reliable thunderstorm & surge protection. |
|
Cables and parts: 1. 4mm2 PV cable 100m, 10mm2 PV cable 100m. PV cable is a special type of cable used in solar power system. It has the characteristics of high temperature resistance and friction resistance, and has a long service life. 2. 25mm2 60cm Battery cable 7pcs (connection between batteries). 3. 16mm2 Battery cable 11pcs (connection "PV combiner box to solar charge controller" and "solar charge controller to batteries").
4. Terminals and 9 pairs MC4 plug. |
|
■ Solar Power System in Real Production
■ Solar Power System Application
12kw off grid solar power system in Malaysia:
15kw off grid solar power system in china:
20kw off grid solar power system in Burkina Faso:
30kw off grid solar power system in Australia:
Xindun best solar power systems have been sold to more than 100 countries, such as Nigeria, Ghana, Botswana, Zimbabwe, South Africa, Egypt, Dubai, United Arab Emirates, Lebanon, Indonesia, Malaysia, Philippines, Columbia, Mexico etc. Off grid solar power system have been widely used for solar home house, solar camping, rv, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project, hilltop, ship, etc.
■ About Xindun Power
■ Solar Power System Factory
■ Qualifications and Certificates
■ Global Solar Exhibitions
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 10k square meters production area. We focus on solar power system solution, inverters, solar charge controllers, solar generators and UPS power supply. We cooperate with some famous brands all over the world, can provide OEM/ODM production.
Q2: Is the home solar power system solution always the same? Can I customize one?
A: We have professional teams making solar solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So each set home solar power system may have different configuration. We\'d be happy to customize for you, contact XINDUN to know more details.
Q3: What is the price of home solar power system?
A: Tell me your requirements, such as power generation demand, configuration, and whether there are other functional requirements. We will give you the most favorable ex factory price. home solar power system factory direct sales, no middlemen earn price difference.
Q4: What is the lifetime of the home solar power system?
A: Solar panel’s lifetime are 20 years, solar inverters 3~5 years, solar charge controllers 3~5 years, batteries 1~3 years.
Q5: What services can XINDUN provide?
A: We will provide home solar power system free site survey, design, production, installation guide, maintenance of one-stop service, value added services: market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
