Solar System Solution
Where and how to buy cheapest solar system for home? Contact Xindun to get the purchase process and cheapest price of full solar system for home. We worldwide wholesale complete hybrid solar system.
SESS 30KW Hybrid Solar System for Home Electricity
SESS 30KW Hybrid Solar System for Home Electricity
SESS 30KW Hybrid Solar System for Home Electricity
SESS 30KW Hybrid Solar System for Home Electricity
SESS 30KW Hybrid Solar System for Home Electricity
SESS 30KW Hybrid Solar System for Home Electricity
SESS 30KW Hybrid Solar System for Home Electricity

SESS 30KW Hybrid Solar System for Home Electricity

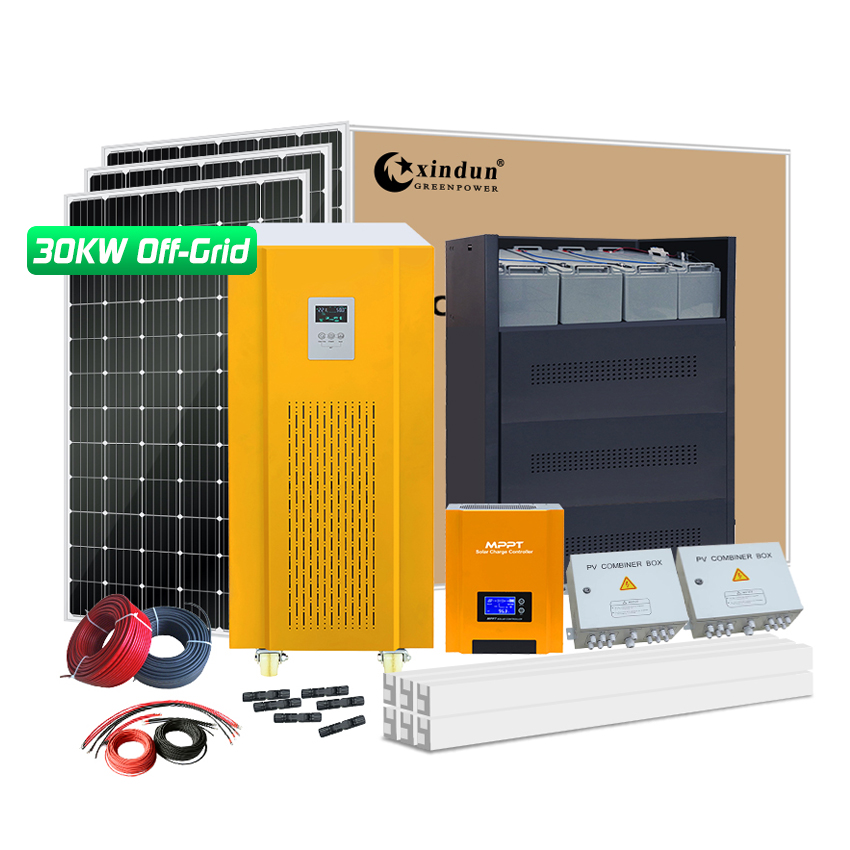

Full hybrid solar system includes everything for a complete installation: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, cables and other terminals. 30KW solar system DC240V to AC110V/120V/220V/230V/240V optional, and has 202920Wh energy storage every day.

  • Type : Hybrid Solar System
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Yes

buy XINDUN full solar system for home electricity, get one-stop solar solution

Buy XINDUN solar system for home electricity, you can get the following convenience:

· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, hybrid solar inverter, all duties to one company.

· Factory wholesales cheapest solar system for home at cheap price.





buy XINDUN full solar system for home electricity - Power your home 24hx7days





Hybrid Solar System Description






Xindun full hybrid solar system for home is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, PV combiner box, solar battery, solar inverter, solar charge controller, pv cables, battery cables and other terminals. After the simple installation is complete, it can be directly used for residential appliances.

Each set hybrid solar system for home has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.

Xindun hybrid solar system range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. This page introduces the 30kw solar system, which can be used for home electricity with total power not exeed 30kw.





30KW Hybrid Solar System Configuration








SESS303W 30KW Solar System Configuration
Brand Xindun Model No. SESS303W Inverter Rated PowerKW) 30
Maximum Load(KW) 30 Batter Capacity(AH) 8000 Solar Panel Power(W) 17820
Product No. SESS303W Certification CE Sunshine Duration 6
Output Voltage
(Optional)
220V Frequency
(Optional)
50Hz/60Hz PV daily generating capacityWh 106920
Actual LoadKW) 30 Actual Load day(s) 1 Actual Load time(hours) 3.5
G.W. Contact Xindun Volume Contact Xindun 20GP Loading Quantity Contact Xindun
N.W. Contact Xindun DC Voltage(VDC) 240 Customized or not YES



Configuration Details
Product Name Specifications Quantity Remark
Solar Panel Polycrystalline 330W 54 9pcs in series,6groups in parallel
Solar inverter 240VDC 30KW 1 WD-303240
Solar Charge Controller 240VDC 100A 1 MPPT Solar Charge Controller
Lead acid battery 12V200AH 40 20psc in series,2groups in parallel
Battery connecting cable 25mm² 24 connection between batteries
solar panel mounting bracket Aluminum 5 25 degree to the ground
PV combiner 3in1out 2
Lightning protection distribution box without 0
battery collecting box 200AH*20 2
M4 plug (male and female)   48 48 pairs 1 in 1 out
PV Cable 4mm² 200 PV Panel to PV combiner
PV Cable 10mm² 200 PV combiner to MPPT
Battery cable 25mm² 10m/pcs 41 Solar Charge Controller to battery and PV combiner to Solar Charge Controller
Package wooden case 1



Electrical Load Reference List
Electrical Appliance Rated Power(pcs) Quantity(pcs) Working Hours Total
LED bulbs 20W 15 8Hours 2400Wh
Mobile phone charger 10W 5 5Hours 250Wh
Fan 60W 5 10Hours 3000Wh
TV 50W 2 8Hours 800Wh
Satellite dish receiver 50W 2 8Hours 800Wh
Computer 200W 2 8Hours 3200Wh
Water pump 600W 1 2Hours 1200Wh
Washing machine 300W 1 2Hours 600Wh
AC 2P/1600W 3 10Hours 37500Wh
Microwave oven 1000W 1 2Hours 2000Wh
Printer 30W 1 1Hours 30Wh
A4 copier (printing and copying combined) 1500W 1 1Hours 1500Wh
Fax 150W 1 1Hours 150Wh
Induction cooker 2500W 1 2Hours 4000Wh
Rice Cooker 1000W 1 2Hours 2000Wh
Refrigerator 200W 1 24Hours 1500Wh
Water heater 2000W 1 3Hours 6000Wh
      Total 66930W

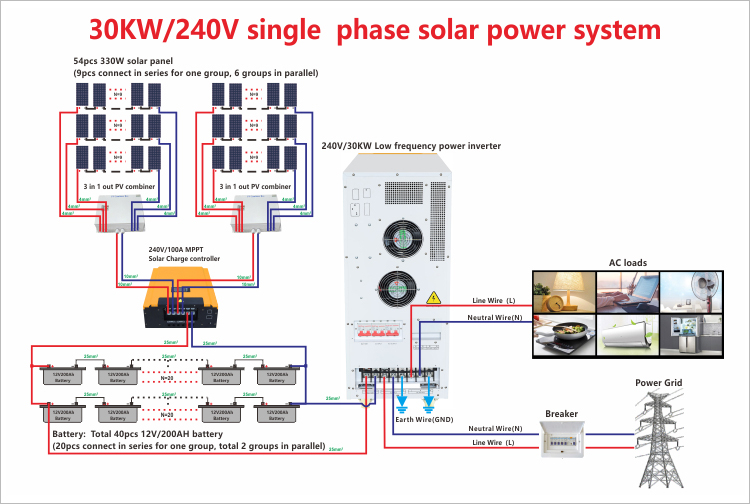

30KW Hybrid Solar System Wiring Diagram




full solar system for home electricity wiring diagram



full solar system for home electricity wiring diagram



Contact XINDUN for more high-definition wiring diagram.





30KW Hybrid Solar System Parts List






Solar panel:
1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass.
2. Frame: Anodized Aluminium Alloy.
3. Warranty:
25-years performance warranty.

12-years warranty on materials and workmanship.

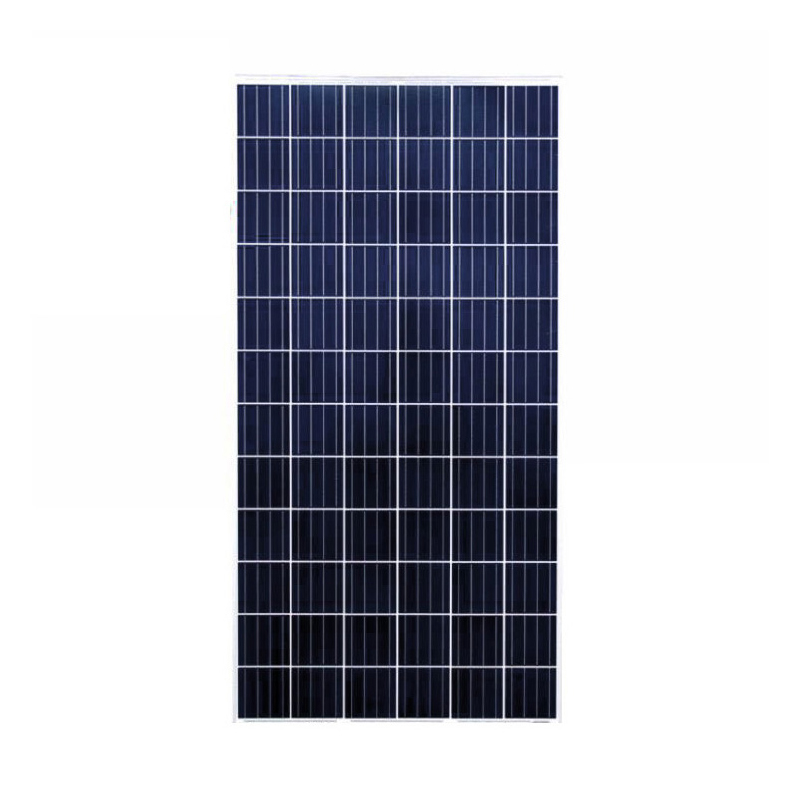

Polycrystalline solar panel for full solar system for home electricity

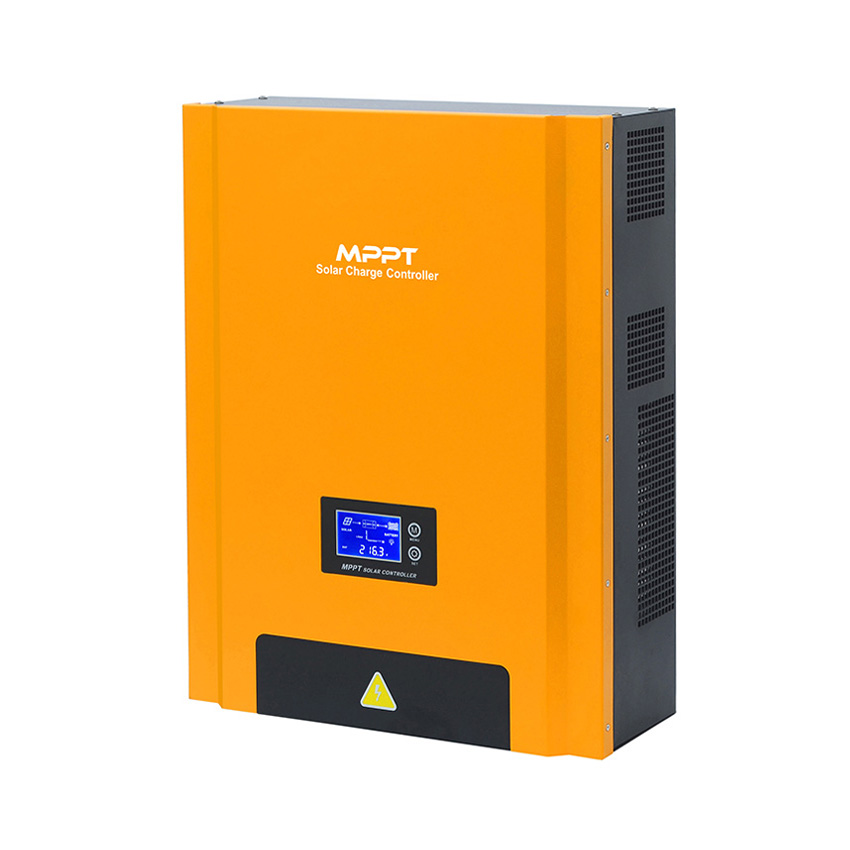

240V/100A MPPT solar charge controller for full solar system for home electricity MPPT Solar Charge Controller:
1. 240V/100A MPPT solar charge controller.
2. Advanced MPPT tracking, 99% tracking efficiency. Compared with PWM, the generating efficiency increase near 20%.
3. LCD display PV data and chart simulates power generation process.
Hybrid solar inverter:
1. 30KW hybrid solar inverter.
2. Low frequency pure sine wave output .

3. 3 times peak power, excellent loading capability.

4. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery.

5. Automatic AC charger and AC mains switcher, switch time ≤ 4ms.

6. AC charging current 0-20A selectable.

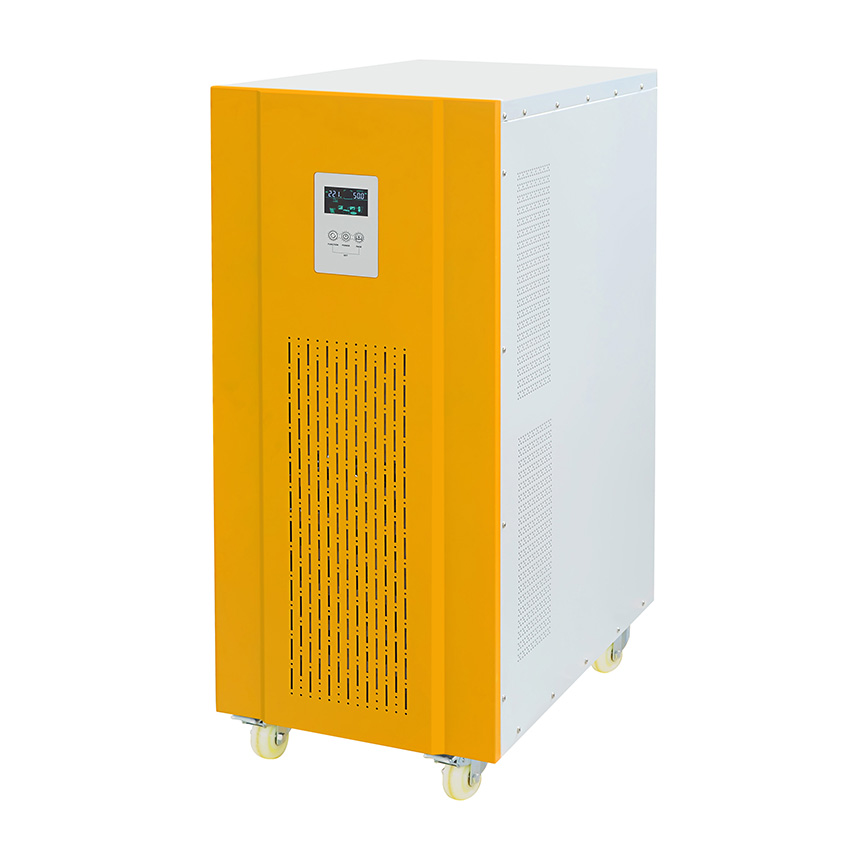

hybrid solar inverter for full solar system for home electricity

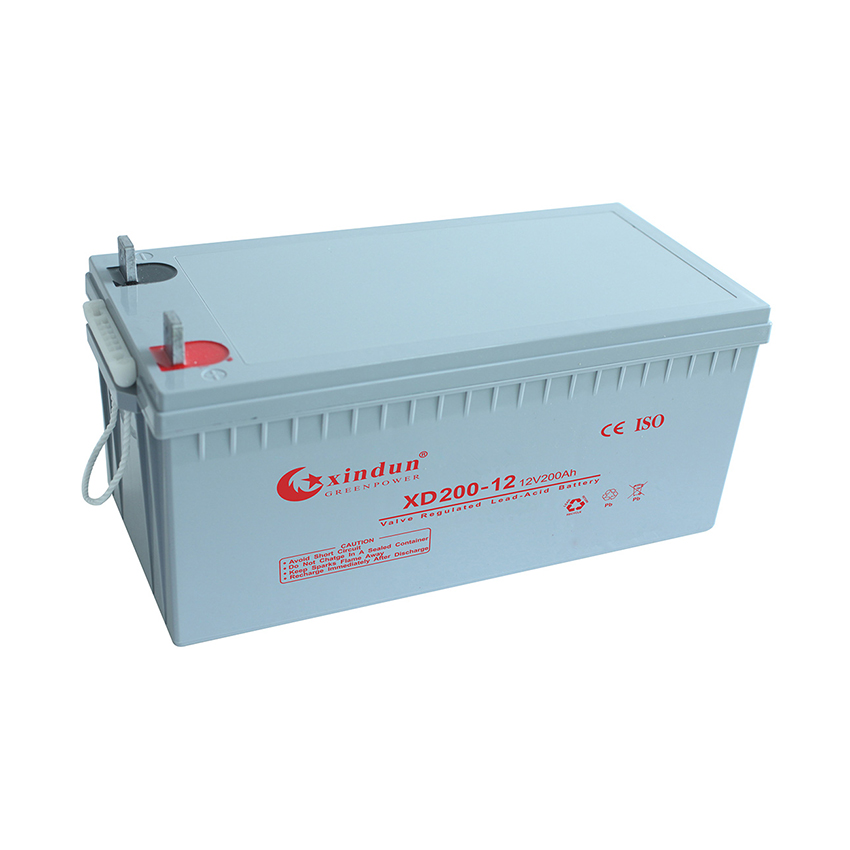

Battery for full solar system for home electricity Battery and battery collecting box:
1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery.
2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range.

3. The deep discharge cycle life is increased 50% compared with the GP series battery.

4. Battery collecting box not only makes the batteries collection and sorting more neat, but also plays a protective role

Solar bracket:
Description of Mounting
1. Aluminum Alloy 6005-T5.
2. Fasteners Material SUS304.
3. Easy Installation.
4. Can Be used in different forms,Tin Roofs,Flat Roofs.
5. The installation angle can be adjusted according to the demand.
6. 10 Years Warranty, Over 25 Years Service Life.
solar bracket for full solar system for home electricity

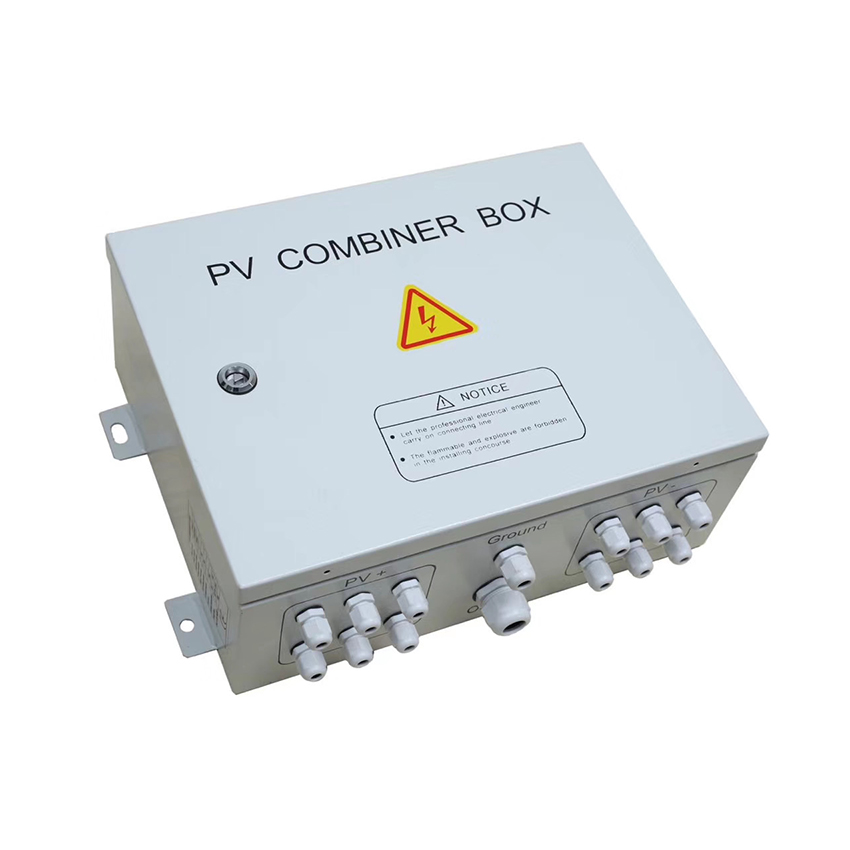

PV combiner box for full solar system for home electricity

PV combiner box:

1. Multiple PV strings inputs.

2. Simplify wiring between solar panel and solar charge controller, protections to solar controller.
3. Wide range of DC input voltage.
4. Reliable thunderstorm & surge protection.

Cables and parts:

1. 4mm2 PV cable 200m, 10mm2 PV cable 200m. PV cable is a special type of cable used in solar power system. It has the characteristics of high temperature resistance and friction resistance, and has a long service life.

2. 25mm2 Battery cable 24pcs (connection between batteries).

3. 25mm2 10m Battery cable 41pcs (connection "PV combiner box to solar charge controller" and "solar charge controller to batteries").

4. Terminals and 48 pairs MC4 plug.

Cables and parts for full solar system for home electricity







Hybrid Solar System in Real Production






complete solar system for home use in real production





Hybrid Solar System Application






12kw hybrid solar system in Malaysia:

12kw hybrid solar system in Malaysia



15kw hybrid solar system in China:

15kw hybrid solar system in china



20kw hybrid solar system in Burkina Faso:

20kw hybrid solar system in Burkina Faso



30kw hybrid solar system in Australia:

30kw hybrid solar system in Australia



Xindun full hybrid solar systems for homes have been sold to more than 100 countries, such as Nigeria, Ghana, Egypt, Botswana, Zimbabwe, South Africa, Dubai, United Arab Emirates, Lebanon, Indonesia, Malaysia, Philippines, Columbia, Mexico etc. 30kw solar systems have been widely used for solar home electricity, solar camping, rv, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project, hilltop, ship, etc.





About Xindun Power






About XINDUN - complete solar system for home use company

About XINDUN - complete solar system for home use company introduction







Hybrid Solar System Factory






XINDUN - complete solar system for home use factory





Qualifications and Certificates






Xindun qualifications and certificates





Global Solar Exhibitions






Xindun global solar exhibitons





FAQ






Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 10k square meters production area. We focus on complete solar system solution, inverters, solar charge controllers, solar generators and UPS power supply. We cooperate with some famous brands all over the world, can provide OEM/ODM production.

Q2: Is the home solar system solution always the same? Can I customize one?
A: We have professional teams making solar solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So each set home solar system may have different configuration. We\'d be happy to customize for you, contact XINDUN to know more details.

Q3: What is the price of home solar system?
A: Tell me your requirements, such as power generation demand, configuration, and whether there are other functional requirements. We will give you the most favorable ex factory price. home solar system factory direct sales, no middlemen earn price difference.

Q4: What is the lifetime of the home solar system?
A: Solar panel’s lifetime are 20 years, solar inverters 3~5 years, solar charge controllers 3~5 years, batteries 1~3 years.

Q5: What services can XINDUN provide?
A: We will provide home solar system free site survey, design, production, installation guide, maintenance of one-stop service, value added services: market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
