Off grid solar system includes everything for a complete installation: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, cables and other terminals. 10KW off grid solar system DC96V to AC110V/120V/220V/230V/240V optional, and has 46560Wh energy storage every day.
Product
Choose XINDUN complete off grid solar system, you can get the following convenience:
· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, hybrid solar inverter, all duties to one company.
· Factory wholesales complete off gird solar systems at low price.
■ Off Grid Solar System Description

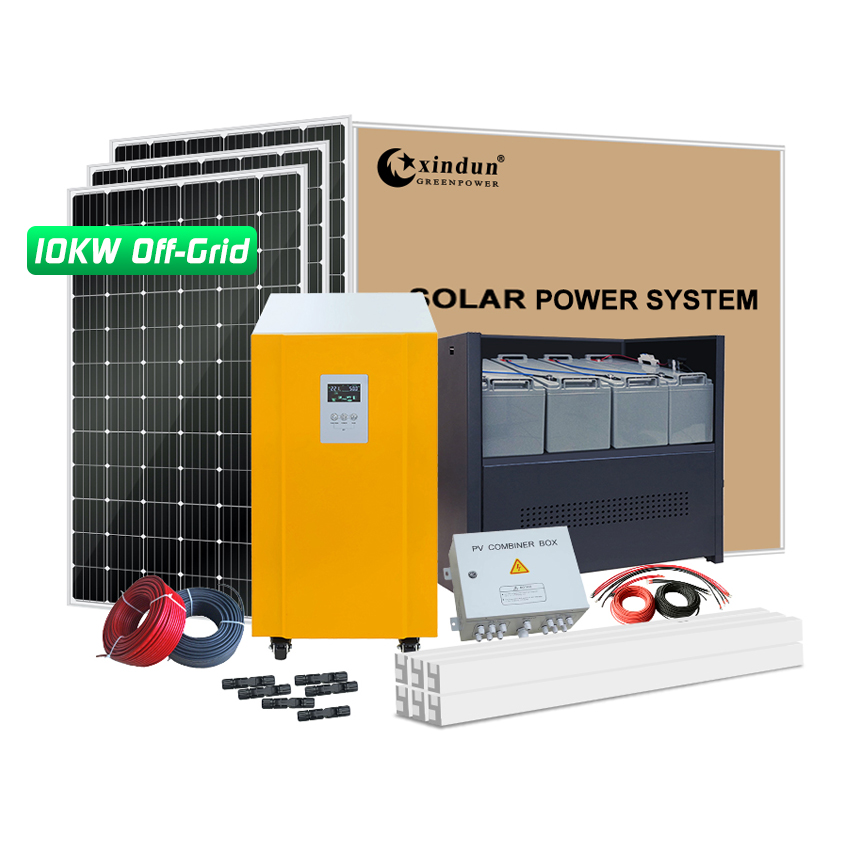

Xindun off grid solar system is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, PV combiner box, solar battery, solar inverter, solar charge controller, pv cables, battery cables and other terminals. After the simple installation is complete, it can be directly used for household appliances.
Each set complete off grid solar system has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.
Xindun complete off grid solar system range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. This page introduces the 10kw off grid solar system, which can be used for ac loads with total power not exeed 10kw.
■ Off Grid Solar System Configuration
| SESS103W 10KW Off Grid Solar System Configuration | |||||
| Brand | Xindun | Model No. | SESS103W | Inverter Rated Power(KW) | 10 |
| Maximum Load(KW) | 10 | Batter Capacity(AH) | 1600 | Solar Panel Power(W) | 4560 |
| Product No. | SESS103W | Certification | CE | Sunshine Duration | 6 |
| Output Voltage (Optional) |
220V | Frequency (Optional) |
50Hz/60Hz | PV daily generating capacity（Wh） | 27360 |
| Actual Load（KW) | 10 | Actual Load day(s) | 1 | Actual Load time(hours) | 2.7 |
| G.W. | 1326 | Volume | 2.95 | 20GP Loading Quantity | Contact Xindun |
| N.W. | Contact Xindun | DC Voltage(VDC) | 96 | Customized or not | YES |
| Configuration Details | |||
| Product Name | Specifications | Quantity | Remark |
| Solar Panel | Monocrystalline 390W | 12 | 4pcs in series,3groups in parallel |
| Solar inverter | 96VDC 10KW | 1 | WD-T10396-W50 |
| Solar Charge Controller | 96VDC 50A | 1 | MPPT built-in solar inverter |
| Lead acid battery | 12V200AH | 8 | 8pcs in series |
| Battery connecting cable | 25mm² 60CM | 7 | connection between batteries |
| solar panel mounting bracket | Aluminum | 1 | Simple type |
| PV combiner | 3in1out | 1 | 500VDC |
| Lightning protection distribution box | without | 0 | |
| battery collecting box | 200AH*8 | 1 | |
| M4 plug (male and female) | 9 | 9 pairs 1 in 1 out | |
| PV Cable | 4mm² | 100 | PV Panel to PV combiner |
| PV Cable | 10mm² | 100 | PV combiner to Solar inverter |
| Battery cable | 25mm² | 10 | Solar Charge Controller to battery and PV combiner to Solar Charge Controller |
| Package | wooden case | 1 | |
| Electrical Load Reference List | ||||
| Electrical Appliance | Rated Power(pcs) | Quantity(pcs) | Working Hours | Total |
| LED bulbs | 20W | 10 | 8Hours | 1600Wh |
| Mobile phone charger | 10W | 4 | 5Hours | 200Wh |
| Fan | 60W | 3 | 6Hours | 1080Wh |
| TV | 50W | 1 | 8Hours | 400Wh |
| Satellite dish receiver | 50W | 1 | 8Hours | 400Wh |
| Computer | 200W | 1 | 8Hours | 1600Wh |
| Water pump | 600W | 1 | 1Hours | 600Wh |
| Washing machine | 300W | 1 | 1Hours | 300Wh |
| AC | 2P/1600W | 1 | 8Hours | 10000Wh |
| Microwave oven | 1000W | 1 | 1Hours | 1000Wh |
| Printer | 30W | 1 | 1Hours | 30Wh |
| A4 copier (printing and copying combined) | 1500W | 1 | 1Hours | 1500Wh |
| Fax | 150W | 1 | 1Hours | 150Wh |
| Induction cooker | 2500W | 1 | 1Hours | 2000Wh |
| Refrigerator | 200W | 1 | 24Hours | 1500Wh |
| Water heater | 2000W | 1 | 1Hours | 2000Wh |
| Total | 24260Wh | |||
■ Off Grid Solar System Wiring Diagram

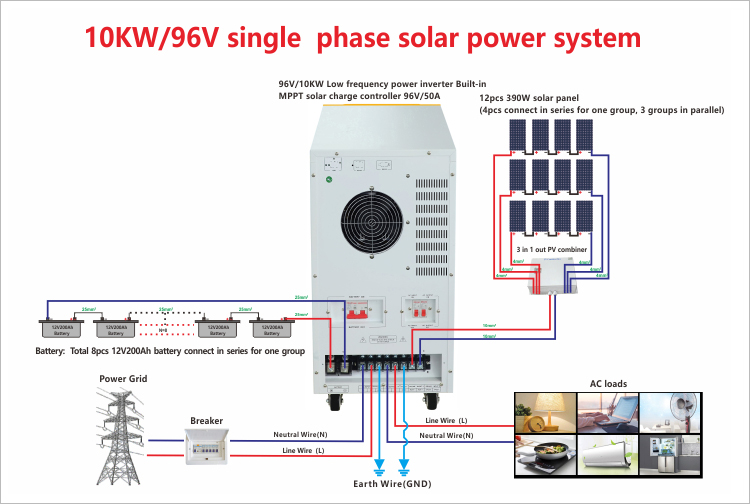

Contact XINDUN for more high-definition wiring diagram.
■ Off Grid Solar System Parts List
 |

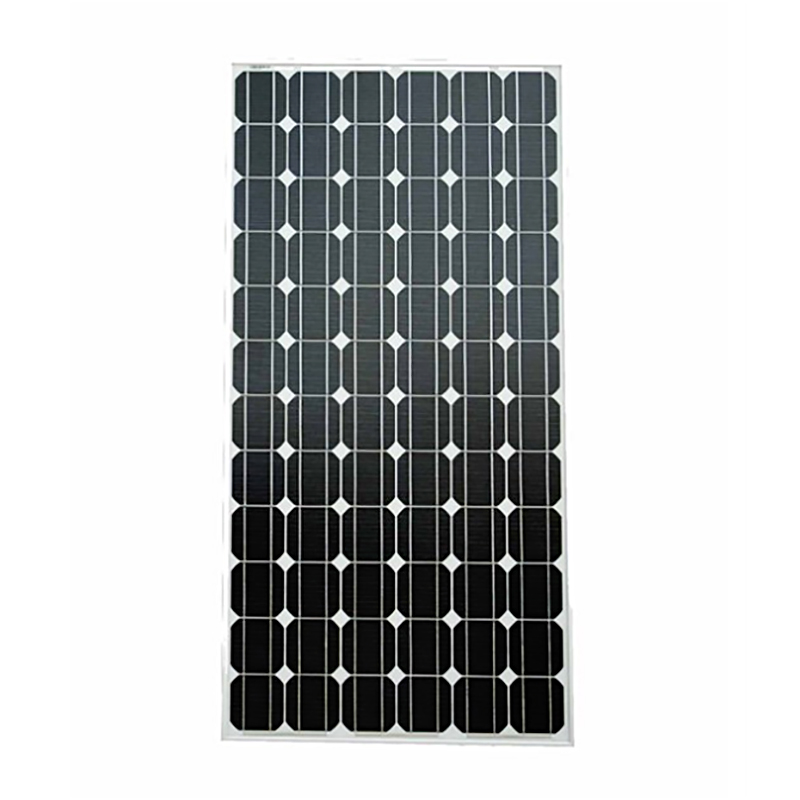

Mono Solar panel: 1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass. 2. Frame: Anodized Aluminium Alloy. 3. Warranty: 25-years performance warranty. 12-years warranty on materials and workmanship. |

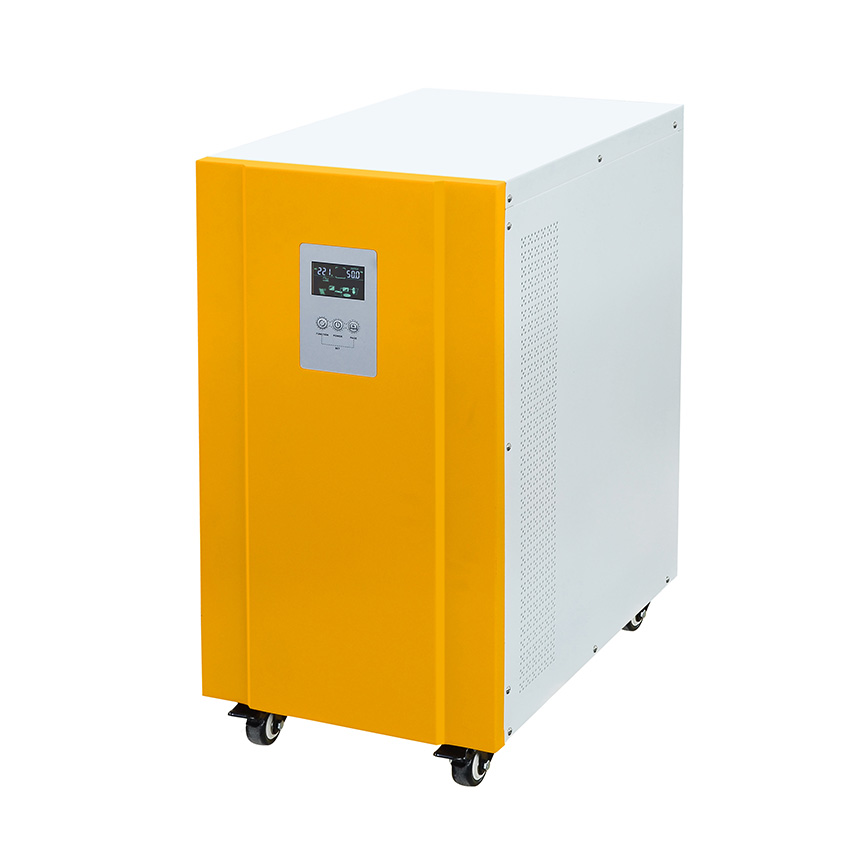

| Hybrid solar inverter: 1. 10KW hybrid solar inverter with built-in 96V/50A MPPT solar controller. 2. Low frequency pure sine wave output . 3. 3 times peak power, excellent loading capability. 4. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery.5. Automatic AC charger and AC mains switcher, switch time ≤ 4ms. 6. AC charging current 0-20A selectable. |
 |
 |

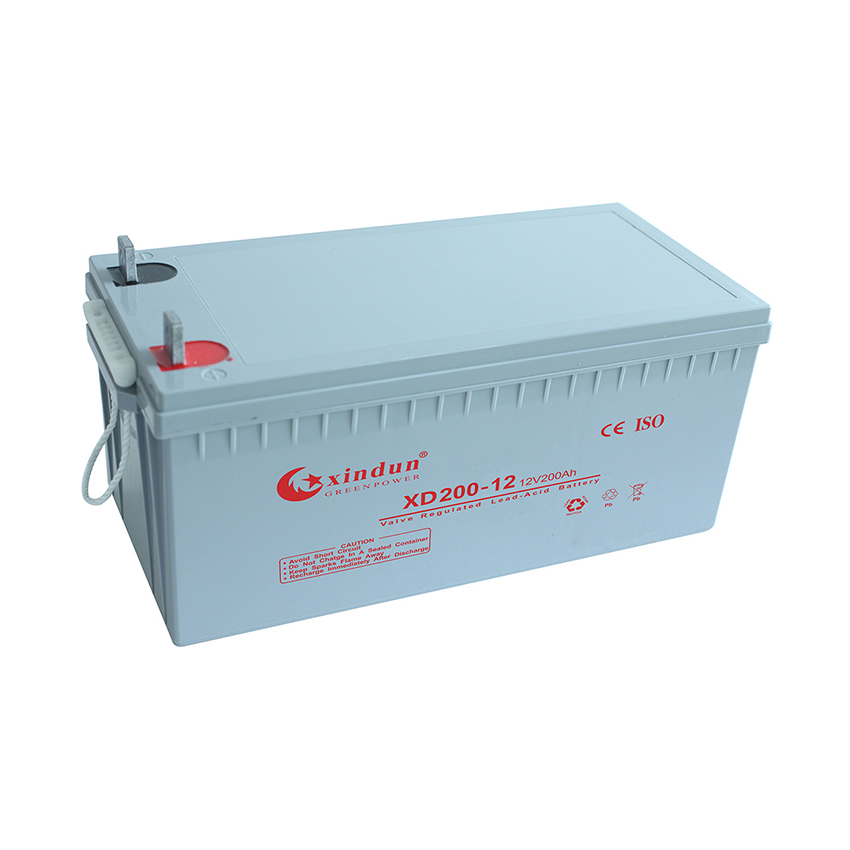

Battery and battery collecting box: 1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery. 2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range. 3. The deep discharge cycle life is increased 50% compared with the GP series battery. 4. Battery collecting box not only makes the batteries collection and sorting more neat, but also plays a protective role |
| Solar bracket: Description of Mounting 1. Aluminum Alloy 6005-T5. 2. Fasteners Material SUS304. 3. Easy Installation. 4. Can Be used in different forms，Tin Roofs，Flat Roofs. 5. The installation angle can be adjusted according to the demand. 6. 10 Years Warranty, Over 25 Years Service Life. |
 |
 |

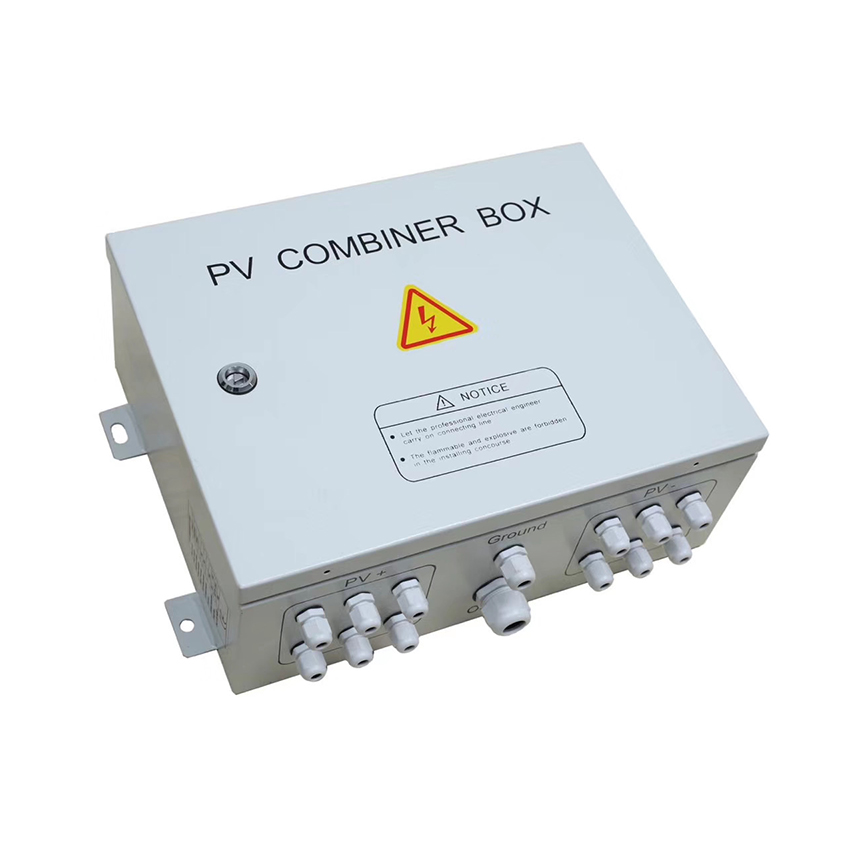

PV combiner box: 1. Multiple PV strings inputs. 2. Simplify wiring between solar panel and solar charge controller, protections to solar controller.3. Wide range of DC input voltage. 4. Reliable thunderstorm & surge protection. |
|
Cables and parts: 1. 4mm2 PV cable 100m, 10mm2 PV cable 100m. PV cable is a special type of cable used in solar power system. It has the characteristics of high temperature resistance and friction resistance, and has a long service life. 2. 25mm2 60cm Battery cable 7pcs (connection between batteries). 3. 25mm2 Battery cable 10pcs (connection "PV combiner box to solar charge controller" and "solar charge controller to batteries").
4. Terminals and 9 pairs MC4 plug. |
|
■ Off Grid Solar System in Real Production
■ Off Grid Solar System Application
12kw complete off grid solar system in Malaysia:
15kw complete off grid solar system in china:
20kw complete off grid solar system in Burkina Faso:
30kw complete off grid solar system in Australia:
Xindun complete off grid solar systems have been sold to more than 100 countries, such as Nigeria, Ghana, Botswana, Zimbabwe, South Africa, Egypt, Dubai, United Arab Emirates, Lebanon, Indonesia, Malaysia, Philippines, Columbia, Mexico etc. Off grid solar systems have been widely used for solar home house, solar camping, rv, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project, hilltop, ship, etc.
