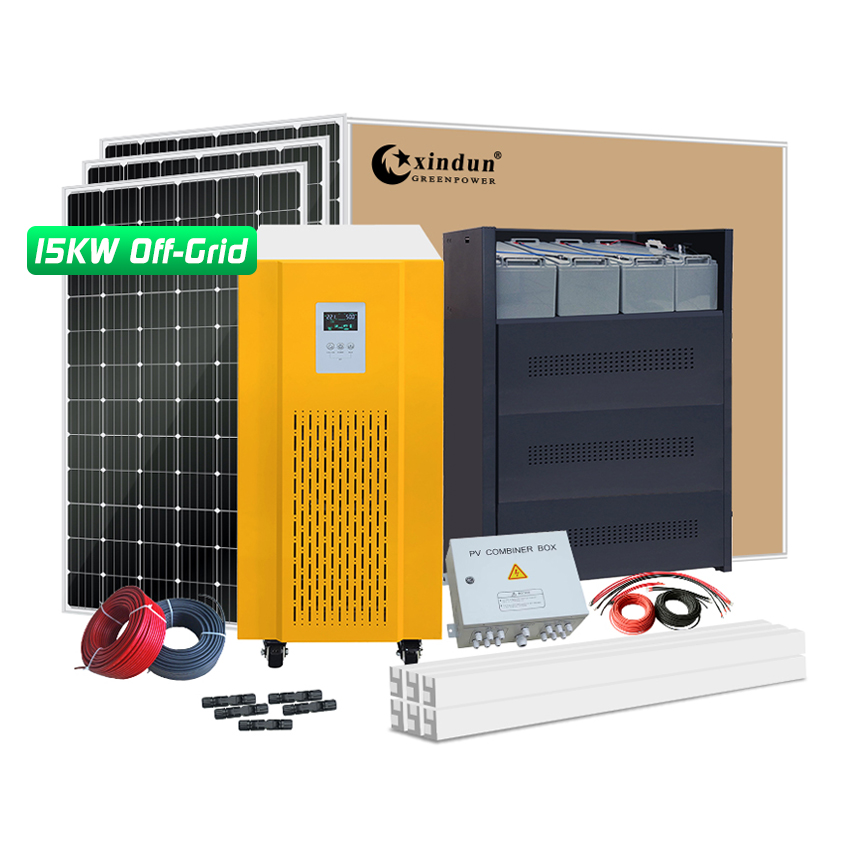

Off grid solar panel system includes everything for a complete installation: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, cables and other terminals. 15KW off grid solar system DC192V to AC110V/120V/220V/230V/240V optional, and has 93120Wh energy storage every day.
Product
Choose XINDUN best solar panel system for home house, you can get the following convenience:
· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, hybrid solar inverter, all duties to one company.
· Factory wholesales best solar panel system for home at low cost.
■ Off Grid Solar Panel System Description
Xindun off grid solar panel system is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, PV combiner box, solar battery, solar inverter, solar charge controller, pv cables, battery cables and other terminals. After the simple installation is complete, it can be directly used for house appliances.
Each set off grid solar panel system has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.
Xindun off grid solar panel system range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. This page introduces the 15kw solar system, which can be used for home ac loads with total power not exeed 15kw.
■ Off Grid Solar Panel System Configuration
| SESS153W 15KW Off Grid Solar Panel System Configuration | |||||
| Brand | Xindun | Model No. | SESS153W | Inverter Rated Power（KW) | 15 |
| Maximum Load(KW) | 15 | Batter Capacity（AH） | 3200 | Solar Panel Power(W) | 9360 |
| Product No. | SESS153W | Certification | CE | Sunshine Duration | 6 |
| Output Voltage (Optional) |
220V | Frequency (Optional) |
50Hz/60Hz | PV daily generating capacity（Wh） | 56160 |
| Actual Load（KW) | 15 | Actual Load day(s) | 1 | Actual Load time(hours) | 3.7 |
| G.W. | 2561 | Volume | 4.38 | 20GP Loading Quantity | Contact Xindun |
| N.W. | Contact Xindun | DC Voltage(VDC) | 192 | Customized or not | YES |
| Configuration Details | |||
| Product Name | Specifications | Quantity | Remark |
| Solar Panel | Monocrystalline 390W | 24 | 8pcs in series,3groups in parallel |
| Solar inverter | 192VDC 15KW | 1 | WD-T153192-W50 |
| Solar Charge Controller | 192VDC 50A | 1 | MPPT built-in solar inverter |
| Lead acid battery | 12V200AH | 16 | 16pcs in series |
| Battery connecting cable | 25mm² 60CM | 15 | connection between batteries |
| solar panel mounting bracket | Aluminum | 2 | Simple type |
| PV combiner | 3in1out | 1 | 500VDC |
| Lightning protection distribution box | without | 0 | |
| battery collecting box | 200AH*16 | 1 | 16pcs batteries inside one box |
| M4 plug (male and female) | 21 | 21 pairs 1 in 1 out | |
| PV Cable | 4mm² | 200 | PV Panel to PV combiner |
| PV Cable | 10mm² | 100 | PV combiner--Solar inverter |
| Battery cable | 25mm² 10m/pcs | 21 | Solar Charge Controller to battery and PV combiner to Solar Charge Controller |
| Package | wooden case | 1 | |
| Electrical Load Reference List | ||||
| Electrical Appliance | Rated Power(pcs) | Quantity(pcs) | Working Hours | Total |
| LED bulbs | 20W | 10 | 8Hours | 1600Wh |
| Mobile phone charger | 10W | 5 | 5Hours | 250Wh |
| Fan | 60W | 5 | 10Hours | 3000Wh |
| TV | 50W | 1 | 8Hours | 400Wh |
| Satellite dish receiver | 50W | 1 | 8Hours | 400Wh |
| Computer | 200W | 1 | 8Hours | 1600Wh |
| Water pump | 600W | 1 | 2Hours | 1200Wh |
| Washing machine | 300W | 1 | 1Hours | 300Wh |
| AC | 2P/1600W | 2 | 10Hours | 25000Wh |
| Microwave oven | 1000W | 1 | 2Hours | 2000Wh |
| Printer | 30W | 1 | 1Hours | 30Wh |
| A4 copier (printing and copying combined) | 1500W | 1 | 1Hours | 1500Wh |
| Fax | 150W | 1 | 1Hours | 150Wh |
| Induction cooker | 2500W | 1 | 2Hours | 4000Wh |
| Refrigerator | 200W | 1 | 24Hours | 1500Wh |
| Water heater | 2000W | 1 | 2Hours | 4000Wh |
| Total | 46930W | |||

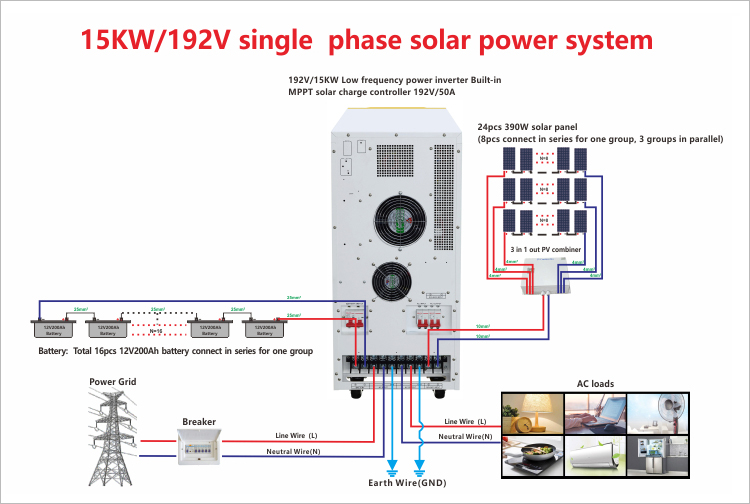

■ Off Grid Solar Panel System Wiring Diagram
Contact XINDUN for more high-definition wiring diagram.
■ Off Grid Solar Panel System Parts List
 |

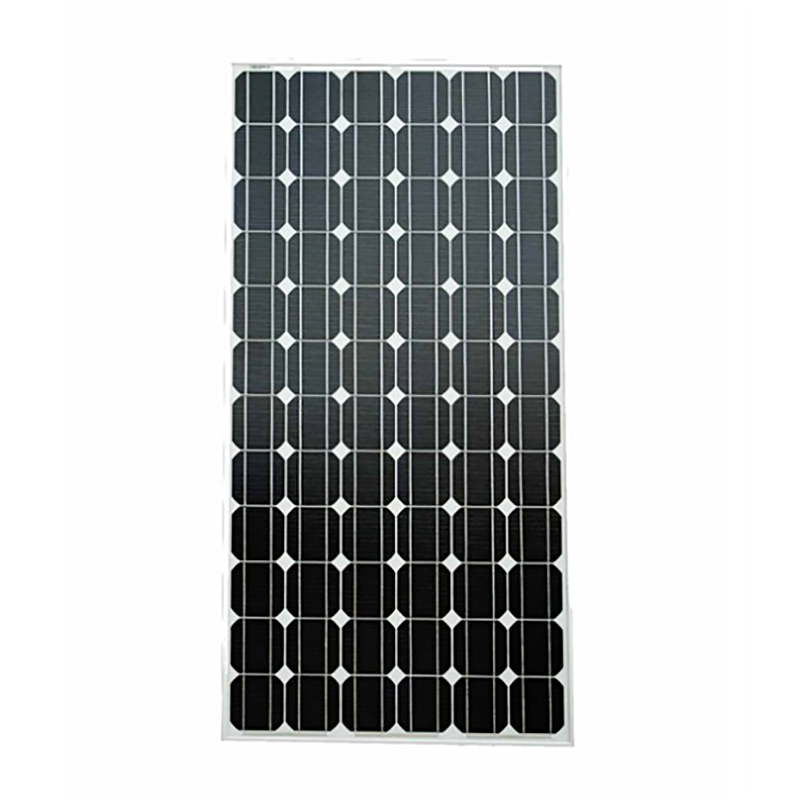

Mono Solar panel: 1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass. 2. Frame: Anodized Aluminium Alloy. 3. Warranty: 25-years performance warranty. 12-years warranty on materials and workmanship. |

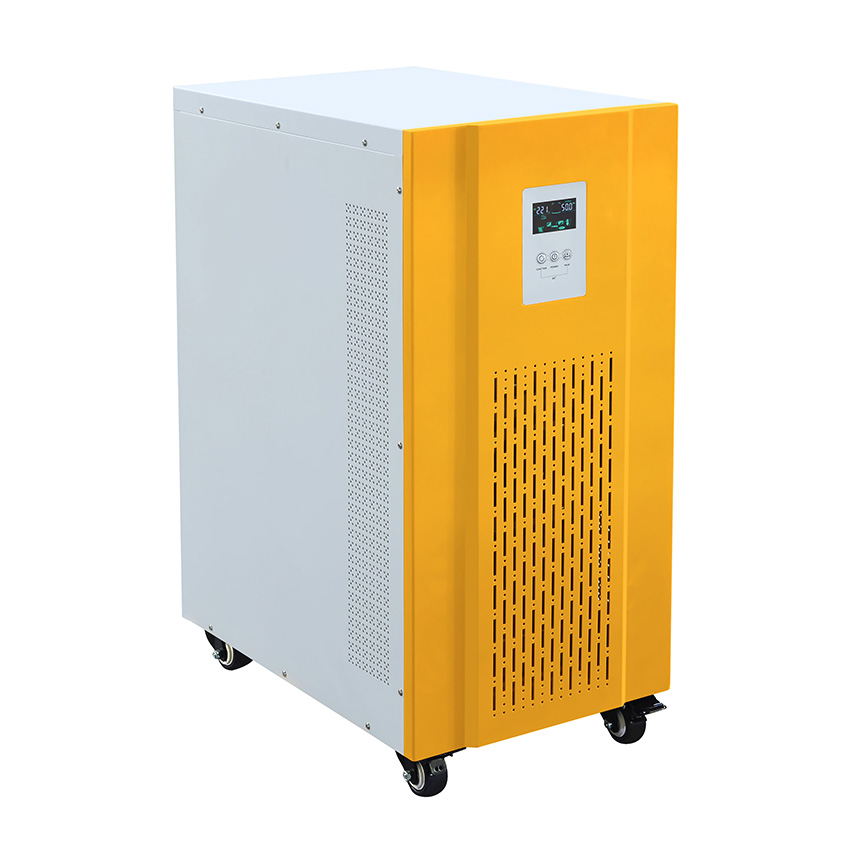

| Hybrid solar inverter: 1. 15KW hybrid solar inverter with built-in 192V/50A MPPT solar controller. 2. Low frequency pure sine wave output . 3. 3 times peak power, excellent loading capability. 4. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery.5. Automatic AC charger and AC mains switcher, switch time ≤ 4ms. 6. AC charging current 0-20A selectable. |
 |
 |

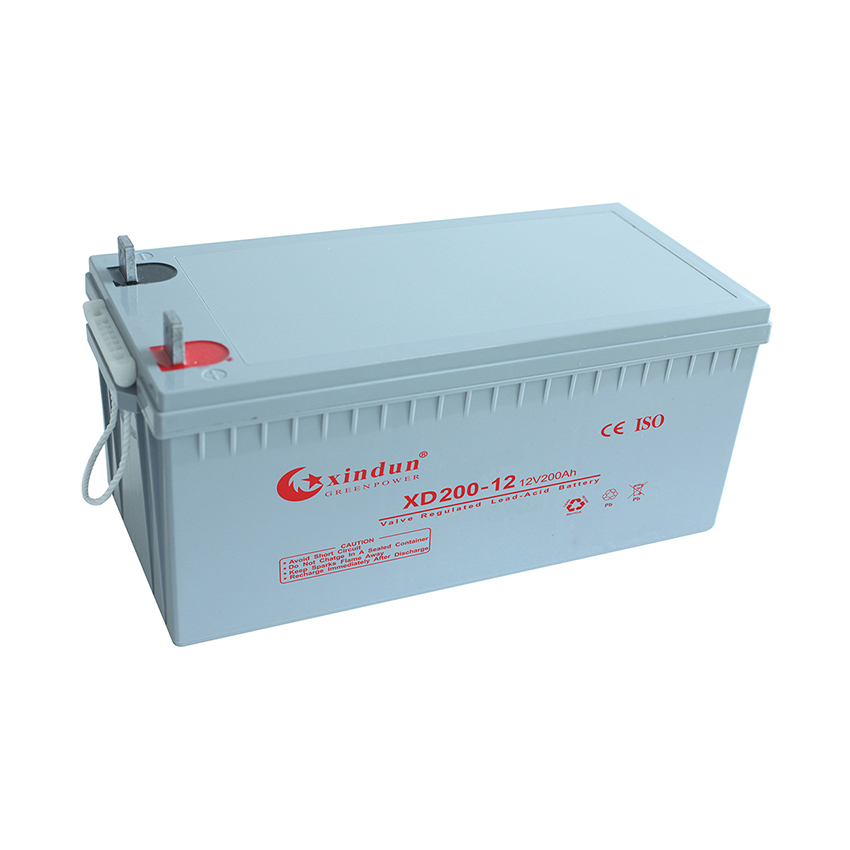

Battery and battery collecting box: 1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery. 2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range. 3. The deep discharge cycle life is increased 50% compared with the GP series battery. 4. Battery collecting box not only makes the batteries collection and sorting more neat, but also plays a protective role |
| Solar bracket: Description of Mounting 1. Aluminum Alloy 6005-T5. 2. Fasteners Material SUS304. 3. Easy Installation. 4. Can Be used in different forms，Tin Roofs，Flat Roofs. 5. The installation angle can be adjusted according to the demand. 6. 10 Years Warranty, Over 25 Years Service Life. |
 |
 |

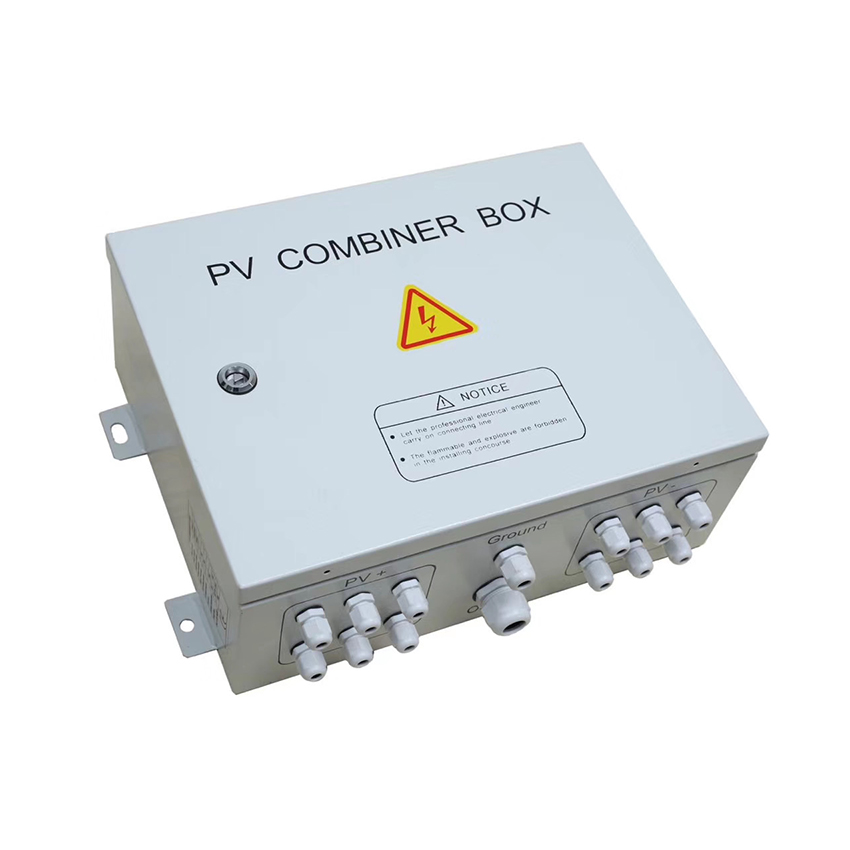

PV combiner box: 1. Multiple PV strings inputs. 2. Simplify wiring between solar panel and solar charge controller, protections to solar controller.3. Wide range of DC input voltage. 4. Reliable thunderstorm & surge protection. |
|
Cables and parts: 1. 4mm2 PV cable 200m, 10mm2 PV cable 100m. PV cable is a special type of cable used in solar power system. It has the characteristics of high temperature resistance and friction resistance, and has a long service life. 2. 25mm2 60cm Battery cable 15pcs (connection between batteries). 3. 25mm2 10m Battery cable 21pcs (connection "PV combiner box to solar charge controller" and "solar charge controller to batteries").
4. Terminals and 21 pairs MC4 plug. |
|
■ Off Grid Solar Panel System in Real Production
■ Off Grid Solar Panel System Application
12kw off grid solar panel system in Malaysia:
15kw off grid solar panel system in china:
20kw off grid solar panel system in Burkina Faso:
30kw off grid solar panel system in Australia:
Xindun off grid solar panel systems have been sold to more than 100 countries, such as Nigeria, Ghana, Botswana, Zimbabwe, South Africa, Egypt, Dubai, United Arab Emirates, Lebanon, Indonesia, Malaysia, Philippines, Columbia, Mexico etc. 15KW solar systems have been widely used for solar home house, solar camping, rv, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project, hilltop, ship, etc.
