Independent solar system includes everything for a complete installation: solar panels, solar bracket, storage battery, solar inverter inbuilt mppt controller, cables and other terminals. 6Kw solar system DC96V to AC110V/120V/220V/230V/240V optional. Customized solar solutions are acceptable.
Product
Choose XINDUN independent solar power system, you can get the following convenience:
· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, hybrid solar inverter inbuilt mppt controller, all duties to one company.
· China manufacturer wholesales independent solar power system at low price.
■ Independent Solar System Description

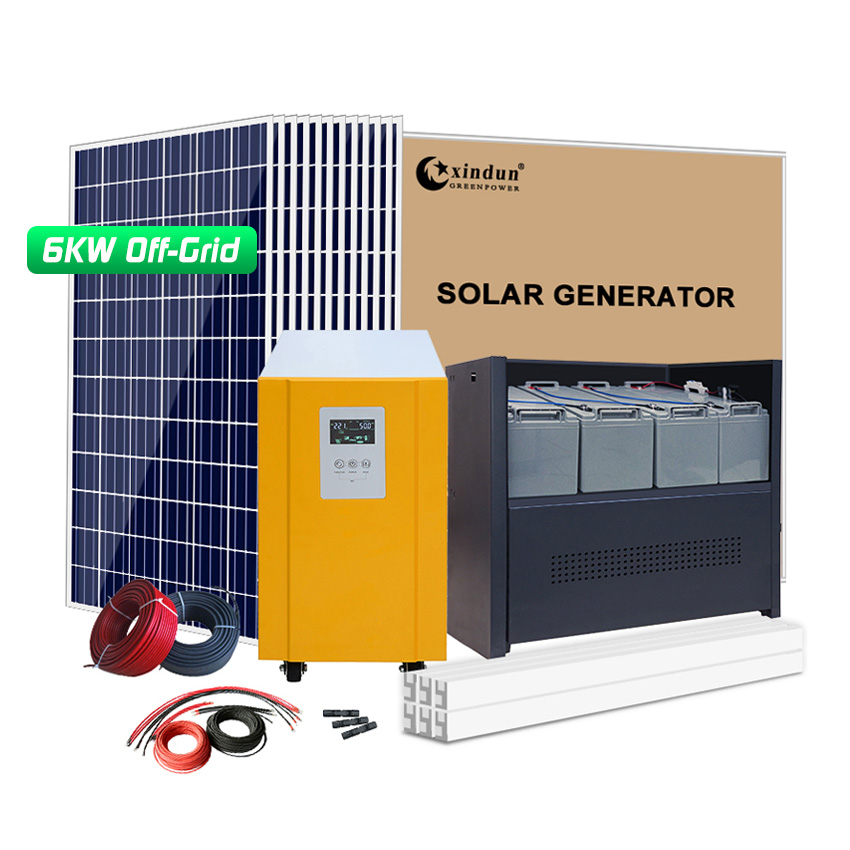

Xindun independent solar power system is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, solar combiner box, solar battery, solar inverter, solar charge controller, solar cables, battery cables and other terminals. After the simple installation is complete, it can be directly used for home/commercial/industrial appliances.
Each set independent solar power system has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.
Xindun independent solar power system range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. This page introduces the 6kw solar system with battery price, which can be used for ac loads with total power not exeed 6KW.
■ Independent Solar System Configuration
| SESS602W6 6KW Independent Solar System Configuration | |||||
| Brand | Xindun | Model No. | SESS602W6 | Inverter Rated Power(W) | 6000 |
| Maximum Load(W) | 6000 | Batter Capacity(AH) | 1600 | Solar Panel Power(W) | 3960 |
| Product No. | SESS602W6 | Certification | CE | Sunshine Duration | 6 |
| Output Voltage (Optional) |
220 | Frequency (Optional) |
50Hz/60Hz | PV daily generating capacity（W） | 23760 |
| Actual Load（KW) | 6 | Actual Load day(s) | 1 | Actual Load time(hours) | 3.9 |
| G.W. | Contact Xindun | Volume | Contact Xindun | 20GP Loading Quantity | Contact Xindun |
| N.W. | Contact Xindun | DC Voltage(VDC) | 96 | Customized or not | YES |
| Configuration Details | |||
| Product Name | Specifications | Quantity | Remark |
| Solar Panel | Polycrystalline 330W | 12 | |
| Solar Inverter | 96VDC 6KW | 1 | WD-T60296-W50 |
| Solar Charge Controller | 96VDC 50A | 1 | MPPT built-in solar inverter |
| Lead acid battery | 12V200AH | 8 | |
| Battery connecting cable | 25mm² | 6 | |
| solar panel mounting bracket | Aluminum | 1 | Simple type |
| PV combiner | without | 0 | |
| Lightning protection distribution box | without | 0 | |
| battery collecting box | 200AH*8 | 1 | |
| M4 plug (male and female) | 3 | ||
| PV Cable | 4mm² | 150 | |
| Battery cable | built-in | 1 | |
| Package | wooden case | 1 | |
| Electrical Load Reference List | ||||
| Electrical Appliance | Rated Power(pcs) | Quantity(pcs) | Working Hours | Total |
| LED bulbs | 13 | 10 | 6Hours | 780W |
| Mobile phone charger | 10W | 2 | 2Hours | 40W |
| Fan | 60W | 2 | 6Hours | 720W |
| TV | 150W | 1 | 4Hours | 600W |
| Satellite dish receiver | 150W | 1 | 4Hours | 600W |
| Computer | 200W | 1 | 8Hours | 1600W |
| Water pump | 600W | 1 | 1Hours | 600W |
| Washing machine | 300W | 1 | 1Hours | 300W |
| AC | 2P/1600W | without | ||
| Microwave oven | 1000W | without | ||
| Printer | 30W | without | ||
| A4 copier (printing and copying combined) | 1500W | without | ||
| Fax | 150W | without | ||
| Induction cooker | 2500W | without | ||
| Refrigerator | 200W | 1 | 24Hours | 4800W |
| Water heater | 2000W | without | ||
| Total | 10040W | |||
■ Independent Solar System Wiring Diagram
■ Independent Solar System Parts List
 |
Solar panel: 1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass. 2. Frame: Anodized Aluminium Alloy. 3. Warranty: 25-years performance warranty. 12-years warranty on materials and workmanship. |

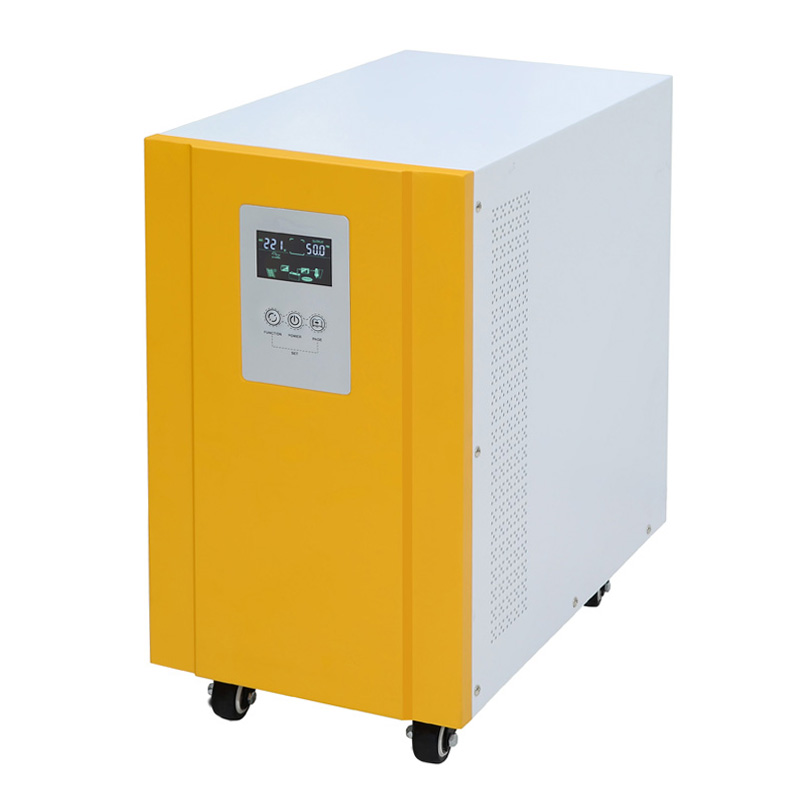

| Hybrid solar inverter: 1. 6KW hybrid solar inverter with built-in 96V/50A MPPT solar controller. 2. Low frequency pure sine wave output . 3. 3 times peak power, excellent loading capability. 4. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery.5. Automatic AC charger and AC mains switcher, switch time ≤ 4ms. 6. AC charging current 0-20A selectable. |
 |
 |
Battery and battery collecting box: 1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery. 2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range. 3. The deep discharge cycle life is increased 50% compared with the GP series battery. 4. Battery collecting box not only makes the batteries collection and sorting more neat, but also plays a protective role |
| Solar bracket: Description of Mounting 1. Aluminum Alloy 6005-T5. 2. Fasteners Material SUS304. 3. Easy Installation. 4. Can Be used in different forms，Tin Roofs，Flat Roofs. 5. The installation angle can be adjusted according to the demand. 6. 10 Years Warranty, Over 25 Years Service Life. |
 |
|
|
Cables and parts: 1. 4mm2 Solar cable 150m. PV cable is a special type of cable used in independent solar system. It has the characteristics of high temperature resistance and friction resistance, and has a long service life. 2. 25mm2 60cm Battery cable 6pcs (connection between batteries). 3. Terminals and 3 pairs MC4 plug.
|
■ Independent Solar System in Real Production
■ Independent Solar System Application

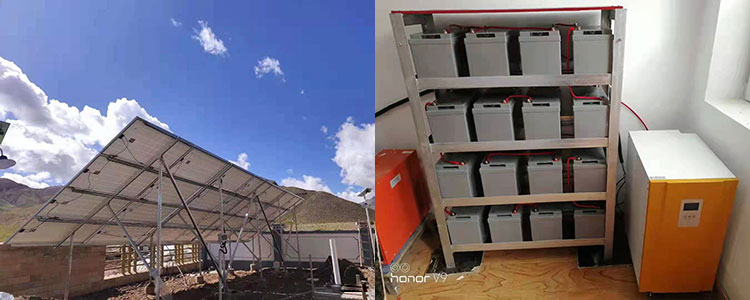

6kw independent solar system in Myanmar:
12kw independent solar system in Malaysia:
15kw independent solar system in china:
20kw independent solar system in Burkina Faso:
30kw independent solar system in Australia:
Xindun independent solar power systems have been sold to more than 100 countries, such as South Africa, Cote d\'Ivoire, Zimbabwe, The United Arab Emirates, Lebanon, Germany, Spain, Italy, Philippines, Malaysia, Indonesia, Korea, Peru, Chile, Columbia, Panama, etc. Independent solar systems with batteries have been widely used for solar home, solar camping, rv, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project, hilltop, ship, etc.
■ About Xindun Power
■ Independent Solar System Factory
■ Qualifications and Certificates
■ Global Solar Exhibitions
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 10k square meters production area. We focus on solar power system solution, inverters, solar charge controllers, solar generators and UPS power supply. We cooperate with some famous brands all over the world, can provide OEM/ODM production.
Q2: Is the independent solar system solution always the same? Can I customize one?
A: We have professional teams making solar solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So each set solar system may have different configuration. We\'d be happy to customize for you, contact XINDUN to know more details.
Q3: What is the price of independent solar system with battery?
A: Tell me your requirements, such as power generation demand, configuration, and whether there are other functional requirements. We will give you the most favorable ex factory price. Solar system with battery factory direct sales, no middlemen earn price difference.
Q4: What is the lifetime of the independent solar system?
A: Solar panel’s lifetime are 20 years, solar inverters 3~5 years, solar charge controllers 3~5 years, batteries 1~3 years.
Q5: What services can XINDUN provide?
A: We will provide independent solar system free site survey, design, production, installation guide, maintenance of one-stop service, value added services: market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
