Chinese supplier Xindun wholesale cheap solar energy system price. Off grid home solar energy system can be customized according to the needs of users.
SESS Off Grid Home Solar Energy System
SESS Off Grid Home Solar Energy System
SESS Off Grid Home Solar Energy System
SESS Off Grid Home Solar Energy System
SESS Off Grid Home Solar Energy System
SESS Off Grid Home Solar Energy System

SESS Off Grid Home Solar Energy System

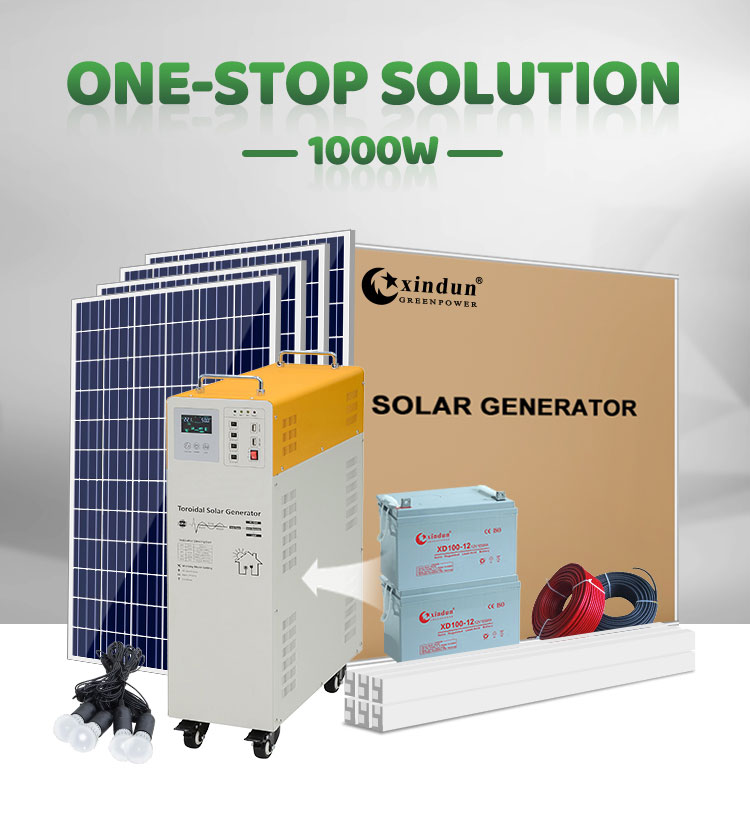

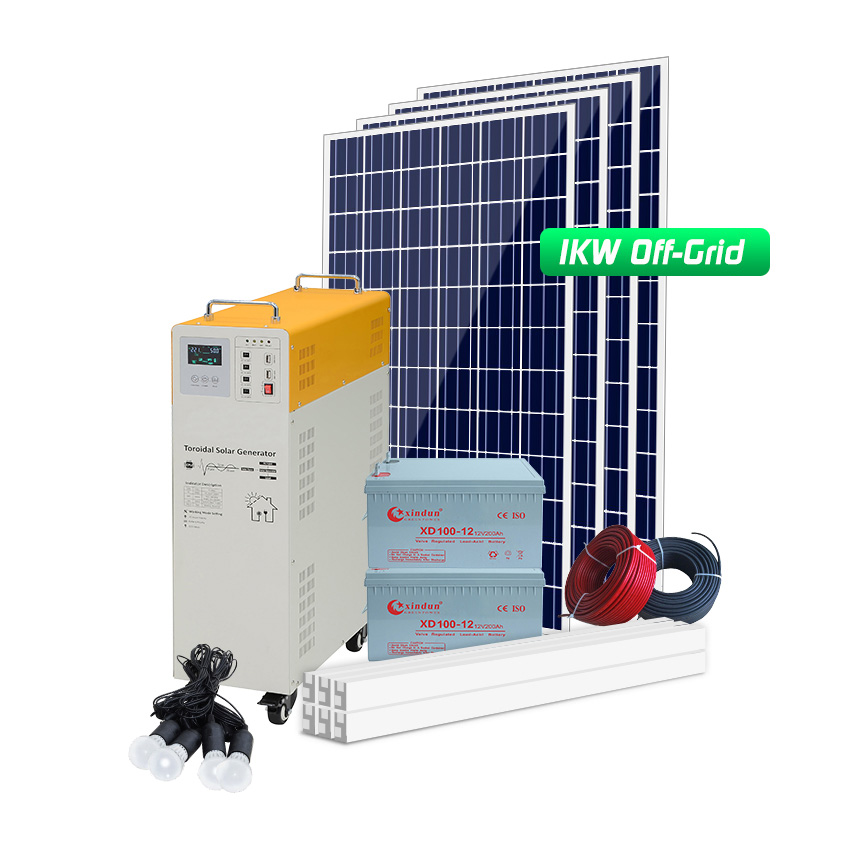

Solar energy system includes everything for a complete installation: solar panels, solar brackets, solar batteries, solar inverter, solar charge controller, cables and other terminals. Off grid home solar energy system DC24V to AC110V/220V, 40A solar charger, 4*DC12V, 2*USB5V, can be customized according to the needs of users.

  • Type : Off Grid Solar Energy System
  • Place of Origin : China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Yes

choose XINDUN home solar energy system, get one-stop solar solution

Choose XINDUN home solar energy systems, you can get the following convenience:

· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, solar inverter generator, all duties to one company.

· Chinese supplier wholesale solar energy system at cheap price





Solar Energy System Description






Xindun home solar generator system is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, pv cables, battery cables and other terminals. Significantly, solar battery, solar inverter and solar charge controller are all in one solar generator cabinet. After the simple installation is complete, it can be directly used for home appliances.

Each set home solar energy system has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.

Xindun off grid solar energy system range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. This page introduces the 1k watt solar energy system, which can be used for AC and DC loads with total power not exeed 1k watts.





Solar Energy System Configuration






SSESS102W4 Solar Energy System Configuration
Brand Xindun Model No. SSESS102W4 Inverter Rated Power(W) 1000
Maximum Load(W) 1000 Batter Capacity(AH) 200 Solar Panel Power(W) 660
Product No. SSESS102W4 Certification CE Sunshine Duration 6
Output Voltage
(Optional)
220V Frequency
(Optional)
50Hz/60Hz PV daily generating capacityW 3960
Actual LoadKW) 1 Actual Load day(s) 1 Actual Load time(hours) 3.9
G.W. Contact Xindun Volume Contact Xindun 20GP Loading Quantity Contact Xindun
N.W. Contact Xindun DC Voltage(VDC) 24 Customized or not YES



Configuration Details
Product Name Specifications Quantity Remark
Solar Panel Polycrystalline 330W 2
Solar Inverter 24VDC 1KW 1 XTG102W inverter built-in solar generator
Solar Charge Controller 24VDC 40A 1 MPPT built-in solar generator
Lead acid battery 12V100AH 2 Battery built-in solar generator
Battery connecting cable built-in 1 Built-in solar generator, connection between batteries
DC Output Port 12V 4 4pcs3W bulbs 4pcs5m wires with switch
solar panel mounting bracket Aluminum 1 Simple type
PV combiner without 0
Lightning protection distribution box without 0
battery collecting box without 0
M4 plug (male and female)   2
PV Cable 4mm² 50
Battery cable built-in 1 Built-in solar generator, connection between batteries and solar hybrid inverter
Package wooden case 1



Electrical Load Reference List
Electrical Appliance Rated Power(pcs) Quantity(pcs) Working Hours Total
LED bulbs 13 10 6Hours 780W
Mobile phone charger 10W 2 2Hours 40W
Fan 60W 2 6Hours 720W
TV 150W 1 4Hours 600W
Satellite dish receiver 150W 1 4Hours 600W
Computer without
Water pump without
Washing machine without
AC without
Microwave oven without
Printer without
A4 copier (printing and copying combined) without
Fax without
Induction cooker without
Refrigerator without
Water heater without
      Total 2740W

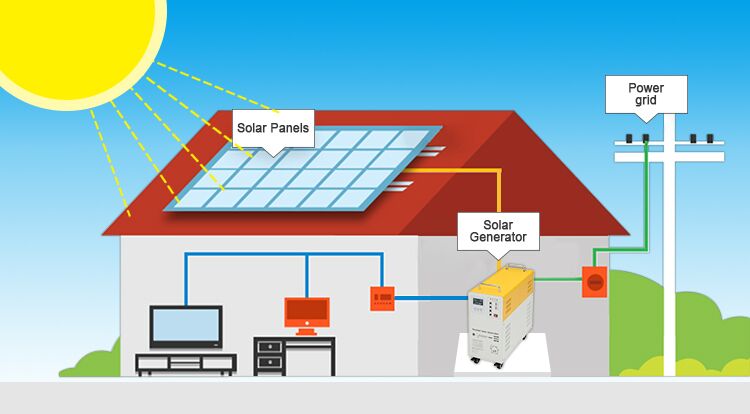

Solar Energy System Wiring Diagram




home solar energy system wiring diagram





Solar Energy System Parts List

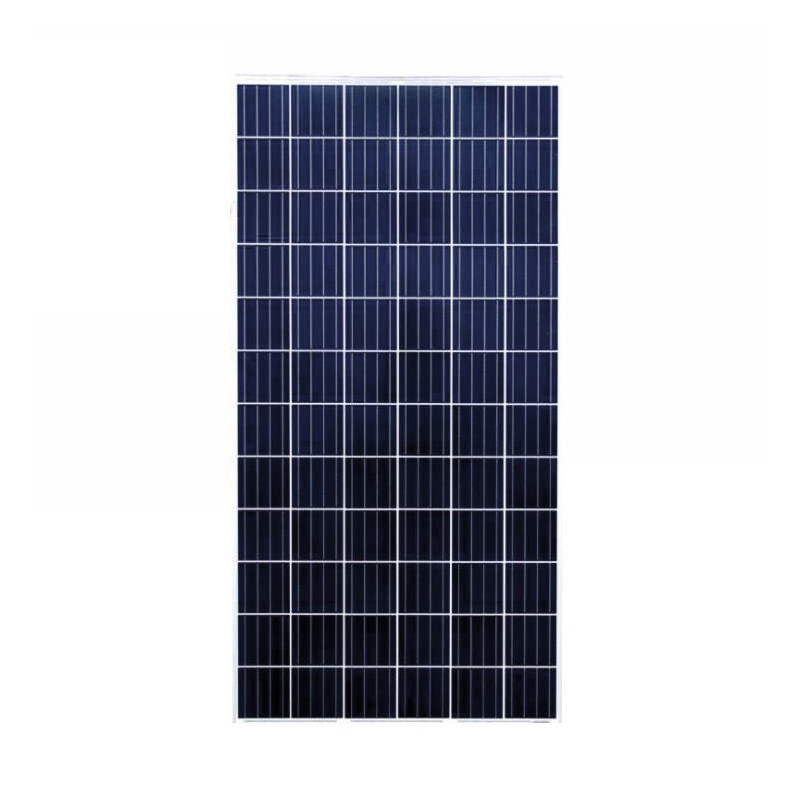

Polycrystalline solar panel for home solar energy system Solar panel:
1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass.
2. Frame: Anodized Aluminium Alloy.
3. Warranty:
25-years performance warranty.
12-years warranty on materials and workmanship.

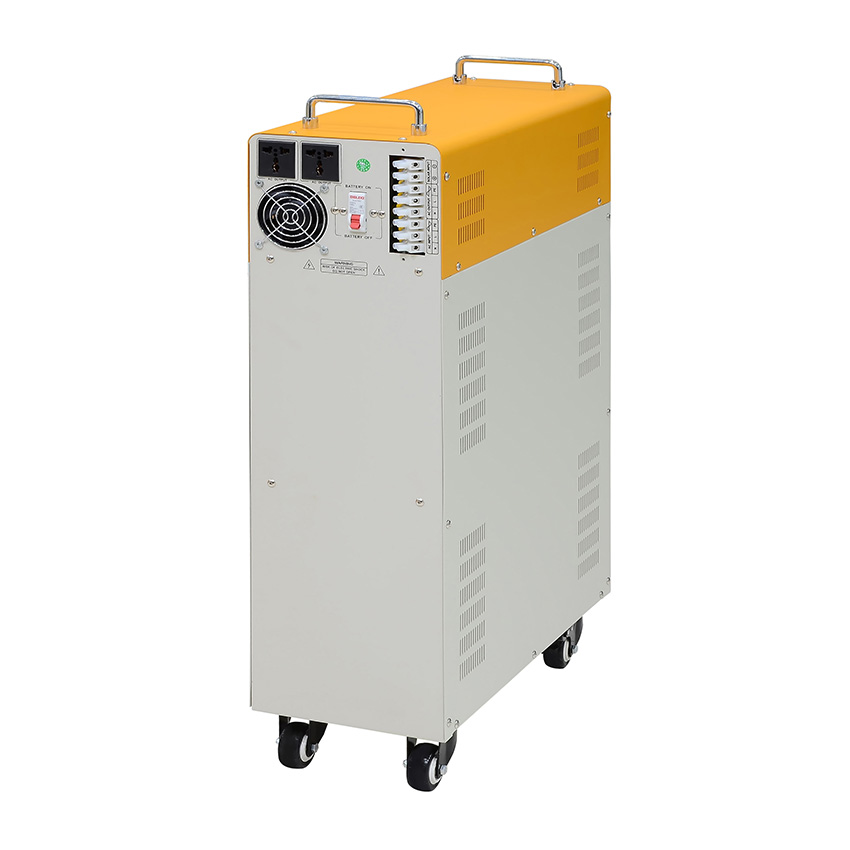

Solar generator:
1. Combine inverter/solar controller/battery all in one cabinet.
2. Built-in 24V/40A PWM/MPPT solar controller.
3. Built-in 24V/1000W solar inverter.

4. Built-in 2 pcs 12V/100Ah battery.

5. Low frequency pure sine wave output .

6. Multiple output: 1*AC output socket, 4*DC 12V, 2*USB.

7. With 4pcs 3W bulbs, 4pcs 5m wires with switch.

8. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery.

9. Automatic AC charger and AC mains switcher, switch time ≤ 4ms.

0. AC charging current 0-30A selectable.

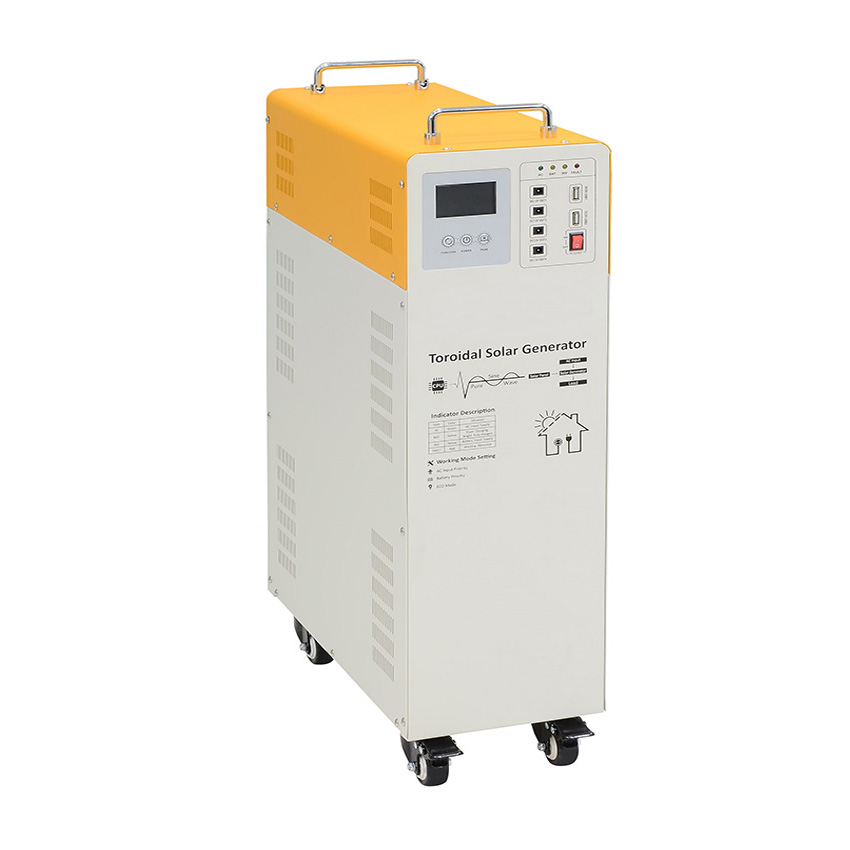

solar generator for home solar energy system

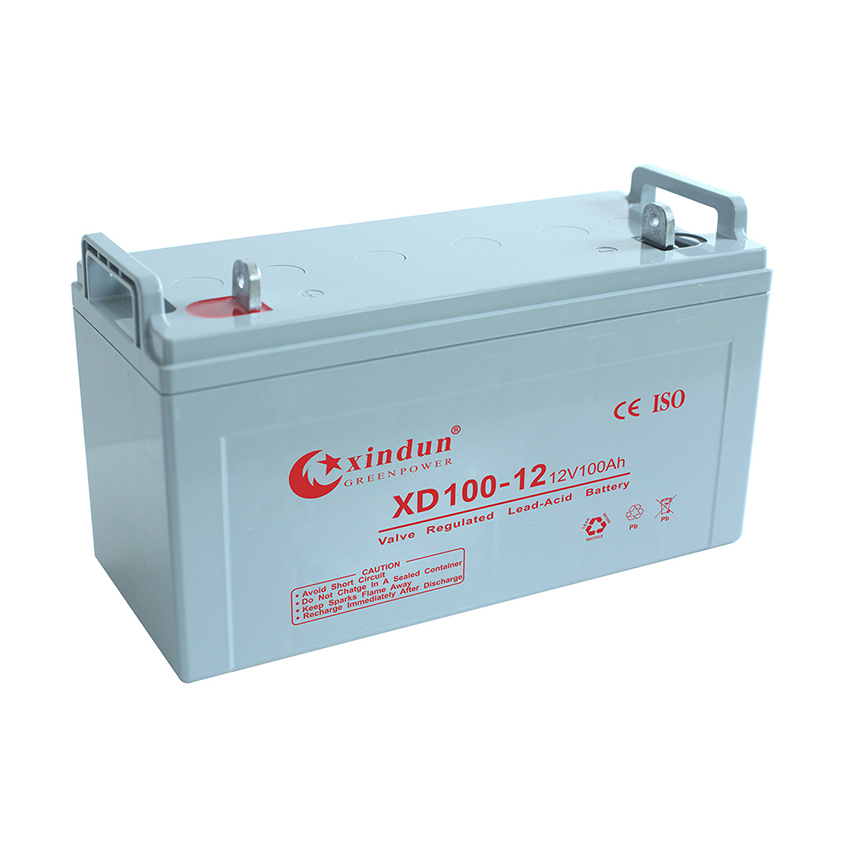

Battery for home solar energy system Gel battery (Built-in solar generator):
1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery.
2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range.
Solar bracket:
Description of Mounting
1. Aluminum Alloy 6005-T5.
2. Fasteners Material SUS304.
3. Easy Installation.
4. Can Be used in different forms,Tin Roofs,Flat Roofs.
5. The installation angle can be adjusted according to the demand.
6. 10 Years Warranty, Over 25 Years Service Life.
solar bracket for home solar energy system
Cables and parts for home solar energy system

Cables and parts:

1. 4mm2 PV cable 50m. PV cable is a special type of cable used in solar generator system. It has the characteristics of high temperature resistance and friction resistance, and has a long service life.

2. Battery cable (connection between batteries) 1 set.
3. Battery cable (connection between batteries and solar hybrid inverter) 1 set.
4. Terminals and 2 pairs MC4 plug.







Solar Energy System in Real Production






home solar energy system in real production

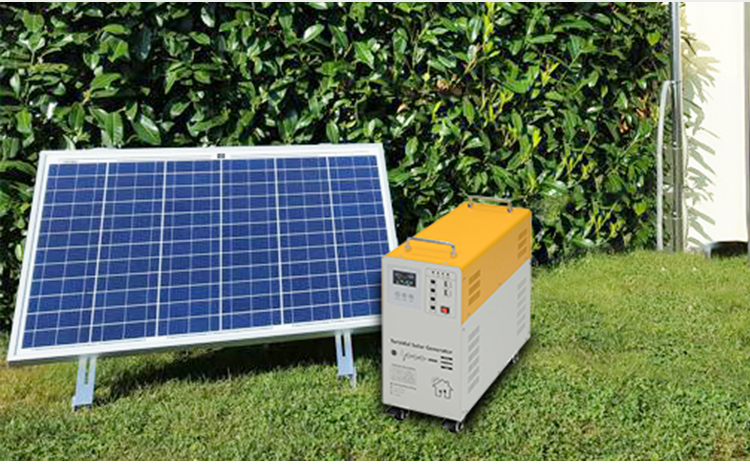

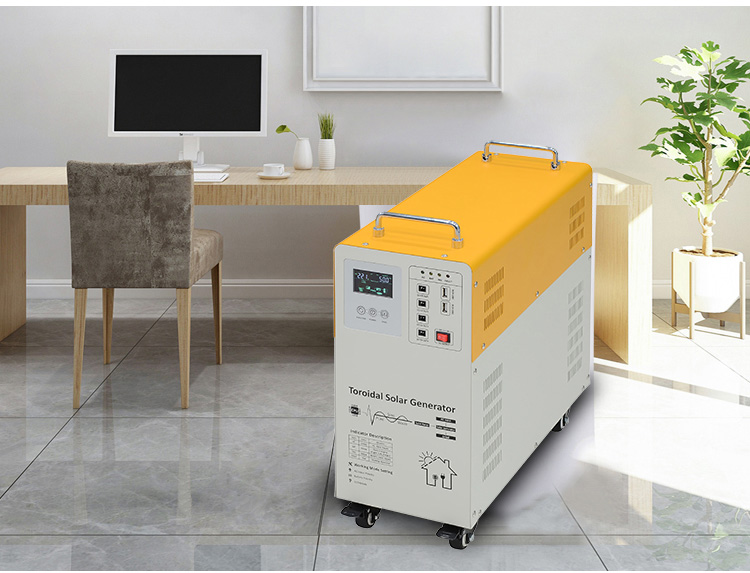

Solar Energy System Application






home solar energy system application

off grid solar energy system application



cheap off grid solar energy system application



Xindun off grid solar energy systems have been sold to more than 100 countries, such as Philippines, Malaysia, Indonesia, Korea, South Africa, Cote d\'Ivoire, Zimbabwe, The United Arab Emirates, Lebanon, Germany, Spain, Italy, Peru, Chile, Columbia, Panama, etc. Cheap solar energy systems have been widely used in: home, RV, truck, camper van, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project etc.





About Xindun Power






About XINDUN - off grid solar energy system company

About XINDUN - off grid solar energy system company introduction







Solar Energy System Factory






XINDUN - off grid solar energy system factory





Qualifications and Certificates






Xindun qualifications and certificates





Global Solar Exhibitions






Xindun global solar exhibitons





FAQ






Q1: Are you a factory?

A: Yes, we are the top 10 power supply manufacturers in China, with over 10,000 square meters production area. We focus on off grid solar energy system solution, inverters, solar charge controllers, solar generators and UPS power supply. We cooperate with some famous brands all over the world, can provide OEM/ODM production.

Q2: Is the off grid solar energy system solution always the same? Can I customize one?
A: We have professional teams making solar solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So each set off grid solar energy system may have different configuration. We\'d be happy to customize for you, contact XINDUN to know more details.

Q3: What is the price of home solar energy system?
A: Tell me your requirements, such as power generation demand, configuration, and whether there are other functional requirements. We will give you the most favorable ex factory price. Off grid solar energy system factory direct sales, no middlemen earn price difference.

Q4: What is the lifetime of the home solar energy system?
A: Solar panel’s lifetime are 20 years, solar inverters 3~5 years, solar charge controllers 3~5 years, batteries 1~3 years.

Q5: What services can XINDUN provide?
A: We will provide off grid solar energy system free site survey, design, production, installation guide, maintenance of one-stop service, value added services: market and product training services, 24 hours after-service consultancy just for you and to make your problem to solve easily.
