Best solar generator includes everything for a complete installation: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, cables and other terminals. 4000 watt solar generator DC48V to AC110V/220V, 4*DC12V, 4*USB5V, and has 25440Wh energy storage every day.
Product
Choose XINDUN best solar generator for refrigerator, you can get the following convenience:
· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, solar inverter generator, all duties to one company.
· Factory wholesales solar generator at cheap price.

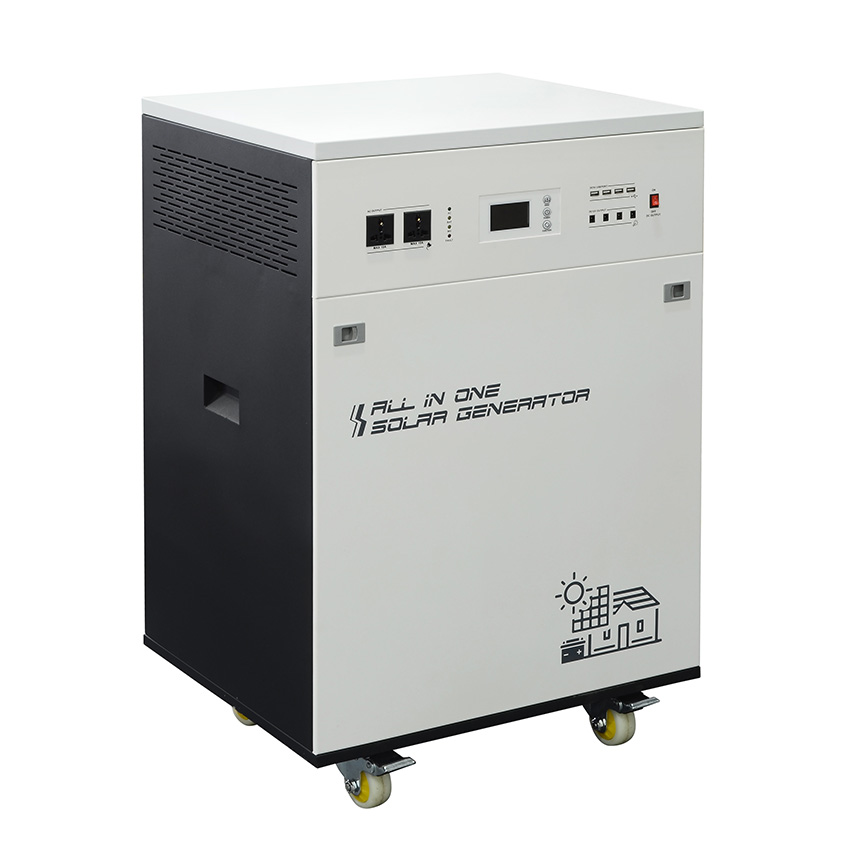

■ 4000 Watt Solar Generator Description
Xindun 4000 watt solar generator is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, pv cables, battery cables and other terminals. Significantly, solar battery, solar inverter and solar charge controller are all in one solar generator cabinet. After the simple installation is complete, it can be directly used for house appliances.
Each set solar generator has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.
Xindun the best solar generator range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. This page introduces the 4000 watt solar generator, which can be used for refrigerator, air conditioner, tv, mobile charging, lamps with total power not exeed 4000w.

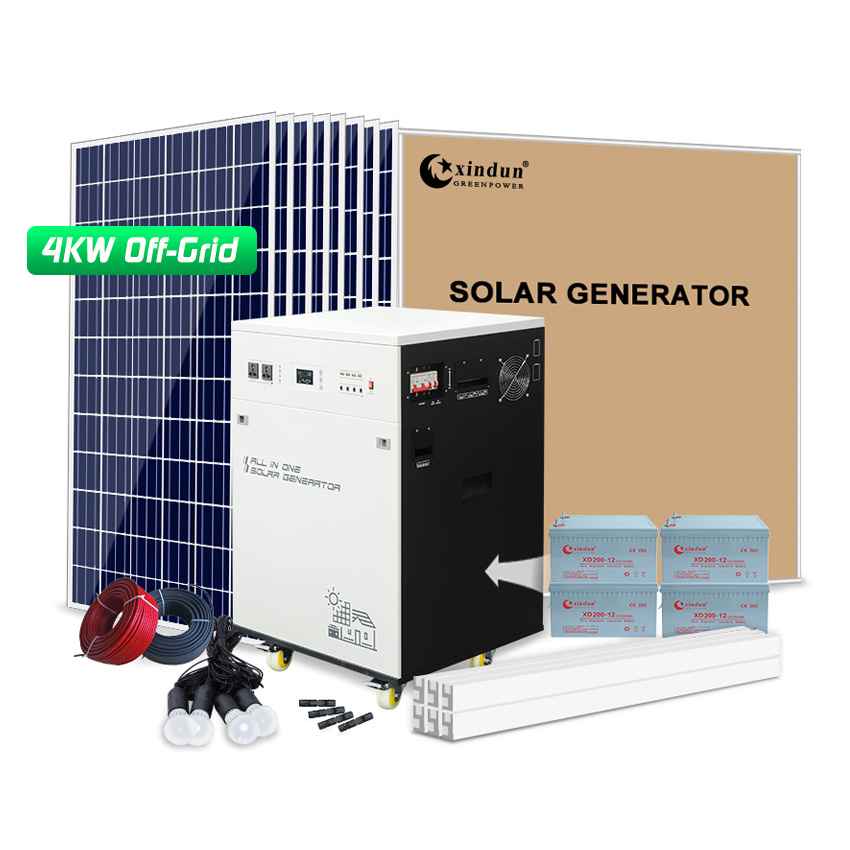

■ 4000 Watt Solar Generator Configuration
| SESS402W 4000W Solar Generator System Configuration | |||||
| Brand | Xindun | Model No. | SESS402W | Inverter Rated Power(W) | 4000 |
| Maximum Load(W) | 4000 | Batter Capacity(AH) | 800 | Solar Panel Power(W) | 2640 |
| Product No. | SESS402W | Certification | CE | Sunshine Duration | 6 |
| Output Voltage (Optional) |
220V | Frequency (Optional) |
50Hz/60Hz | PV daily generating capacity（Wh） | 15840 |
| Actual Load（KW) | 4 | Actual Load day(s) | 1 | Actual Load time(hours) | 3.9 |
| DC Output Port | 12V 4pcs | USB Port | 5V 4pcs | DC Lines | 4pcs3W bulbs 4pcs5m wires with switch |
| G.W. | 178 | Volume | 1.78 | 20GP Loading Quantity | Contact Xindun |
| N.W. | Contact Xindun | DC Voltage(VDC) | 48 | Customized or not | YES |
| Configuration Details | |||
| Product Name | Specifications | Quantity | Remark |
| Solar Panel | Polycrystalline 330W | 8 | 2pcs in series，4groups in parallel |
| Solar inverter | 48VDC 4KW | 1 | ESS402W inverter built-in solar generator |
| Solar Charge Controller | 48VDC 60A | 1 | MPPT built-in solar generator |
| Lead acid battery | 12V200AH | 4 | Battery built-in solar geneartor |
| Battery connecting cable | standard | 1 | Built-in solar generator, connection between batteries |
| DC Output Port | 12V | 4 | 4pcs 3W bulbs 4pcs 5m wires with switch |
| solar panel mounting bracket | Aluminum | 1 | Simple type |
| PV combiner | without | 0 | |
| Lightning protection distribution box | without | 0 | |
| battery collecting box | without | 0 | |
| M4 plug (male and female) | standard | 7 | 4 pairs 1 in 1 out, 3 pairs 2 in 1 out |
| PV Cable | 4mm² | 100m | Connection between solar panel and PV combiner |
| Battery cable | standard | 1 | Built-in solar generator, connection between batteries and solar hybrid inverter |
| Package | wooden case | 1 | |
| Electrical Load Reference List | ||||
| Electrical Appliance | Rated Power(pcs) | Quantity(pcs) | Working Hours | Total |
| LED bulbs | 20W | 10 | 8Hours | 1600Wh |
| Mobile phone charger | 10W | 5 | 4Hours | 200Wh |
| Fan | 60W | 5 | 8Hours | 2400Wh |
| TV | 50W | 1 | 8Hours | 400Wh |
| Satellite dish receiver | 50W | 1 | 8Hours | 400Wh |
| Computer | 200W | 1 | 8Hours | 1600Wh |
| Water pump | 600W | 1 | 1Hours | 600Wh |
| Washing machine | 300W | 1 | 1Hours | 300Wh |
| AC | 2P/1600W | without | ||
| Microwave oven | 1000W | 1 | 1Hours | 1000Wh |
| Printer | 30W | without | ||
| Printer | 30W | without | 1Hours | 40Wh |
| A4 copier (printing and copying combined) | 1500W | without | ||
| Fax | 150W | without | 1Hours | 150Wh |
| Refrigerator | 200W | 1 | 24Hours | 1500Wh |
| Water heater | 2000W | without | ||
| Total | 10190Wh | |||

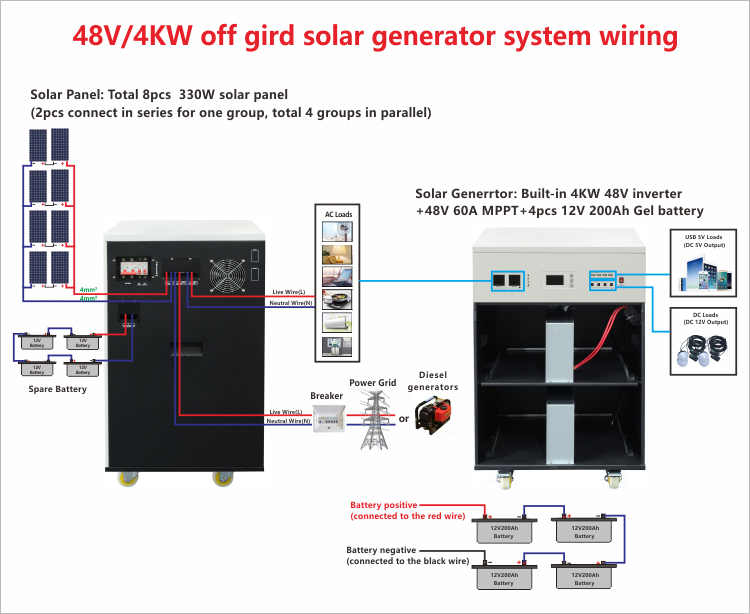

■ 4000 Watt Solar Generator Wiring Diagram
Contact XINDUN for more high-definition wiring diagram.
■ 4000 Watt Solar Generator Parts List
 |

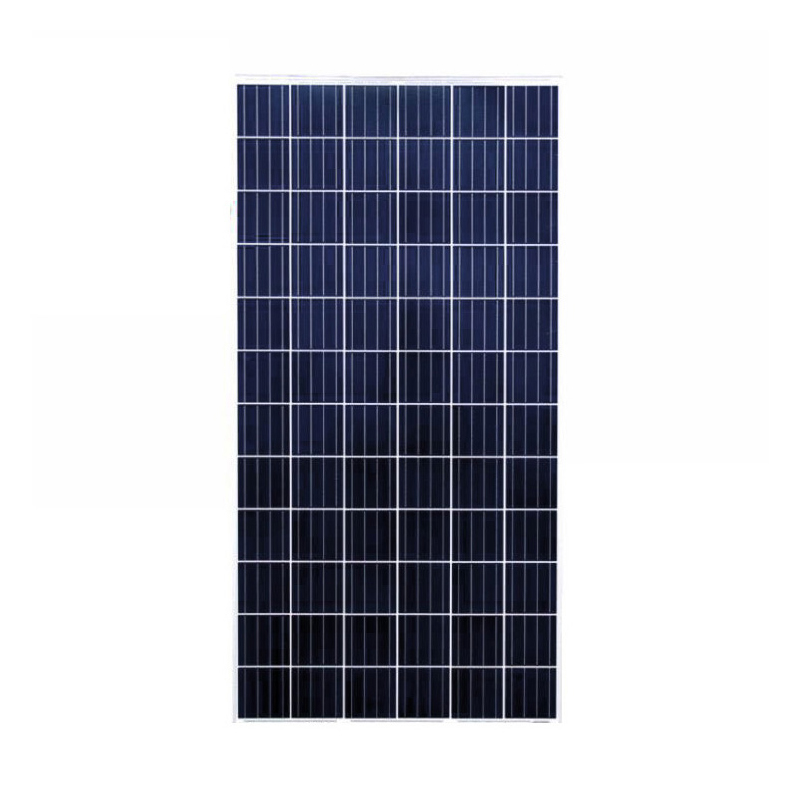

Solar panel: 1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass. 2. Frame: Anodized Aluminium Alloy. 3. Warranty: 25-years performance warranty. 12-years warranty on materials and workmanship. |
| Solar generator: 1. Combine inverter/solar controller/battery all in one cabinet. 2. Built-in 48V/60A MPPT solar controller. 3. Built-in 48V/4000W solar inverter. 4. Built-in 4pcs 12V/200Ah battery. 5. Low frequency pure sine wave output .6. Multiple output: 2*AC output socket, 4*DC 12V, 4*USB. 7. With 4pcs 3W bulbs, 4pcs 5m wires with switch. 8. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery.9. Automatic AC charger and AC mains switcher, switch time ≤ 4ms. 0. AC charging current 0-30A selectable. |
 |
 |

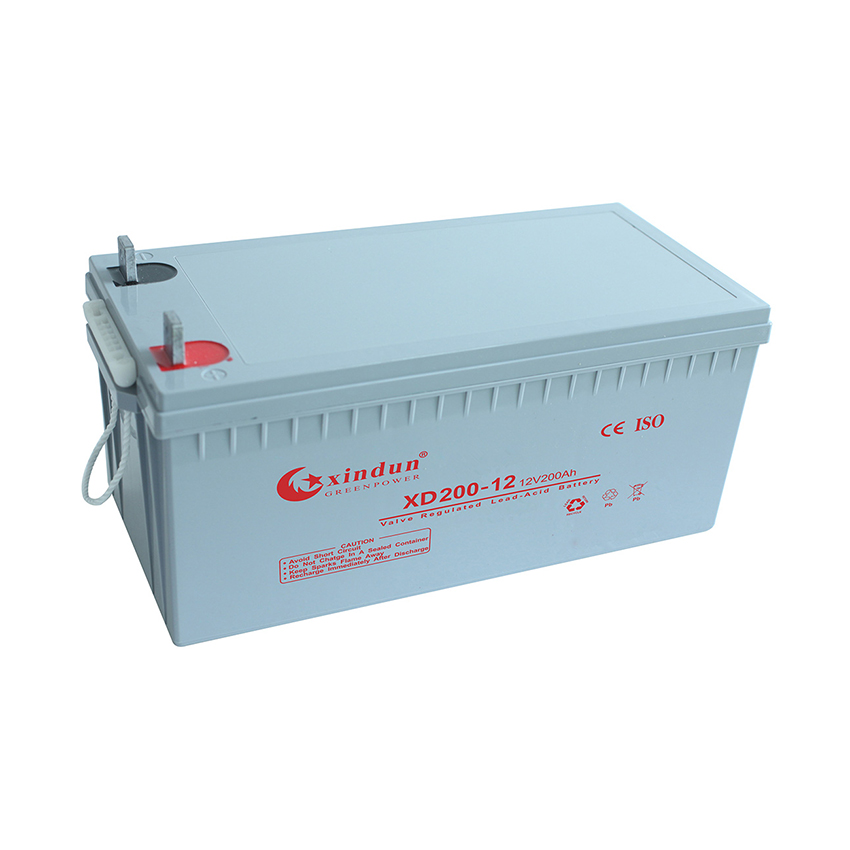

Gel battery (Built-in solar generator): 1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery. 2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range. |
| Solar bracket: Description of Mounting 1. Aluminum Alloy 6005-T5. 2. Fasteners Material SUS304. 3. Easy Installation. 4. Can Be used in different forms，Tin Roofs，Flat Roofs. 5. The installation angle can be adjusted according to the demand. 6. 10 Years Warranty, Over 25 Years Service Life. |
 |
 |
Cables and parts: 1. 4mm2 PV cable 100m. PV cable is a special type of cable used in solar generator system. It has the characteristics of high temperature resistance and friction resistance, and has a long service life. 2. Battery cable (connection between batteries) 1 set.3. Battery cable (connection between batteries and solar generator) 1 set. 4. Terminals and 7 pairs MC4 plug. |
■ 4000 Watt Solar Generator in Real Production
■ 4000 Watt Solar Generator Application
Xindun solar generators have been sold to more than 100 countries, such as Nigeria, Ghana, Egypt, Botswana, Zimbabwe, South Africa, Egypt, Dubai, United Arab Emirates, Lebanon, Indonesia, Malaysia, Philippines, Columbia, Mexico etc. Solar generators have been widely used in: RV, camping, solar home refrigerator, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project etc.
■ About Xindun Power
■ Solar Generator Factory
■ Qualifications and Certificates
■ Global Solar Exhibitions
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 10k square meters production area. We focus on solar system solution, inverters, solar charge controllers, solar generators and UPS power supply. We cooperate with some famous brands all over the world, can provide OEM/ODM production.
Q2: Is the solar generator solution always the same? Can I customize one?
A: We have professional teams making solar solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So each set solar generator may have different configuration. We\'d be happy to customize for you, contact XINDUN to know more details.
Q3: What is the price of solar generator?
A: Tell me your requirements, such as power generation demand, configuration, and whether there are other functional requirements. We will give you the most favorable ex factory price. solar generator factory direct sales, no middlemen earn price difference.
Q4: What is the lifetime of the solar generator?
A: Solar panel’s lifetime are 20 years, solar inverters 3~5 years, solar charge controllers 3~5 years, batteries 1~3 years.
Q5: What services can XINDUN provide?
A: We will provide solar generator free site survey, design, production, installation guide, maintenance of one-stop service, value added services: market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
