Xindun's HFP-E dual output hi frequency solar inverter supports on grid, off grid, hybrid and batteryless modes, provides 3.3KW-12.3KW power options, and is suitable for residential, commercial and outdoor solar systems.

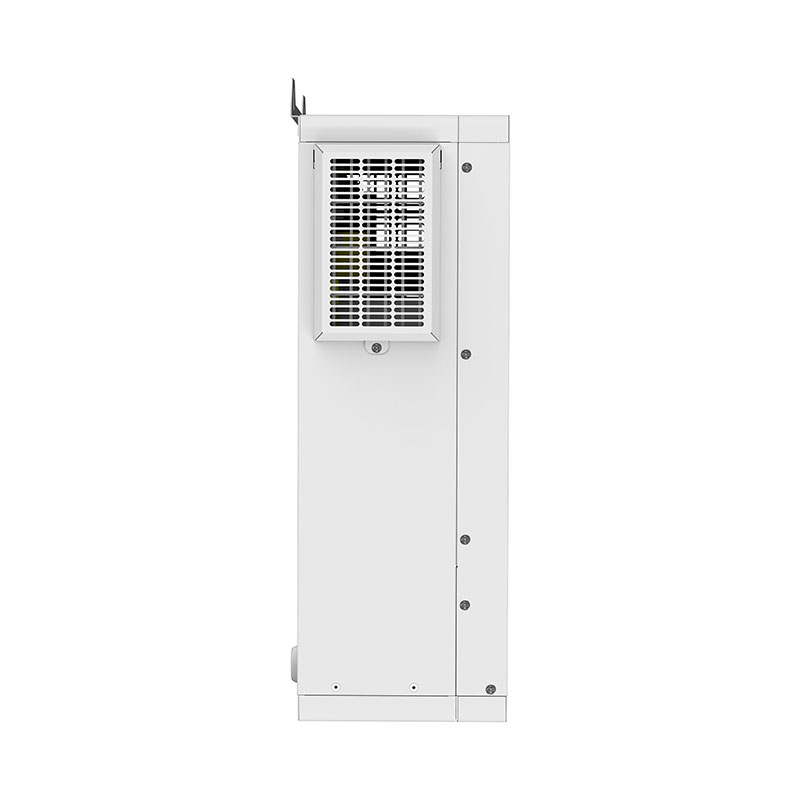

Hi Frequency Inverter Dual Output Solar Inverter 3.3KW-12.3KW

HFP-E hi frequency solar inverter provides rated power of 3.3kw-12.3kw, supports detachable LCD display control module, has bidirectional energy storage design and dual AC output intelligent load management design, which can meet the needs of various loads. Built in MPPT solar controller, the maximum solar input voltage can reach 500V, to achieve efficient solar power system.

Place of Origin : Foshan, Guangdong, China
Type : Solar Hybrid Inverter
Brand : XINDUN POWER
MOQ : 6 pcs
OEM : Yes

Inquiry Now

Product

Inverter With Charge Controller

Three Phase Inverter

Pure Sine Wave Inverter

Solar Generator

Solar Controller

Solar System Solution

Battery

Solar Panel

Solar kits

UPS

Others

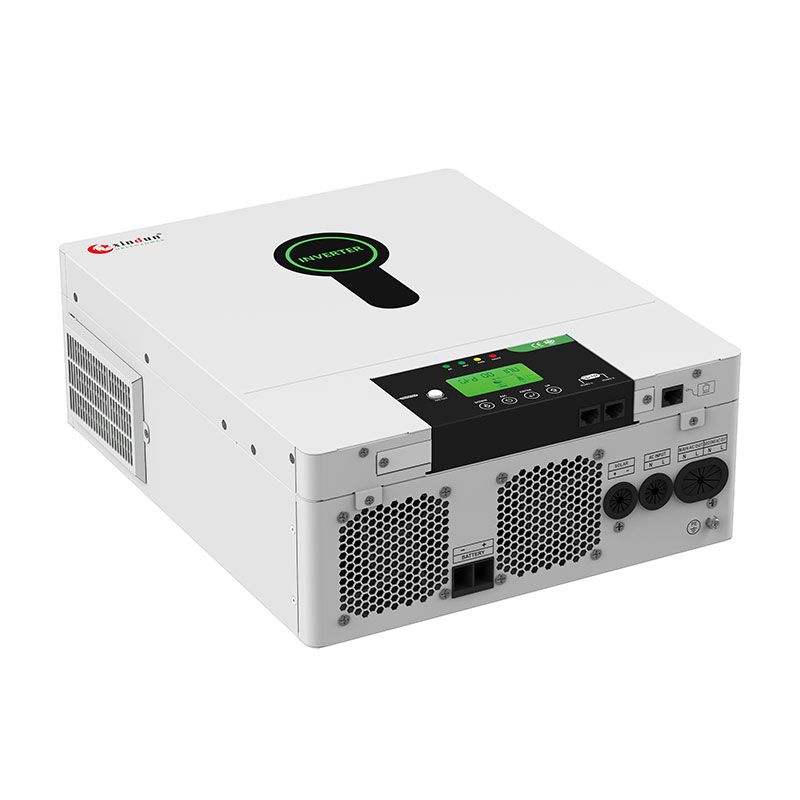

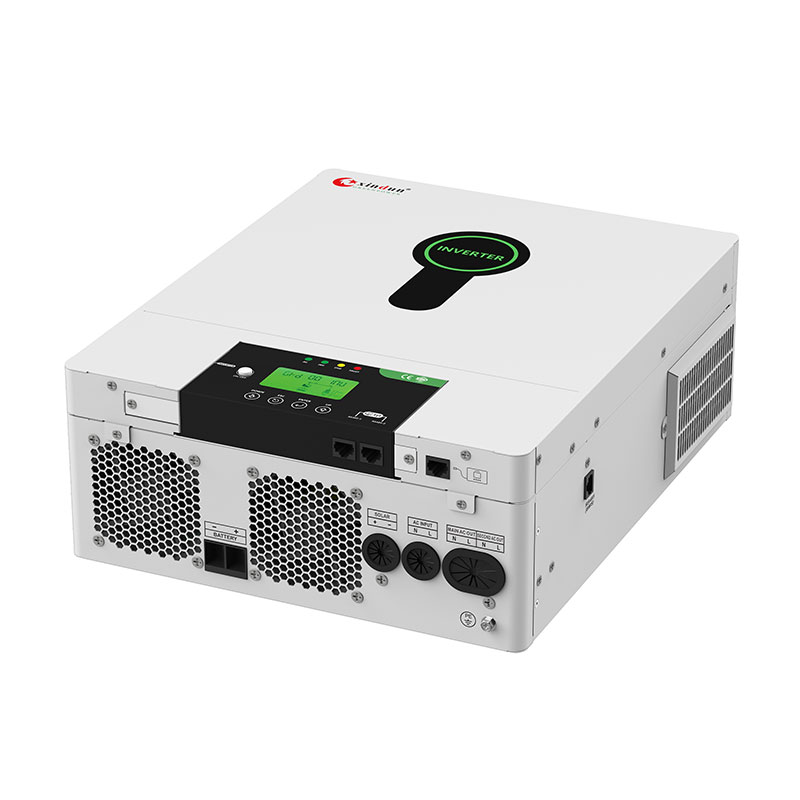

Product Details

■ Hi Frequency Solar Inverter Feature

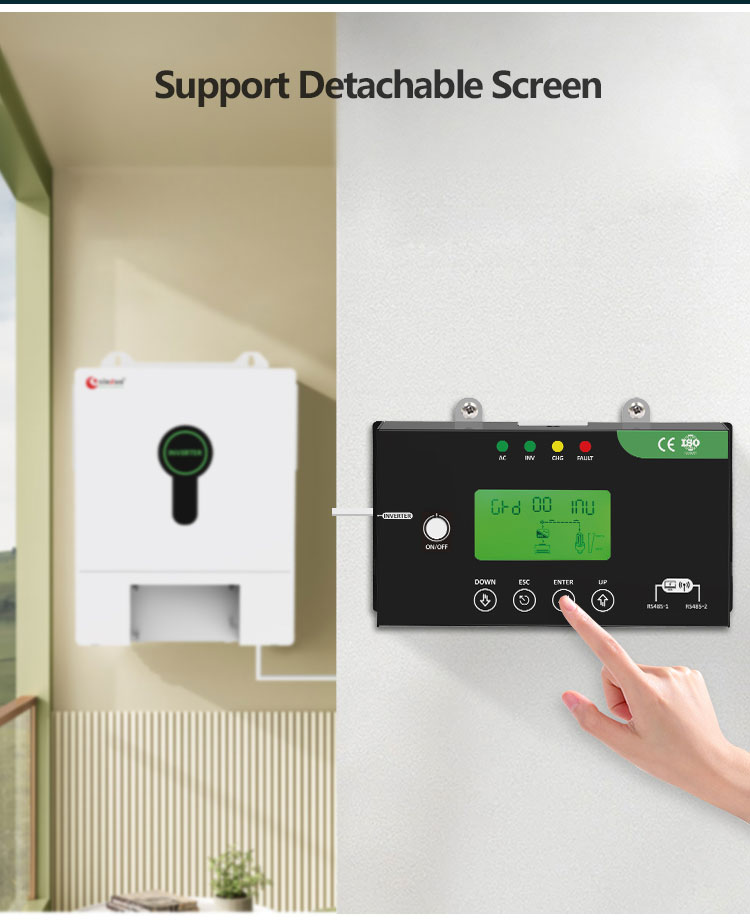

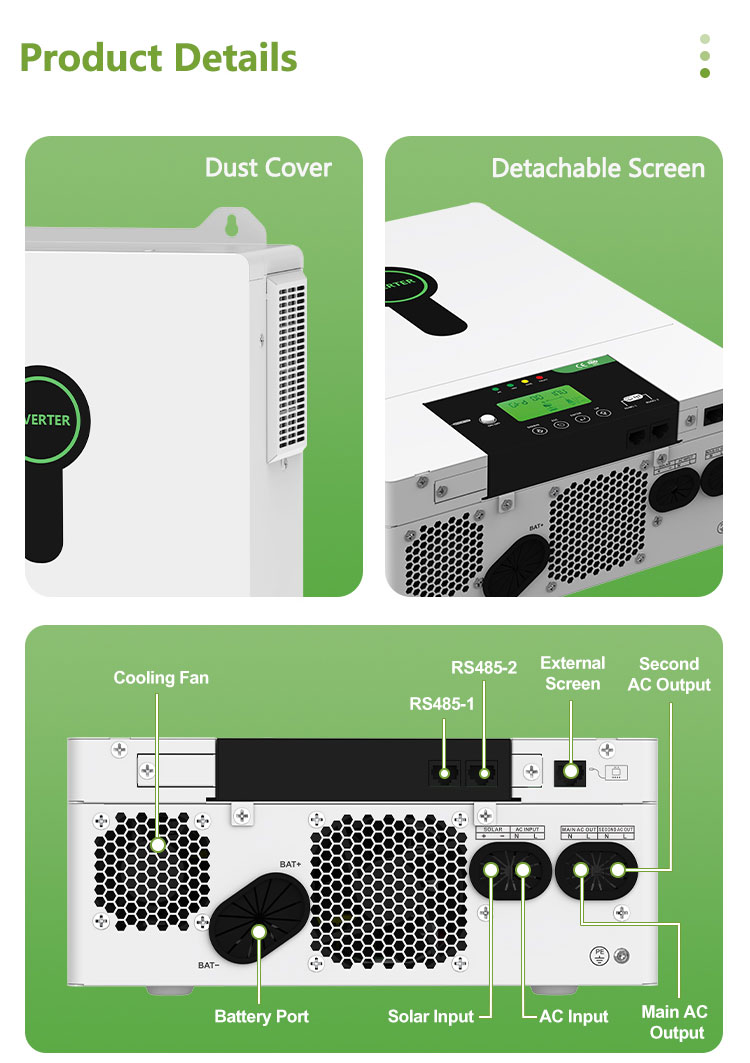

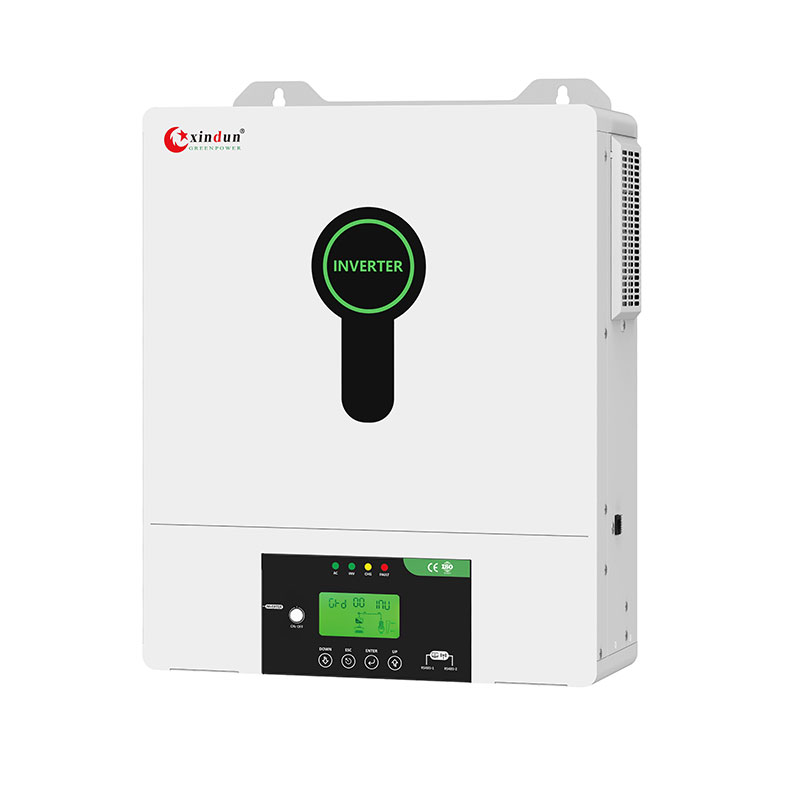

1.Equipped with detachable LCD display control module to adapt to a variety of installation environments and scene requirements.

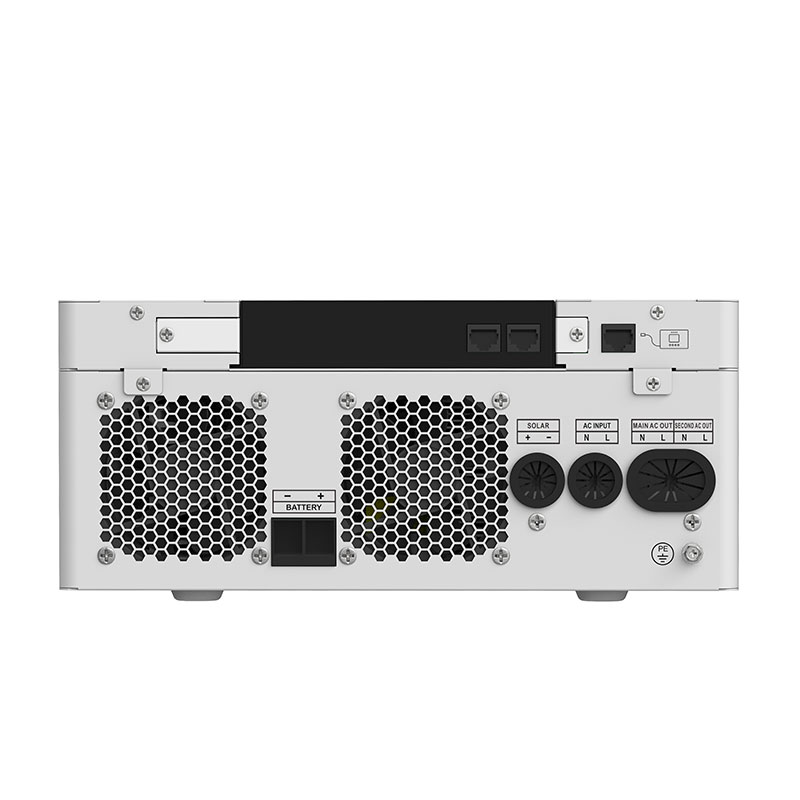

2.Support dual AC output , meet a variety of load requirements.

3. Supports bidirectional energy storage function to achieve bidirectional flow control of electric energy. Both solar and mains can charge the battery.

4. On grid mode, off grid mode or hybrid mode can be flexibly set according to needs to meet different power usage scenarios.

5. Hi frequency technology is adopted to achieve hi power density and compact size, and the overall operation efficiency is excellent.

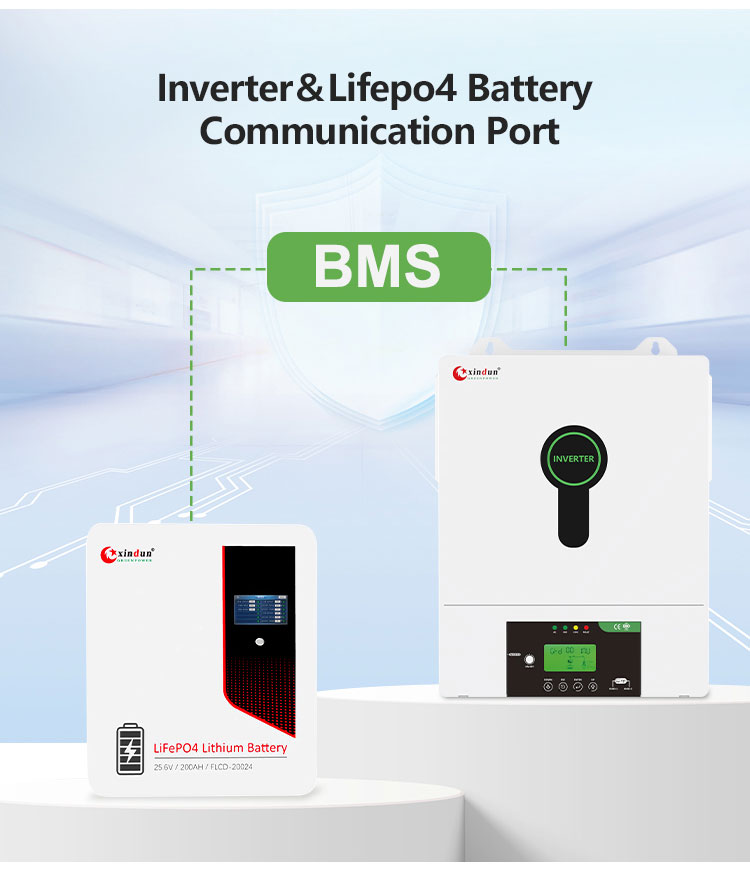

6. Equipped with lithium battery BMS communication function to monitor battery status in real time to ensure safe and efficient operation.

7. The MPPT voltage range is ultra-wide 40Vdc(24V models) / 80Vdc(48V models), which is suitable for a variety of solar module configurations.

8. Supports on grid current setting function to optimize grid interaction performance.

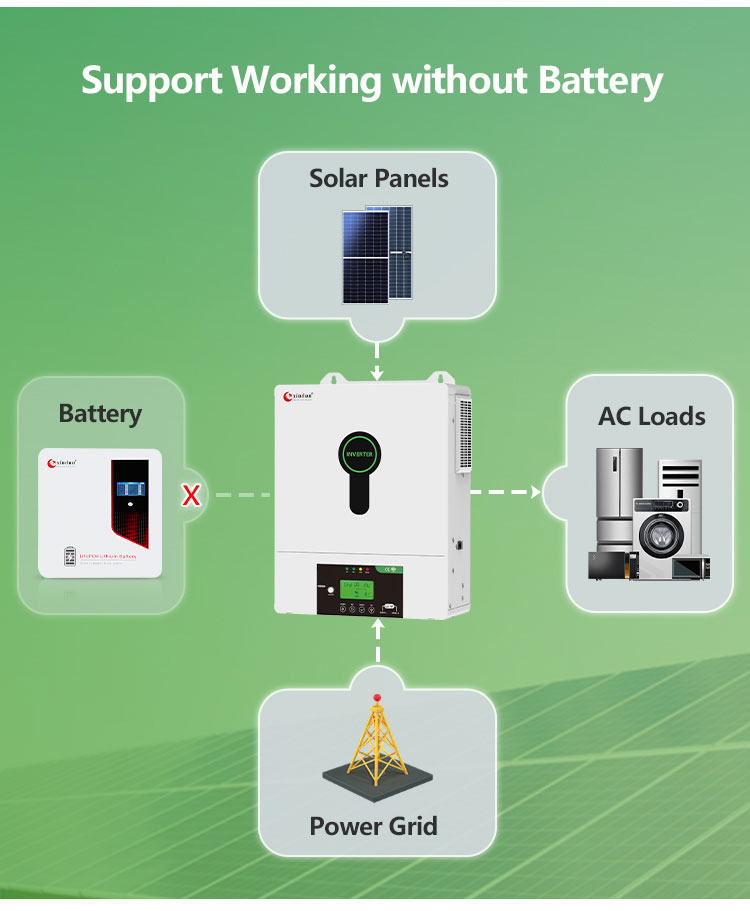

9. Supports battery-free mode, which can operate normally even without battery configuration, reducing system expenses.

■ Hi Frequency Solar Inverter Specification

Hi Frequency Solar Inverter
Model ： HFP-E		33224	43224	63248	83248	103248	123248
Rated Power		3300W	4300W	6300W	8300W	10.3KW	12.3KW
Maximum Main Output Power		3300W	4300W	6300W	8300W	10.3KW	12.3KW
Maximum Second Output Power		990W	1290W	1890W	2490W	3.09KW	3.69KW
PV	Max PV Input Power	5000W		7000W	4500W*2	6000W*2	6000W*2
	MPPT Tracking Voltage Range	40VDC-450VDC		80VDC-450VDC
	Rated Voltage	240VDC			280VDC
	Max PV Input Voltage voc (at the lowest temperature)	500VDC
	Max PV Input Current	18A		27A	18A*2	22A*2	27A*2
	MPPT Tracking Channels (Input Routed )	1 Routed			2 Routed
Battery& Charging	Battery Type	Lead-acid Battery/Lithium Battery
		Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board)
	Rated Battery Voltage	24VDC		48VDC
	Battery voltage Range	21~30VDC(default)		42~60VDC(default)
	Max PV Charging Current	120A	150A	120A	150A	180A	200A
	Max AC Charging Current	80A	100A	80A	100A	120A	140A
	Max Charging Current	120A	150A	120A	150A	180A	200A
Off-Grid Operation
AC Input	Rated Input voltage	230V （220V or 240V Can be set)
	Mains input voltage range	165VAC-280VAC/ 120VAC~280VAC(Can be set)
	Rated Input Frequency	50Hz/60Hz
	Input Frequency Range	45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)
AC Output	Rated Output Voltage	230V （220V or 240V Can be set)
	Output Voltage Accuracy	±2%
	Rated Input Frequency	50Hz/60Hz
	Output Frequency Accuracy	±1%
	Output Wave	Pure Sine Wave
Hybrid Operation (Complementary Mode)
AC Input	Rated Input voltage	230V （220V or 240V Can be set)
	Mains input voltage range	187VAC~264VAC
	Rated Input Frequency	50Hz/60Hz
	Input Frequency Range	47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz)
AC Output	Rated Voltage Rated	230V （220V or 240V Can be set)
	Output Current	13.9A	18.7A	27.4A	36.1A	44.9A	53.5A
On-Grid Operation
On-Grid Output (AC)	Rated Output Voltage	230VAC（220VAC or 240VAC Can be set）
	Grid Voltage Range	187VAC~264VAC
	Rated Output Frequency	50Hz/60Hz
	Frequency Range	47Hz~52Hz(50Hz),57Hz~62Hz(60Hz)
	Rated Output Current	13.9A	18.7A	27.4A	36.1A	44.9A	53.5A
	Power Factor	＞0.98(Rated Power)
Regular Parameters
Maximum Conversion Efficiency (Battery Discharge)		94%(peak value)
No load loss (Battery Discharge)		1% Rated Power (Typical value)
MPPT Tracking Efficiency		≥99.9
Transfer Time		10ms(Typical value)
Display		LCD+LED
Cooling Method		Cooling fan in intelligent control

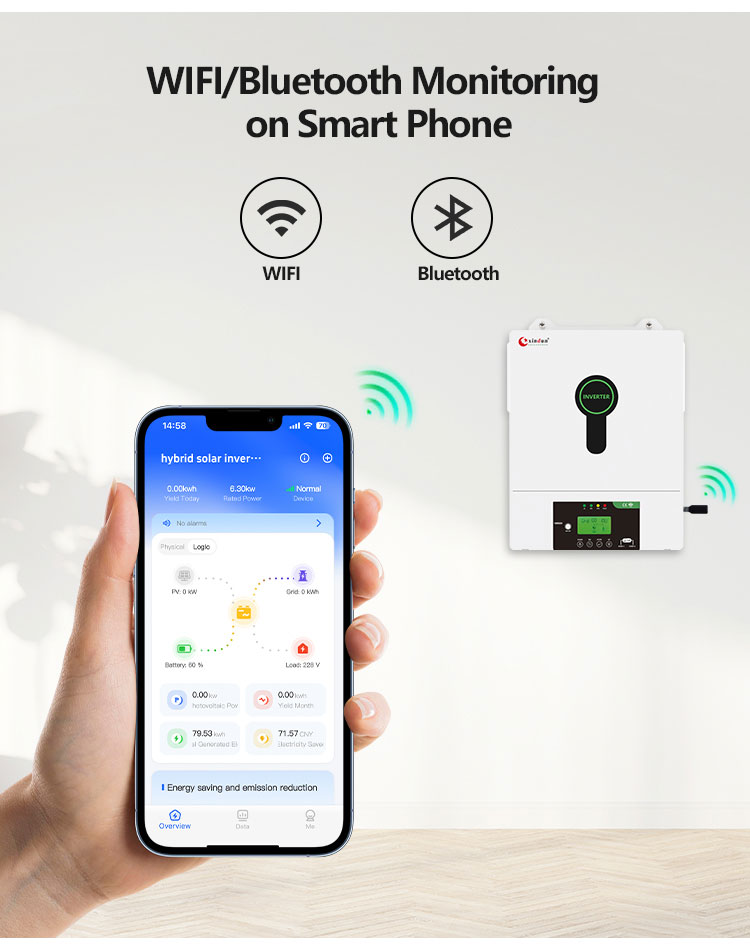

Communication		RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional)
Protection Degree		IP20
Installation		Wall-Mounted
Protection Degree	Battery low voltage alarm	22VDC (default value）		44VDC (default value）
	Battery low voltage protection	21VDC（default value）		42VDC（default value）
	Anti-islanding protection	≤2S
	overload power protection	Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Inverter output short circuit protection	Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Temperature protection	＞90 ℃(Turn off inverter and charging)
Environment	Operating temperature	-10℃~50℃
	Storage temperature	-15℃~60℃
	Noise	≤55dB
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation
Dimension and Weight
Product Size(LWHmm)		325275102	375297102	390320112	515365117	535462117	630540130
Package Size(LWHmm)		400330167	450352167	465375187	615460212	630557212	730635225
N.W.(kg)		5.5	7.3	8	13	14.7	22
G.W.(kg)		6.5	8.3	9.5	14.5	16.7	24.5
Note: All specifications are subject to change without prior notice

■ Hi Frequency Solar Inverter Highlight

The HFP-E series is a hi frequency on grid and off grid hybrid solar inverter optimized and upgraded on the basis of HFP, with on grid, off grid, hybrid and battery-free working modes. The inverter supports detachable LCD display control module, which means that the LCD display remote control panel is installed on the host when it leaves the factory, and users can remove the display panel from the host and install it elsewhere according to actual needs. It has a dual AC output design, and the voltage, frequency and phase of these two outputs are the same. It is divided into main output and second output. Users can choose to turn this function on or off to achieve more flexible power management. When it is turned off, both the main output and the second output can be loaded normally, but the total power of the two outputs shall not exceed the rated power of the inverter. When turned on, a. When the battery voltage is normal, both the main output and the second output can operate normally, and the total power does not exceed the rated power of the inverter. b. When the battery voltage drops to the set main circuit cut-off voltage value, the main output will be turned off. At this time, the maximum load power of the second output is limited to 30% of the rated power of the inverter to reduce battery discharge and extend the battery life. c. When the battery voltage rises back to the set main circuit recovery voltage value, the main output resumes power supply. d. If the main output is turned off and the main power is connected (that is, the inverter is in main power mode), the main output will immediately resume power supply to ensure the normal operation of critical loads. It can meet the needs of a variety of loads and scenarios, such as computers, TVs, fans, refrigerators, air conditioners and other household electrical appliances.

The inverter has bidirectional energy storage function and can intelligently control the flow of electric energy. Whether it is solar energy or city electricity, it can charge the battery to ensure that stable power can still be provided when solar energy is insufficient or unstable. Built-in MPPT solar controller, the maximum solar tracking range is 500V, and the inverter conversion efficiency is as high as 94%. It has a lithium battery BMS communication function, which can intelligently manage the battery status, optimize the charging and discharging strategy, and extend the battery life. It has become solar solution for application scenarios such as home energy storage and commercial backup power.

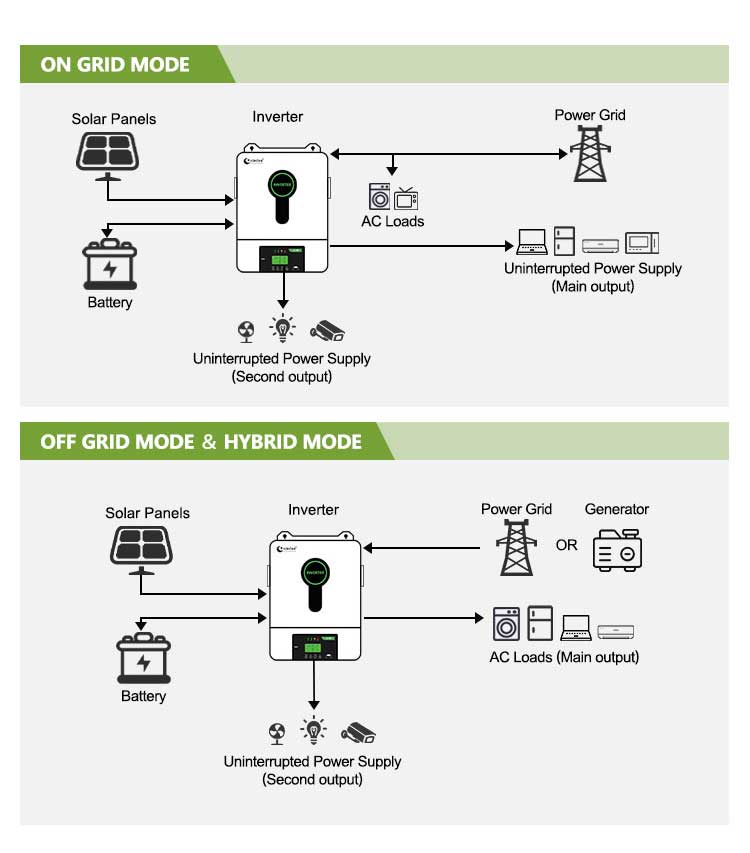

■ Hi Frequency Solar Inverter Wiring Diagram

■ Why choose Xindun Power?

Since establishment in 2006, Xindun Power has accumulated nearly 20 years of technology and continuous innovation. The products it develops and produces include hi frequency solar inverters, low frequency solar inverters, off grid inverters, hybrid solar inverters, batteries and other solar power systems. As a professional inverter manufacturer, we have a modern production plant of more than 10,000 square meters and 12 production lines, as well as a R&D team of more than 30 elites. We can provide OEM/ODM customization services according to the special needs of customers, meet various application needs of customers, and provide customers with hi quality inverter products. Products will undergo four strict quality inspections before leaving the factory to ensure that the products received by customers have stable performance and reliable quality. And provide a complete after sales guarantee service. The low frequency inverter and solar controller have a 3-year warranty period, and the hi frequency inverter has a 1-year warranty period. At the same time, we will provide one stop service according to the situation. Choose Xindun, you don’t need to worry about product quality issues. You will get the triple guarantee of technology, quality and service. We always provide customers with efficient and stable solar solutions.

■ Hi Frequency Solar Inverter Manufacturer

■ FAQ

1. How does the dual AC output design of the hybrid inverter improve the reliability of the solar energy system?

The main output of HFP-E series is an uninterruptible power supply , and the secondary output can be connected to non-critical loads. When the solar energy and battery capacity are insufficient, the main output is shut down. At this time, the maximum load power of the second output is 30% of the inverter rated power and continues to supply power to small power loads.

2.What application scenarios are Xindun hi frequency inverters suitable for?

Our hi frequency inverters are small in size, light in weight, and have hi conversion efficiency. They are widely used in residential solar systems, small commercial power solutions, and mobile power systems (such as RVs, ships, and outdoor camping).

3. What battery types does Xindun's hi frequency inverter support?

Our hi frequency inverter is compatible with a variety of battery types, including lithium batteries, lead-acid batteries, etc. For lithium batteries, our inverter supports BMS communication function, which can intelligently manage charging and discharging strategies to extend battery life.

4.How long is the warranty period for Xindun hi frequency inverters?

Our Hi frequency inverters usually have a 1-year warranty, but we can extend it to 2-3 years based on actual needs.

5. Is Xindun's dual output inverter suitable for on grid applications?

Our HFP-E dual ac output inverter has on grid , off grid and hybrid modes, which can be switched flexibly. In the on grid mode, it supports feeding excess power back to the grid, achieving self generation and self use, and surplus power to the grid.
