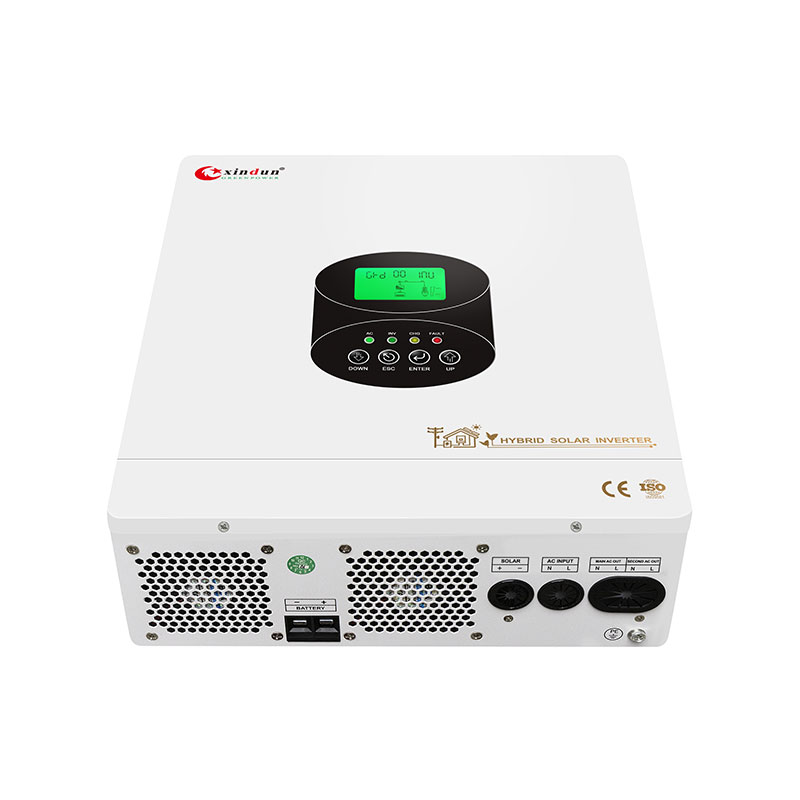

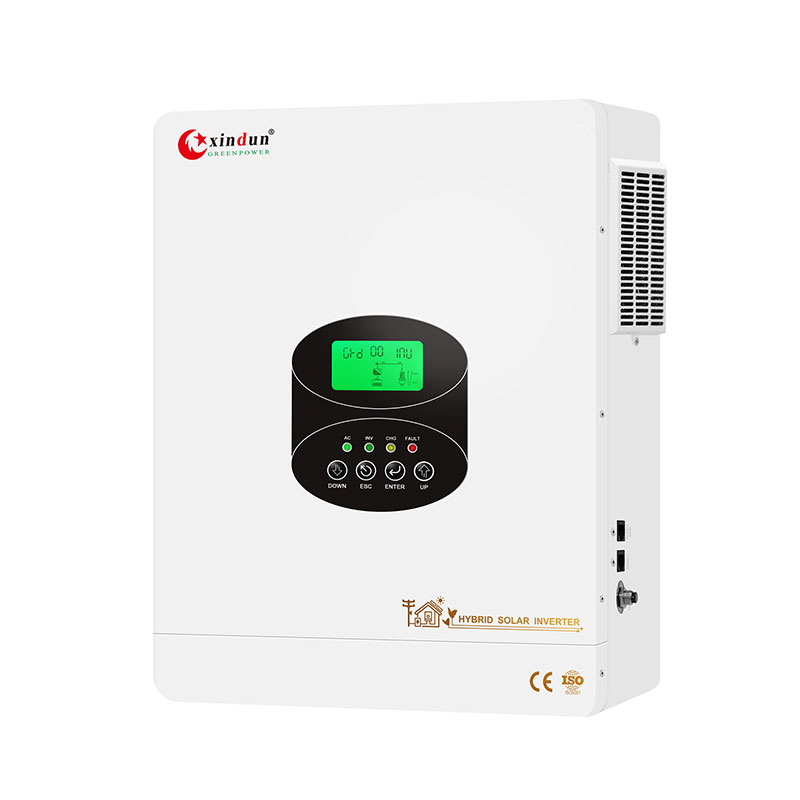

Hybrid Inverter 3.3 Kw - 12.3 Kw 24 Volt 48 Volt

■ Hybrid Inverter Features

1.Uses high-frequency technology to provide high power density, compact size and excellent overall efficiency;

2.Bidirectional energy storage design supports simultaneous charging of photovoltaic and mains power, and electric energy can flow in both directions;

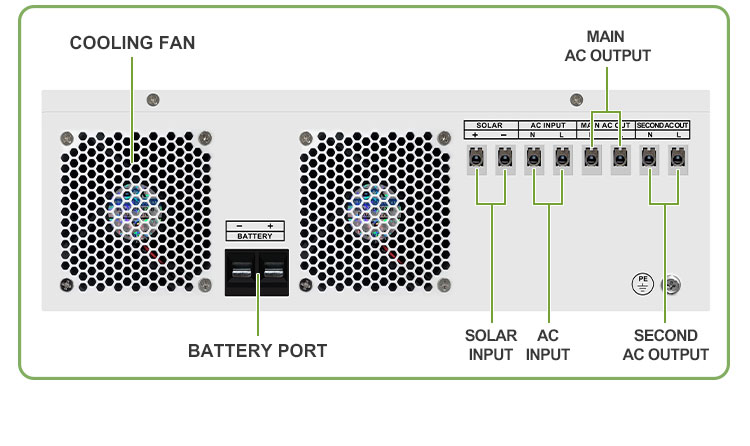

3.Dual output design, supports intelligent load management;

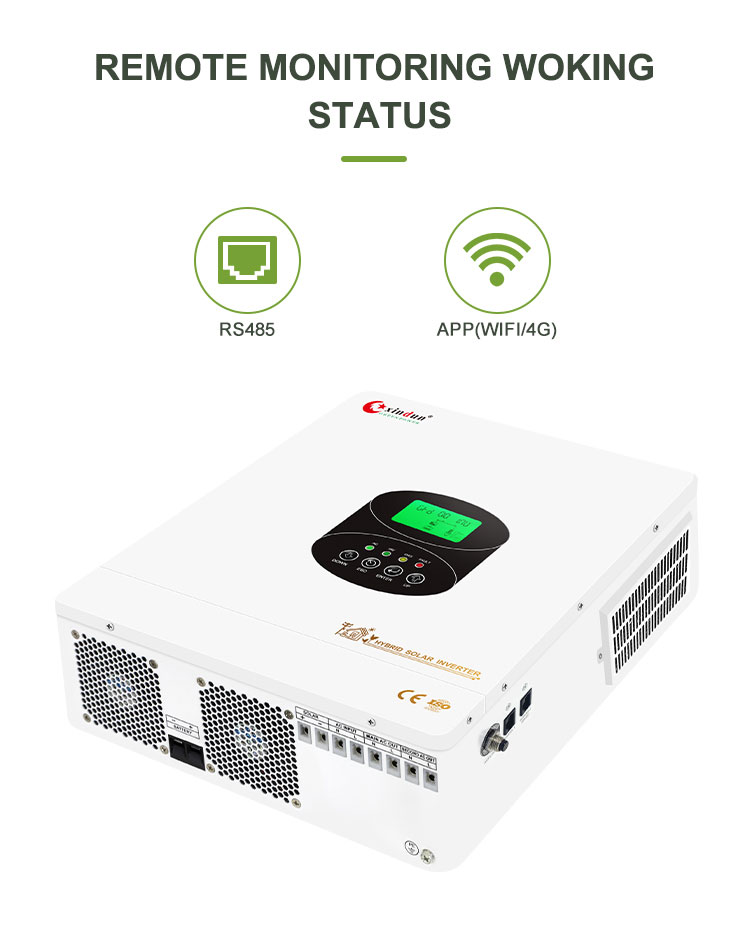

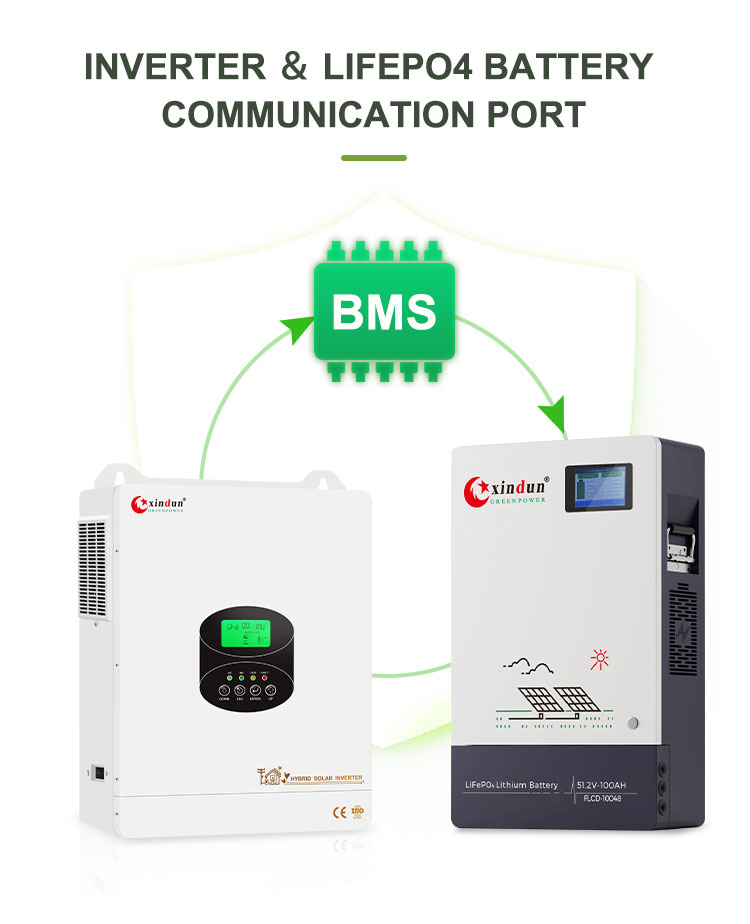

4.Compatible with lithium battery BMS system, providing real-time communication and monitoring;

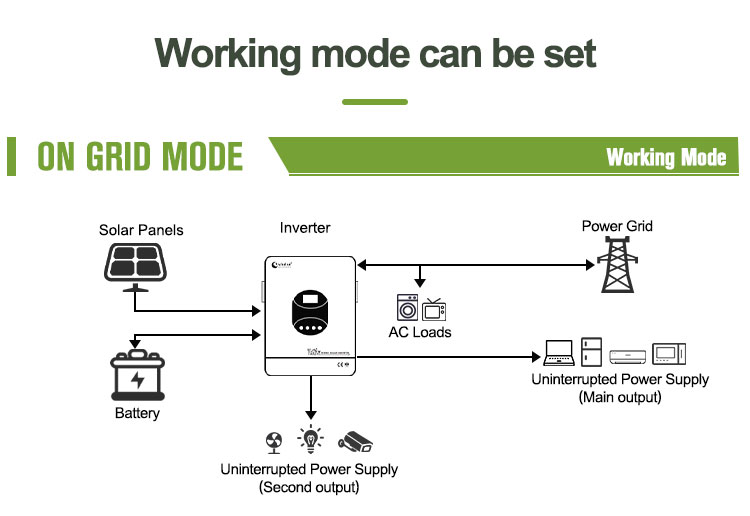

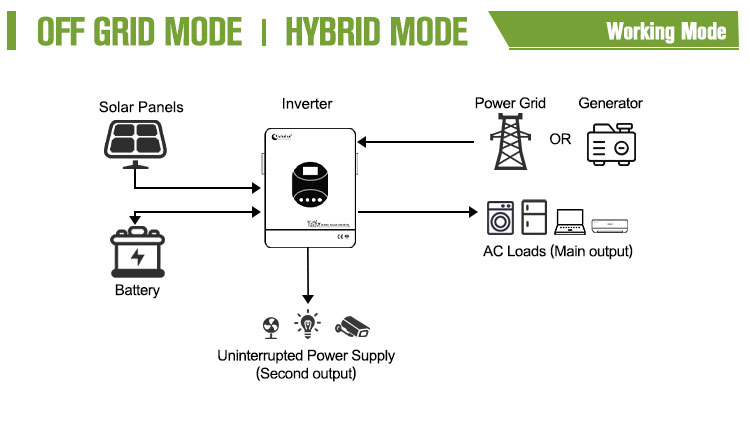

5.Can switch between multiple working modes, including on grid, off grid and hybrid modes;

6.Wide MPPT range, the minimum input voltage of 24 Volt model is 40 Volt DC, and the minimum input voltage of 48 Volt model is 80 Volt DC;

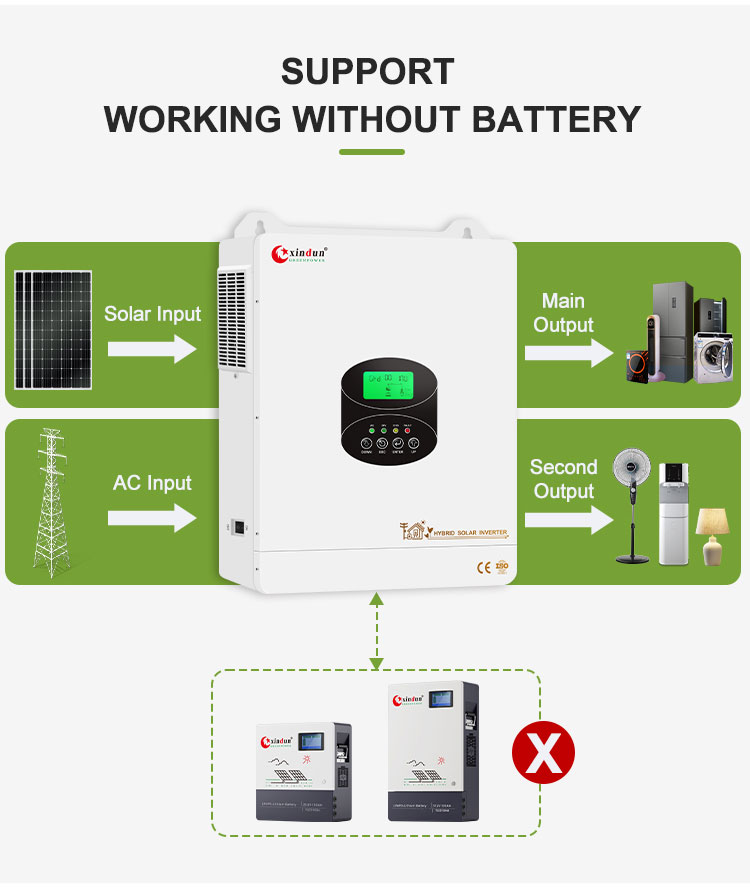

7.Support working without battery to ensure flexible adaptation to various needs.

8.Support priority setting to ensure that power output is distributed on demand;

9.Support charging priority setting to optimize battery charging efficiency;

10.Built-in dust protection kit to improve the durability of the inverter;

11.Equipped with grid current regulation function, flexible control of the grid output of the inverter;

■ Hybrid Inverter Specification

■ Hybrid Inverter Highlight

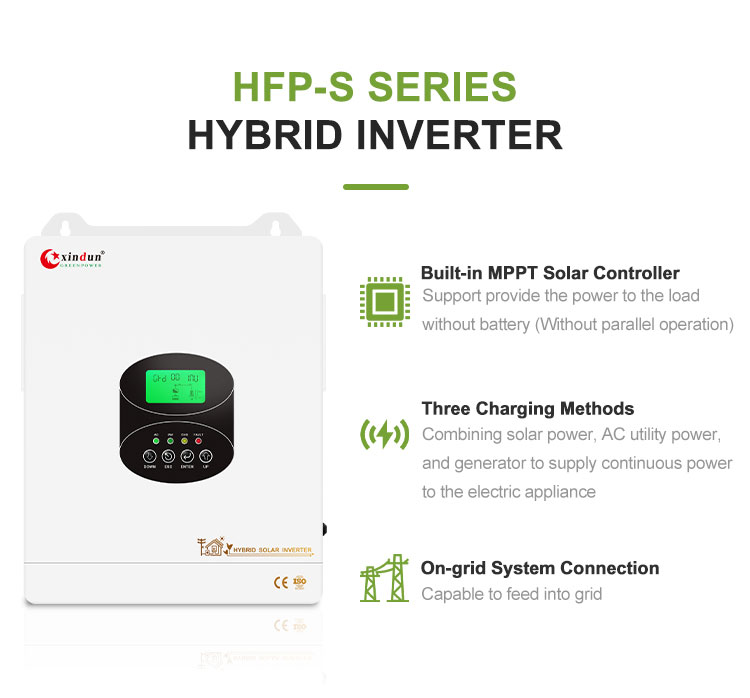

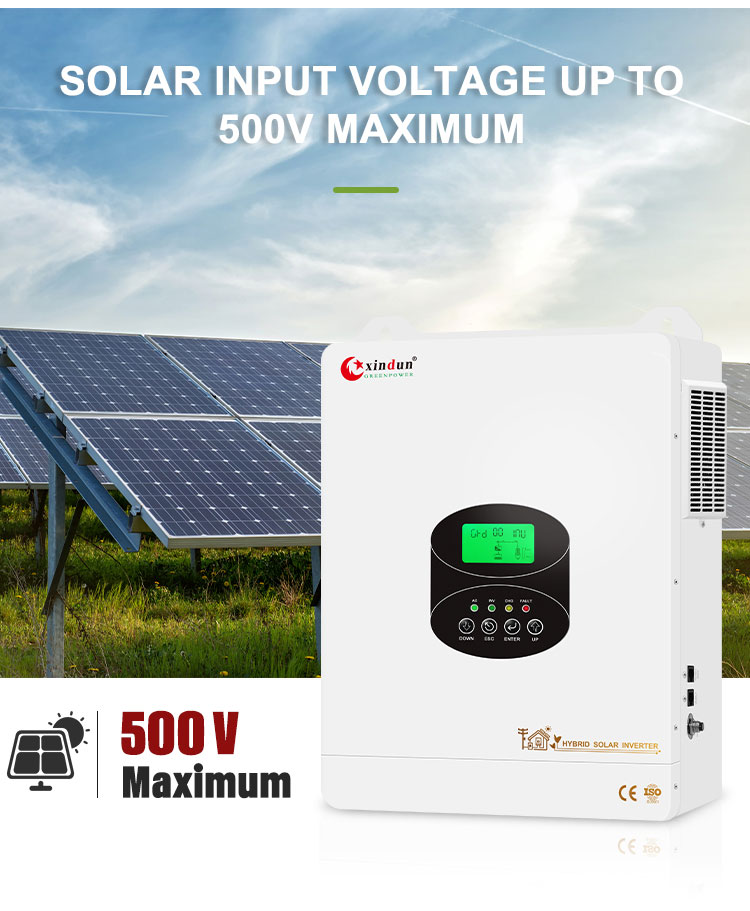

Xindun HFP-S series hybrid inverter supporting 2-way AC output for intelligent load management. The hybrid inverter contains three working modes; grid-connected, off-grid and hybrid mode, which can automatically switch according to user needs and flexibly adapt to different power environments. DC 24 volt / 48 volt to AC 220 volt / 230 volt / 240 volt, built-in MPPT solar controller, with a maximum photovoltaic input voltage of 500V, can effectively collect and convert electricity from solar panels to ensure efficient and stable operation of the system. Its maximum conversion efficiency can reach 94%, and the MPPT tracking efficiency is as high as 99.9%, ensuring the efficient operation of the system. It also supports working without batteries to meet different power needs. Contact us for competitive prices.

■ The Key Benefits of Choosing Xindun Power

Xindun Power is a leading global hybrid inverter company headquartered in Foshan, China. We have more than 20 years of R&D and production experience in the solar field. As a source factory of solar systems, we have achieved certain achievements in products such as hybrid inverters, solar controllers, batteries and solar power systems. Our factory covers an area of more than 10,000 square meters, equipped with modern production lines, and has more than 100 employees to ensure that every production link is efficient and accurate.

We have a strict quality management system, and the products must undergo four quality inspections before the goods are shipped. With a research and development team of more than 20 people, we focus on product innovation and technology optimization, and are committed to meeting the diverse needs of customers.

With more than 16 years of export experience, our solar products are sold to more than 100 countries around the world and are widely used in various commercial, industrial and home scenarios. At the same time, we also provide OEM/ODM services to help partners customize solutions according to market demand and further expand market share.

■ Hybrid Inverter Factory

■ FAQ

1.Does the inverter support batterless operation?

Yes, the HFP-S series hybrid inverter supports batteryless operation mode, which is suitable for users who do not need energy storage system, can save the operating costs of solar power system.

2. How does the inverter perform intelligent load management?

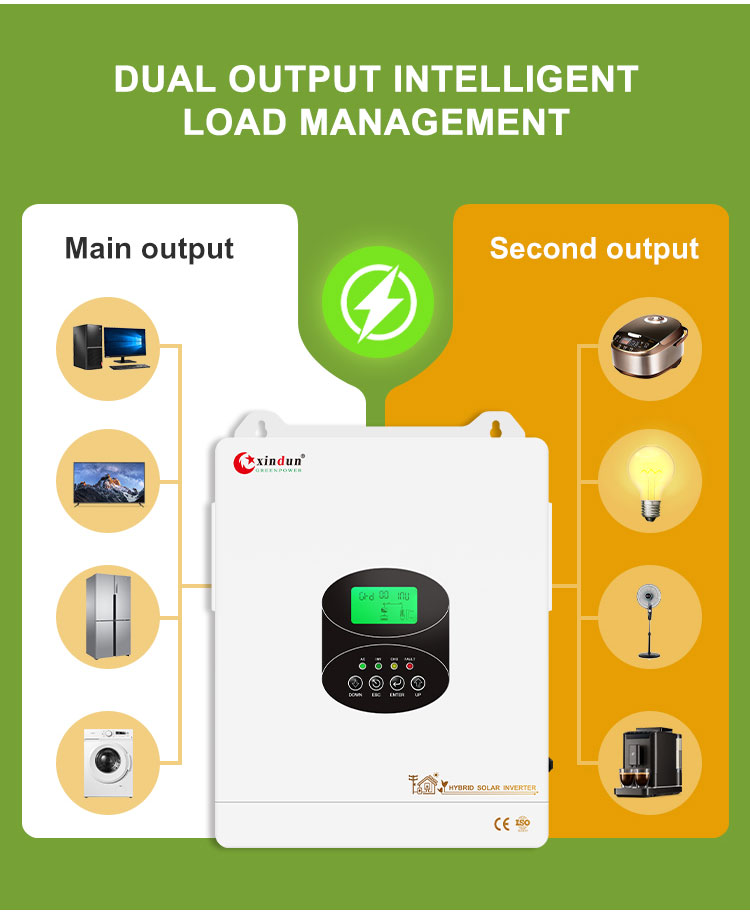

The HFP-S series inverter has dual AC output design and supports intelligent load management. With this design, users can flexibly configure the power supply requirements of different loads. For example, you can connect higher priority loads, such as basic household appliances, to one main output port, and connect other loads such as air conditioners and washing machines to another output port. The inverter will automatically adjust the power distribution of each output port according to demand, optimizing the overall operating efficiency and power distribution of the system.

3.Does Xindun Power provide customization options for the hybrid inverter?

Yes, Xindun Power offers OEM/ODM services, allowing customers to customize the hybrid inverter to meet specific requirements, such as branding, appearance, features, or performance parameters.

4. What is the protection level of the hybrid inverter?

The protection level of the hybrid inverter is IP20, which is suitable for installation indoors or in a protected environment, avoiding direct exposure to rain or dust.

5.What scenarios are suitable for hybrid inverters?

The hybrid inverters are suitable for a variety of scenarios such as home, commercial and industrial, especially for solar power systems that need to operate in off grid,on grid or hybrid modes. Whether it is daily electricity, backup power or off grid power supply, it can respond flexibly.
