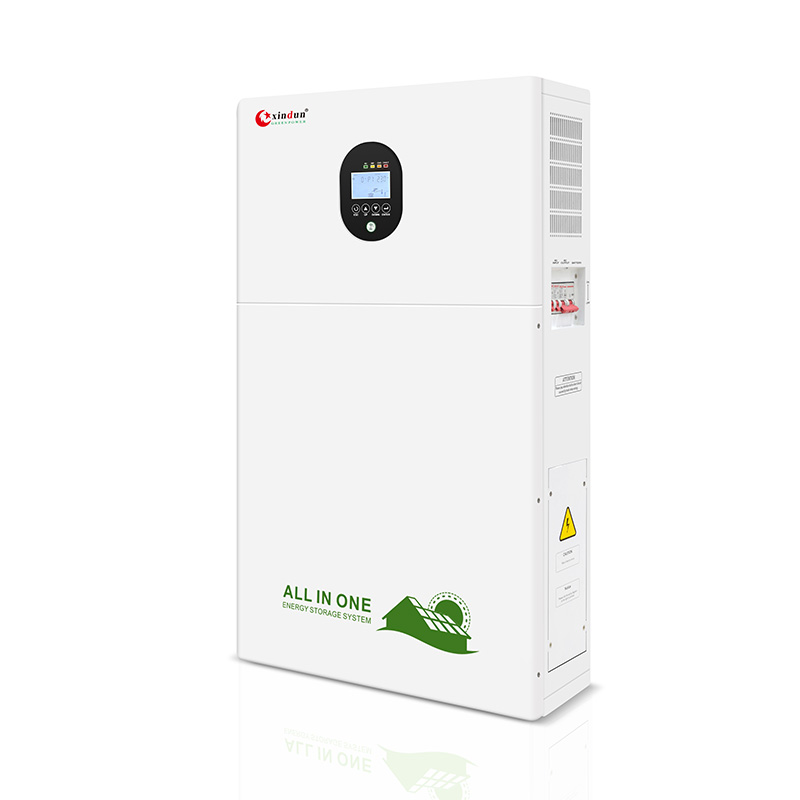

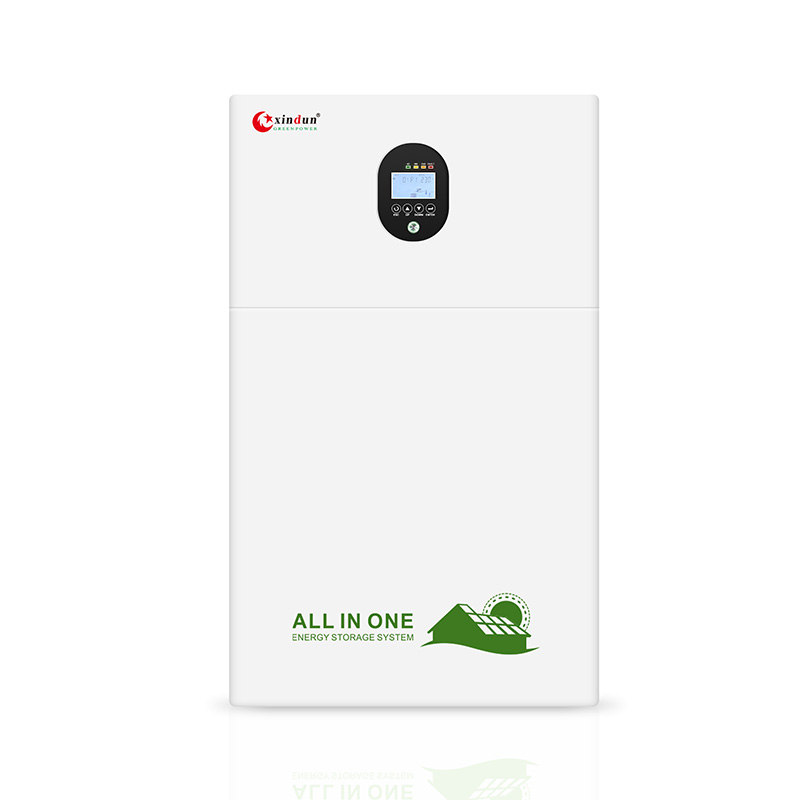

Solar generator rated power is 5000W, DC input 48V, AC ouput 220V/230V/240V, maximum photovoltaic input voltage 500V DC,mppt tracking range 120v-450vdc,inbuilt lithium iron phosphate battery ensure UPS power supply and efficient power generation. Maximum of 9 units running in parallel to form larger capacity single-phase or three-phase electricity.
Product

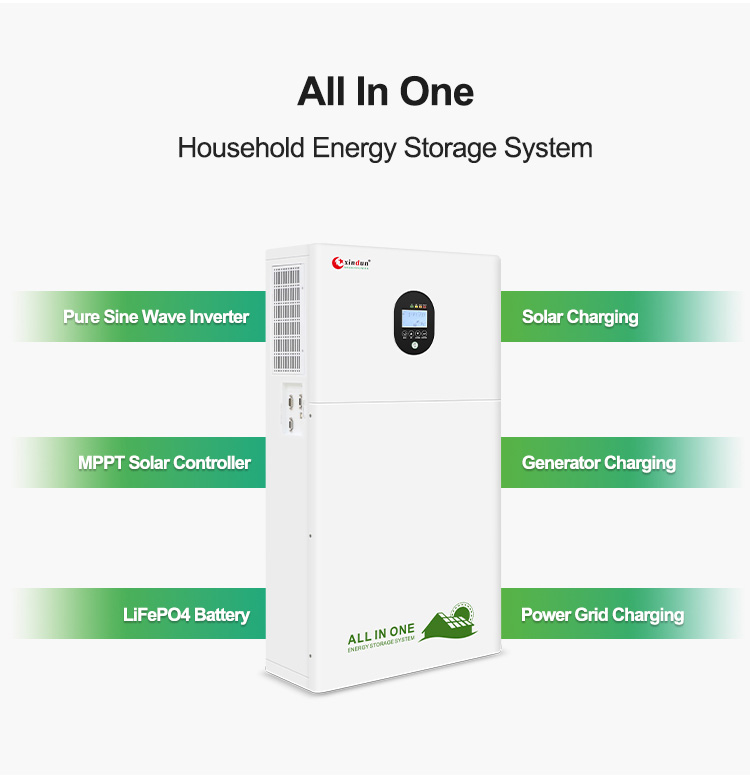

1.The lithium battery solar generator combine mppt controller, solar inverter and lithium battery all in one,saving your installation space.
2.Lithium battery solar generators support parallel operation,the maximum can be 9 units in parallel to form larger capacity single-phase or three-phase electricity,it can be configured flexibly according to your needs.
3. Adaptable capacity for energy storage,support solar energy, diesel and gasoline generator power grid all can charge lithium lifepo4 battery.

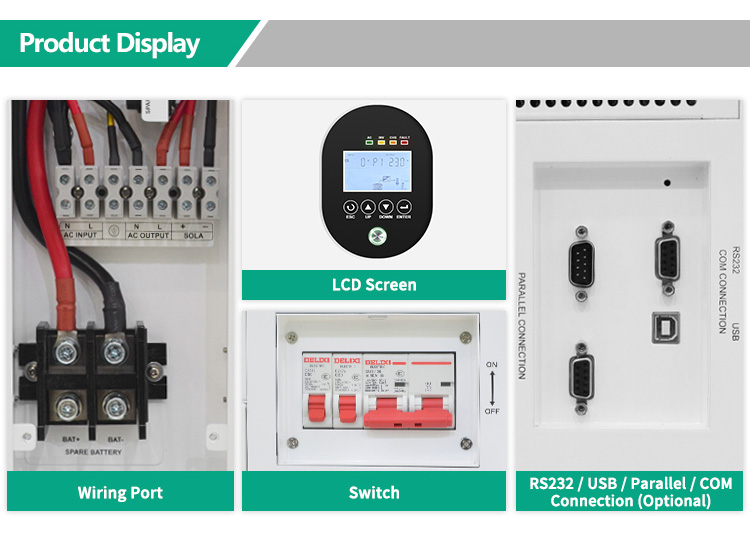

4.Intalligent LCD integrated display,real time view of operating status and setting data.
5.RS485, WIFI, GPRS App monitors inverter and lithium battery.
6.Features overvoltage, overtemperature, overload, battery BMS reporting and full protection.
■ Solar Generator Specification
| Specification | ||
| Model | HES PLUS50248 | |
| Power | ||
| Rated Power | 5KW | |
| Single/Parallel | Support parallel operation, up to 9 units in parallel (single-phase/three-phase) |
|
| Battery | ||
| Standard Battery Voltage | 48VDC | |
| Battery Type | LiFePO4 battery | |
| Battery Capacity | 51.2VDC 100AH （Can parallel batteries, standard rack mount，19inch/3U） | |
| Max Charge/Discharge Current | 100A | |
| Charge/Discharge Cut-Off Voltage | 44.8VDC/58.4VDC | |
| AC Input | ||
| AC Input Voltage | 220VAC/230VAC/240VAC | |
| AC Input Frequency | 45Hz~55Hz（50Hz)，55Hz~65Hz（60Hz) | |
| AC Output | ||
| Output Wave | Pure Sine Wave | |
| Conversion Efficiency(INV mode) | 94%（peak value） | |
| Output Voltage/Frequency (INV mode) | 220VAC/230VAC/240VAC±2%/50Hz ±1%,60Hz ±1% | |
| MPPT Solar Charge Controller | ||
|
Max PV Input Voltage（Voc） (At The Lowest Temperature) |
500VDC | |
| PV Array Maximum Power | 6KW | |
| MPPT Tracking Voltage Range | 120V~450VDC | |
| MAX PV Charging Current | 80A | |
| Other | ||
| Protection | Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection | |
| Protection Degree | IP20 | |
| Display | LCD+LED | |
| Cooling Method | Cooling fan in intelligent control | |
| Communication | USB/RS232 communication , mobile APP (WIFI monitoring or GPRS monitoring) Optional | |
| Working Mode | Mains priority/PV priority/Battery priority | |
| Operating Temperature | -15 ℃ ~40 ℃ | |
| Relative Humidity | 0%-95% (No condensation) | |
| Size | ||
| Product Size(L*W*Hmm) | 525*180*900 | |
| Package Size(L*W*Hmm) | 535*190*910 | |

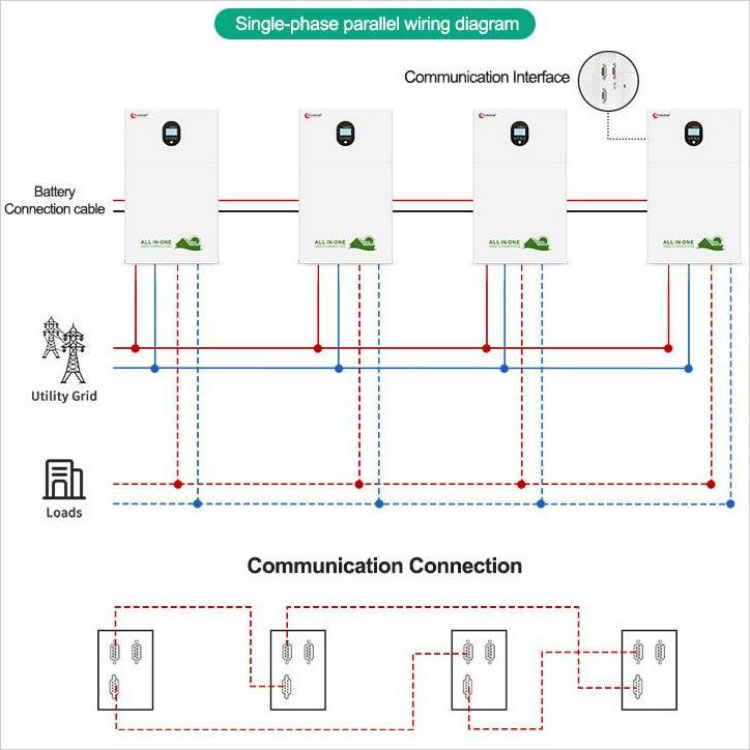

(1) Lithium solar generator in parallel wiring diagram
The wiring diagram clearly shows the parallel connection of 4 inverters, specifying the locations where the positive and negative poles are connected. Furthermore, this lithium solar generator supports the parallel connection of 9 units, with maximum power of 45KW,solve the needs of users who want to expand power at any time, suitable for a variety of scenarios. Additionally, parallel operation supports either single-phase or three-phase output.
（2）Lithium solar generator in single unit wiring diagram
The single lithium battery solar generator clearly shows how to connect the power grid, battery, solar panel input, and power grid output. It smoothly running computers ,printer,TV and other inductive loads, suitable for household,industry,commerce,etc.
Free sample offer:At Xindun Power, we're happy to provide samples, allowing you to experience our products directly. And for bulk orders, we'll deduct the sample costs from your total, effectively making these top-quality samples free for you.
Solar inverter product wholesale:Xindun is your source for cost-effective solutions, offering abundant stock and competitive wholesale prices. Our skilled team, with over a decade of inverter manufacturing experience, ensures high productivity across four efficient production lines. Timely order fulfillment is guaranteed through our global network of overseas warehouses. As the original inverter manufacturer, Xindun Power's pricing sets the stage for a lasting partnership.
Solar inverter accppt OEM/ODM：Xindun is proud to provide OEM/ODM services covering personalized logos, exterior designs, special voltage, and power configurations, all with flexibility in RFQ minimum orders. With 15 utility model patents, 10 computer software patents, and 5 design patents, our extensive research and design capabilities are at your service. Additionally, we hold various national professional inspection certifications, including CE, IEC, TUV, TLC, ISO, MCS, and more. We empower importers and traders to manufacture their own branded products, helping them create distinctive items and gain a competitive edge in the market.
Solar inverter solutions customization:Xindun is committed to providing personalized solar solutions for engineering projects. Our all-inclusive service covers project design, configuration, and product manufacturing to installation, debugging, post-support, and investment return analysis. We empower you to shape your solar future while conserving your valuable time and resources.
Q1: Are you a factory?
A1: Yes, we are one of the top 10 lithium solar generator manufacturers in China, with a production area exceeding 10000 square meters. We specialize in producing inverters, solar charge controllers, solar generators, and complete solar power system solutions. We collaborate with globally renowned brands, offering customized production and the option to include your logo on our products.
Q2: How much does a lithium battery generator cost?
A2: Please provide your specifications, such as power, voltage,charging current, quantity, and any other functional requirements. We will offer you the most favorable ex-factory price. As a leading lithium battery generator factory, we engage in direct sales without intermediaries, ensuring competitive pricing.
Q3: What's the difference between a solar inverter and a solar generator?
A3: Both solar inverters and solar generators are widely used to convert photovoltaic solar energy into electrical energy, transforming DC (Direct Current) into AC (Alternating Current). A solar generator integrates a solar inverter, solar charge controller, and battery into a single kit.Compared to a solar inverter, a solar generator offers greater convenience.
Q4: What are the advantages of using lithium battery generator?
A4: The compact design of the solar generator integrates inverters, controllers, and batteries, which takes up no space and is convenient to use. Lithium batteries are the most popular type of battery in the market after 2022, with their lightweight and long service life. The combination of solar generator and lithium battery has been selling well worldwide since its launch. Lithium solar generator enable more efficient energy conversion and use which intelligent control of battery charging and discharging,prolong generator life and quiet operation stability reducing noise pollution.
