Rated Power: 1000W, Input: DC12V, Ouput: AC110V/120V/220V/230V/240V, 1*AC Output Socket, 4*DC12V, 2*DC5V USB | Best Cheap Solar Generator Combines PWM Charge Controller, Can Built-in 1*100AH Battery
Product
■ Best Solar Generator Feature
1. 3 times peak power, excellent loading capability.

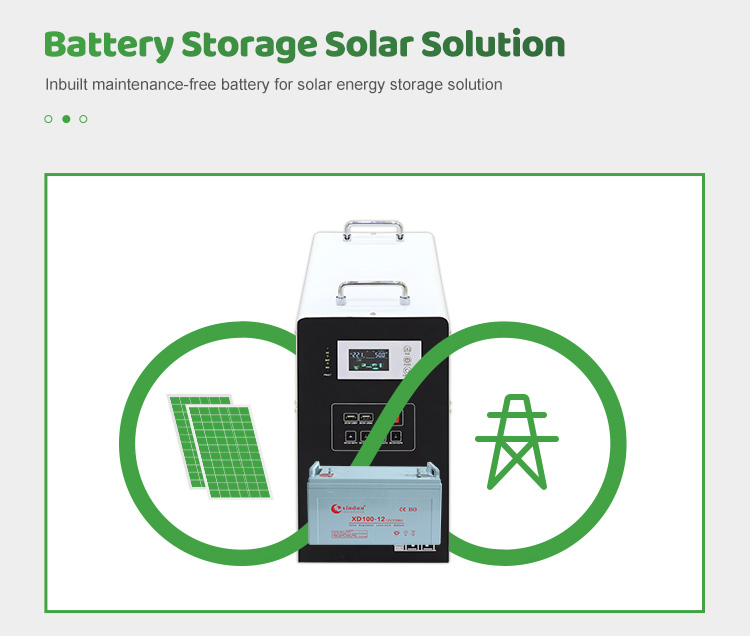

2. Best solar generator combines inverter/solar controller/battery all in one.

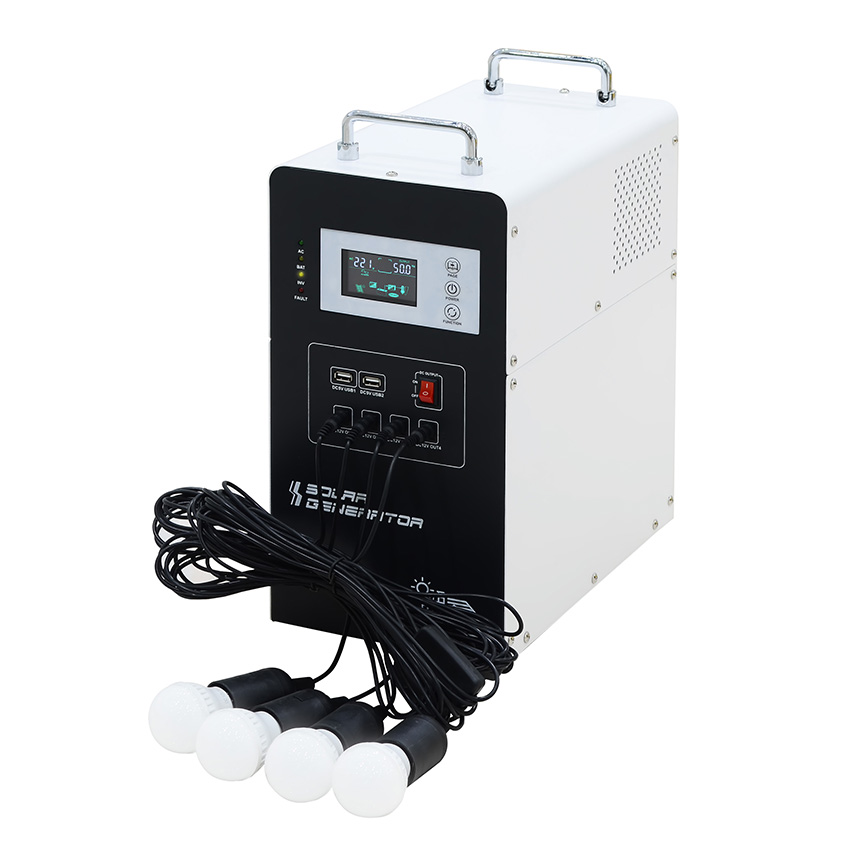

3. Multiple output: 1*AC output socket, 4*DC 12V, 2*USB.
4. Working mode AC prior/ECO mode/Solar prior selectable.
5. AC charging current 0-30A selectable.
6. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7. Adding fault code to monitor real-time work situations.
8. Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9. Digital LCD and LED for visualization of operation status of the equipment.
0. Portable solar generator inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.
■ Best Solar Generator Specification
| Specification | ||
| Model : ESS | 102P | |
| Capacity | Rated power | 1000W |
| Peak power（20ms） | 3000VA | |
| Input | Stardard battery voltage | 12VDC |
| AC input voltage range | 73~138VAC(110VAC) / 83~148VAC(120VAC) /145~275VAC(220VAC)/155~285VAC(230VAC)/165~295VAC(240VAC) | |
| AC input frequency range | 45Hz~55Hz（50Hz);55Hz~65Hz（60Hz) | |
| Output | Conversion efficiency | ≥85%(Battery mode); >99%(AC mode) |
| AC Output voltage | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode) |
|
| AC Output frequency | 50/60Hz±1%(Battery mode); Tracking Automatically(AC mode) | |
| AC Output waveform | Pure Sine Wave | |
| THD | ≤3%（Linear load) | |
| DC Output voltage | 4*DC 12V; 2*USB（5V） | |
| AC charger | AC charging current | 0~30A(Depends on model) |
| AC charging method | Three-stage(constant current, constant voltage, floating charge) | |

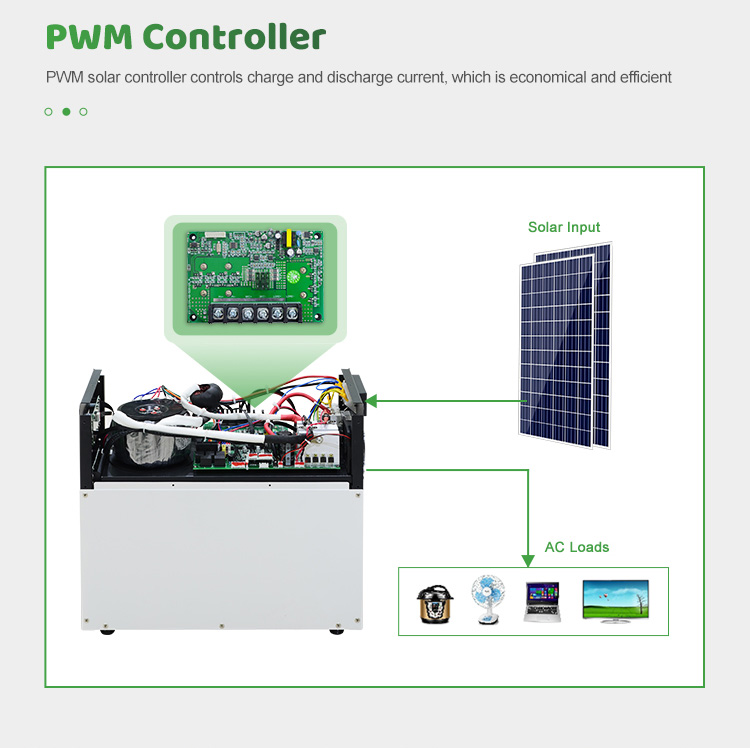

| solar charger （Optional） | Charging mode | PWM |
| Max PV input voltage(Voc) (At the lowest temperature) |
50V | |
| PV input voltage range | 15V~44V | |
| Charge & discharge current | 40A | |
| Max PV input power | 560W | |

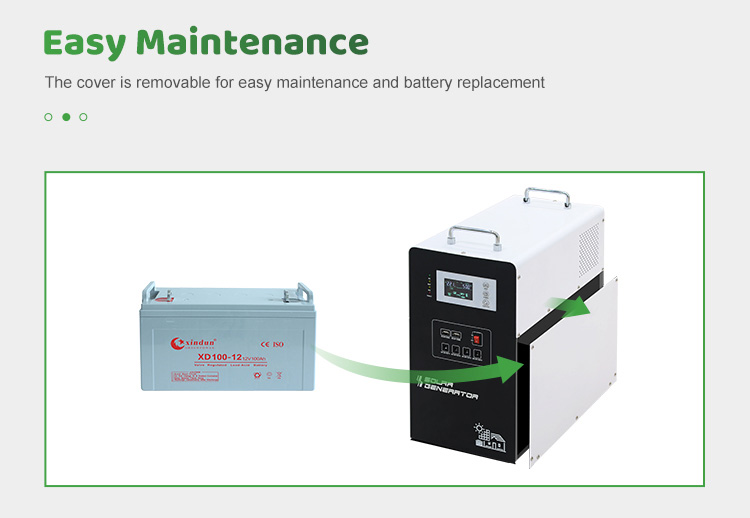

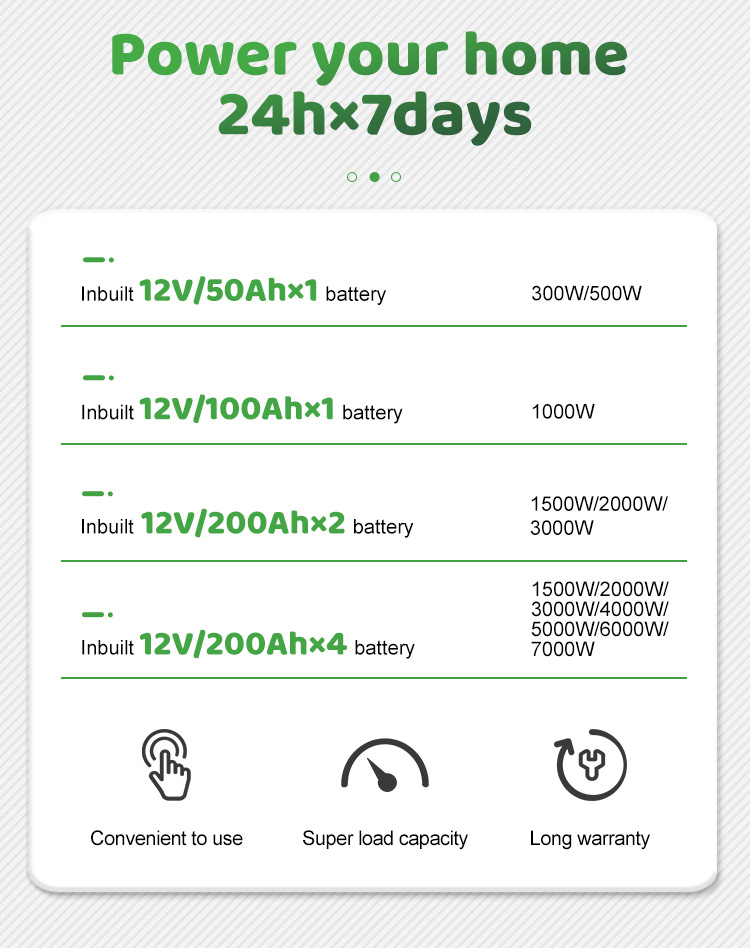

| Inbuilt battery | Capacity | 1*100AH |
| Battery size(LxWxH)/pcs | 407*174*210（240) | |
| Other | Transfer time | ≤4ms |
| Protection | with over-voltage, low-voltage, overload, short circuit, high tempreature protections | |
| Display | LCD & LED | |
| Cooling way | Cooling fan in intelligent control | |
| Working mode (selectable) |
d1 | AC priority mode |
| d2 | ECO mode | |
| d3 | Solar priority mode | |
| Work environment |
Operating temperature | -10℃~40℃ |
| Storage temperature | -15℃~60℃ | |
| Elevation | 2000m（More than derating） | |
| Humidity | 0%~95% ,No condensation | |
| Physical | Dimention L x W x H(mm) | 488*232*450 |
| Net weight(kg)(without battery) | 16 | |
| Packing | Dimention L x W x H(mm) | 550*295*625 |
| Gross weight(kg)(without battery) | 24 | |
| Quantity/CTN | 1pcs per wooden case | |
| Note: All specifications are subject to charge without prior notice | ||
ESS series best solar generator power range is from 300w to 7000w, for more specification, pls refer to this page (CLICK).

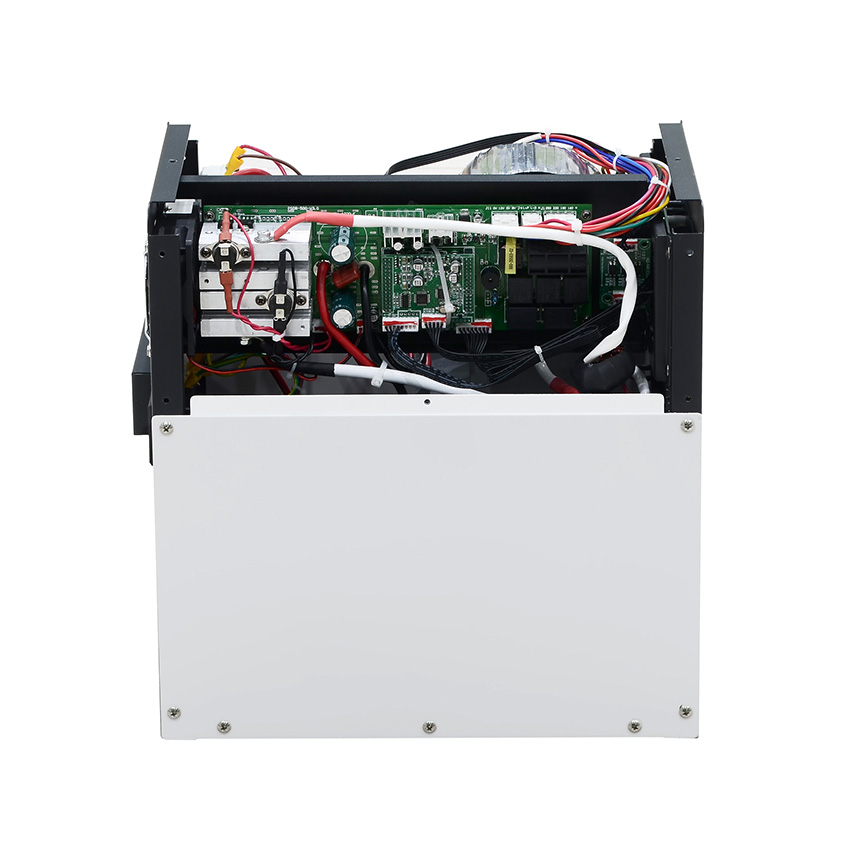

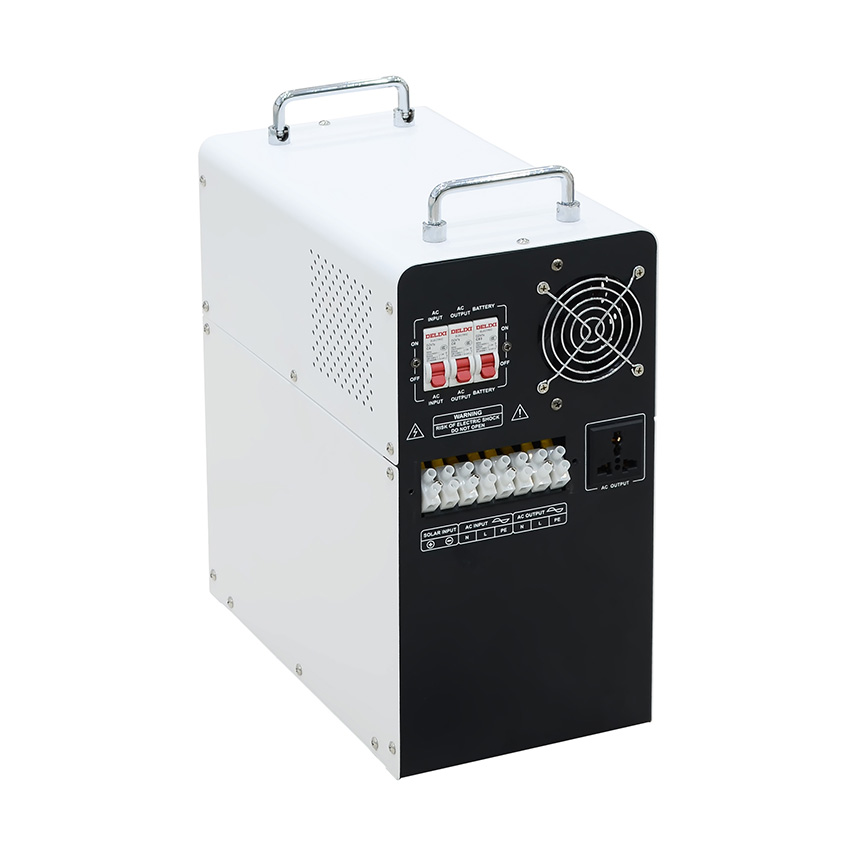

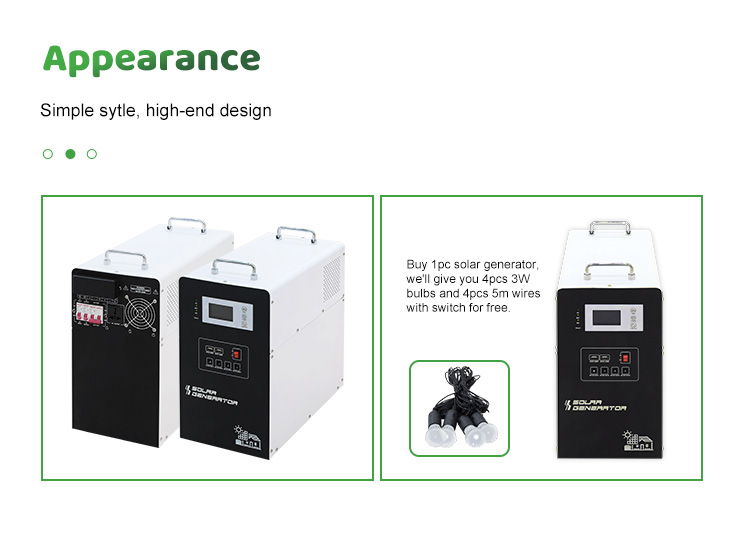

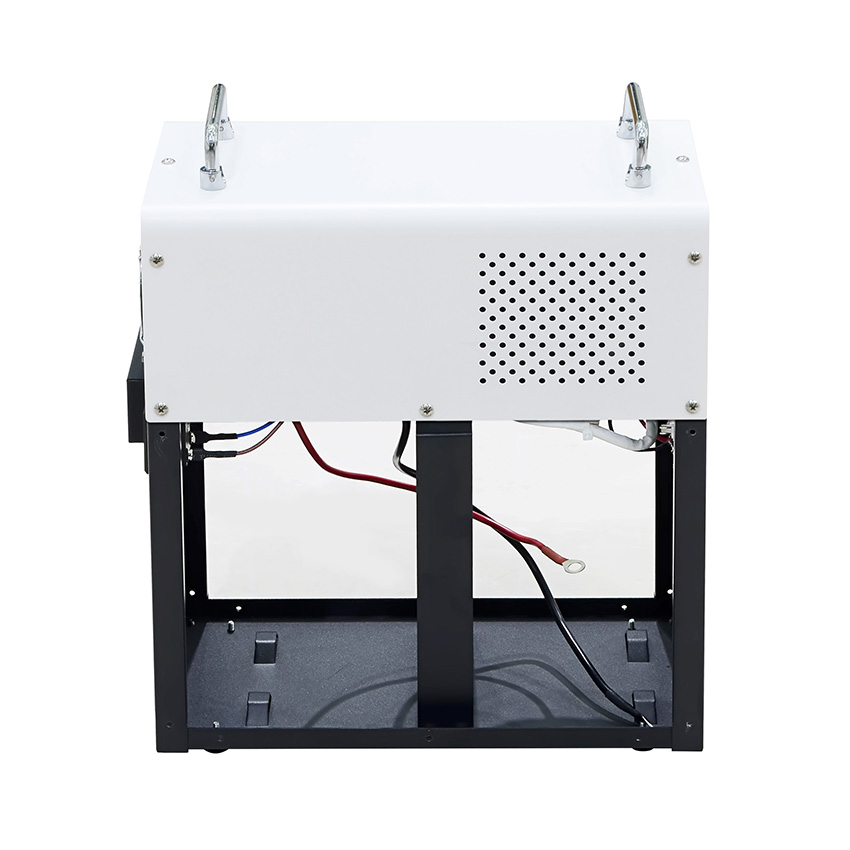

■ Best Solar Generator Details
■ Best Solar Generator Wiring Diagram
Contact XINDUN for more high-definition wiring diagram.
■ Best Solar Generator Application

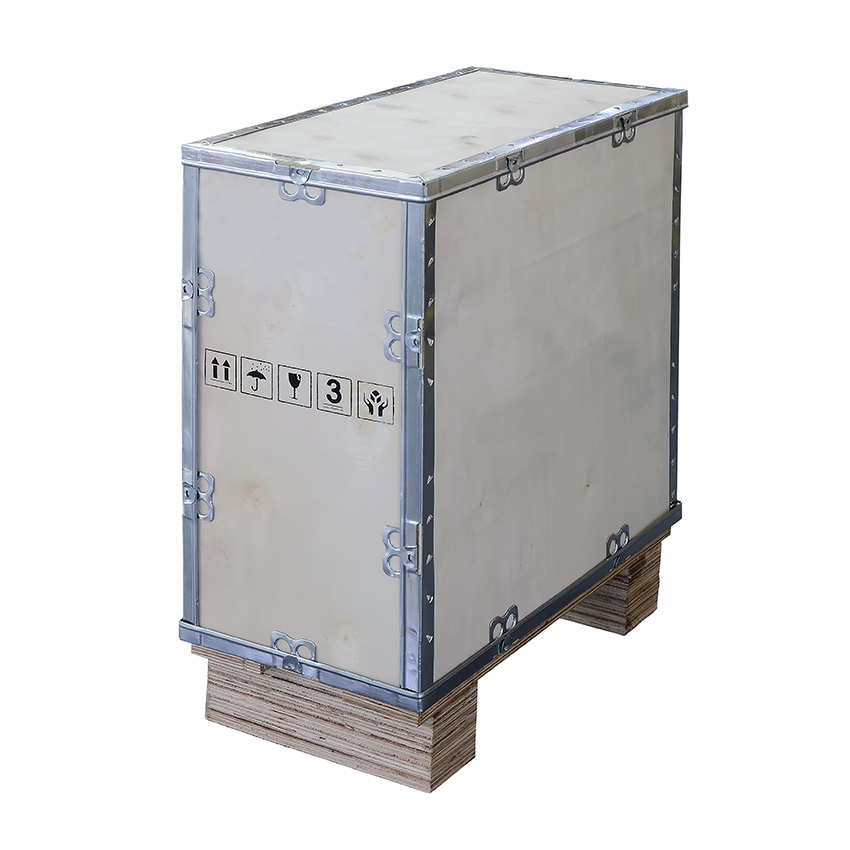

■ Solar Generator Package and Delivery
to be added..
■ Why Choose Us？
■ About Xindun Power
■ Best Solar Generator Factory
■ Qualifications and Certificates
■ Global Solar Exhibitions
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: How much does rv camping solar generator cost?
A: Tell me your requirements, such as power, voltage, battery capacity, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Best solar generator factory direct sales, no middlemen earn price difference.
Q3: What\'s the difference between solar inverter and solar generator?
A: Both solar inverter and solar generator are widely used in PV solar energy into electric energy, and design to convert DC (Direct Current) into AC (Alternating Current). Solar generator combines solar inverter/solar charge controller/battery all in one kit. Generally solar generator has multiple output: AC output socket and DC 12V, USB 5V. Compared with solar inverter, solar generator is more convenient to use.
Q4: How to solve the rv camping solar generator technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
