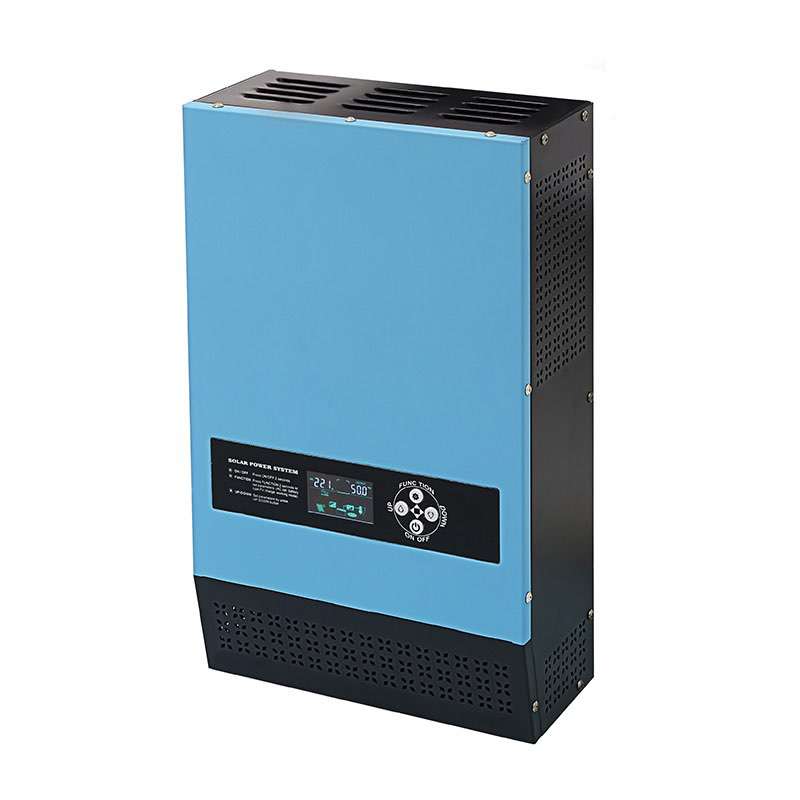

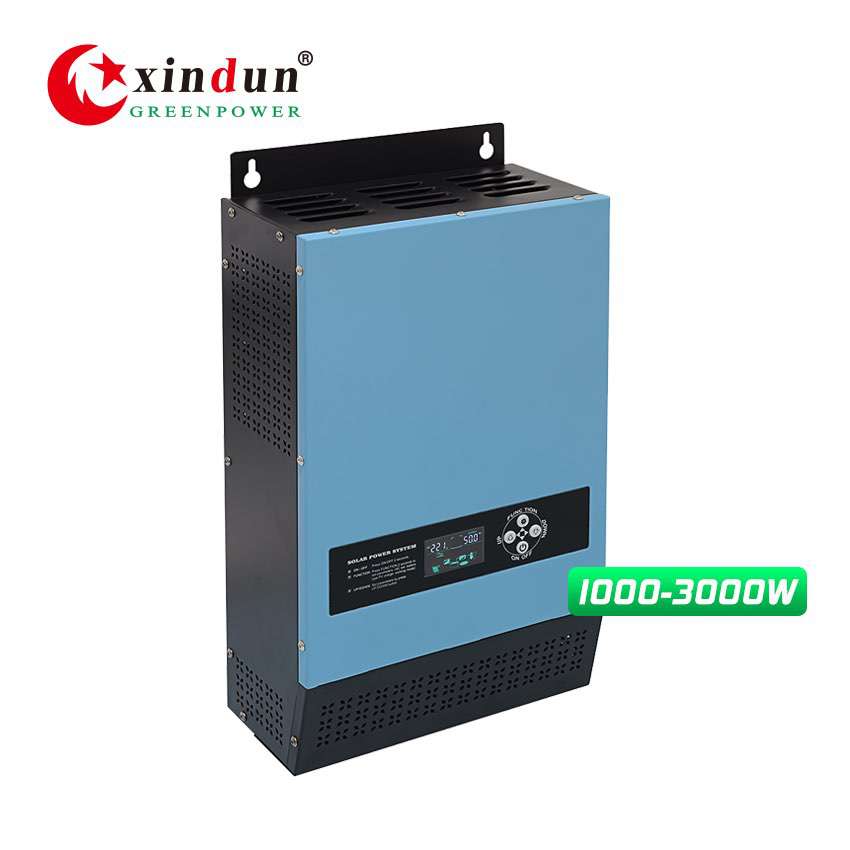

Wholesale LS Solar System Inverter for Home 1000W-3000W 12V/24V/48V

1000W/1500W/2000W/3000W DC12V/24V/48V Convert to AC110V/120V/220V/230V/240V | Solar Inverter System for Home Use | Inverter Cheap Price

  • OEM : OEM for Wholesaler/Distributor/Reseller
  • Type : DC to AC Off-Grid Inverter
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 6 pcs

Xindun solar system inverter agents


Xindun has rich experience in solar system inverter.

We mainly serve Solar Installation Companies, Power Supply and Electrical Service Companies, Building Materials Companies, Agricultural and Commercial and Industrial Companies, Shipping Companies, RV Companies and Project Contractors, etc.


LS solar inverter systems price for home



Solar System Inverter Feature



1 Pure sine wave output inverter;
2 Low frequency toroidal transformer lower loss;
3 Intelligent LCD integration display;
4 AC charge current 0~30A adjustable, three working modes selectable;
5 Peak power more than 3 times, full-automatic and perfect protection function;
6 Added fault code query function, easy to monitor the operation in real time;
7 Supports diesel or gasoline generator input, adapt any tough electricity situation;
8 Solar system inverter combines industrial and home usage, wall-mounted design, convenient installation.



Solar System Inverter Specification



Specification
Model LS
10212/24/48
(102)
15212/24/48
(152)
20212/24/48
(202)
30224/48
(302)
Rated Power 1000W 1500W 2000W 3000W
Peak Power(20ms) 3000VA 4500VA 6000VA 9000VA
Start Motor 1HP 1.5HP 2HP 3HP
Battery Voltage 12/24/48VDC 24/48VDC
Size(L*W*Hmm) 500*300*140
Packing Size(L*W*Hmm) 565*395*225
N.W.(kg) 12 13.5 18 20
G.W.(kg)(Carton Packing) 13.5 15 19.5 21.5
Installation Method Wall-Mounted
Parameter
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range
85VAC~138VAC(110VAC) / 95VAC~148VAC(120VAC) / 170VAC~275VAC(220VAC) /
180VAC~285VAC(230VAC) / 190VAC~295VAC(240VAC)
AC Input Frequency Range 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
Max AC charging current 0~30A(Depends on model)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery Mode) 50/60Hz±1%
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
Output Frequency(AC Mode) Tracking Automatically
Output waveform distortion
(Battery Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤0.8% rated power
No load loss(AC Mode) ≤2% rated power( charger does not work in AC mode)
No load loss
(Energy saving Mode)
≤10W
Battery Type VRLA Battery Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize battery
Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection Battery undervoltage alarm Factory default: 11V(Single battery voltage)
Battery undervoltage protection Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm Factory default: 15V(Single battery voltage)
Battery overvoltage protection Factory default: 17V(Single battery voltage)
Battery overvoltage recovery voltage Factory default: 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Communication RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature ≤55dB
Storage temperature -10℃~40℃
Noise -15℃~60℃
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice



Solar System Inverter Details

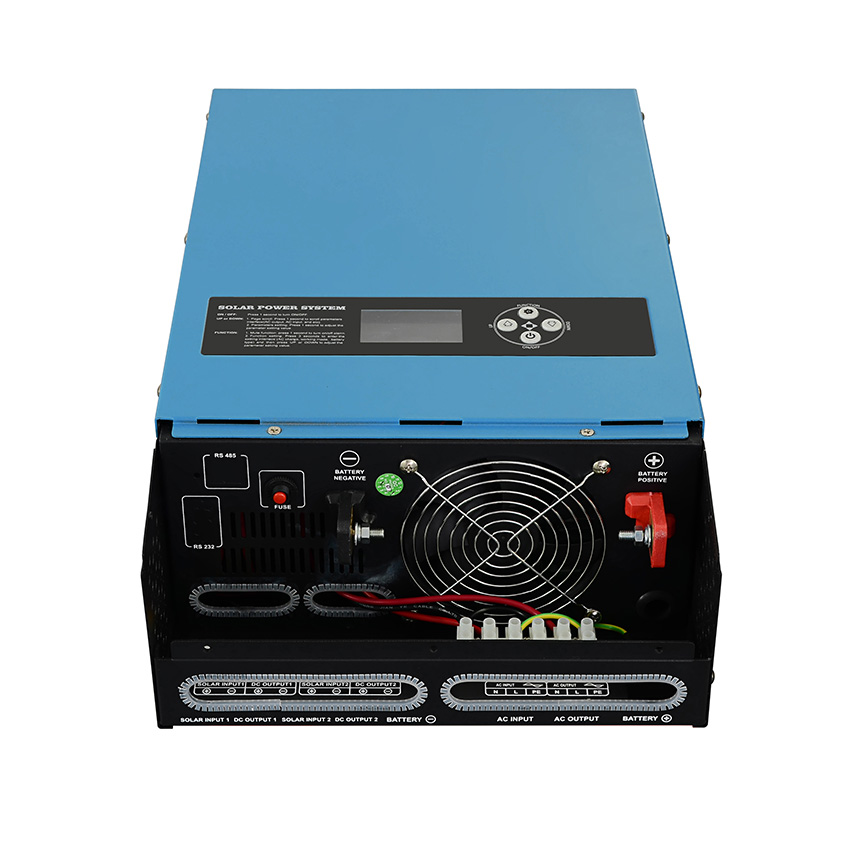

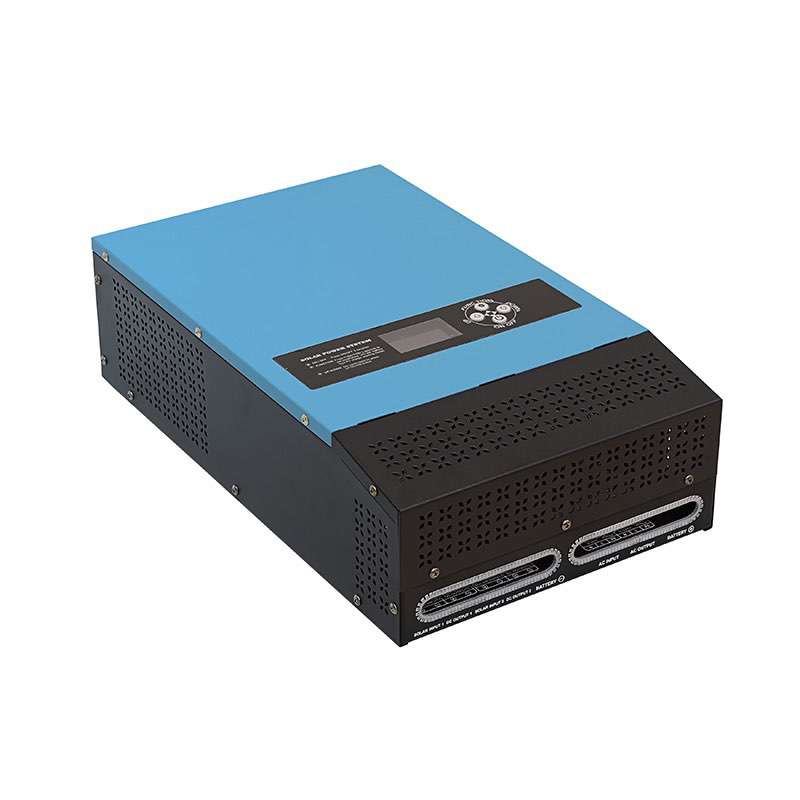

solar system inverter for home details

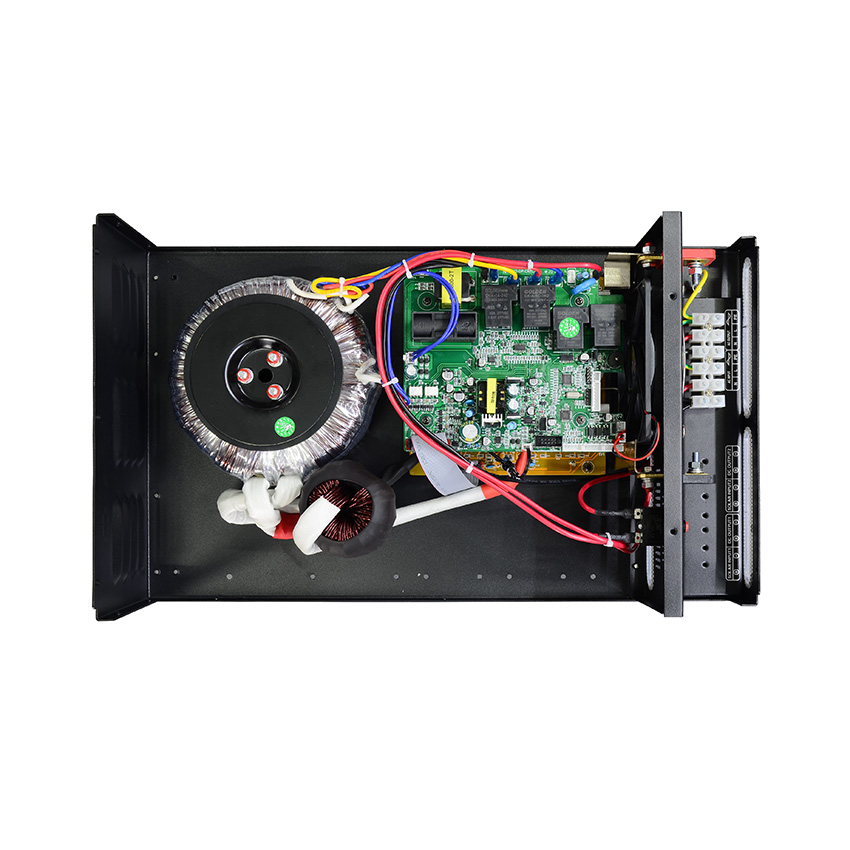

solar system inverter circuit board



Solar System Inverter Wiring Diagram


solar system inverter for home wiring diagram


Solar System Inverter Application



Xindun solar system inverter usually has the following two application method:


1. Home Backup System:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to home appliances, such as light, rice cooker, refrigerator, computer. When AC grid power is cut off, inverter will automatic transfer switch to battery power and convert DC to AC power.


2. Wind or Solar Power System:
The electricity generated by solar or wind energy is DC (direct current), inverter will convert DC to AC power. When battery power is lacking, it will automatic transfer to AC grid power for powering continuously.


solar system inverter for home application

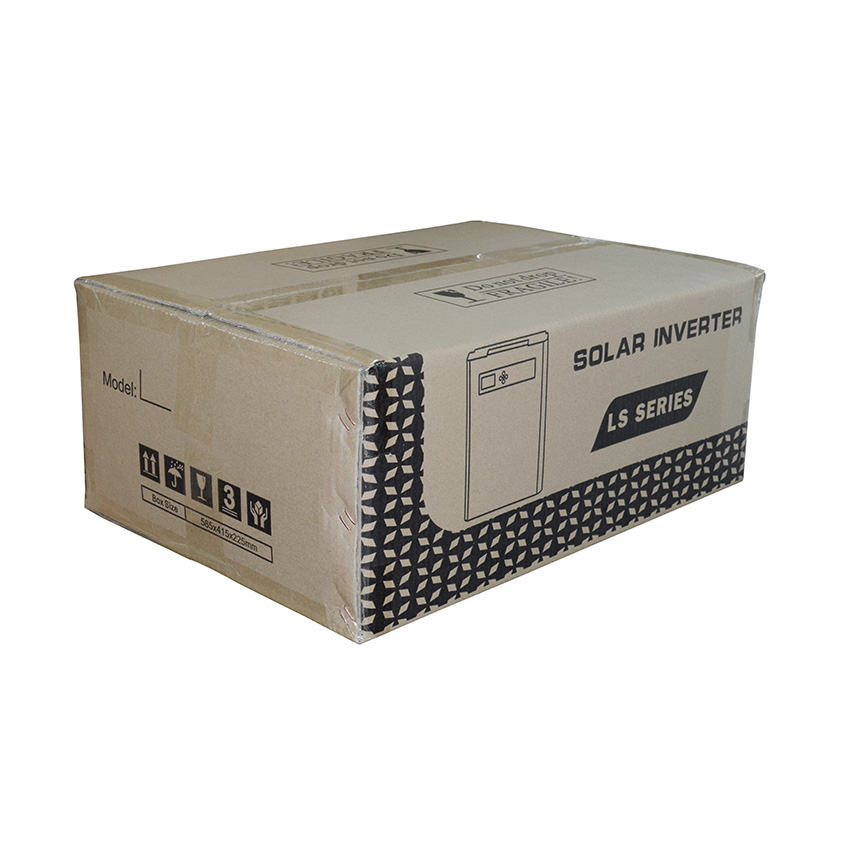

Inverter Package and Delivery


solar system inverter for home package

solar system inverter package



Why Choose Us?



why choose xindun - solar system inverter for home manufacturer


1. Xindun Power is a professional manufacturer of solar system inverter and solar controller with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 14 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.



About Xindun Power



about xindun - solar system inverter for home manufacturer image

about xindun - solar system inverter for home manufacturer introduction



Solar System Inverter Factory



Xindun solar system inverter for home factory



Qualifications and Certificates



Xindun qualifications and certificates



Global Solar Exhibitions



Xindun global solar exhibitons



FAQ



Q1: Are you a factory?

A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.

Q2: What is the price of solar system inverter?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Solar system inverter factory direct sales, no middlemen earn price difference.

Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!

Q4: What\'s the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the public power grid, even better. Low repaired rate, long lifespan, without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output inverter has a negative impact on appliances and can\'t load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don\'t like the modified wave.

Q5: How to solve the solar system inverter technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
