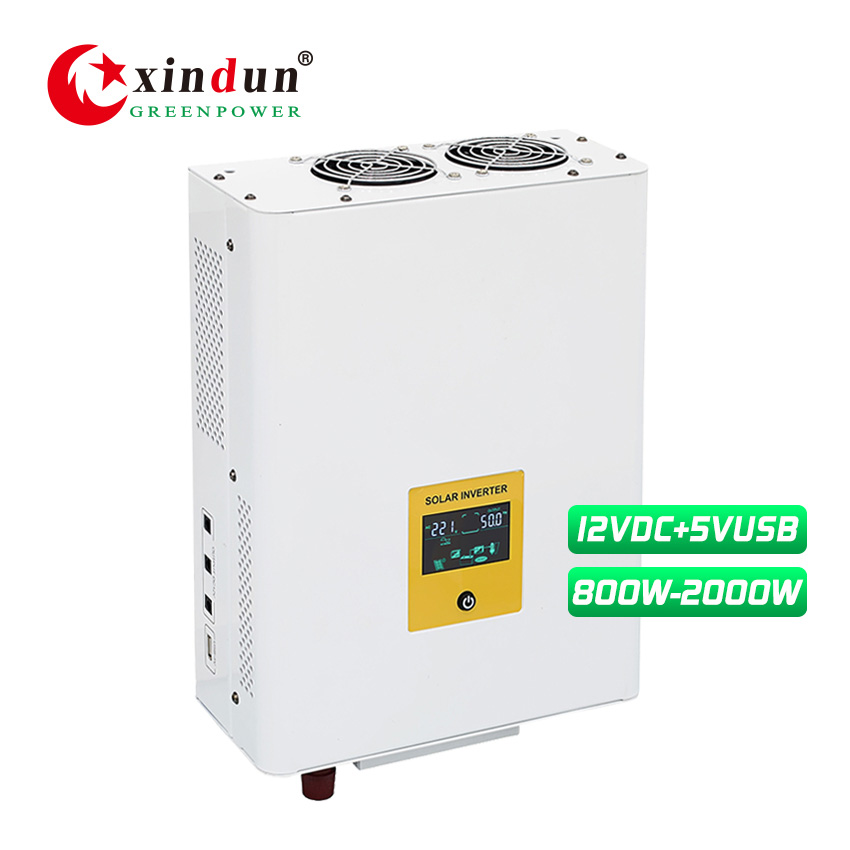

800 Watt/1000 Watt/1500 Watt/2000 Watt, Input DC12V/24V to Output AC110V/120V/220V/230V/240V, Output DC12V*3+5V*1 | DC to AC Power Inverter with 50A PWM Charge Controller
Product
In the past 14 years, Xindun has provided solar power products and services to more than 100 countries around the world.
We provide dc to ac power inverter customized services for thousands of solar traders. We have rich experience in serving below customers:
Solar Installation Companies
Electricity Companies
Energy Companies
Building Materials Companies
Commercial and Industrial Companies
Farm
Shipping Companies
RV Companies
Project Contractors
In the future, we look forward to establishing long-term cooperative relations with more new friends.
■ DC to AC Power Inverter Feature
1 Power inverter pure sine wave output, Excellent load adaptability and stability
2 DC input and AC output are separated for safe electricity utilization
3 Integrated PV charging and discharging function makes the system configuration easier
4 Ntelligent battery charging and discharging management function extends the life of battery
5 DC output supportive brings in more convenience
6 LCD display provides a visual user\'s experience
7 Perfect protection against overload, overheating, overvoltage, undervoltage, short-circuits and etc
8 RS485 communication port is optional for the user\'s integrated management
■ DC to AC Power Inverter Specification
| Specification | |||||
| Model: CT | 80112/24 | 10212/24 | 15212/24 | 20212/24 | |
| Rated Power | 800Watt | 1000Watt | 1500Watt | 2000Watt | |
| Battery Voltage | DC 12Volt/24Volt | ||||
| Size（L*W*Hmm） | 330x260x115 | ||||
| Package Size（L*W*Hmm） | 410x318x175 | ||||
| N.W.(kg) | 6.4 | 6.4 | 6.4 | 6.4 | |
| G.W.(kg)（Carton Packing） | 7.4 | 7.4 | 7.4 | 7.4 | |
| Installation Method | Wall-Mounted | ||||
| Input | DC input voltage range | 10-15VDC （single battery voltage） | |||
| Voltage of the battery switched on automatically |
≥11V （single battery voltage） | ||||
| Ouput | DC Output | 12V*3+5V*1 | |||
| Output voltage (battery mode) | 110VAC±2%/120VAC±2%/220VAC±2%/230VAC±2%/240VAC±2% | ||||
| Output frequency (battery mode) | 50/60HZ±1% | ||||
| Efficiency | ≥85% | ||||
| Output wave form | pure sine wave | ||||
| Solar controller |
PV charging mode | PWM | |||
| PV charging current | 50A | ||||
| Max PV Input Voltage(Voc) (At the lowest temperature) |
50V | ||||
| Max PV input power | 700W（12V System）/1400W（24V System） | ||||
| Battery Charging |
Floating charge | 13.8V(Single battery) | |||
| Charge voltage | 14.2V(Single battery) | ||||
| Overcharge protection voltage | 15V(Single battery) | ||||
| Battery type | Valve Regulated Lead Battery | ||||
| Protection | Battery undervoltage alarm | 10.5V±0.5V(Single battery) | |||
| Battery undervoltage protection | Inverter output: 9.5V±0.5V; DC output: 10.5V±0.2V(Single battery) | ||||
| Battery over voltage protection | 15V±0.5V(Single battery) | ||||
| Ouput undervoltage protection (Battery mode) |
≤187VAC Turn off the output | ||||
| Output short circuit protection (Battery mode) |
Shut down output, disconnect battery current | ||||
| Over power protection | 110% more than rated capacity | ||||
| Temperature protection | ≥90℃ machine shut off | ||||
| Display | LCD | ||||
| Thermal method | Cooling fan in intelligent control | ||||
| Communication | RS485(Optional) | ||||
| Environment | Operating temperature | -10℃~+40℃ | |||
| Storage temperature | -15℃~60℃ | ||||
| Noise | ≤55dB | ||||
| Highest altitude | 2000m（More than derating） | ||||
| Relative humidity | 0%~95%(No condensation) | ||||
| Note: All specifications are subject to change without prior notice | |||||

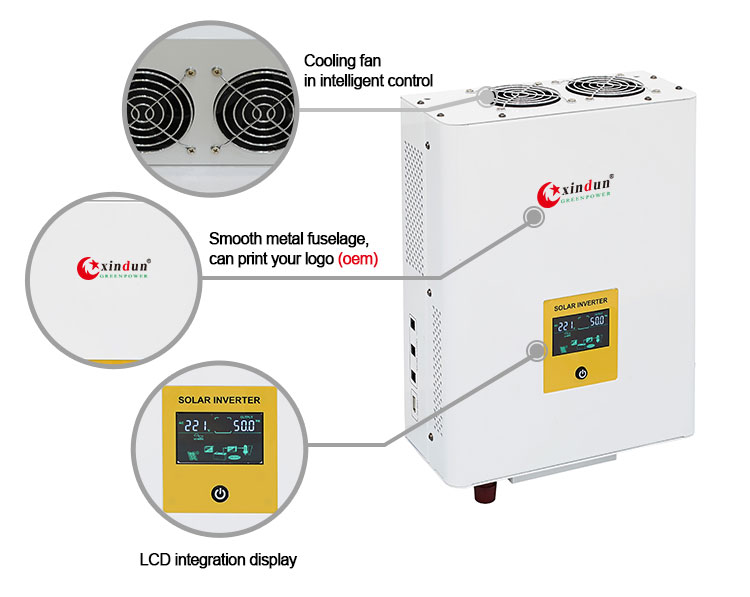

■ DC to AC Power Inverter Details
■ DC to AC Power Inverter Wiring Diagram

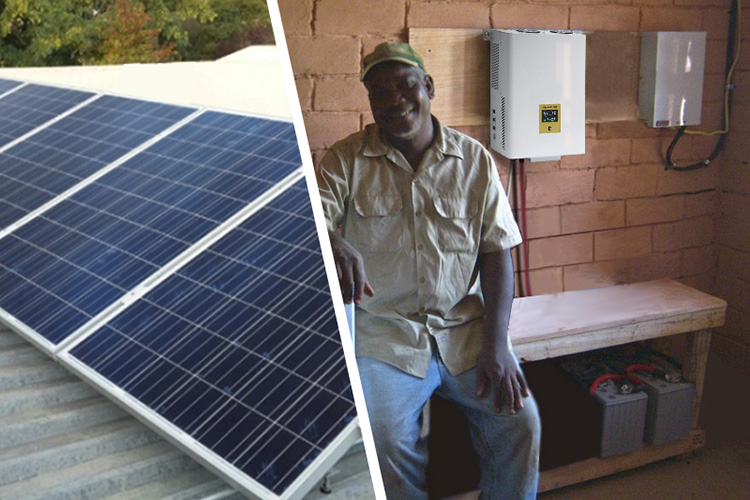

■ DC to AC Power Inverter Application
■ Inverter Package and Delivery
to be added..
■ Why Choose Us？
■ About Xindun Power
■ Inverter Factory
■ Qualifications and Certificates
■ Global Solar Exhibitions
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: What is the price of dc to ac power inverter?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Power inverter factory direct sales, no middlemen earn price difference.
Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!
Q4: What\'s the difference between solar inverter and hybrid inverter?
A: Inverter is design to convert DC (Direct Current) into AC (Alternating Current). Both solar inverter and hybrid inverter are widely used in PV solar energy into electric energy. Hybrid inverter contains the function of a solar inverter, also adds a built-in solar charge controller. Also it can be a combination of off grid and grid tie inverter in one machine with same description as you called hybrid inverter.
Q5: How to solve the dc to ac power inverter technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
