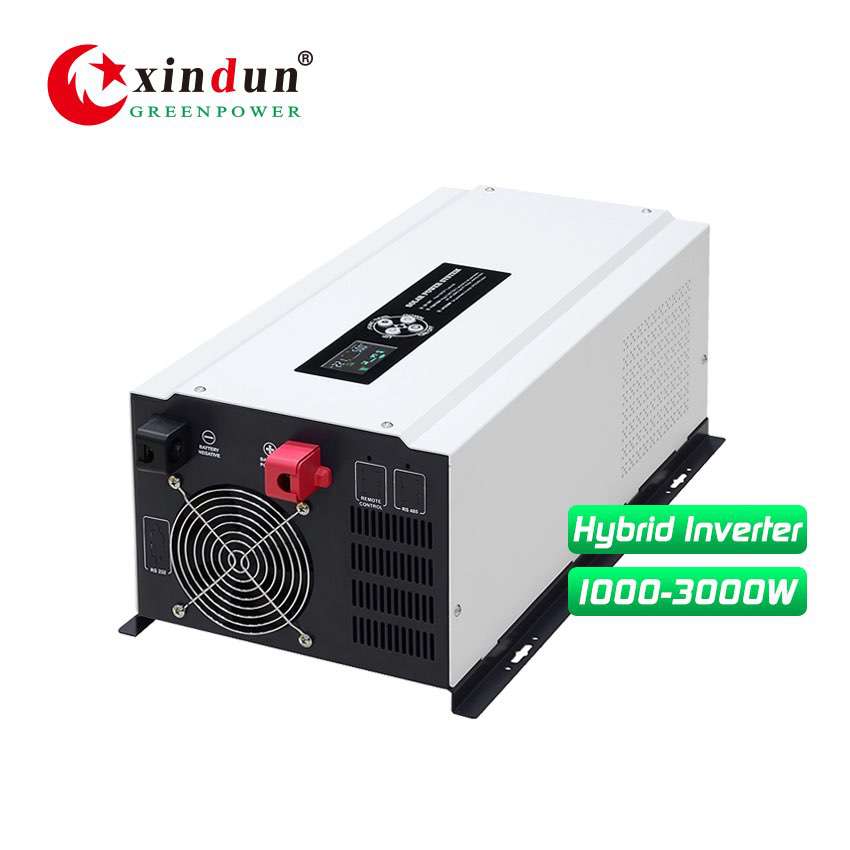

1000 Watt/1500 Watt/2000 Watt/3000 Watt, DC12/24/48 Volt to AC110/120/220/230/240 Volt | Inverter with 10A-60A PWM/MPPT Solar Controller | Pure Sine Wave Inverter Charger for RV, Car
Product
In the past 14 years, Xindun has provided solar power products and services to more than 100 countries around the world.
We provide solar inverter OEM services for thousands of dealers.
■ RV Solar Inverter Feature
rv solar inverter - 12 volt best pure sine wave inverter for rv

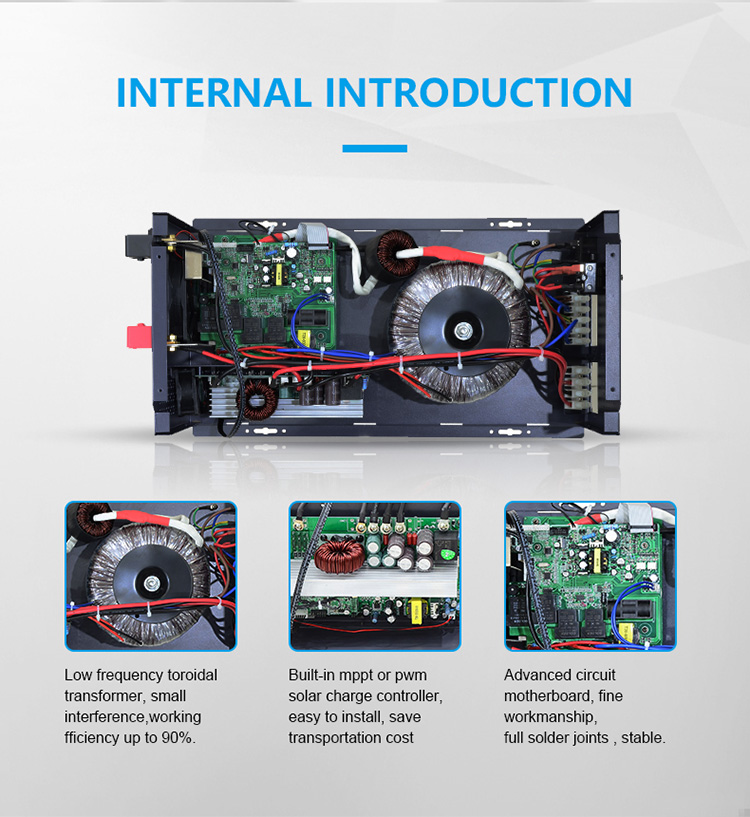

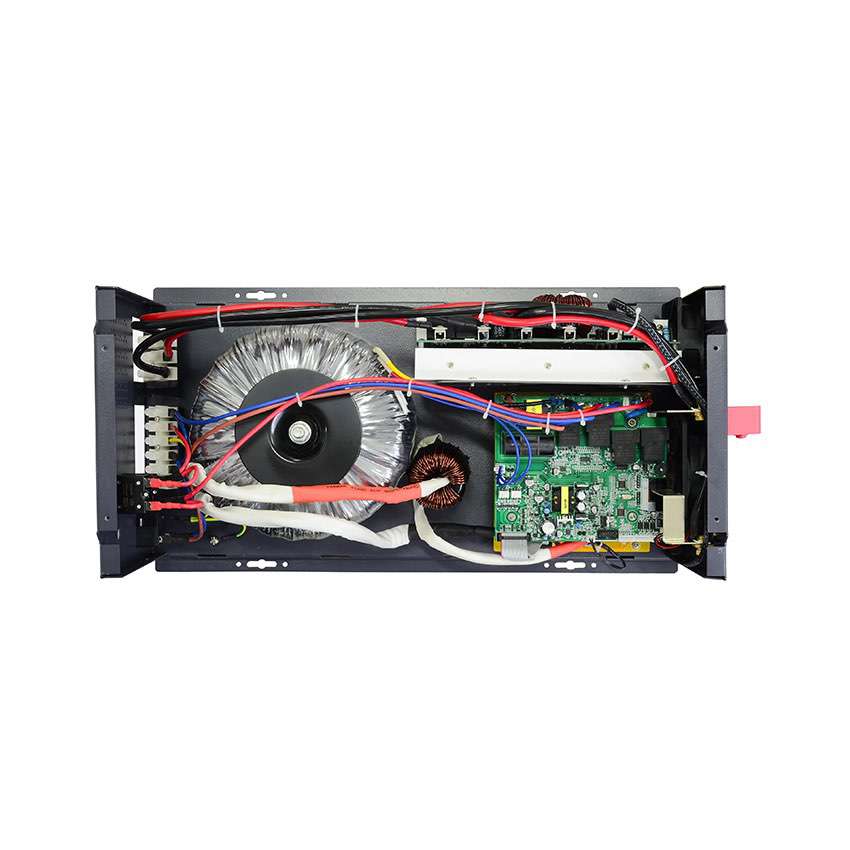

1 Low frequency toroidal transformer increase efficiency, Pure sine wave output；

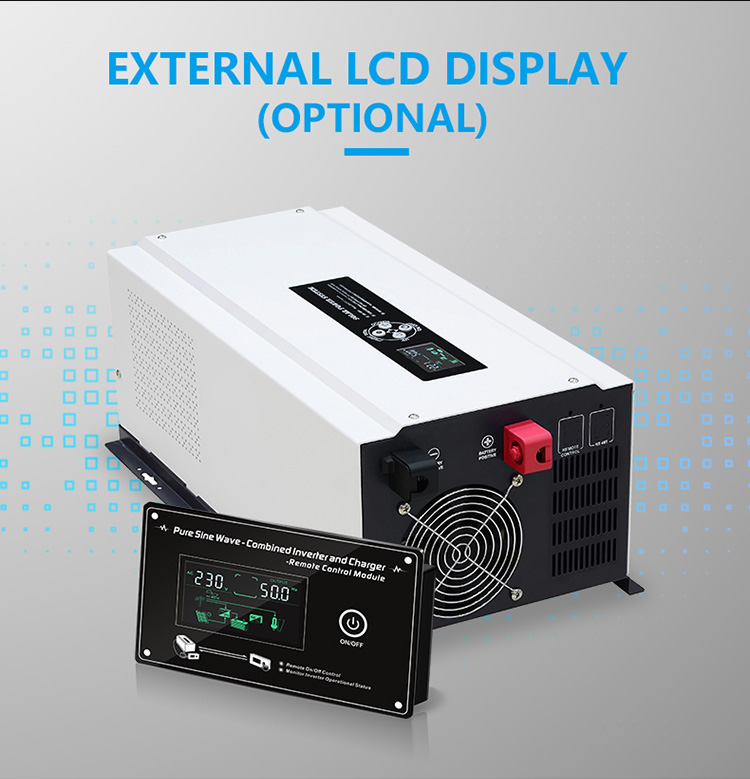

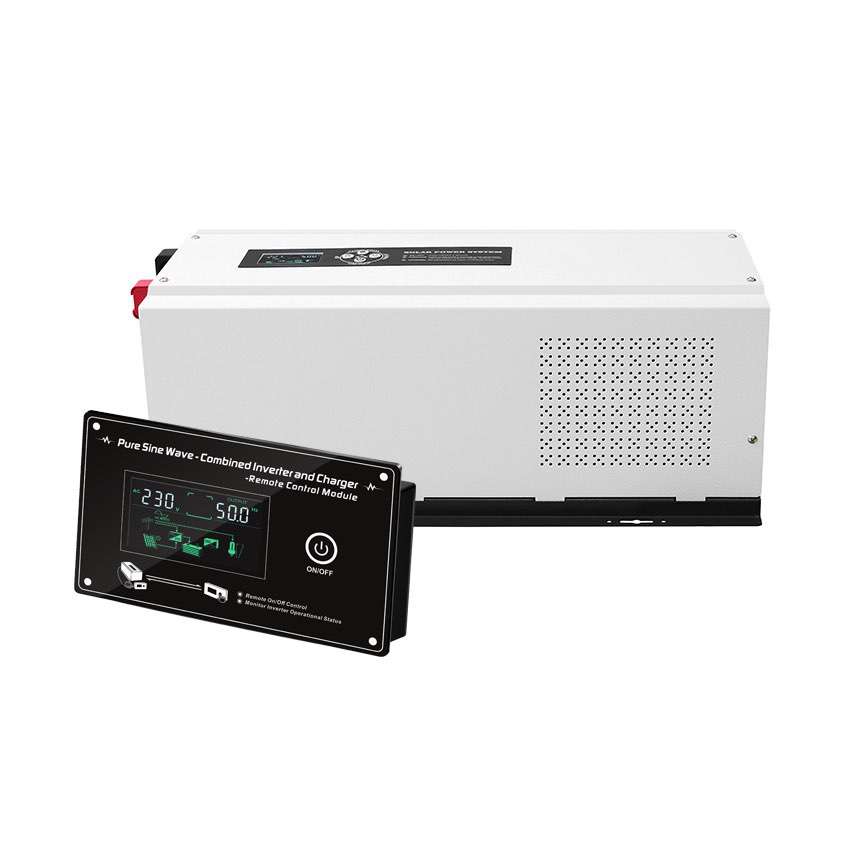

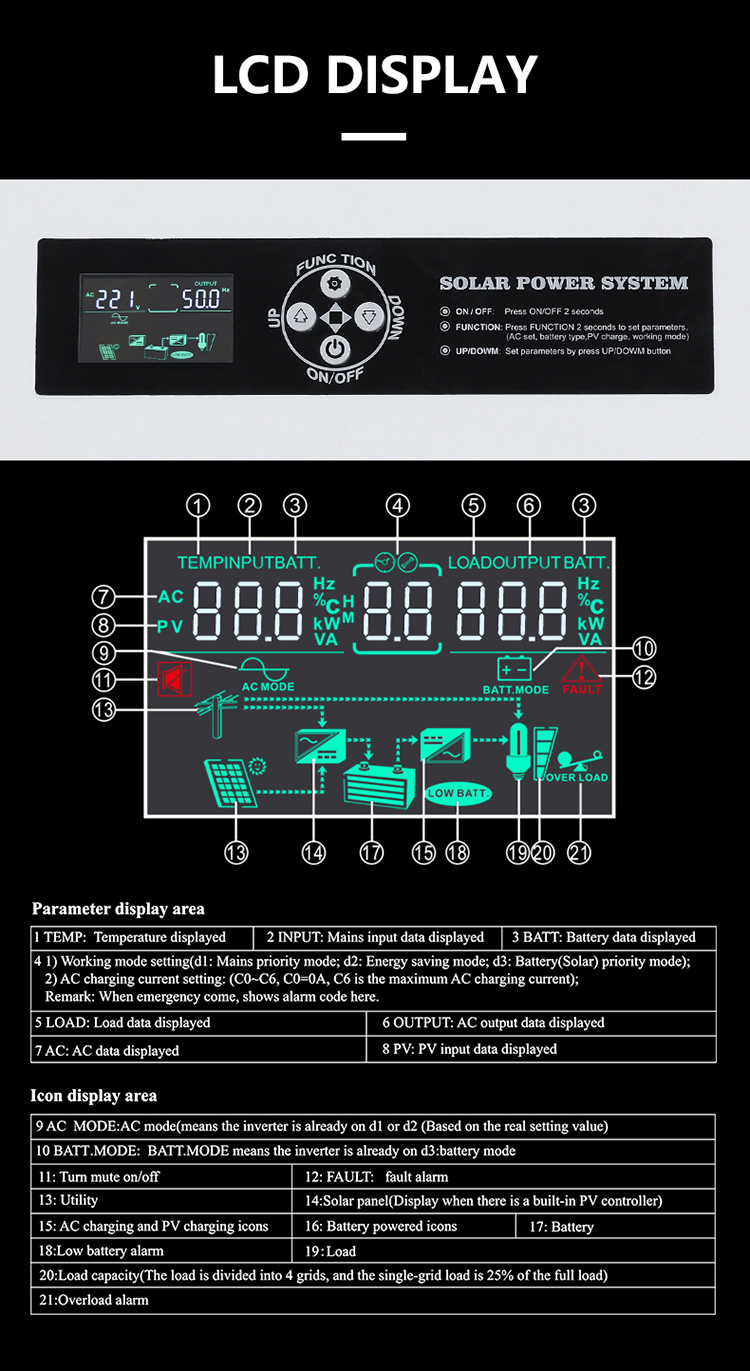

2 Integrated LCD display; One-button start with an external display screen (optional)；
3 Dedicated DCP chip design; stable and high-speed operation；
4 AC charge current 0-30A adjustable; battery capacity configuration more flexible；
5 Three types working modes adjustable:AC first, DC first, energy-saving mode；
6 AVR output, all-around automatic protection function；
7 Solar inverter with built-in PWM or MPPT controller optional；
8 Added fault codes query function,facilitate user to monitor the operation state in real time；
9 Supports diesel or gasoline generator, adapt any tough electricity situation；
0 RS485 communication port/APP optional.
■ RV Solar Inverter Specification
| Specification | |||||
| Model: DP-T | 10212/24/48 | 15212/24/48 | 20212/24/48 | 30224/48 | |
| Rated Power | 1000 Watt | 1500 Watt | 2000 Watt | 3000 Watt | |
| Peak Power（20ms) | 3000VA | 4500VA | 6000VA | 9000VA | |
| Start Motor | 1HP | 1.5HP | 2HP | 3HP | |
| Battery Voltage | DC12/24/48 Volt | DC24/48 Volt | |||
| Size(L*W*Hmm) | 555*297*184 | ||||

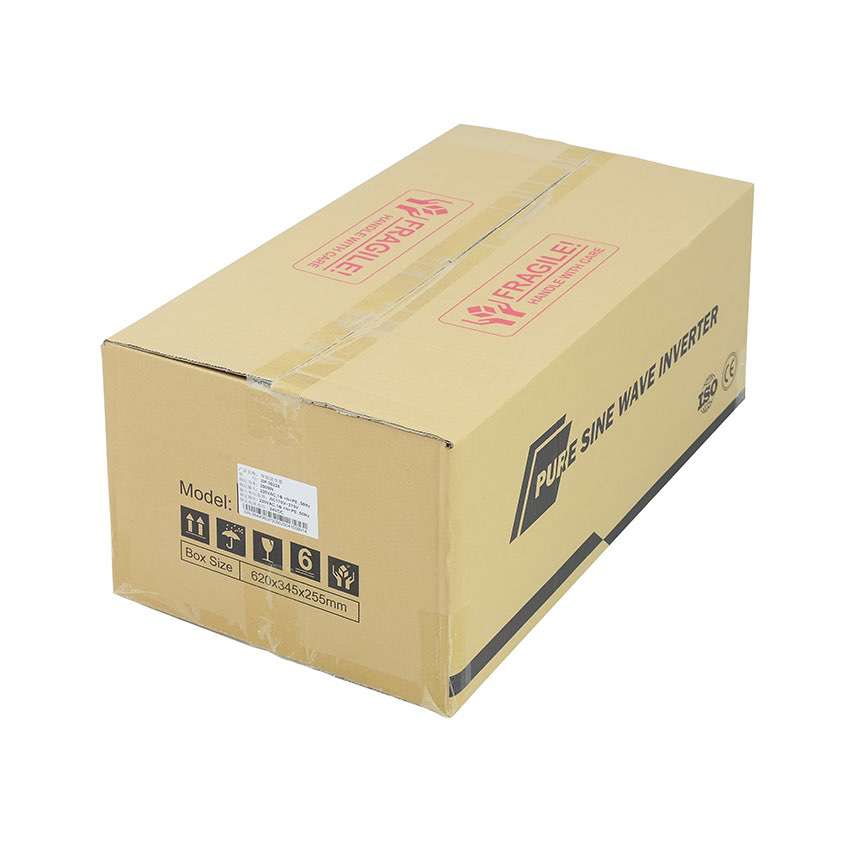

| Packing Size(L*W*Hmm) | 620*345*255 | ||||
| N.W.(kg) | 12 | 13 | 15.5 | 18 | |
| G.W.(kg)（Carton Packing） | 14 | 15 | 17.5 | 20 | |
| Installation Method | Wall-Mounted | ||||
| Parameter | |||||
| Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | |||
| AC Input Voltage Range | 85VAC~138VAC（110VAC） / 95VAC~148VAC（120VAC） / 170VAC~275VAC（220VAC） / 180VAC~285VAC（230VAC） / 190VAC~295VAC（240VAC） | ||||
| AC Input Frequency Range | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | ||||
| Max AC charging current | 0~30A(Depending on the model） | ||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||
| Output | Efficiency(Battery Mode) | ≥85% | |||
| Output Voltage(Battery Mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% | ||||
| Output Frequency(Battery Mode) | 50/60Hz±1% | ||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||
| Efficiency(AC Mode) | >99% | ||||
| Output Voltage(AC Mode) | 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10% | ||||
| Output Frequency(AC Mode) | Tracking Automatically | ||||
|
Output waveform distortion
(Battery Mode)
|
≤3%（Linear load） | ||||
| No load loss(Battery Mode) | ≤0.8% rated power | ||||
| No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | ||||
| No load loss(Energy saving Mode) | ≤10W | ||||
| Battery Type | VRLA Battery | Charge Voltage :14V; Float Voltage:13.8V( 12V system; 24V system x2 ; 48V system x4) | |||
| Customize battery |
Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
|
||||
| Protection | Battery undervoltage alarm | Factory default: 11V(12V system; 24V system x2; 48V system x4) | |||
| Battery undervoltage protection | Factory default: 10.5V(12V system; 24V system x2; 48V system x4) | ||||
| Battery overvoltage alarm | Factory default: 15V(12V system; 24V system x2; 48V system x4) | ||||
| Battery overvoltage protection | Factory default: 17V(12V system; 24V system x2; 48V system x4) | ||||
| Battery overvoltage recovery voltage | Factory default: 14.5V(12V system; 24V system x2; 48V system x4) | ||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||
| Temperature protection | >90°C（Shut down output） | ||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||
|
Inside Solar controller
(Optional)
|
Charging Mode | PWM or MPPT | |||
| Charging current | 10A~60A（PWM or MPPT） | ||||
| PV Input Voltage Range |
PWM: 15V-44V(12V system); 30V-44V(24V system); 60V-88V(48V system)
MPPT: 15V-120V(12V system); 30V-120V(24V system); 60V-120V(48V system)
|
||||
|
Max PV Input Voltage(Voc)
(At the lowest temperature)
|
PWM: 50V(12V/24V system); 100V(48V system) / MPPT: 150V(12V/24V/48V system) | ||||
| PV Array Maximum Power |
12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A);
24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A);
48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)
|
||||
| Standby loss | ≤3W | ||||
| Maximum conversion efficiency | >95% | ||||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||||
| Transfer Time | ≤4ms | ||||
| Display | LCD（External LCD Display(Optional)） | ||||
| Thermal method | Cooling fan in intelligent control | ||||
| Communication(Optional) | RS485/APP（WIFI monitoring or GPRS monitoring） | ||||
| Environment | Operating temperature | -10℃~40℃ | |||
| Storage temperature | -15℃~60℃ | ||||
| Noise | ≤55dB | ||||
| Elevation | 2000m（More than derating） | ||||
| Humidity | 0%~95% ,No condensation | ||||
| Note: All specifications are subject to charge without prior notice | |||||

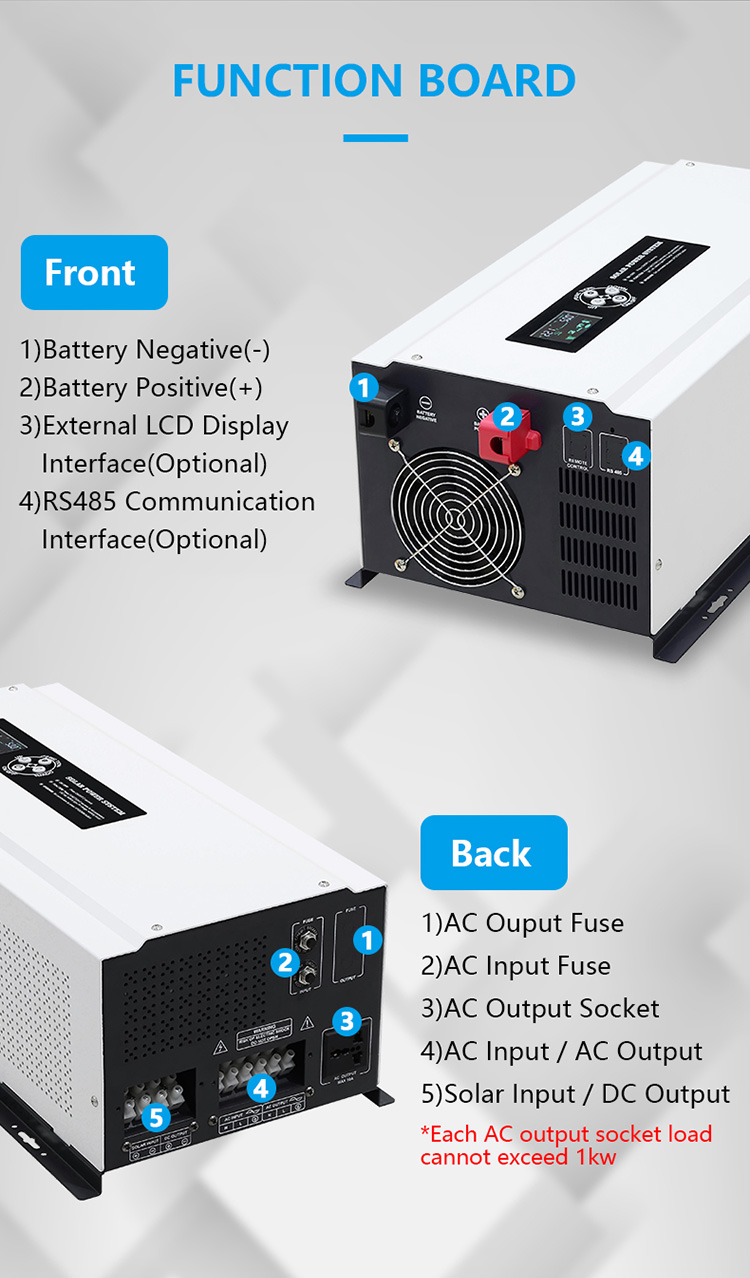

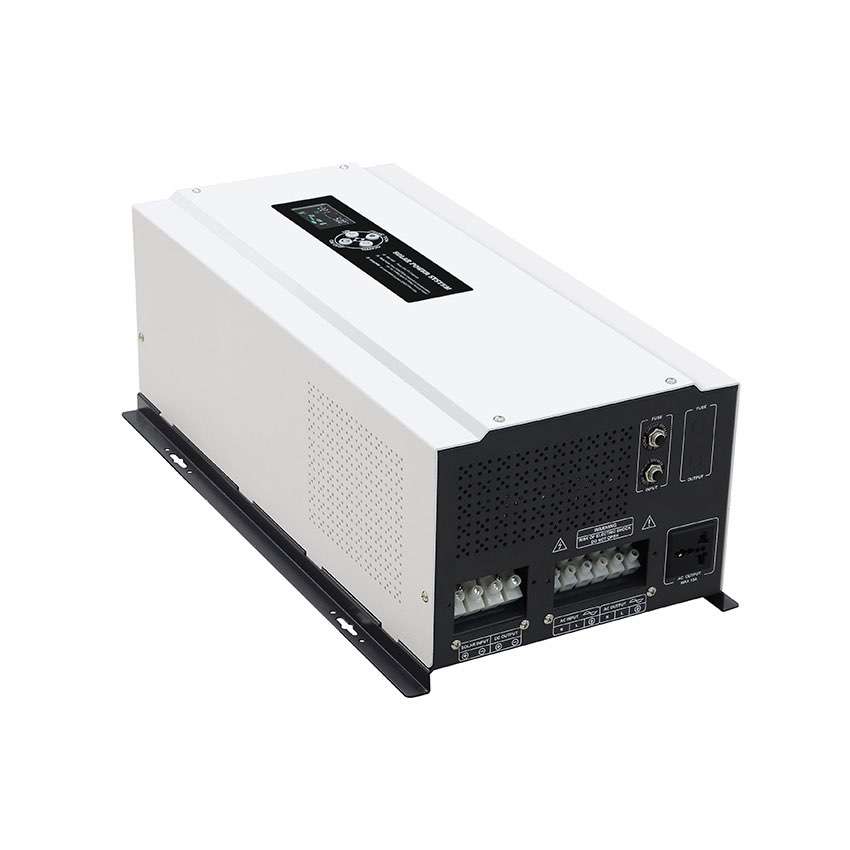

■ RV Solar Inverter Details
■ RV Solar Inverter Wiring Diagram
Xindun solar inverter usually has two application methods:
1. Home or RV Backup System:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass and stable voltage through inverter to home or rv appliances, such as fan, light, refrigerator, television. When AC grid power is off, inverter will automatic transfer switch to battery power and convert DC to AC power.
2. Wind or Solar Energy system:
The electricity generated by solar or wind energy is DC (direct current), then inverter will convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.

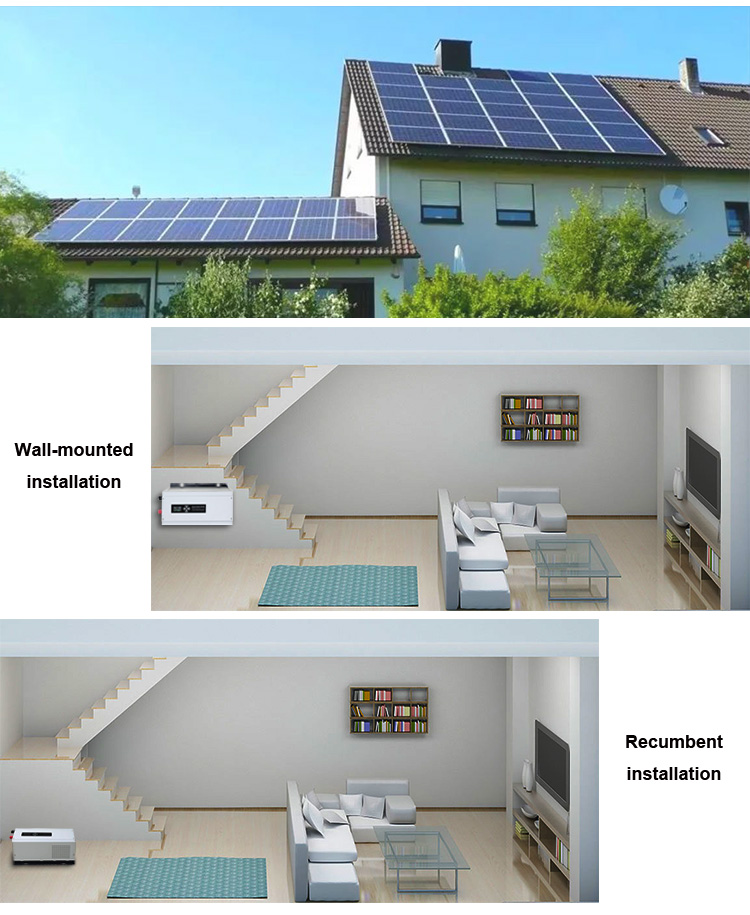

■ RV Solar Inverter Application
■ Why Choose Us？
■ About Xindun Power
■ RV Solar Inverter Factory
■ Qualifications and Certificates
■ Global Solar Exhibitions
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: What is the price of best pure sine wave inverter for rv?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. RV solar inverter factory direct sales, no middlemen earn price difference.
Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!
Q4: What\'s the difference between solar inverter and hybrid inverter?
A: Inverter is design to convert DC (Direct Current) into AC (Alternating Current). Both solar inverter and hybrid inverter are widely used in PV solar energy into electric energy. Hybrid inverter contains the function of a solar inverter, also adds a built-in solar charge controller. Also it can be a combination of off grid and grid tie inverter in one machine with same description as you called hybrid inverter.
Q5: How to solve the rv battery charger inverter technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
