As one of the core devices of solar power system, the main function of solar inverter is to convert the DC power generated by solar panels and the DC power of batteries into the AC power required for home, business or industrial electricity.
What is dual output inverter? Dual output inverter that provides two independent AC output. The voltage, frequency and phase of these two outputs are the same. This function is different from single output inverter and provides greater flexibility in allocating energy in solar power system. A. When the battery voltage is normal, both the main output and the second output can be loaded normally, and the total load power of the dual outputs does not exceed the rated power of the inverter. B. When the battery voltage reaches the main cut-off voltage setting value, the main output is shut down. At this time, the maximum load power of the second output is 30% of the rated power of the inverter. C. When the battery voltage reaches the main recovery voltage setting value, the main output is restored. D. If the mains is connected after the main output is cut off (that is, when working in the mains state), the main output will be directly restored.

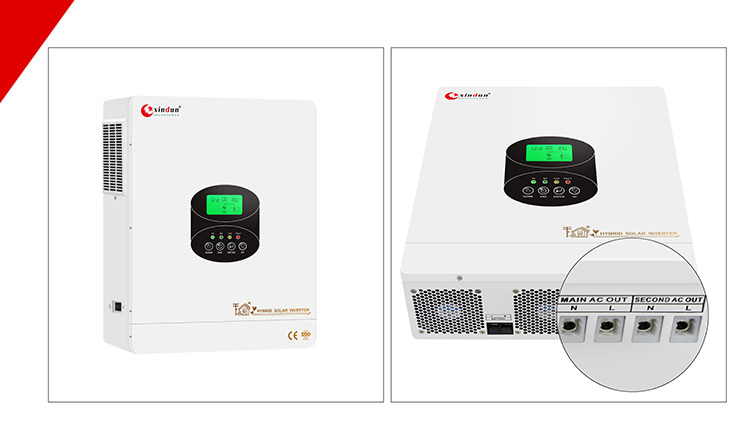

The solar inverter with dual output function is divided into independent load circuits for main output and second output. The two independent load circuits provide users with more abundant and flexible power solutions and intelligent load management output. It increases the flexibility and reliability of the system and is suitable for applications where power supply to two different types of loads or equipment is required at the same time.

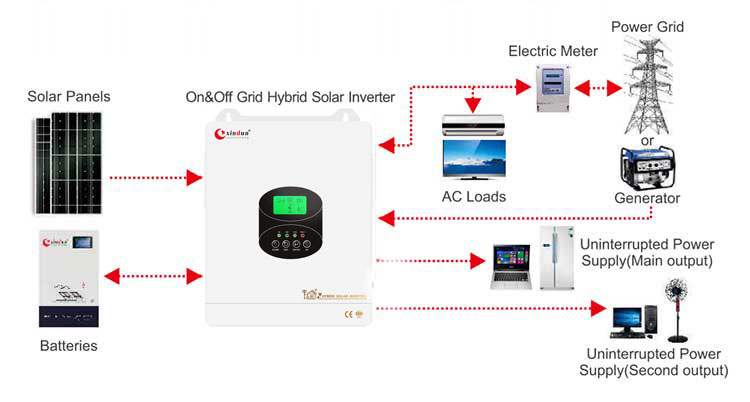

For example, the Xindun HFP-S solar inverter can be set to on grid mode, off grid mode, and hybrid mode. It supports batteryless operation mode, ultra wide pv input voltage, AC power complementation, high frequency pure sine wave output, and conversion efficiency of up to 94%. It is suitable for various types of loads, stable and reliable, and supports dual output functions and intelligent load management output.

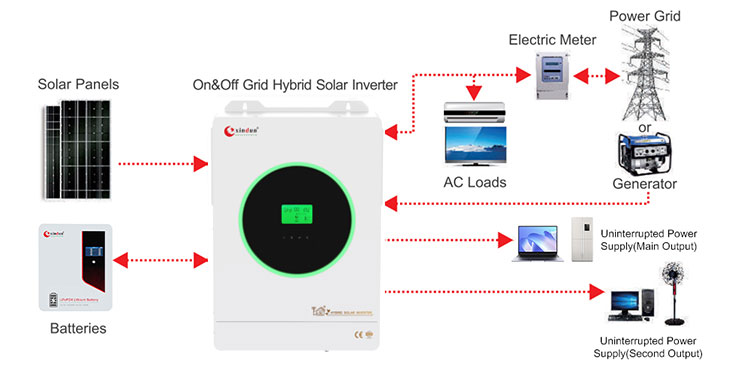

In addition to the HFP-S, we have developed dual-output inverters with different designs. While the styles may vary, the same high quality is consistently maintained across all models. The HFP-C series inverter is dual-output on grid off grid hybrid solar inverter featuring a distinctive RGB ring design. The RGB lighting offers setup colors, with eight options available: green, light blue, pink, yellow, purple, orange, white-blue, and blue. Both the brightness and color of the lighting can be adjusted to suit your preferences. The RGB LED effects not only provide clear visual indicators of the inverter's operational status but also enhance the ambiance of the environment. This innovative design allows for effective and intelligent management of your solar power system.
The HFP-E series inverter is dual-output on grid and off grid hybrid inverter designed with detachable remote control panel. The remote control panel is pre-installed on the main unit upon delivery, but users can detach it and install it in different location based on their specific needs. This design offers flexible installation options, saves space, and enables convenient remote real-time monitoring and management.
So in what application scenarios does the solar inverter need dual output function?
For example, in the home , the home solar power system, one output can power the home's lighting, TV, refrigerator and other daily appliances, and the other output can be connected to electric water heaters, air conditioners, refrigerators and other high power appliances, to achieve reasonable distribution and flexible control of household electricity consumption, and at the same time ensure the power consumption of key equipment when the city power is cut off.
In commercial scenarios, for shopping malls, supermarkets, hotels and other commercial places, one output can provide stable power to key equipment such as cash register systems, computer servers, elevator control systems, etc., to ensure that commercial operations are not affected; the other output can power common electrical equipment such as lighting, air conditioning, and ventilation equipment, making it easy to flexibly adjust the power supply status according to business hours, peak power consumption and other conditions.
In industrial scenarios, in factories, one output can be connected to precision processing equipment, control equipment in automated production lines, and other equipment that have strict requirements on power quality; the other output is used to power high-power production motors, ventilation and cooling equipment, etc., to improve the reliability and flexibility of industrial production electricity.
The dual output function of the solar inverter intelligently manages the output of the load. No matter how the two power paths are allocated, the total power of the two paths will not exceed the rated power of the inverter. It is very suitable for application scenarios where power needs to be supplied to two different types of loads or devices at the same time, increasing the flexibility and reliability of the system, providing users with richer and more flexible power solution to meet the complex power needs of users in different scenarios.
