How To Choose The Boat Solar Panel System Kit?

For a long time, wind power has been the main form of marine energy-saving power generation. The low price and accessible wind resources are the conditions for the rapid promotion of wind power on ships. However, with various drawbacks of wind power have been exposed in the application, and the continuous development of solar energy technology, boat solar power has replaced wind power. The cost of boat solar power panel system is lower than that of wind power system on the market. Boat solar panel system has gradually been widely used as a new, reliable and environmentally friendly boat power system. The solar panel system is a device that uses solar energy to generate electricity, usually composed of solar panels, batteries, solar controllers and inverters. The direct current(DC) generated by the solar panels is converted into alternating current(AC) used by the loads on the boat, providing stable and reliable power supply for electrical equipment such as lighting, air conditioning, refrigerators, navigation, and communications on board.

Boat solar panel system structure

1. Solar panels: Solar panels are the core components of solar systems, and their function is to convert solar energy into direct current(DC). Common solar panels include monocrystalline silicon, polycrystalline silicon and thin-film solar panels. Monocrystalline silicon solar panels have a higher conversion efficiency, which can reach about 20% - 25%; polycrystalline silicon solar panels have a slightly lower conversion efficiency, usually 15% - 20%, and the cost is relatively low; thin-film solar panels are light and flexible, and can adapt to some special installation environments, but the conversion efficiency is low, between 10% - 15%.

2. Solar controller: The controller is responsible for the charge and discharge control between the solar panel and the battery to ensure that the battery will not be overcharged or over-discharged. At the same time, it can automatically adjust the charging state according to the output voltage and current of the solar panel to achieve the best charging effect. For example, when the battery is fully charged, the controller will automatically cut off the charging circuit; when the battery is too low, it can control the on and off of the load to protect the battery.

3. Battery: As the energy storage of the whole system, the battery can store the electricity obtained by the solar panels during the day for use at night or on cloudy days when there is insufficient light. Common types of batteries include lead-acid batteries and lithium-ion batteries. Lead-acid batteries are mature in technology and cheap in price, but have low energy density and short cycle life; lithium-ion batteries have high energy density and long cycle life, but high cost.

4.Inverter: Since solar panels generate direct current(DC), and most electrical equipment requires alternating current(AC), the inverter converts the direct current(DC) generated by the solar panels into alternating current(AC) to meet the power demand of the AC electrical equipment on board. According to the output waveform, the inverter can be divided into square wave inverter, modified sine wave inverter and pure sine wave inverter. The AC waveform output by the pure sine wave inverter is the same as the mains, and it is compatible with all types of electrical equipment, but its price is relatively high.

The role of boat solar panel system

Reduce operating costs: Solar panel systems require a certain amount of investment in the early stage, but in the long run, boat solar panel systems can reduce operating costs and increase economic benefits.

Power supply: The solar panel system uses solar power to provide various power supplies for electrical equipment on board, such as lighting, television, refrigerator, communication and navigation (GPS, radar) and other equipment, to meet the different power needs on board.

Increase ship safety: Boat solar energy can provide backup power for ships to deal with emergencies. During sea voyages, power failures caused by various reasons are very common, and solar energy can provide emergency power guarantee for ships when there is sufficient sunlight, which increases the safety of ships during navigation.

Reduce fuel dependence: Boat solar energy can reduce fuel dependence for ships and reduce fuel consumption. With the rising fuel prices today, boat solar as an economical and affordable new energy has attracted more and more attention and application. Solar power is a relatively stable, reliable and cheap energy source for boats, and its future development prospects are also very impressive.

Self-sufficiency: Even if the off-grid solar system sails for a long time away from ports and power grid areas, the ship can obtain a stable supply of electricity.

How to choose suitable boat solar system?

The durability of the solar system is crucial for marine systems. Since ships are in a humid and changeable environment for a long time, it is very important to choose a corrosion-resistant, waterproof and windproof solar panel system. Xindun Power's boat solar panel system uses high-quality materials, has strong oxidation resistance and durability, and can cope with the harsh environmental conditions on board. Below, we will recommend 3 solar systems suitable for ship applications:

DF Series Boat Solar Panel System

Rated Power:1000W, 1500W, 2000W, 3000W, 4000W, 5000W, 6000W, 7000W, 8000W, 10KW, 12KW

Battery Voltage: 12V/24V48VDC

Output Voltage:110V/120V/220V/230V/240VAC

Feature:

1. Multiple working mode selection: Provides multiple working modes such as mains priority and inverter priority, allowing users to switch freely according to specific needs, optimize power use, and ensure efficient energy management of the boat.

2.Flexible adjustment of charging settings: The mains charging current is adjustable from 0-30A. Users can flexibly set the charging current according to actual needs, improve charging efficiency, and ensure fast battery charging.

3. Wide range of applications: Suitable for boats, yachts, campers, RVs, dining cars, homes and other scenarios, ensuring DC to AC conversion anytime and anywhere, providing stable power.

4. Built-in MPPT controller: Built-in MPPT solar controller (optional) to achieve efficient solar charging, improve energy utilization, and allow boats to effectively use solar energy during navigation and reduce fuel consumption.

5. Battery compatibility: Compatible with lithium batteries and lead-acid batteries. Users can choose the appropriate battery type according to their needs to meet the different power needs of boats, RVs, etc.

6. Remote monitoring function: Supports RS485, WIFI, and GPRS communication functions, which is convenient for users to monitor the inverter operation data in real time, and users can grasp the solar system status at any time to improve management efficiency.

7. Multiple charging methods: Supports diesel and gasoline generators to ensure that the system can still operate stably when there is no sunlight or other power shortages, providing reliable power guarantee for boats.

Here is about the DF series boat solar panel system details:

ESS Series Boat Solar Panel System

Rated Power：500W, 1000W

Battery Voltage: 12V DC

Output Voltage:110V/120V/220V/230V/240V AC,DC 5V/12V

Feature:

1. Powerful peak power: Supports 3 times peak power, easily copes with high-load equipment, and provides stable support for equipment with large power demand on boats.

2. Multiple output interfaces: Provides 2 AC sockets, 4 DC 12V interfaces and 2 USB interfaces, supports multiple device connections, meets the needs of various electrical equipment on board, and is convenient for daily use.

3. Integrated design: The inverter, solar controller and lead-acid battery are integrated into a system, which optimizes the installation process, saves space on board, and improves the reliability and efficiency of the system.

4. Intelligent mode switching: Provides three working modes such as AC priority, ECO mode and solar priority to ensure that it can always operate efficiently under different power demand scenarios, especially suitable for changes in boat power demand.

5. Flexible charging adjustment: The AC charging current can be adjusted to 0-30A to adapt to different battery types, ensuring that the boat can charge quickly in different environments.

6. Real-time fault code display: The fault information is clearly displayed, which is convenient for users to find problems and perform maintenance in time to ensure the normal operation of the boat.

7. Pure sine wave output: Provides stable pure sine wave power output to protect sensitive equipment on board, such as navigation instruments, electronic equipment, etc., and improves solar charging efficiency through the built-in MPPT solar controller (optional).

8. Battery voltage custom setting: You can customize low voltage, high voltage and charging voltage parameters, compatible with various battery specifications, to ensure that the boat's battery is always in the best condition.

9.Seamless switching AC: Integrated automatic AC charger and AC switcher, the switching time is less than 4 milliseconds, ensuring uninterrupted power supply during the operation of the boat and avoiding power outages of equipment.

Here is about the ESS series boat solar panel system details:

WD Series Boat Solar Panel System

Rated Power: 700W, 1KW, 1.5KW, 2KW, 3KW, 3.5KW, 4KW, 5KW, 6KW, 7KW, 8KW, 10KW, 12KW, 15KW, 20KW, 25KW, 30KW, 40KW

Battery Voltage: 12/24/48/96V/192V/240V/384VDC

Output: 110/120/220/230/240VAC

Feature:

1.Charging current adjustment: Supports 0-20A AC charging current adjustment. Users can flexibly choose the charging method according to the battery configuration to ensure high charging efficiency and adapt to different power needs.

2.MPPT solar controller: Optional high-efficiency MPPT solar controller improves solar charging efficiency, provides more efficient energy utilization for boats, and reduces dependence on traditional power sources.

3.Battery compatibility: Users can freely choose battery types according to budget and needs, such as: lithium battery, lead-acid battery, etc., to provide more choices and flexible choices for boat system expansion.

4.Compatible generator to ensure power supply: Supports diesel and gasoline generators. When the power is unstable or insufficient, the ship can also continue to supply power to meet the power needs during navigation.

5. Pure sine wave output: It adopts low frequency design to provide stable pure sine wave output, avoid power fluctuations and damage to equipment on board, and ensure the normal operation of equipment during navigation.

6. Real-time fault code display: With fault code display function, users can understand the operating status of the boat's power system at any time, quickly troubleshoot, and ensure the continuous and stable operation of the system.

ggusers can view the operating information of the equipment anytime and anywhere, conveniently control the status of the ship's power system, and ensure efficient management.

8.Working mode setting: It provides three working modes: AC priority, DC priority, and energy-saving mode. Users can switch freely according to the boat's power needs and usage scenarios to optimize energy management.

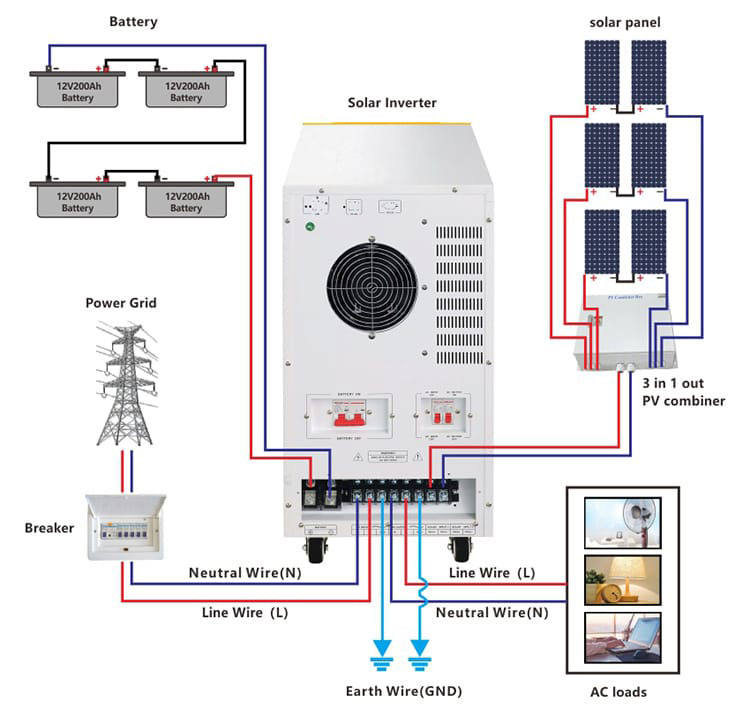

Here is about the WD series boat solar panel system details:

The solar panel system provided by Xindun is suitable for different types of boats. It can be selected according to the size of the ship, the electrical equipment, the power required by the load, etc. For example, small ships can choose our small solar panel kit (below 7kw) to help users save space and improve power efficiency; if the boat has a large power demand and the power equipment has high power requirements, a larger power solar panel kit (above 8kw) can be selected to meet different power needs.

Here is a list of some common boat solar panel systems. If you have special needs, we can provide OEM/ODM services. The equipment list is as follows:

As a manufacturer specializing in the production of solar energy systems for 20 years, we have a research and development team of more than 30 people and a modern solar system production plant of more than 10,000 square meters. We always provide customers with high-quality solar energy system products such as batteries, solar inverters, solar controllers, solar panels, etc. And our products are certified by international standards such as CE, IEC, TUV, etc. All products must undergo 4 strict tests before shipment. They can operate stably in various boat environments and adapt to the use of bots in harsh conditions such as humidity, high salinity and strong ultraviolet rays. If you don’t know how to choose in the face of complex navigation environments, Xindun can provide customized services according to special circumstances.

If you have any questions or needs about boat solar systems, please feel free to contact us.
