150A/200A 96V/192V/216V/240V/384V PWM Solar Charge Controller | Cabinet Type PV Controller | 2 Route PWM Input
Product
■ PWM Solar PV Charge Controller Feature
1 LCD display PV charge, battery and DC loading condition.
2 Protection against over charge, over discharge, over load and anti-thunder.
3 PWM charging mode, DC mode save cost.
■ PWM Solar PV Charge Controller Specification
| KY1 Parameter | ||
| Rated charging current | 150A | 200A |
| Rated system voltage | 96V/192V/216V/240V/384V | |
| PV input voltage range | 96V System：120V-176V；192V System：240V-352V；216V System：270V-396V；240V System：300V-440V；384V System：480V-704V | |
|
Max PV Input Voltage (At the lowest temperature) |
96V System：200V；192V System：400V；216V System：450V；240V System：500V；384V System：750V | |
| Number of PV array input routes | 2 | |
| PV Array Maximum Power | 8.4KW*2/16.8KW*2/18.9KW*2/21KW*2/33.6KW*2 | 11.2KW*2/22.4KW*2/25.2KW*2/28KW*2/44.8 KW *2 |
| Battery type | Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification) | |
| Floating voltage | 13.8V/Single battery | |
| Charge voltage | 14.2V/Single battery | |
| Charging protection voltage | 15V/Single battery | |
| Temperature compensation coefficient | -3mV / ℃ / 2V (25℃ is base line )(Optional) | |
| Charging mode | PWM pulse width control | |
| Charging method | Three stages ：constant current; constant voltage; floating charge | |
| Efficiency | >95% | |
| Display | LCD | |
| Cooling method | Cooling fan in intelligent control | |
| Type of mechanical protection | IP20 | |
| Operating temperature | -20℃~+60℃ | |
| Storage temperature | -20℃~+70℃ | |
| Elevation | ＜5000m，(Less solar panel when exceed 2000m) | |
| Humidity | 5~95%（No condense） | |
| Protect the circuit | RS232/RS485(Optional) | |
| Machine size (L*W*Hmm) | 500*330*805 | |
| Package size (L*W*Hmm) | 565*395*870 | |
| N.W (Kg) | 32 | 33 |
| G.W (Kg) | 37 | 38 |
| Note: All specifications are subject to change without prior notice | ||

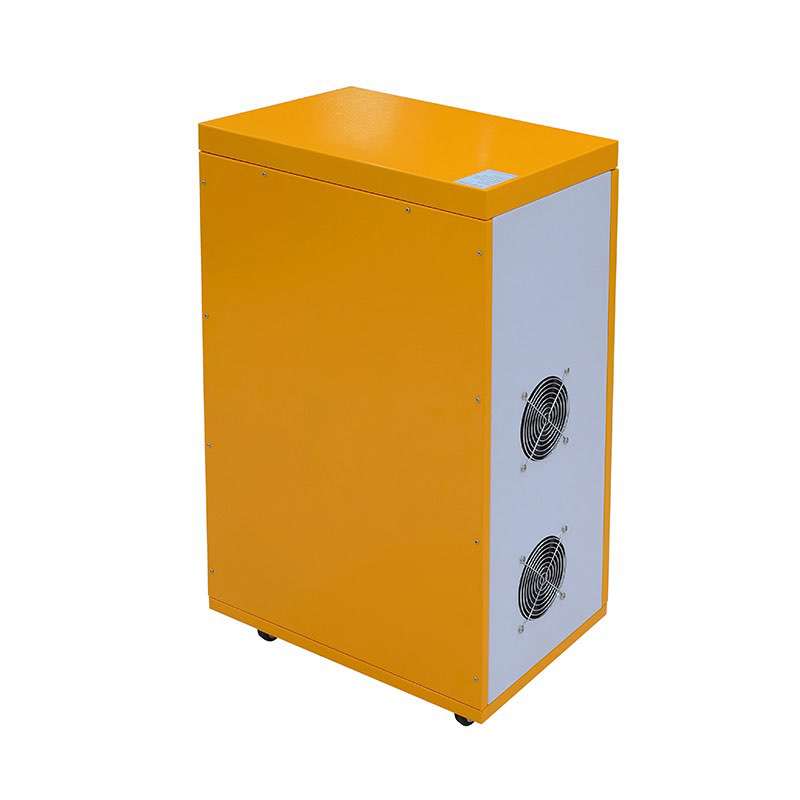

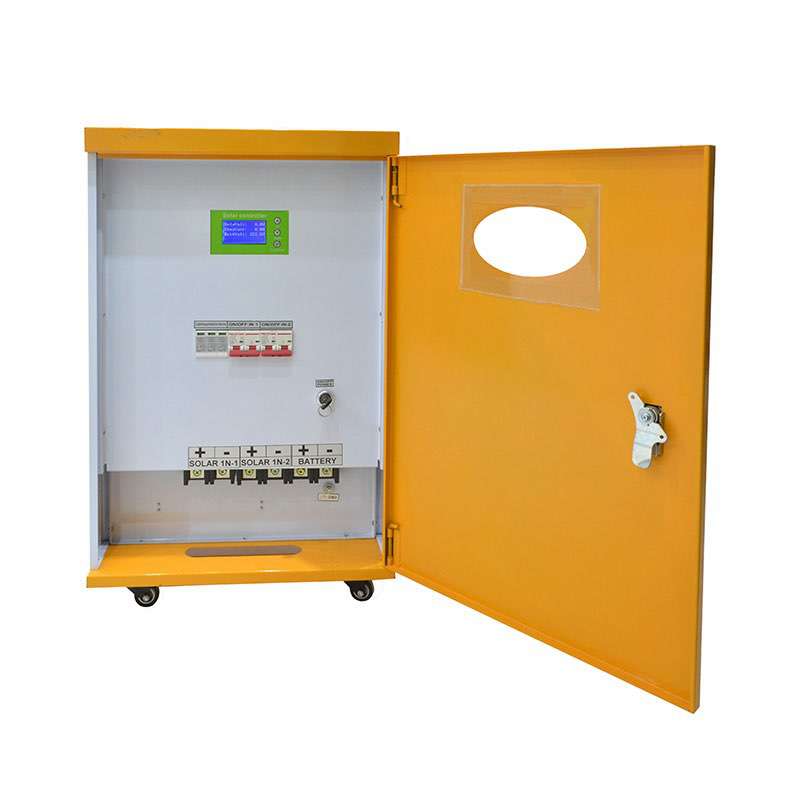

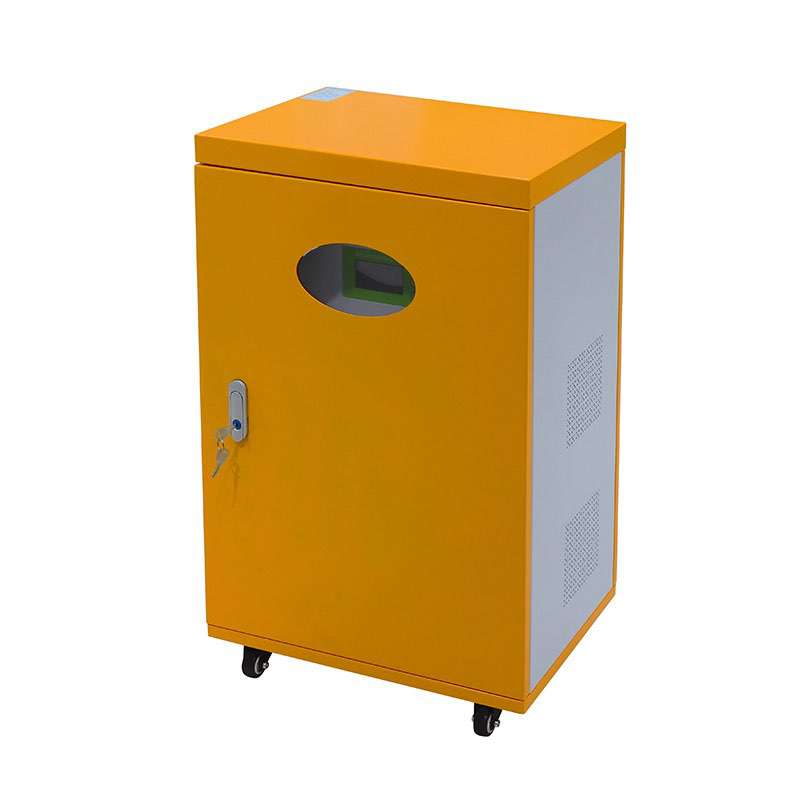

■ PWM Solar PV Charge Controller Image

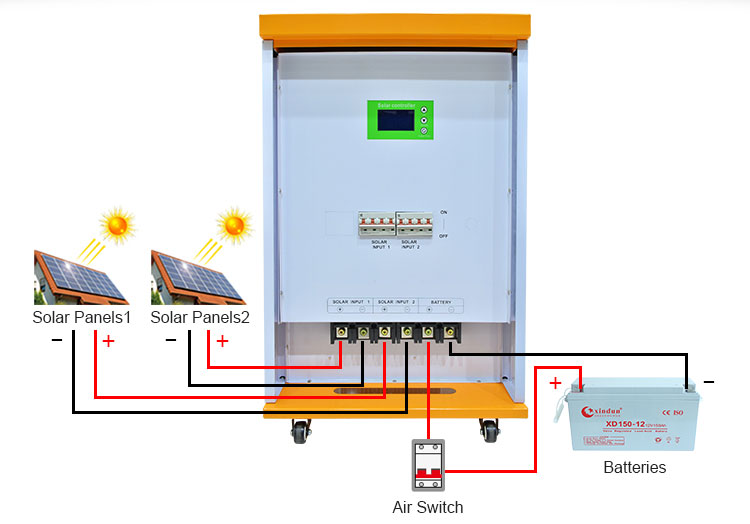

■ How Does PWM Solar PV Charge Controller Work?
■ Why Choose Us？
■ About Xindun Power
■ PWM Solar PV Charge Controller Manufacturer
■ Global Solar Exhibitions
■ Qualifications and Certificates
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar pv charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: What is the function of solar pv charge controller?
A: Solar pv charge controller is the core control part of solar energy system. It is an automatic control equipment that controls the multi-channel solar panels to charge the batteries and the batteries to supply power to the load by solar inverter.
Q3: How much is solar pv charge controller?
A: Tell me your requirements, such as controller types mppt or pwm, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Solar pv charge controller factory direct sales, no middlemen earn price difference.
Q4: MPPT or PWM, Which solar pv charge controller is better?
A: There are two main types of solar pv charge controllers on the market: MPPT and PWM. MPPT solar pv charge controller is suitable for solar energy system greater than 2kW. Because of its powerful function, it can save you whole set solar system costs by reducing other costs. PWM solar pv charge controller is suitable for small-scale solar energy system which does not need many functions and has a small budget, PWM is very cost-effective. Don\'t know how to choose PWM or MPPT, contact XINDUN.
Q5: How to solve the pwm solar charge controller technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
