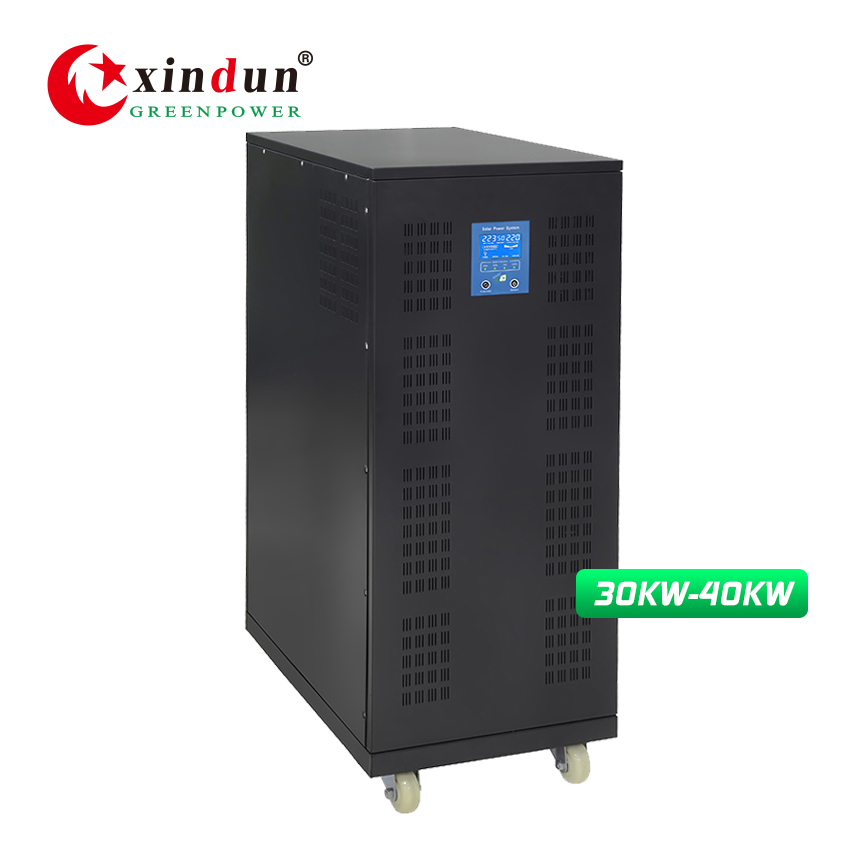

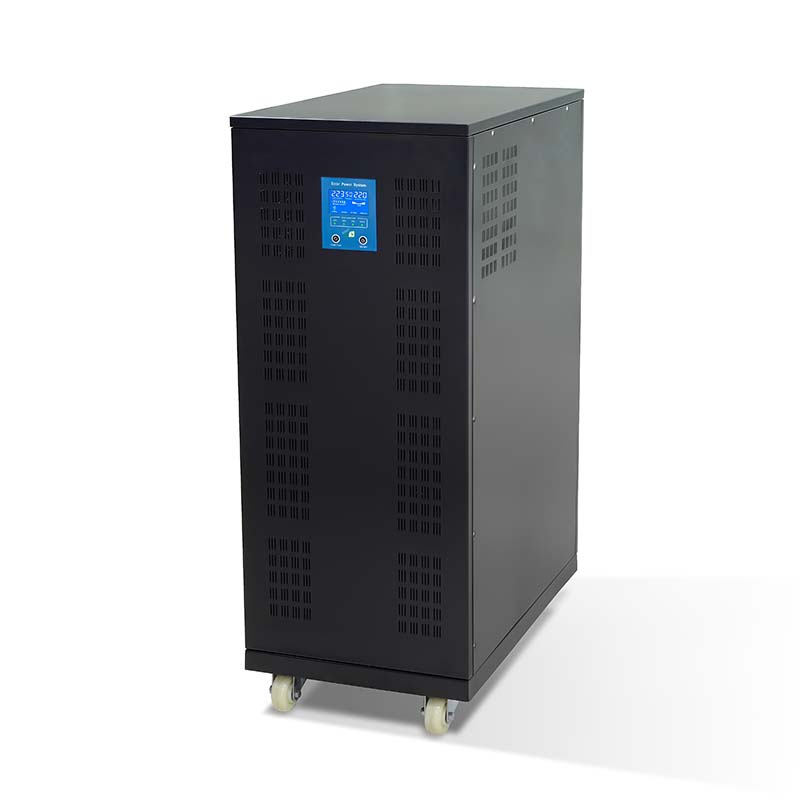

30KW/40KW DC240V/384V a AC110V/120V/220V/230V/240V | Inversor Hibrido Con Cargador Incorporado PWM 50A/100A/150A/200A | potencia inversores solares fotovoltaicos
Product
■ Inversor Solar Hibrido Feature
1 Inversor hibrido built-in PWM charge controller optional.
2 Pure sine wave output.
3 Wide AC voltage input range, AVR output.
4 Adopt traditional EI transformer , stable performance.
5 LCD/LED&LCD real-time display, concise and straightforward.
6 Working modes: AC first or battery first optional, intelligent charging.
7 RS232 communication port optional.
■ Inversor Solar Hibrido Specification
| Specification | |||
| Model NB-T | 303240 | 403384 | |
| Rated Power | 30KW | 40KW | |
| Peak Power（20ms) | 90KVA | 120KVA | |
| Start Motor | 15HP | 30HP | |
| Battery Voltage | 240VDC | 384VDC | |
| Size(L*W*Hmm) | 720*435*1120 | ||
| Packing Size(L*W*Hmm) | 790*505*1260 | ||
| N.W.(kg) | 135 | 160 | |
| G.W.(kg) | 150 | 180 | |
| Installation Method | Tower | ||
| Parameter | |||
| Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | |
| AC Input Voltage Range |
92VAC~128VAC(110VAC） / 102VAC~138VAC（120VAC） / 185VAC~255VAC（220VAC） /
195VAC~265VAC（230VAC） / 205VAC~275VAC（ 240VAC）
|
||
| AC Input Frequency Range | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | ||
| Max AC charging current | 6A~15A(Depending on the model） | ||
| AC charging voltage | LEAD battery：Charge Voltage :14.2V; Float Voltage:13.8V（Single battery voltage） | ||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||
| Output | Efficiency(Battery Mode) | ≥85% | |
| Output Voltage(Battery Mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% | ||
| Output Frequency(Battery Mode) | 50Hz±0.5 or 60Hz±0.5 | ||
| Output Wave(Battery Mode) | Pure Sine Wave | ||
| Efficiency(AC Mode) | >99% | ||
| Output Voltage(AC Mode) | Follow input | ||
| Output Frequency(AC Mode) | Tracking Automatically | ||
|
Output waveform distortion
(Battery Mode)
|
≤3%（Linear load） | ||
| No load loss(Battery Mode) | ≤1% rated power | ||
| No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | ||
| No load loss(Energy saving Mode) | ≤10W | ||
| Battery Type | VRLA Battery | Charge Voltage :14.2V; Float Voltage:13.8V（Single battery voltage） | |
| Customize battery | Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.) can be customized according to user requirements | ||
| Protection | Battery undervoltage alarm | Factory default: 11V（Single battery voltage） | |
| Battery undervoltage protection | Factory default: 10.5V（Single battery voltage） | ||
| Battery overvoltage alarm | Factory default: 15V（Single battery voltage） | ||
| Battery overvoltage protection | Factory default: ：17V（Single battery voltage） | ||
| Battery overvoltage recovery voltage | Factory default: 14.5V（Single battery voltage） | ||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||
| Temperature protection | >90°C（Shut down output） | ||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||
|
Inside Solar controller
(Optional)
|
Charging Mode | PWM | |
| Charging current | 50A/100A/150A/200A(PWM) | ||
| PV Input Voltage Range | 300V-440V(240V System); 480V-704V(384V System) | ||
|
Max PV Input Voltage(Voc)
(At the lowest temperature)
|
500V(240V System); 750V(384V System) | ||
| PV Array Maximum Power |
240V System: 14KW(50A)/28KW(100A)/21KW*2(150A)/28KW*2(200A);
384V System: 22.4KW(50A)/44.8KW(100A)/33.6KW*2(150A)/44.8KW*2(200A)
|
||
| Standby loss | ≤3W | ||
| Maximum conversion efficiency | >95% | ||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||
| Transfer Time | ≤4ms | ||
| Display | LCD | ||
| Thermal method | Cooling fan in intelligent control | ||
| Communication | RS232(Optional) | ||
| Environment | Operating temperature | -10℃~40℃ | |
| Storage temperature | -15℃~60℃ | ||
| Noise | ≤55dB | ||
| Elevation | 2000m（More than derating） | ||
| Humidity | 0%~95% ,No condensation | ||
| Note: All specifications are subject to charge without prior notice | |||

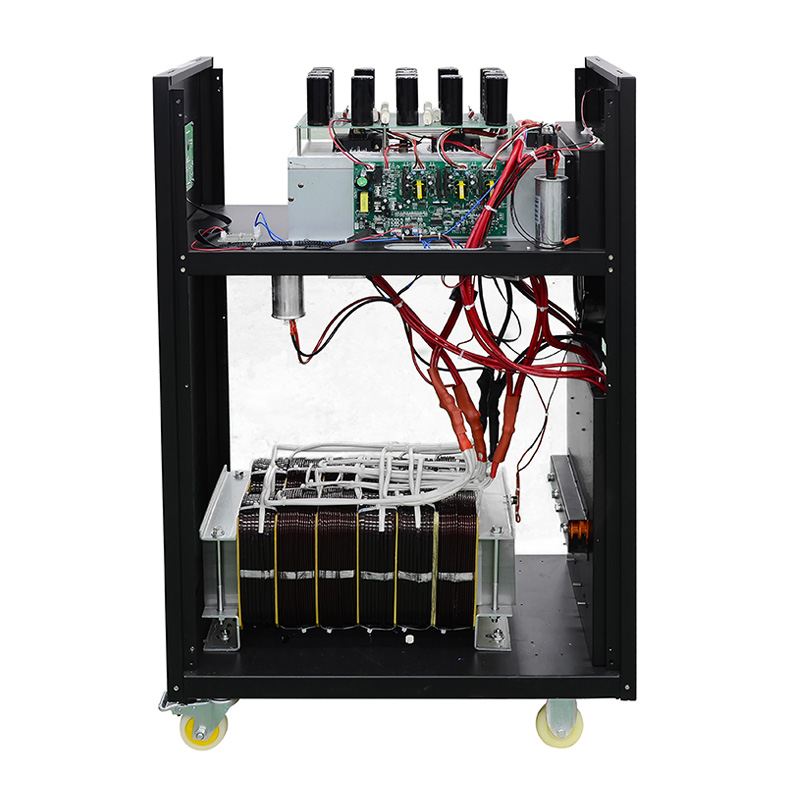

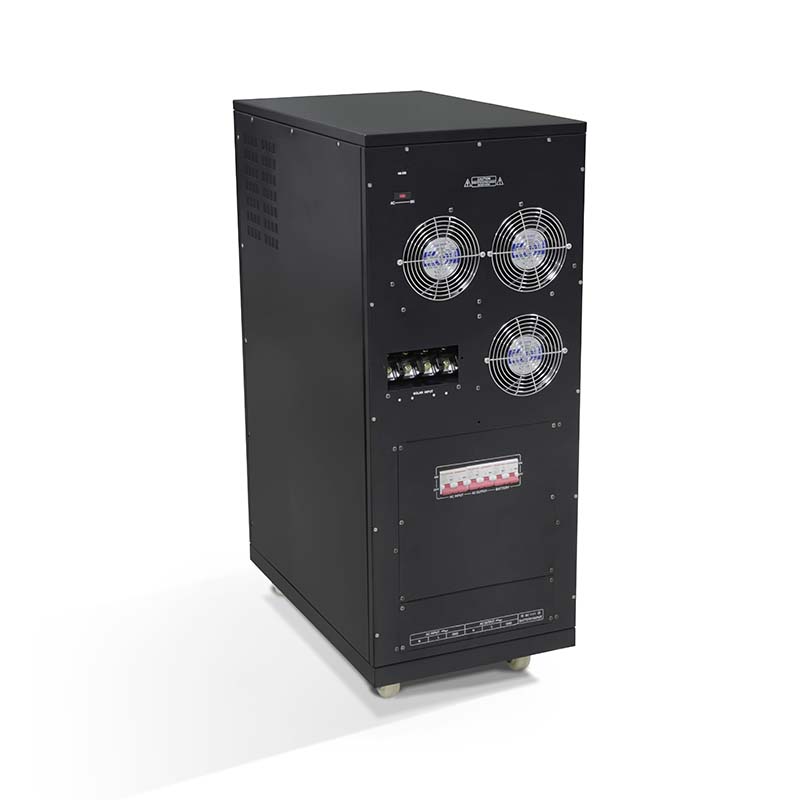

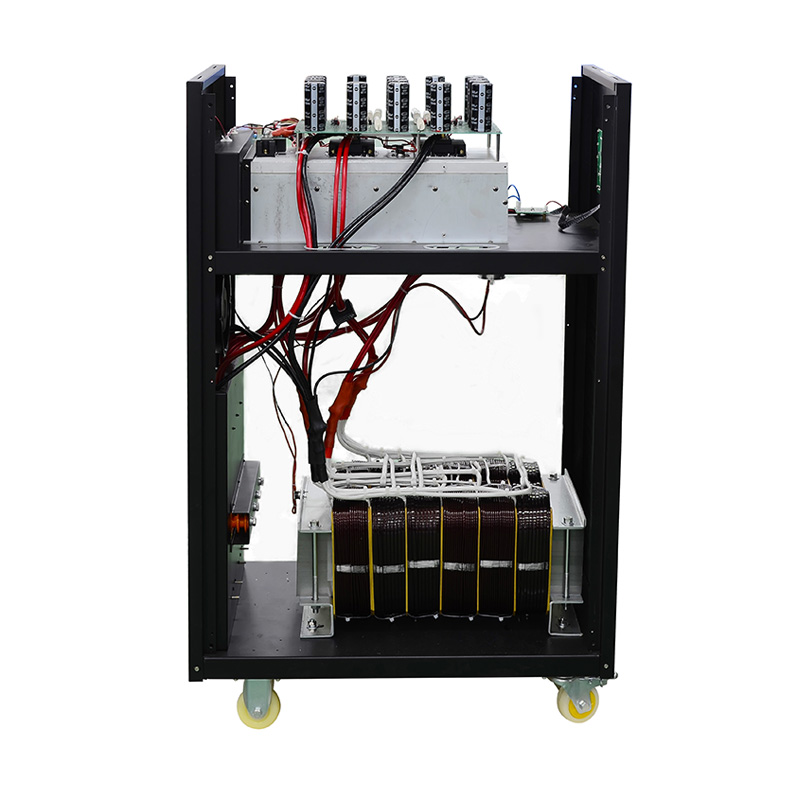

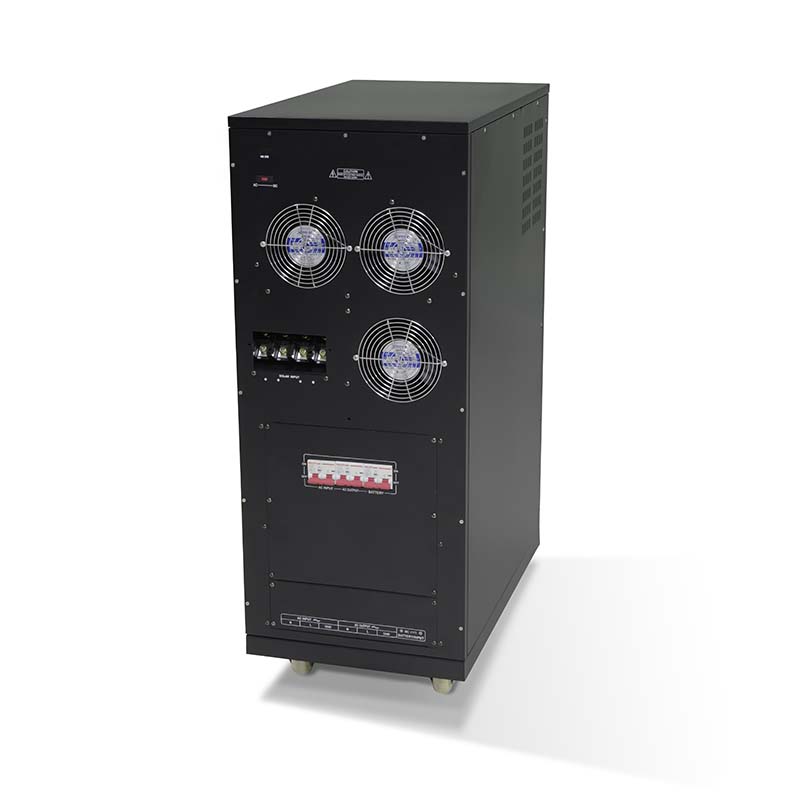

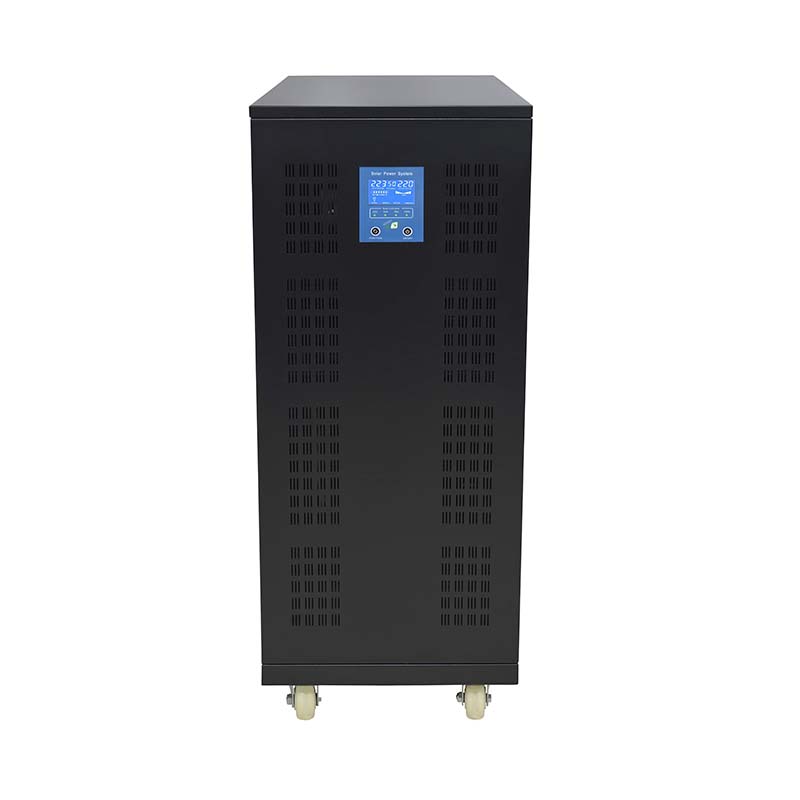

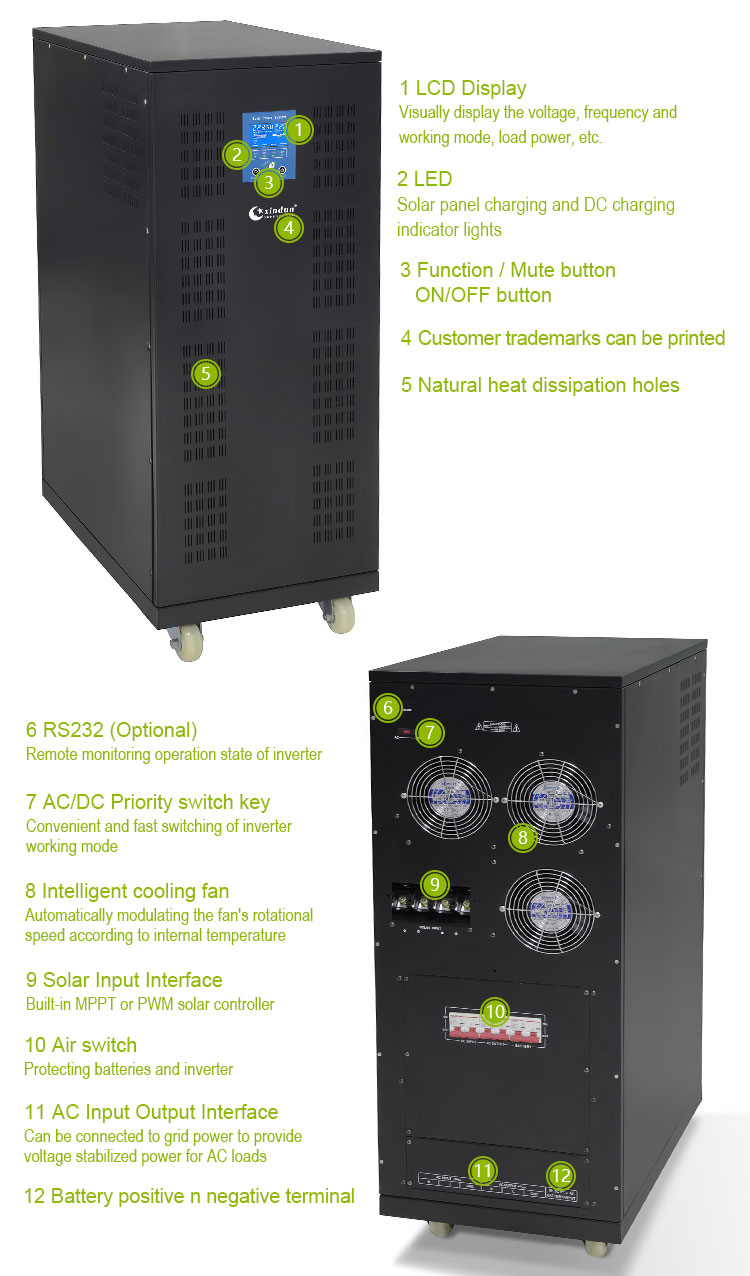

■ Inversor Solar Hibrido Details

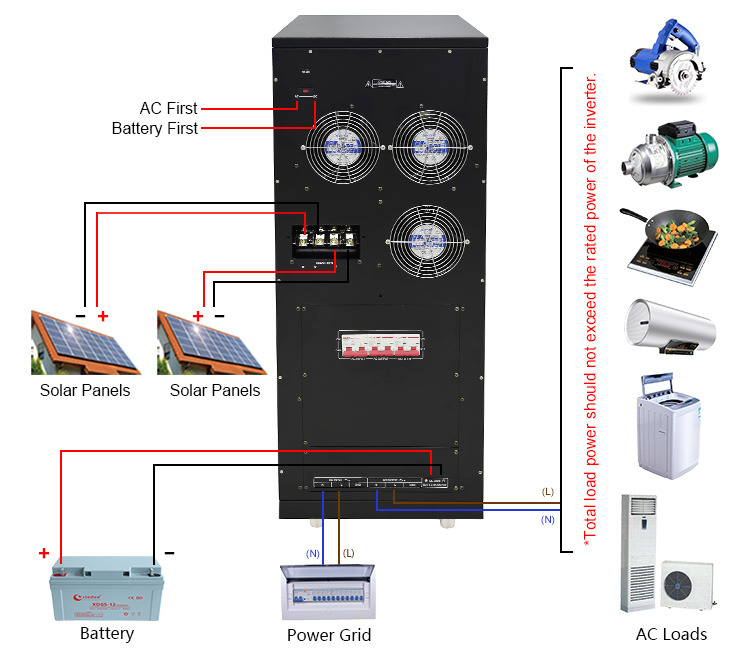

■ Inversor Solar Hibrido Wiring Diagram
Xindun inversor solar hibrido usually has two application methods:
1. Home Backup System:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass and stable voltage through inverter to home appliances, such as induction cooker, kettle, refrigerator, air-conditioner. When AC grid power is off, inverter will automatic transfer switch to battery power and convert DC to AC power.
2. Wind or Solar Power system:
The electricity generated by solar or wind energy is DC (direct current), then inverter will convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.
■ Inversor Solar Hibrido Application

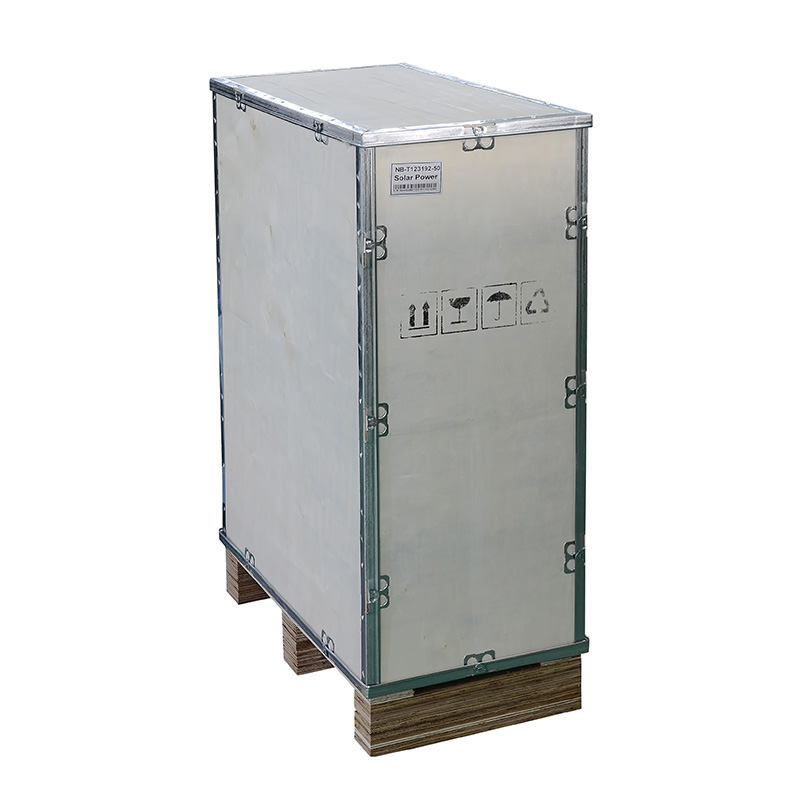

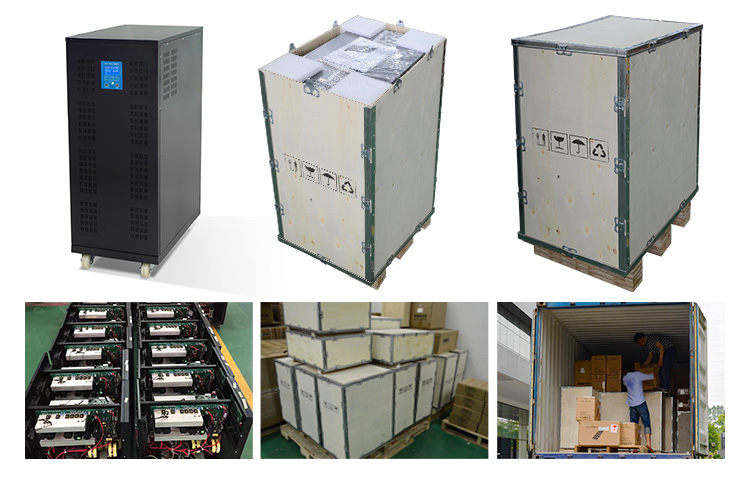

■ Inversor Package and Delivery
■ Why Choose Us？
1. We are a professional manufacturer of inversor hibrido with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 14 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000 pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.
■ About Xindun Power
■ Inversor Solar Hibrido Factory
■ Qualifications and Certificates
■ Global Solar Exhibitons
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: What is the price of inversor solar hibrido?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Inversor solar hibrido factory direct sales, no middlemen earn price difference.
Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!
Q4: What\'s the difference between solar inverter and hybrid inverter?
A: Inverter is design to convert DC (Direct Current) into AC (Alternating Current). Both solar inverter and hybrid inverter are widely used in PV solar energy into electric energy. Hybrid inverter contains the function of a solar inverter, also adds a built-in solar charge controller. Also it can be a combination of off grid and grid tie inverter in one machine with same description as you called hybrid inverter.
Q5: How to solve the inversor solar hibrido technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
