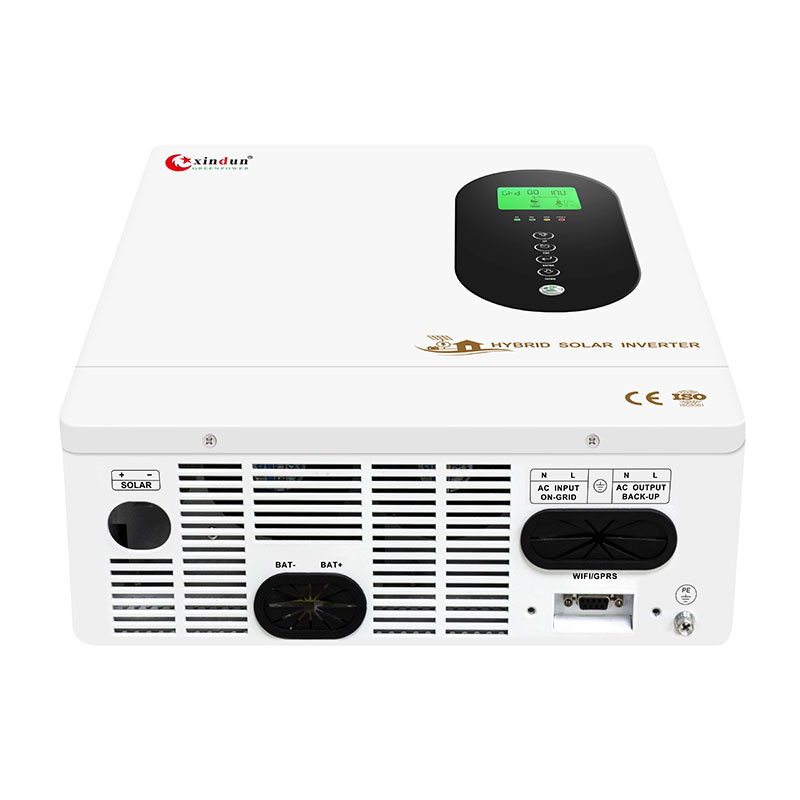

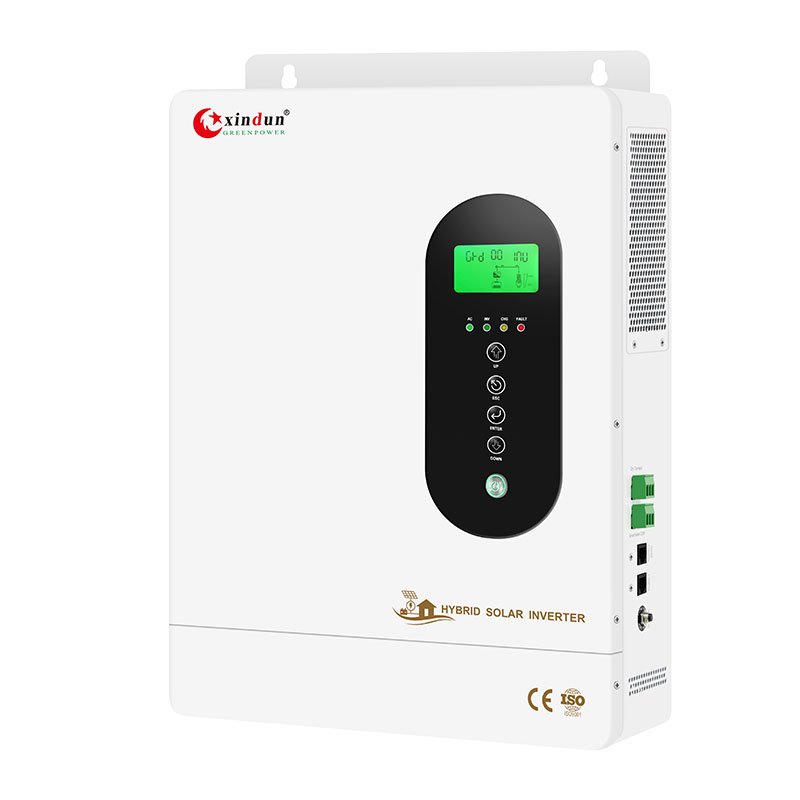

HF series solar inverter on off grid 5KW 6KW 8KW 10KW 12KW 48V, a type of solar energy solution that can operate in on-grid, off-grid and hybrid modes. It allows users to switch between drawing electricity from the utility grid and relying on stored energy from solar panels, and feed back the electricity from the solar panels or the battery to the utility grid.
Product
- Solar inverter adopts high-frequency design, high power density, small size and high overall efficiency;
- Bidirectional energy storage design can realize bidirectional flow control of electric energy, and both solar power and utility power can charge the battery;
- Ultra-wide MPPT range, as low as 80VDC;

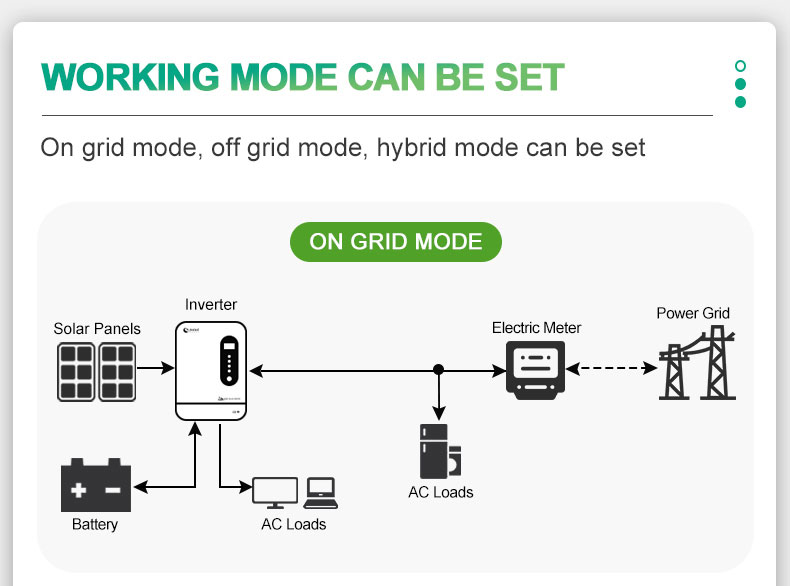

- The working mode can be set (on-grid mode, off-grid mode, hybrid mode);
- Equipped with output priority setting function;
- Equipped with charging priority setting function;
- Equipped with lithium battery BMS communication function;

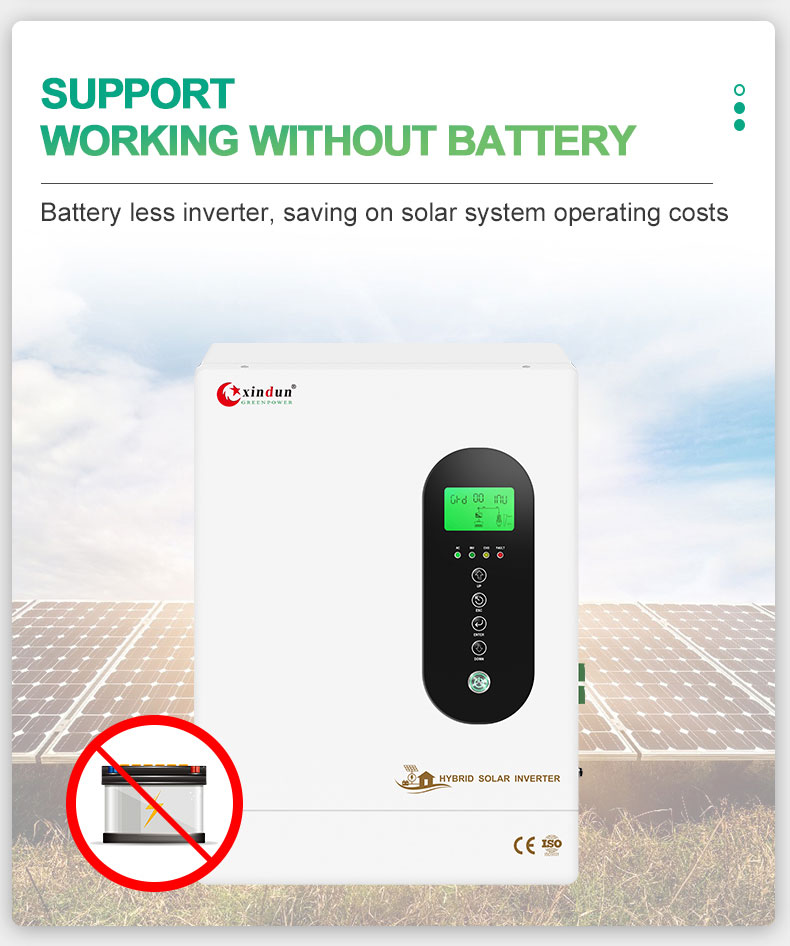

- Support battery-less operation mode;

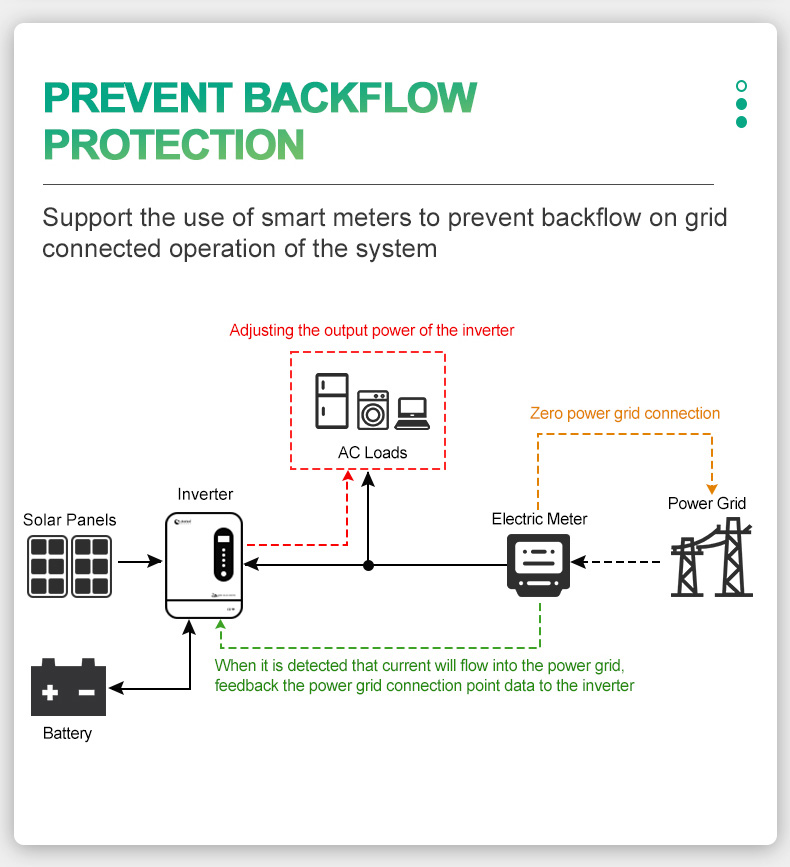

- Supports the use of smart meters to prevent backflow when running on the grid.
| Model: HF | 50248 | 60248 | 80248 | 10348 | 12348 | |
| PV | Max PV Input Power | 6000W | 6000W | 4500W*2 | 6000W*2 | 6000W*2 |
| MPPT Tracking Voltage Range | 120VDC-450VDC | |||||
| Rated Voltage | 360VDC | |||||
| Max PV Input Voltage Voc (at the lowest temperature) | 500VDC | |||||
| Max PV Input Current | 27A | 18A*2 | 27A*2 | |||
| MPPT Tracking Channels (Input Routed ) | 1 Routed | 2 Routed | ||||
| Battery & Charging | Battery Type | Lead-acid Battery/Lithium Battery | ||||
| Custom Battery (Charging and discharging parameters of different types of batteries can be set through the operation board) | ||||||
| Rated Battery Voltage | 48VDC | |||||
| Battery Voltage Range | 42~60VDC(default) | |||||
| Max PV Charging Current | 120A | 150A | 180A | 200A | ||
| Max AC Charging Current | 80A | 100A | 120A | 140A | ||
| Max Charging Current | 120A | 150A | 180A | 200A | ||
| On-Grid Operation | ||||||
| On-Grid Output (AC) | Rated Output Power | 5000W | 6000W | 8000W | 10KW | 12KW |
| Rated Output Voltage | 220VAC/230VAC/240VAC | |||||
| Grid Voltage Range | 187VAC~264VAC | |||||
| Rated Output Frequency | 50Hz/60Hz | |||||
| Frequency Range | 47Hz~52Hz(50Hz)，57Hz~62Hz(60Hz) | |||||
| Rated Output Current | 22.7A/21.7A/ | 27.3A/26.1A/ | 36.4A/34.8A/ | 45.5A/43.5A/ | 54.5A/52.2A/ | |
| 20.8A | 25A | 33.3A | 41.7A | 50A | ||
| Power Factor | ＞0.98(Rated Power) | |||||
| Off-Grid Operation | ||||||
| AC Input | Rated Input Voltage | 220V/230V/240V | ||||
| Mains input voltage range | 165VAC~280VAC / 120VAC~280VAC(Can be set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz) | |||||
| AC Output | Rated Output Power | 5000W | 6000W | 8000W | 10KW | 12KW |
| Rated Output Voltage | 220V/230V/240V | |||||
| Output Voltage Accuracy | ±2% | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Output Frequency Accuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Hybrid Operation (Complementary Mode) | ||||||
| AC Input | Rated Input Voltage | 220V/230V/240V | ||||
| Mains Input Voltage Range | 187VAC~264VAC | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 47Hz~52Hz(50Hz)，57Hz~62Hz(60Hz) | |||||
| AC Output | Rated Output Power | 5000W | 6000W | 8000W | 10KW | 12KW |
| Rated Voltage | 220VAC/230VAC/240VAC | |||||
| Rated Output Current | 22.7A/21.7A/20.8A | 27.3A/26.1A/25A | 36.4A/34.8A/33.3A | 45.5A/43.5A/41.7A | 54.5A/52.2A/50A | |
| Regular Parameters | ||||||
| Maximum Conversion Efficiency (Battery Discharge) | 94% (peak value) | |||||
| MPPT Tracking Efficiency | ≥99.9 | |||||
| Transfer Time | 10ms(Typical value) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||

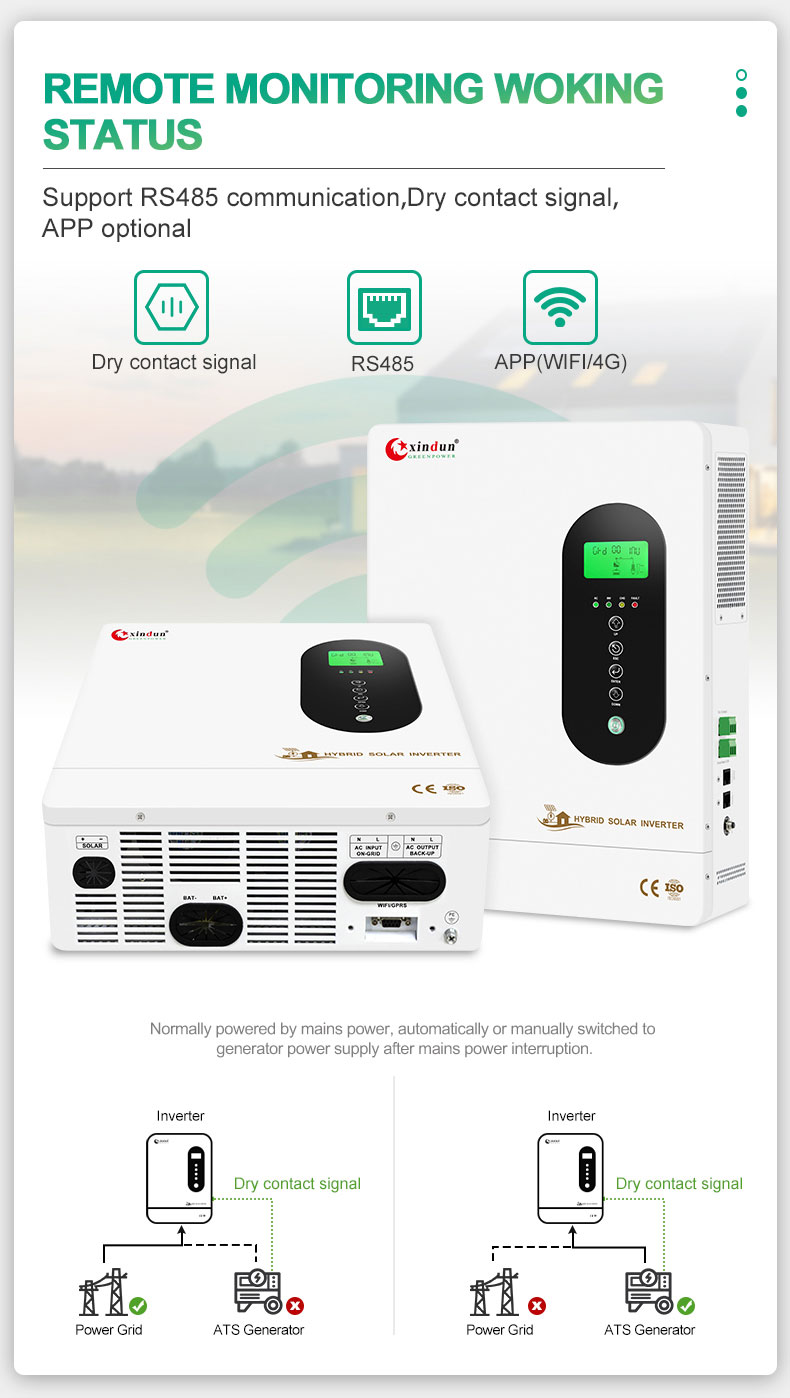

| Communication | RS485/Dry Contact/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional) | |||||
| Protection Degree | IP20 | |||||
| Installation | Wall-Mounted | |||||
| Protection | Battery low voltage alarm | 44VDC(default value) | ||||
| Battery low voltage protection | 42VDC(default value) | |||||
| Anti-islanding protection | ≤2S | |||||
| Overload power protection | Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) | |||||
| Inverter output short circuit protection | Automatic protection (battery mode),circuit breaker or insurance (AC mode) | |||||
| Temperature protection | >90℃(Shut down output) | |||||
| Operating temperature | -10℃~50℃ | |||||
| Storage temperature | -15℃~60℃ | |||||
| Environment | Noise | ≤55dB | ||||
| Elevation | 2000m(More than derating) | |||||
| Humidity | 0%~95% (No condensation) | |||||
| Dimension and Weight | ||||||
| Product Size(L*W*Hmm) | 430*325*112.5 | 515*365*117 | 630*540*130 | |||
| Package Size(L*W*Hmm) | 510*380*178 | 600*430*192 | 715*605*205 | |||
Our solar inverter on off grid support parameter customization and logo, appearance and packaging customization. Welcome to inquiry.
When considering the solar inverter for both on-grid and off-grid applications, Xindun Power stands out as a premier choice. With nearly two decades of dedicated research and development coupled with manufacturing expertise, we have established ourselves as a trusted leader in the solar industry. Our commitment to innovation, reliability, and customer satisfaction sets us apart. By choosing Xindun Power, you are not only investing in the high-quality product but also in a partner dedicated to delivering tailored solutions to meet your unique needs. One of our customer's partner said to him: Experience peace of mind knowing that you are working with a reputable manufacturer (Xindun Power) renowned for its superior performance, durability, and unwavering support.
■ FAQ
The solar inverter on off grid system is a type of solar energy solution that can operate in grid-connected, off-grid and hybrid modes. It allows users to switch between drawing electricity from the utility grid and relying on stored energy from solar panels, and feed back the electricity from the solar panels or the electricity in the battery to the utility grid. Providing flexibility and reliability in various situations.

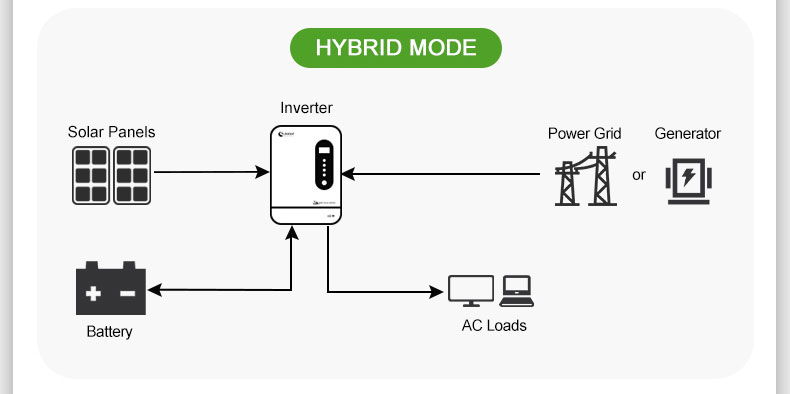

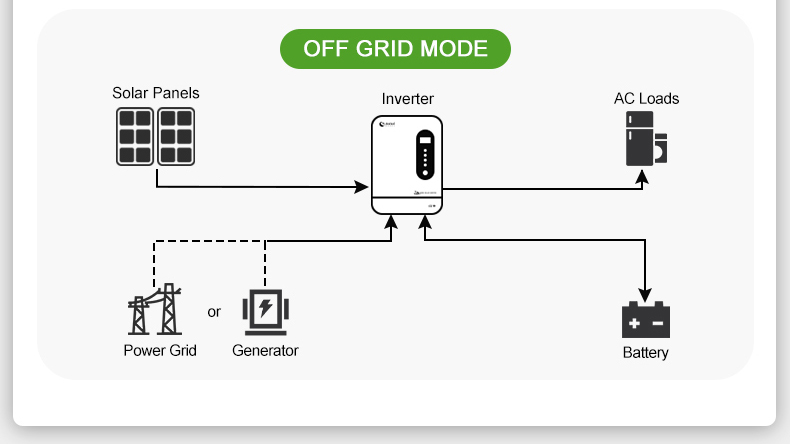

In on-grid mode, the solar inverter on off grid system converts solar energy into usable electricity for immediate consumption or export to the grid. In off-grid mode, excess solar energy is stored in batteries for use during periods of low sunlight or when the grid is unavailable. The inverter manages the flow of electricity between the solar panels, batteries, and grid, ensuring seamless operation.
The solar inverter on off grid offers several benefits, including energy independence, reduced electricity bills, and increased resilience to power outages. It allows users to harness solar energy for self-consumption and backup power, providing peace of mind and environmental sustainability.
Yes. Our solar inverter specifically designed to operate at a low input voltage of 48v while delivering high power output, full power options include 5kw, 6kw, 8kw, 10kw, and 12kw. It is commonly used in off-grid solar energy systems where the available battery voltage is limited but high power demands need to be met.

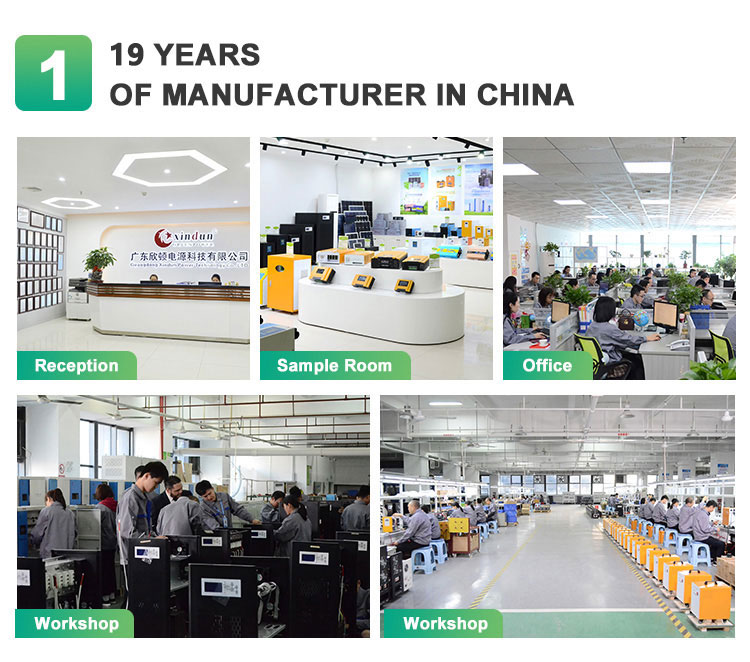

We are a factory, and Xindun Power has been a production-oriented enterprise since its establishment. We have a production history of nearly 20 years, and the production area of solar inverters has reached 10,000 square meters so far. We undertake OEM production services for traders in various regions around the world.
