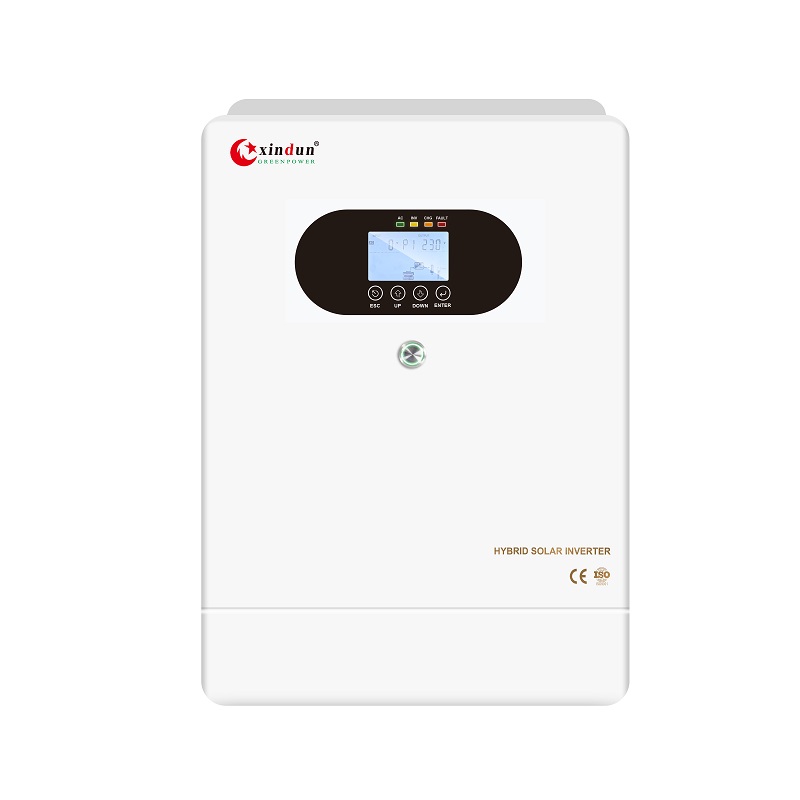

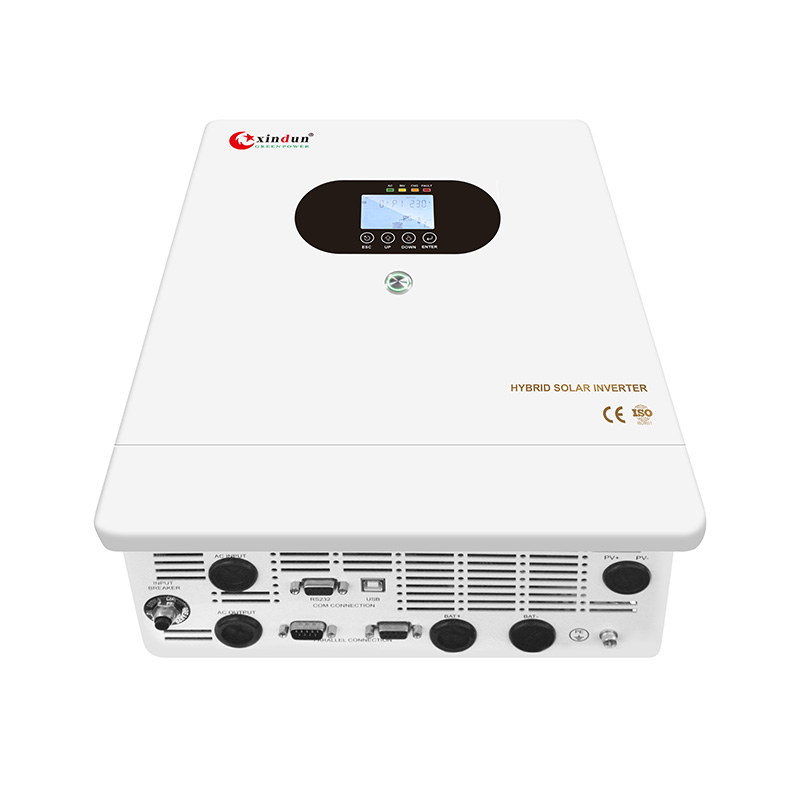

Solar inverter hybrid on off grid 5KW 10KW not only can use backup power for free, but also support the sale of surplus power to the country and obtain income. In addition, the solar hybrid inverter supports a maximum of 9 inverters in parallel, 48v DC voltage drives 45kw high-power array system, which is suitable for industrial and commercial, agricultural, family and other occasions.

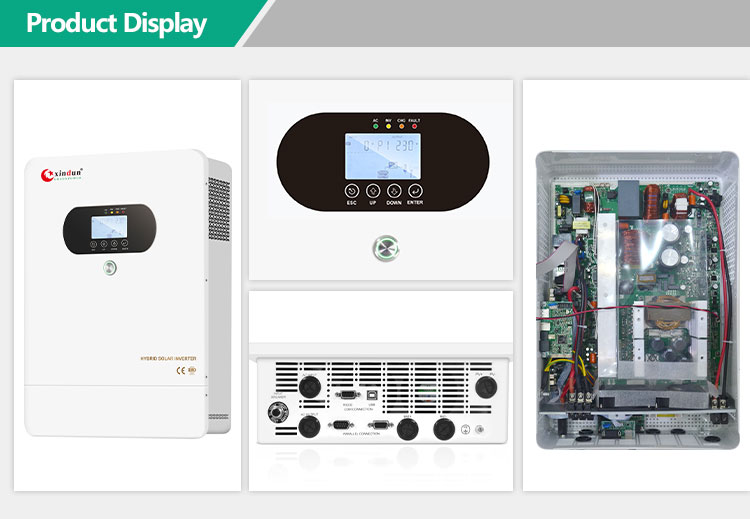

Product

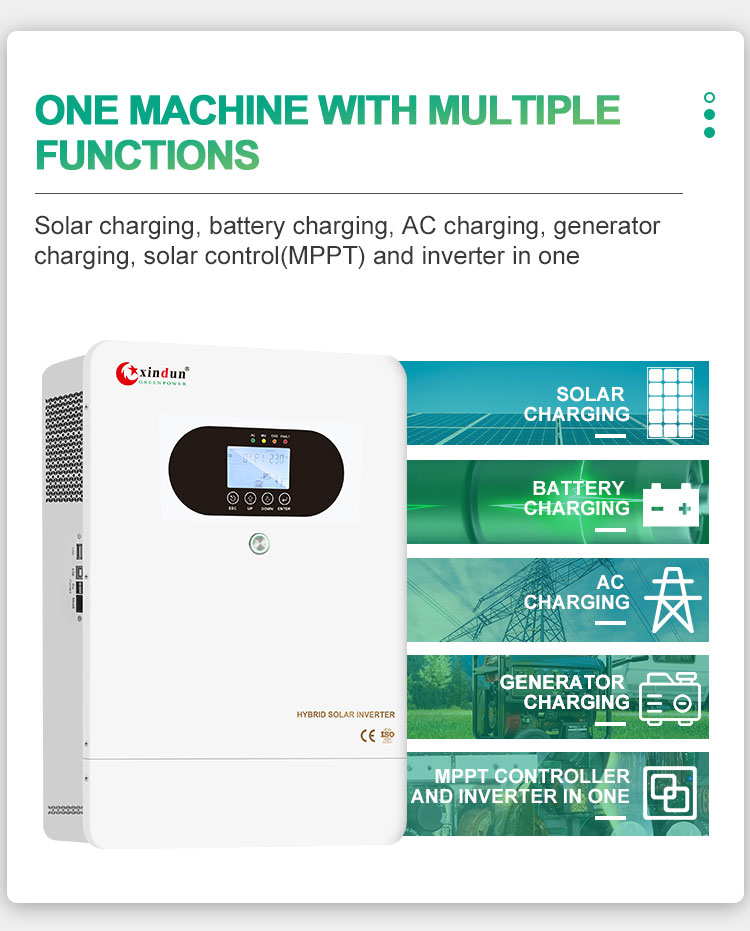

1. Solar inverter achieve on off grid hybrid operation,used as a backup power source to store electricity or fed into the grid attain income return.
2. Single on off grid hybrid solar inverter in-built MPPT solar controller,which can work no battery.
3. Support single phase output and three phase output,max in parallel 9 pcs inverter
4. Smart LCD settings,included working model,charging current,charging voltage,AC voltage/frequency output.

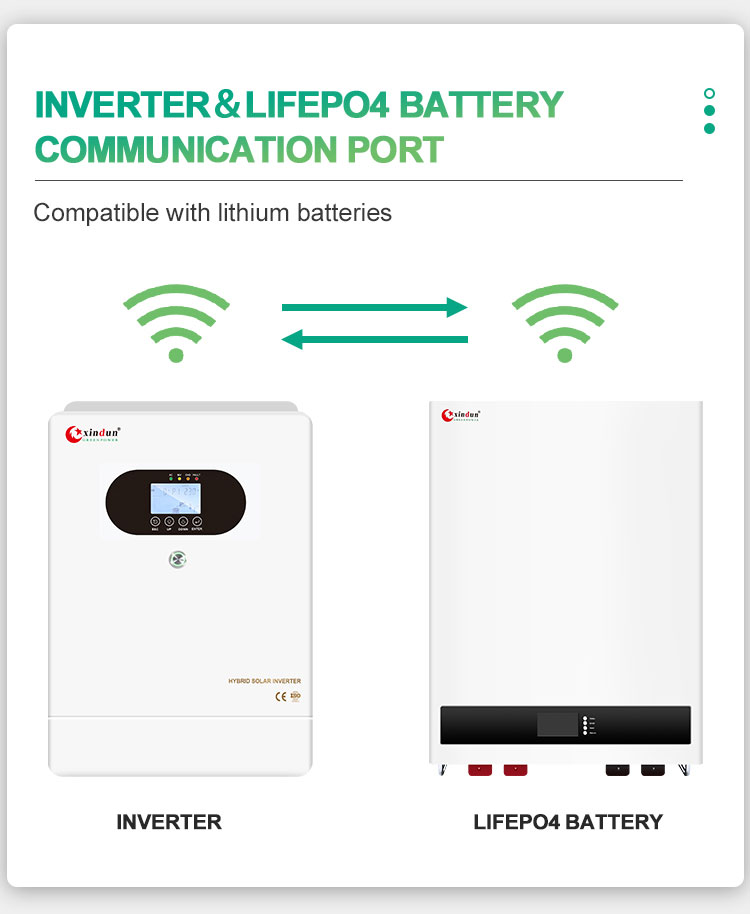

5. The inverter can be compatible and communicate with lithium batteries.
6. Output power factor 1.0
| Specification | ||||||
| Model: HP-PLUS+ | 50248 | |||||
| Power | ||||||
| Rated Power | 5KW | |||||
| Battery | ||||||
| Standard Battery Voltage | 48VDC | |||||
| Battery Type | Lead-acid battery / Lithium battery / Custom battery | |||||
| Maximum Charging Current (PV+AC) | 80A | |||||
| Maximum PV Charging Current | 80A | |||||
| Maximum AC Charging Current | 60A | |||||
| MPPT Solar Charge Controller | ||||||

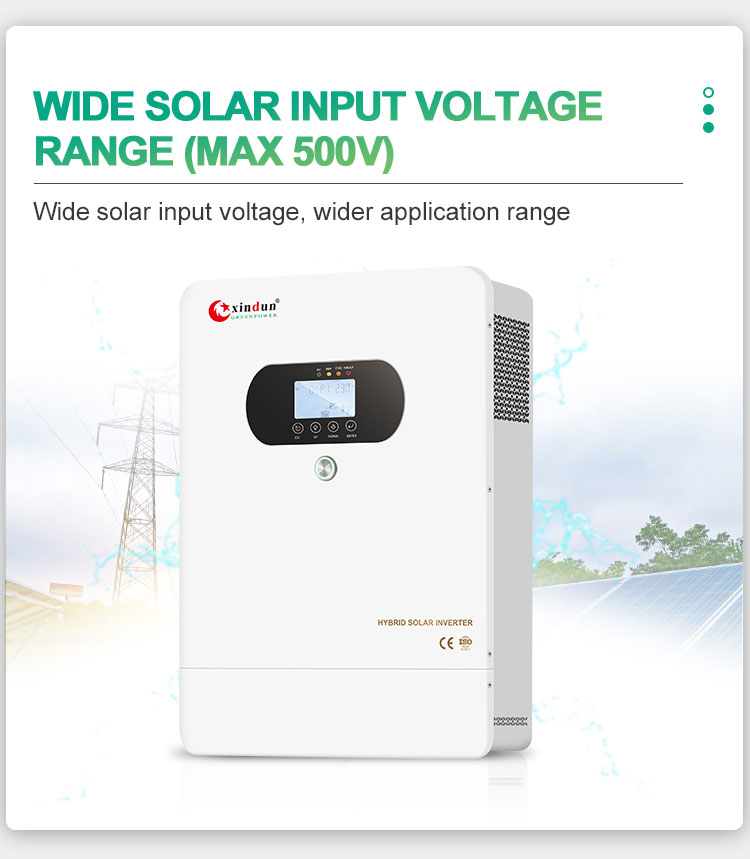

| Max PV Input Voltage（Voc） (At The Lowest Temperature) |
500VDC | |||||
| Maximum PV Input Power/Tracking Channels | 5500W/1 route | |||||
| MPPT Tracking Voltage Range | 120V~450VDC | |||||
| AC Input | ||||||
| Rated Input Voltage | 208VAC/220VAC /230VAC/ 240VAC | |||||
| AC Input Voltage Range | 170VAC~280VAC （UPS mode）/ 90VAC~280VAC（Appliance mode） | |||||
| AC Input Frequency | 45Hz~55Hz（50Hz)，55Hz~65Hz（60Hz) | |||||
| AC Output | ||||||
| Output Wave | Pure sine wave | |||||
| Conversion Efficiency(INV model) | 94%（ peak value） | |||||
| Output Voltage/Frequency | 208VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%，50Hz±1% or 60Hz±1%(INV mode); follow input (mains mode) | |||||
| Other | ||||||
| Protection | Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection | |||||
| Protection Degree | IP20 | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||

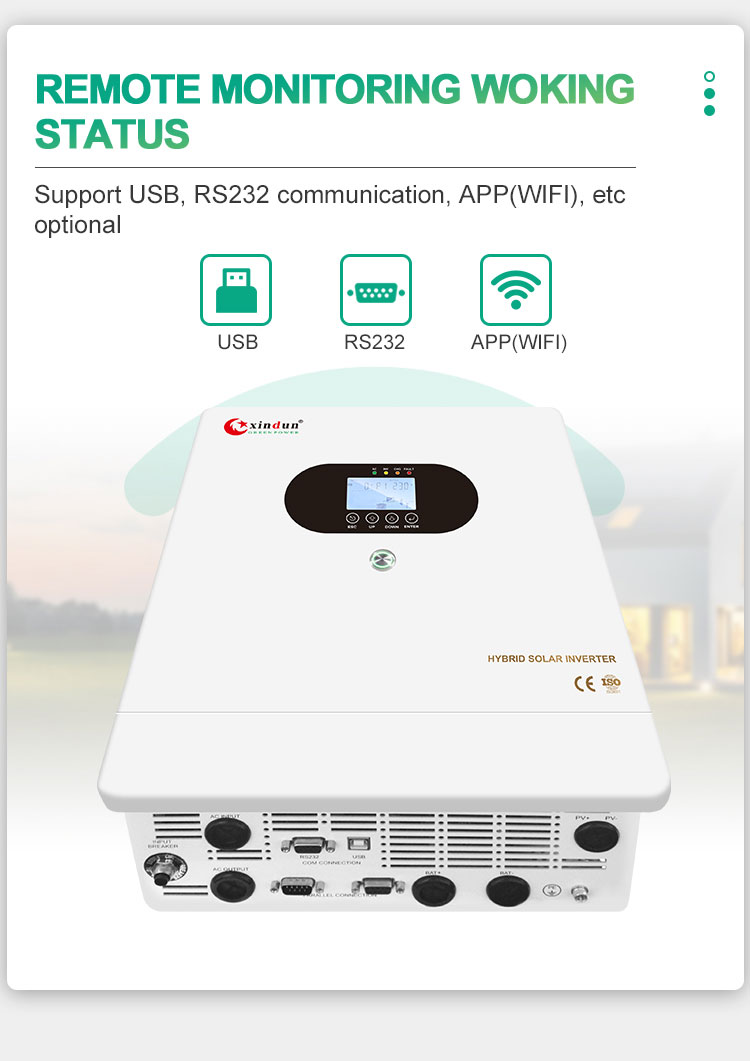

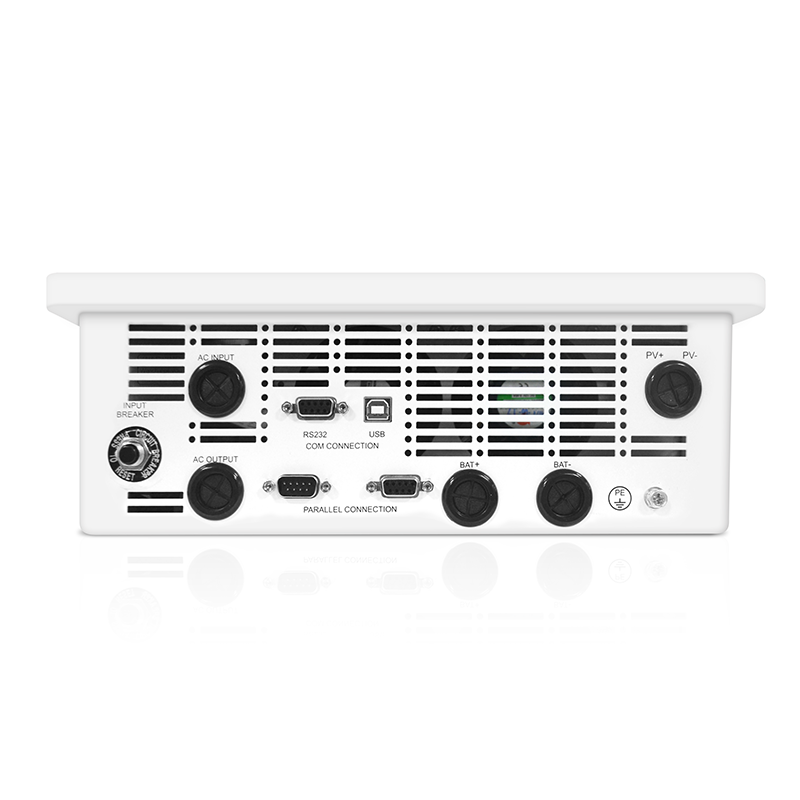

| Communication | USB/RS232 communication , mobile APP (WIFI monitoring or GPRS monitoring) Optional | |||||
| Working Mode (can be set) | Mains priority/Battery priority/PV priority | |||||
| Charging Method (can be set) | AC + PV together (intelligent distribution) / Only PV / PV priority / Mains priority | |||||
| Operating Temperature | -15℃~40℃ | |||||
| Relative Humidity | 0%~95% (No condensation) | |||||
| Dimensions and Weight | ||||||
| Product Size (L*W*Hmm) | 460x320x110 | |||||
| PackageSize(L*W*Hmm) | 520x385x215 | |||||
| N.W.(kg) | 9.75 | |||||
| G.W.(kg) | 10.75 | |||||

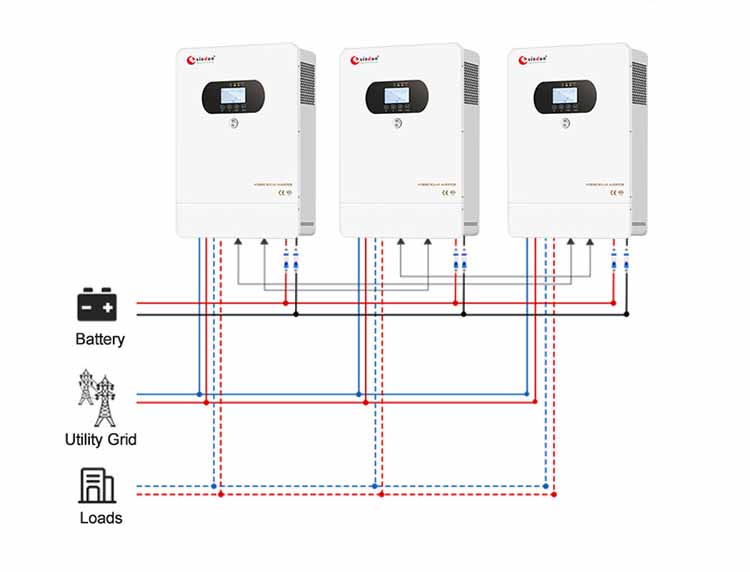

(1)Parallel single-phase solar hybrid inverter wiring diagram

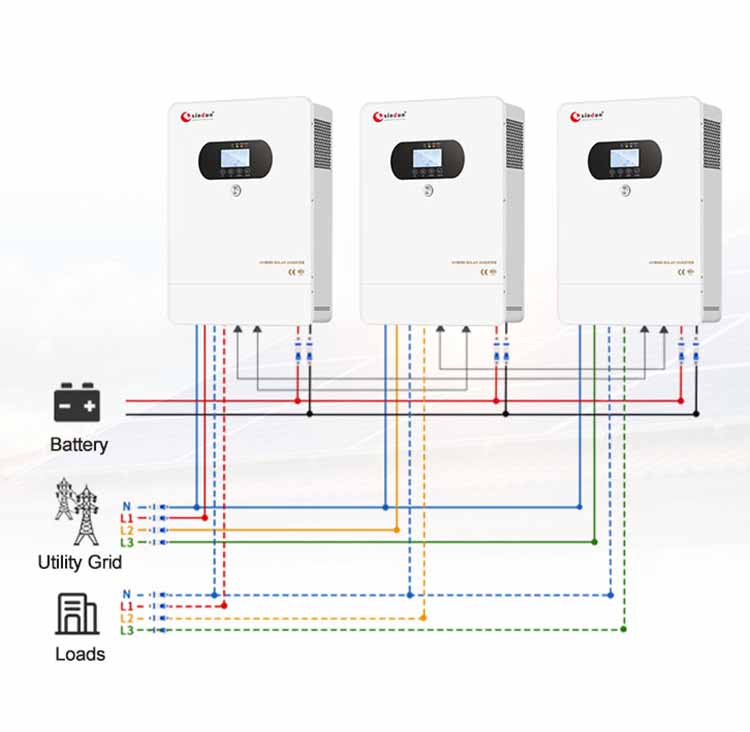

(2)Parallel three-phase hybrid solar inverter wiring diagram

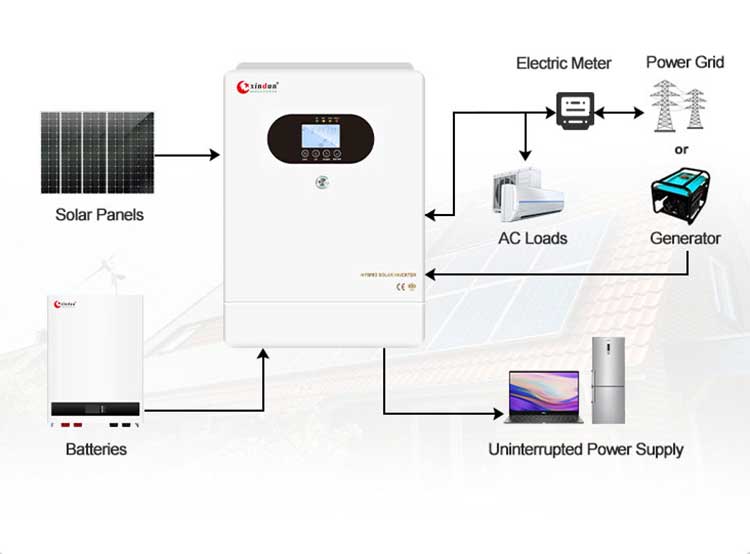

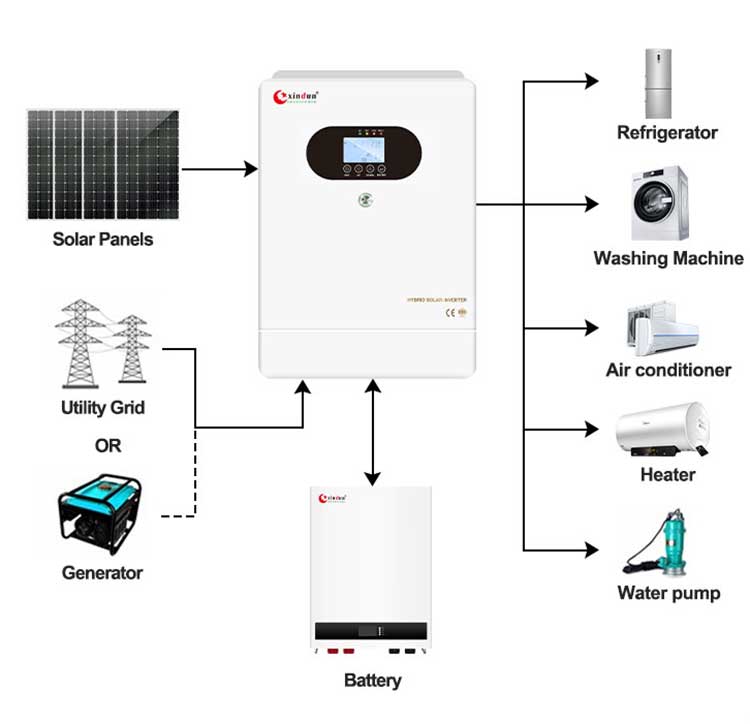

(3)On off grid hybrid solar inverter wiring diagram
(4)Single phase solar inverter wiring diagram
Solar inverter hybrid on off grid wiring diagram show the connections for various situations,for any queries during the installation, our expert team is ready to assist. Contact us for a warmly installation service!
■ Why Choose Us？
Free sample offer:Xindun Power values your understanding of our products, and that's why we offer a free sample service. When you place large orders, the costs of the samples are subtracted from your total expenses, ensuring you receive samples at no cost.
On off grid hybrid solar inverter product wholesale:Xindun is your cost-effective partner, offering ample stock and competitive wholesale rates. Our experienced team, with over a decade of inverter manufacturing expertise, ensures high productivity across four efficient production lines. Timely order fulfillment is secured through our global network of overseas warehouses. Xindun Power, as the original inverter manufacturer, provides highly competitive pricing, paving the way for a prosperous, long-term partnership.
On off grid hybrid solar inverter accppt OEM/ODM：At Xindun, we are proud to offer OEM/ODM services, encompassing personalized logos, exterior designs, special voltage, and power configurations, all with flexibility in RFQ minimum orders. With 15 utility model patents, 10 computer software patents, and 5 design patents, our extensive research and design capabilities are at your disposal. Furthermore, we hold various national professional inspection certifications, including CE, IEC, TUV, TLC, ISO, MCS, and more. We empower importers and traders to manufacture their own branded products, aiding them in creating distinctive items and gaining a competitive edge in the market.
On off grid hybrid solar inverter solutions customization:Xindun is committed to providing customized solar solutions for engineering projects. Our all-inclusive service covers project design, configuration, and product manufacturing to installation, debugging, post-support, and investment return analysis. We empower you to shape your solar future while conserving your valuable time and resources.
■ FAQ
Q1: Are you a factory?
A: Yes, we are among the top 10 power supply manufacturers in China, boasting a production area exceeding 7000 square meters. Our focus solar inverters, solar charge controllers, solar generators, and comprehensive solar power system solutions. Collaborating with renowned global brands, we offer customization options, including the addition of your logo on products.
Q2: What is the price of on off grid hybrid solar inverter?
A: Share your requirements, including power, voltage, charging current, quantity, and any other functional specifications. We'll provide you with the most competitive ex-factory price. Our direct sales approach ensures no middlemen markups.
Q3: What type of inverters do you produce?
A: Our product range includes pure sine wave inverters, off-grid inverters, on/off-grid inverters, solar hybrid inverters, single-phase inverters, 3-phase inverters, low-frequency inverters, high-frequency inverters, and more. Unsure which inverter suits your needs? Contact XINDUN for guidance!
Q4: What's the difference between a solar inverter and a hybrid inverter?
A: An inverter converts DC (Direct Current) into AC (Alternating Current). Both solar and hybrid inverters are widely used in converting PV solar energy into electric energy. A hybrid inverter includes the functionality of a solar inverter and adds a built-in solar charge controller. It can also serve as a combination of off-grid and grid-tie inverter in one unit, referred to as a hybrid inverter.
Q5: How to solve technical problems with a on off grid hybrid solar inverter?
A: We offer market and product training services, along with 24-hour after-service consultancy tailored to your needs. Our goal is to make problem-solving easy for you.
