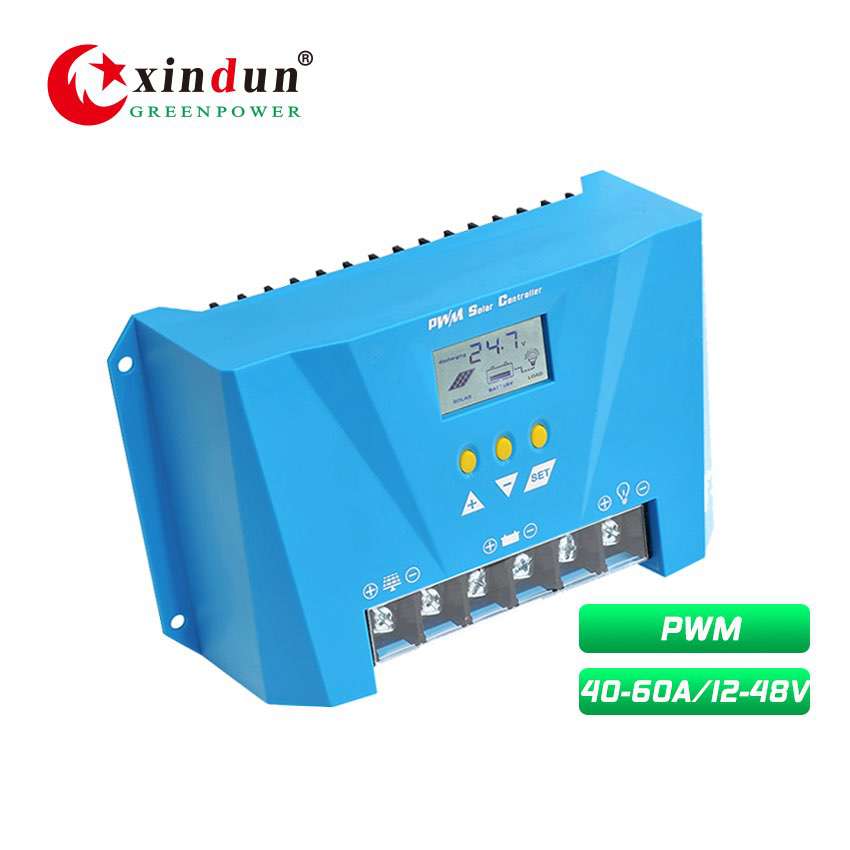

40A/50A/60A 12V/24V/48V PWM Solar Charge Regulator | 12V/24V Auto Adaptation | Solar Regulator to Charge All Kinds of Batteries
Product
■ Solar Battery Charge Regulator Feature
1 LCD display PV charge, battery and DC loading condition.
2 Protection against over charge, over discharge, over load and anti-thunder.
3 PWM charging mode, DC mode save cost.
4 12/24V auto adaptation.

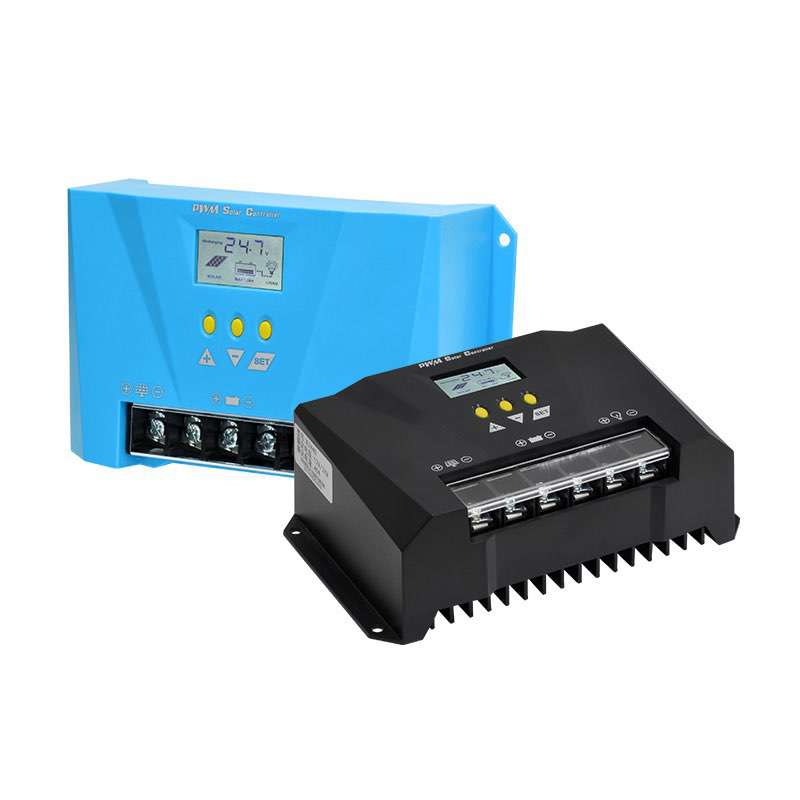

5 Available in black and blue.
■ Solar Battery Charge Regulator Specification
| KY1 Specification | |
| Rated Current | 40A/50A/60A |
| Rated System voltage | 12/24V(auto recognition)，48V |
| PV input voltage range | 12V System: 15V-44V；24V System: 30V-44V；48V System: 60V-88V |
|
Max PV Input Voltage (At the lowest temperature) |
12V/24V System：50V; 48V System：100V |
| PV Array Maximum Power |
12V System：140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A; 24V System: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A); 48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A) |
| Battery type | Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification) |
| Floating voltage | 13.8V/ Single battery |
| Charge voltage | 14.2V/Single battery |
| Charging protection voltage | 17V/Single battery |
| Battery overdischarge voltage | 10.5V/Single battery |
| Charging mode | PWM pulse width control |
| Charging method | Three stages ：constant current; constant voltage; floating charge |
| No low loss | <5mA |
| Charging circuit voltage drop | ≤0.20V |
| Disharge circuit voltage drop | ≤0.15V |
| Display | LCD |
| Thermal method | Natural heat dissipation |
| Type of mechanical protection | IP20 |
| Operating temperature | -10℃~40℃ |
| Storage temperature | -20℃~60℃ |
| Elevation | ＜5000m，(Less solar panel when exceed 2000m) |
| Humidity | 5~95%（No condense） |
| Protect the circuit | over-charge, over-discharge, short circuit , over-load and photovoltaic reverse connection protection |
| Machine size (L*W*Hmm) | 182*112*64 |
| Package size (L*W*Hmm) | 191*123*70(1PC) / 400*370*390(30PCS) |
| N.W (Kg) | 0.64(1PC) |
| G.W (Kg) | 0.72(1PC) |
| Note: All specifications are subject to change without prior notice | |

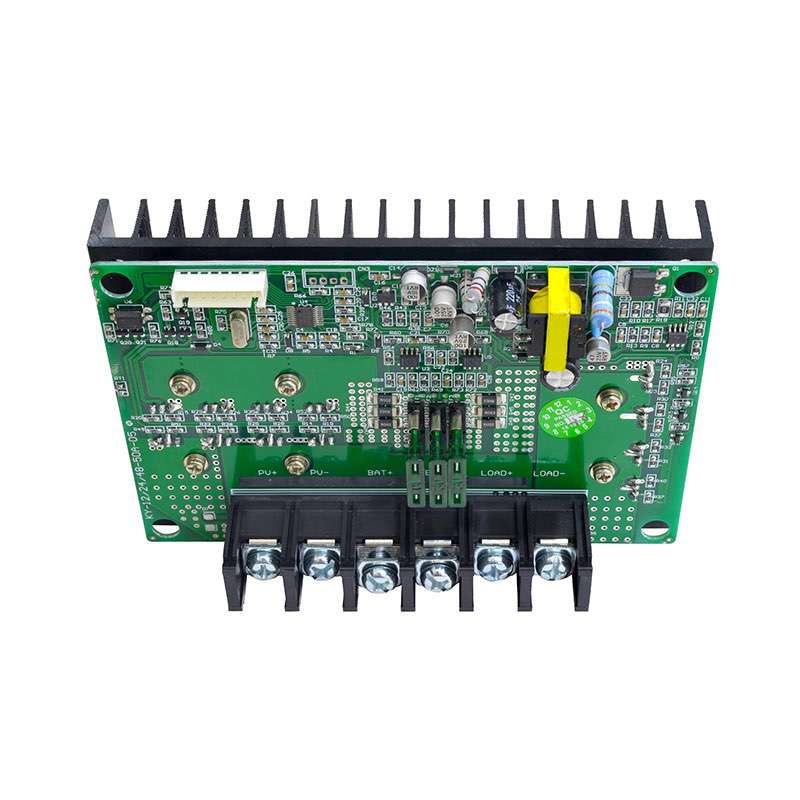

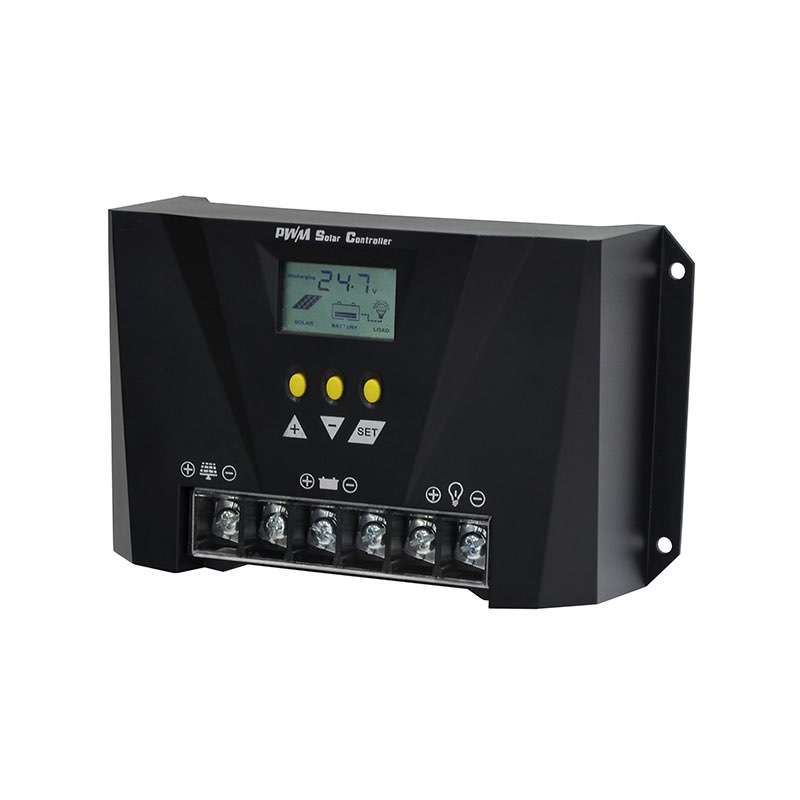

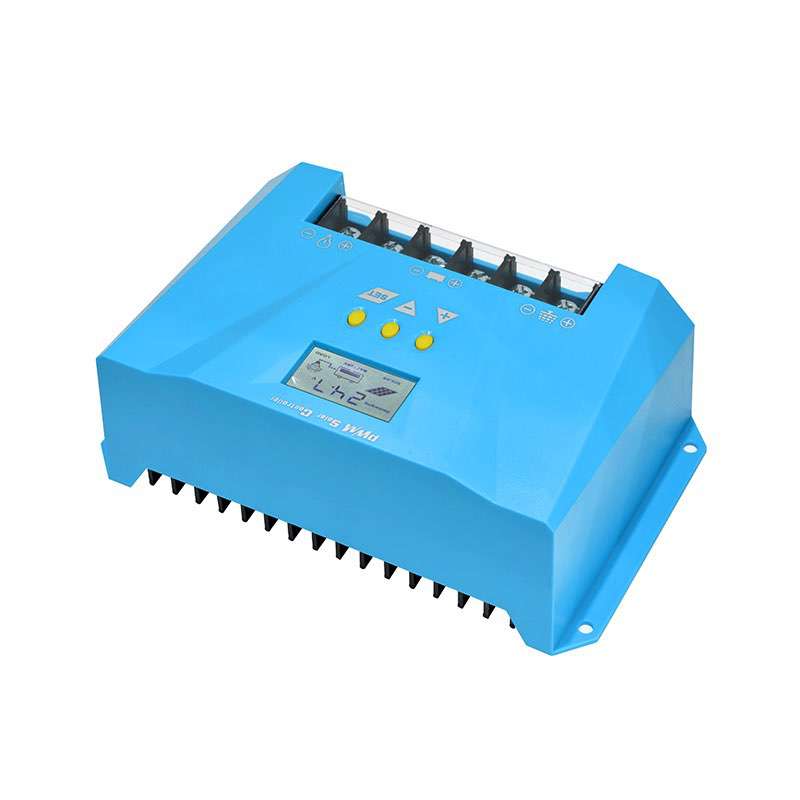

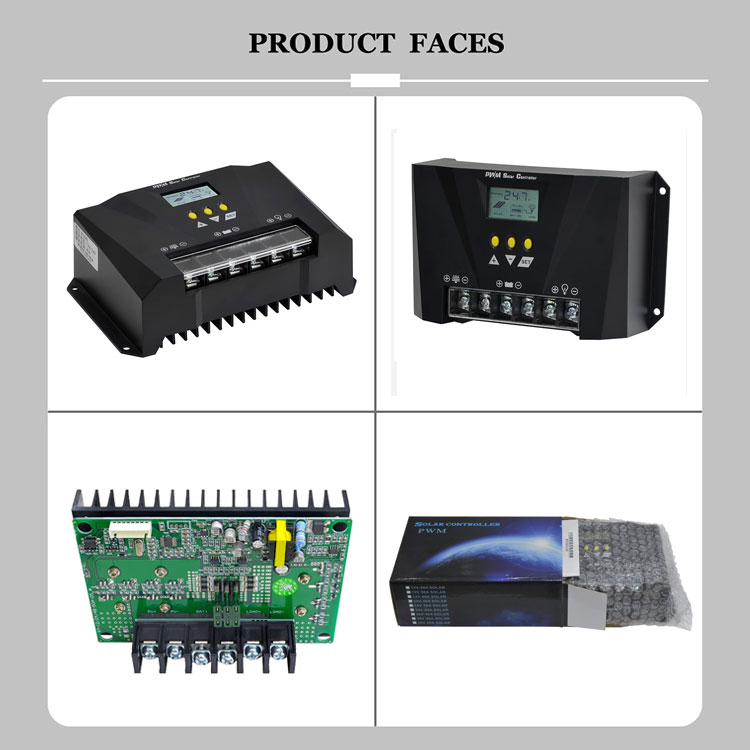

■ Solar Battery Charge Regulator Image
■ How Does Solar Battery Charge Regulator Work?
■ Solar Battery Charge Regulator Installation
■ Why Choose Us？
■ About Xindun Power
■ Solar Battery Charge Regulator Manufacturer
■ Global Solar Exhibitions
■ Qualifications and Certificates
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge regulators, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: What is the function of solar charge regulator?
A: Solar charge regulator is the core control part of solar energy system. It is an automatic control equipment that controls the multi-channel solar panels to charge the batteries and the batteries to supply power to the load by solar inverter.
Q3: How much is solar charge regulator?
A: Tell me your requirements, such as charge regulator types mppt or pwm, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Solar charge regulator factory direct sales, no middlemen earn price difference.
Q4: MPPT or PWM, Which solar charge regulator is better?
A: There are two main types of solar charge regulators on the market: MPPT and PWM. MPPT solar charge regulator is suitable for solar energy system greater than 2kW. Because of its powerful function, it can save you whole set solar system costs by reducing other costs. PWM solar charge regulator is suitable for small-scale solar energy system which does not need many functions and has a small budget, PWM is very cost-effective. Don\'t know how to choose PWM or MPPT, contact XINDUN.
Q5: How to solve the solar charge regulator technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
