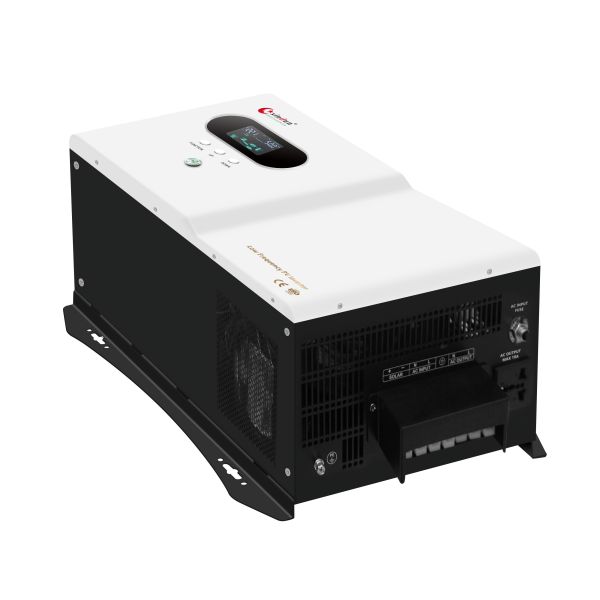

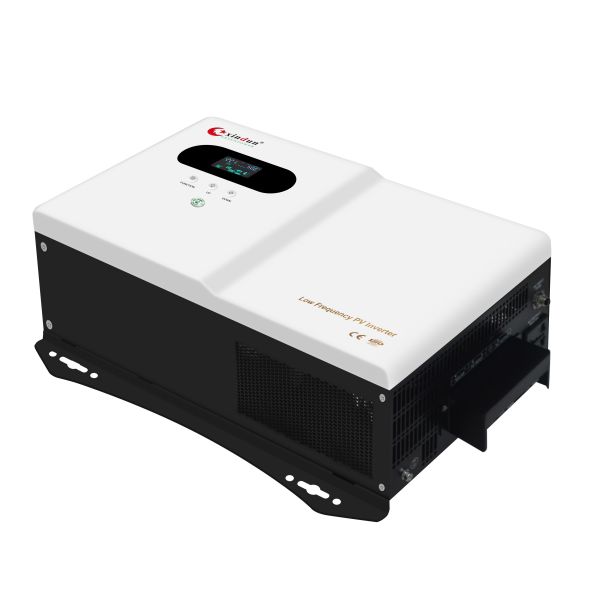

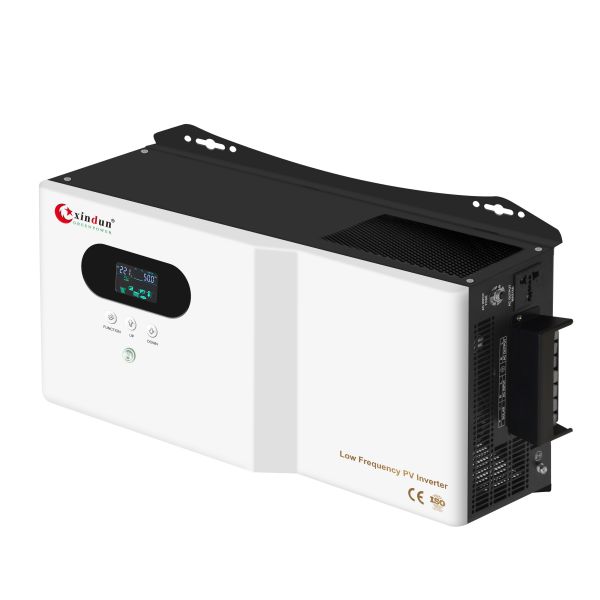

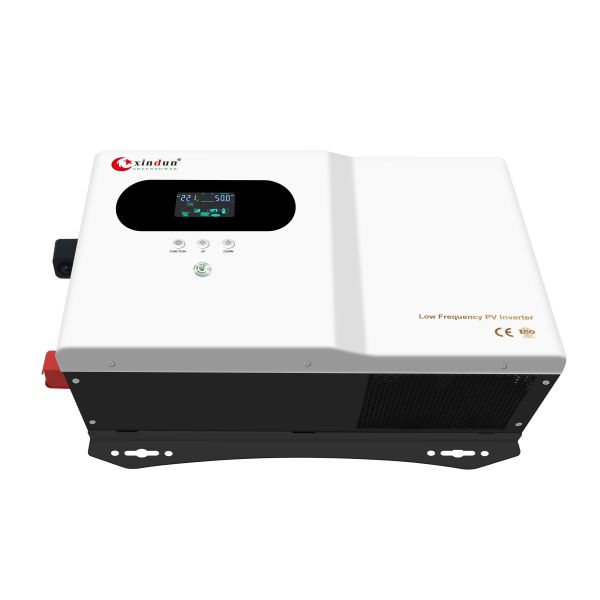

12V 24V 48V 1000w-7000w low frequency power inverter suit to food truck,yacht,sailboat occasion.AC output voltage 110V/120V/220V/230V/240VAC,support external LCD display optional,in-built MPPT controller optional. XINDUN wholesale price to trader,importer,goverment organization,we accept OEM&ODM.
Product

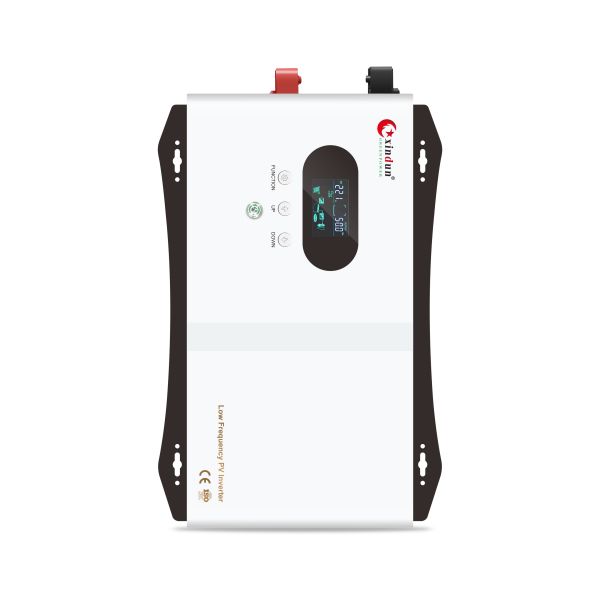

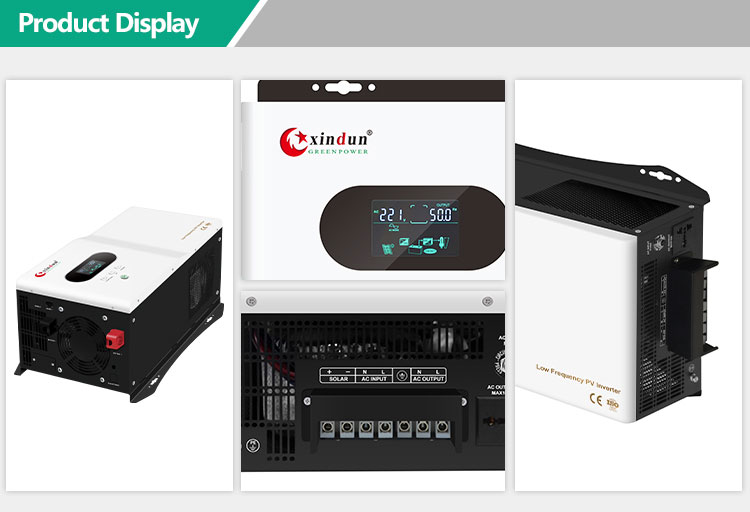

1.Support internal and external dual LCD display, the optional external screen can be easily operated by a button to switch.
2. Low-frequency toroidal transformer and pure sine wave output embody low energy consumption and high frequency. This design is particularly suitable for a diverse range of inductive loads, as well as various general AC load types.
3.The food truck power inverter, yacht inverter sailboat suitable for lithium battery,lead-acid battery and other alternative battery,which meet your diverse needs.

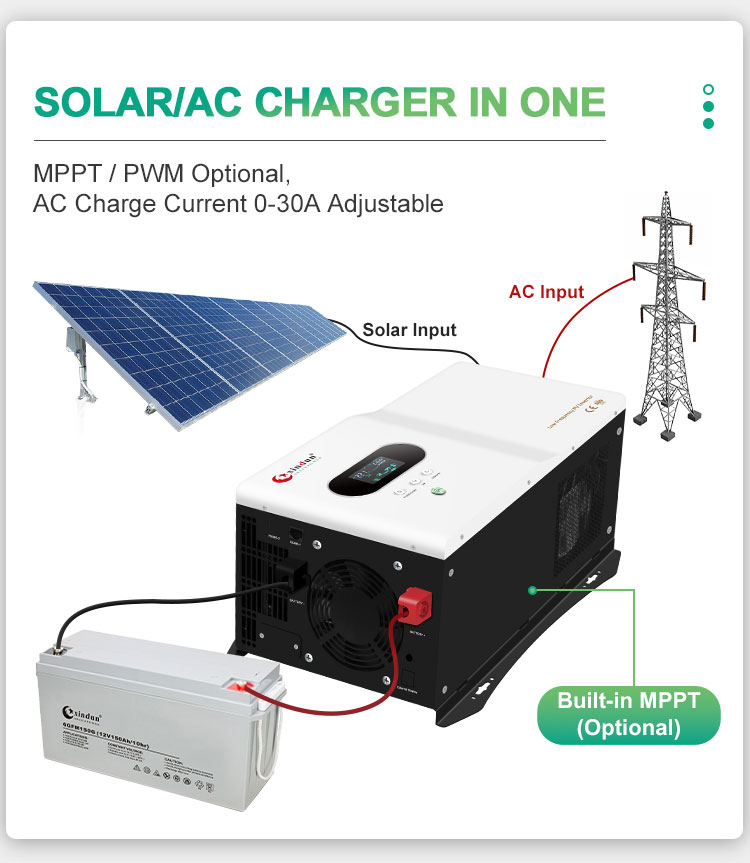

4.Combine solar charging, AC power grid charging, generator charging, battery charging all in one inverter,make sure you have enough electricity to keep you life.
5.Optional built-in PWM or MPPT solar controller for efficient solar charging,protect batteries and extend battery life.
6.Output power factor 1.0,smooth running of the load.
7.LCL shipment and container shipment both available.
| Specification | ||||||||
| Model: DF | 10212/24/48 | 15212/24/48 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 | 70248 |
| Power | ||||||||
| Rated Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W |
| Phase Type | Single- Phase | |||||||
| sINGLE phase | ||||||||
| Standard Battery Voltage | 12/24/48VDC | 24/48VDC | 24/48VDC | 48VDC | ||||
| Battery Type | Lead-acid / Gel / Lithium Batteries//Custom battery | |||||||
| AC Input | ||||||||
| Rated Input Voltage | 110VAC/120VAC/220VAC /230VAC/ 240VAC | |||||||
| AC Input Voltage Range | 85VAC~138VAC（110VAC）/ 95VAC~148VAC（120VAC）/ 170VAC~275VAC（220VAC）/ 180VAC~285VAC（230VAC）/ 190VAC~295VAC（240VAC） |
|||||||
| AC Input Frequency | 45Hz~55Hz（50Hz），55Hz~65Hz（60Hz） | |||||||
| AC Output | ||||||||
| Output Wave | Pure Sine Wave | |||||||
| Conversion efficiency(INV mode) | >85% | |||||||
| Output Voltage/Frequency (INV mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%，50/60Hz±1% | |||||||
| Built-in Controller MPPT(optional) | ||||||||
| Rated Current | 30A | 60A | 100A | |||||
| PV Array Max Power | 12V（420W）/24V（840W）/48V（1680W） | 12V（840W）/24V（1680W）/48V（3360W） | 5600W | |||||
| Max PV Input Voltage（Voc） (At The Lowest Temperature) |
12V/24V system：120VDC；48V system：180VDC | |||||||
| MPPT Tracking Voltage Range | 12V System（15V-80V）/24V System（30V-100V）/48V System（60V-140V） | |||||||
| Other | ||||||||
| Protection Devices | Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection | |||||||
| Protection Degree | IP20 | |||||||
| Display | LCD | |||||||
| Cooling Method | Cooling fan in intelligent control | |||||||
| Communication | RS485/RS232,APP（WIFI monitoring or GPRS monitoring）Optional | |||||||
| Working Mode（settable） | Battery priority/Mains priority | |||||||
| Operating Temperature | -15℃~40℃ | |||||||
| Relative Humidity | 0%~95% ,No condensation | |||||||
| Dimensions and Weight | ||||||||
| Product Size(L*W*Hmm) | 482*328*191 | 615*315*209 | ||||||
| Packing Size(L*W*Hmm) | 555*366*249 | 675*391*249 | ||||||
| N.W.(kg) | 12 | 13 | 15.5 | 18 | 23 | 24.5 | 26 | 27.5 |
| G.W.(kg) | 14 | 15 | 17.5 | 20 | 25.5 | 27 | 28.5 | 30 |
The wiring diagram for the low frequency power inverter delineates connections for grid, generator, battery, solar panel, and AC output, suitable for various loads such as food truck,yacht ,sailboat,etc. Should you encounter any inquiries during the installation process, our expert team is readily available to offer detailed and patient assistance.
■ Why Choose Us？
Free sample offer: To enhance your familiarity with Xindun Power's offerings, we extend a complimentary sample service. Upon placing bulk orders for our products, the associated sample costs will be subtracted from your overall expenses, ensuring that you receive our samples at no additional charge.
Power inverter product wholesale: Xindun prioritizes the cost-effectiveness of your business with ample stock and competitive wholesale rates. A skilled team, with over a decade of inverter manufacturing experience, ensures high productivity across four efficient production lines. Global warehouses ensure timely order fulfillment. Xindun Power, the original inverter manufacturer, provides highly competitive pricing, forming the groundwork for a lasting partnership.
Power inverter accppt OEM/ODM: At Xindun, we take pride in our adaptable OEM/ODM services, which embrace personalized logos, tailored exterior designs, and voltage/power options. We accommodate flexible RFQ minimum orders. With 15 utility model patents, 10 software patents, and 5 design patents, our exceptional R&D capabilities shine. We're certified with CE, IEC, TUV, TLC, ISO, MCS, and more, and we enable importers and traders to create their unique branded products, providing a competitive advantage.
Power inverter Solutions Customization: Xindun is dedicated to crafting personalized solar solutions for engineering ventures. Our service spans project design, configuration, product manufacturing, installation, debugging, post-support, and investment return analysis. We provide the means for you to shape your solar future while efficiently utilizing your time and resources.
■ FAQ
Q1: Are you a factory?
A: Yes, we stand proudly as one of the top 10 power supply manufacturers in China, operating within a sprawling production area exceeding 7000 square meters. Our core expertise lies in the production of inverters, solar charge controllers, solar generators, and comprehensive solutions for solar power systems. We've established partnerships all over the world and offer the flexibility of customized production, including the option to add your logo to our products.
Q2: What is the price of a DC to AC power inverter?
A: Simply provide us with your specifications – power, voltage, charging current, quantity, and any additional functional requirements. We'll promptly supply you with the most competitive ex-factory price. Our commitment to direct sales ensures transparency and eliminates middlemen markups.
Q3: What type of inverters do you produce?
A: Our diverse range encompasses pure sine wave inverters, off-grid inverters, on/off-grid inverters, solar hybrid inverters, single-phase inverters, 3-phase inverters, low-frequency inverters, high-frequency inverters, and more. Unsure about the right inverter for your needs? Contact XINDUN for expert guidance!
Q4: What's the difference between a solar inverter and a hybrid inverter?
A: An inverter is crafted to transform Direct Current (DC) into Alternating Current (AC). Solar inverters and hybrid inverters are extensively employed in converting photovoltaic (PV) solar energy into electrical energy. A hybrid inverter encompasses the capabilities of a solar inverter while incorporating a built-in solar charge controller. Also it can be a combination of off grid and grid tie inverter in one machine with same description as you called hybrid inverter.
Q5: Is power inverter suitable for use in areas with power shortages?
A: The power inverter with off-grid function is suitable for the use of power shortage scenarios, especially in the case of food truck cars, yachts, desert zone, sailing boats,remote suburb,island which cannot be connected to the mains power, the solar inverter is very necessary to supply power to you.
