Chinese manufacturer OEM/ODM W10 4kw 5kw 6kw 7kw hybrid solar inverter with built in mppt charge controller.
Product
Inverter With Charge Controller Feature
◆ Pure sine wave output;
◇ Industrial high efficiency I-shape transformer;
◆ AC charge current 0-30A adjustable; AVR output;
◇ Built-in MPPT or PWM charge controller optional;

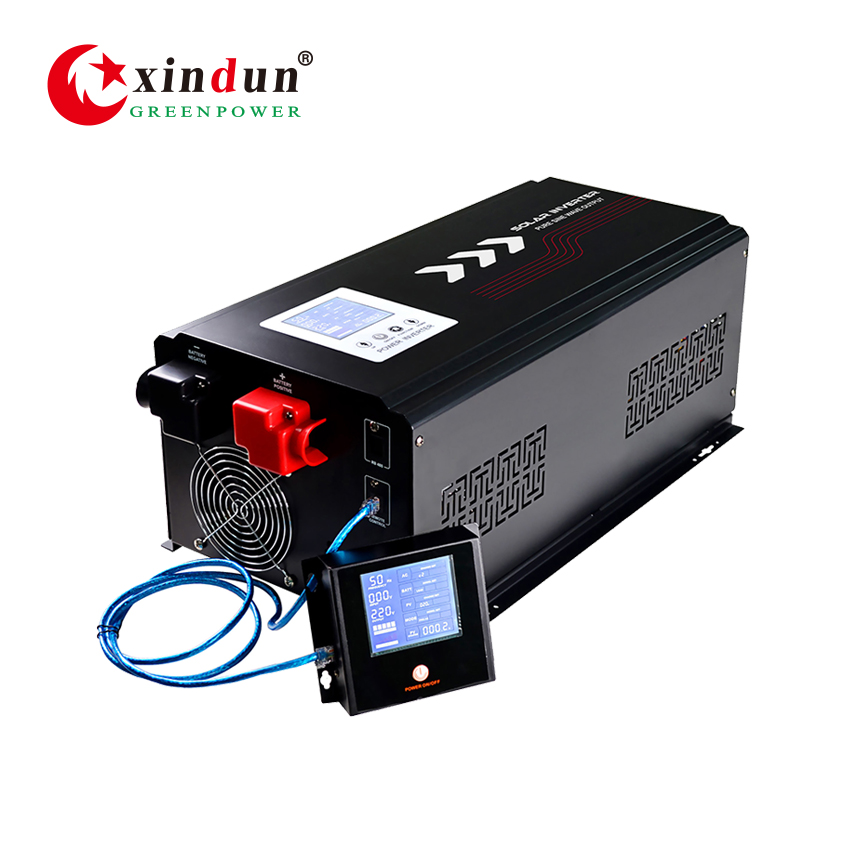

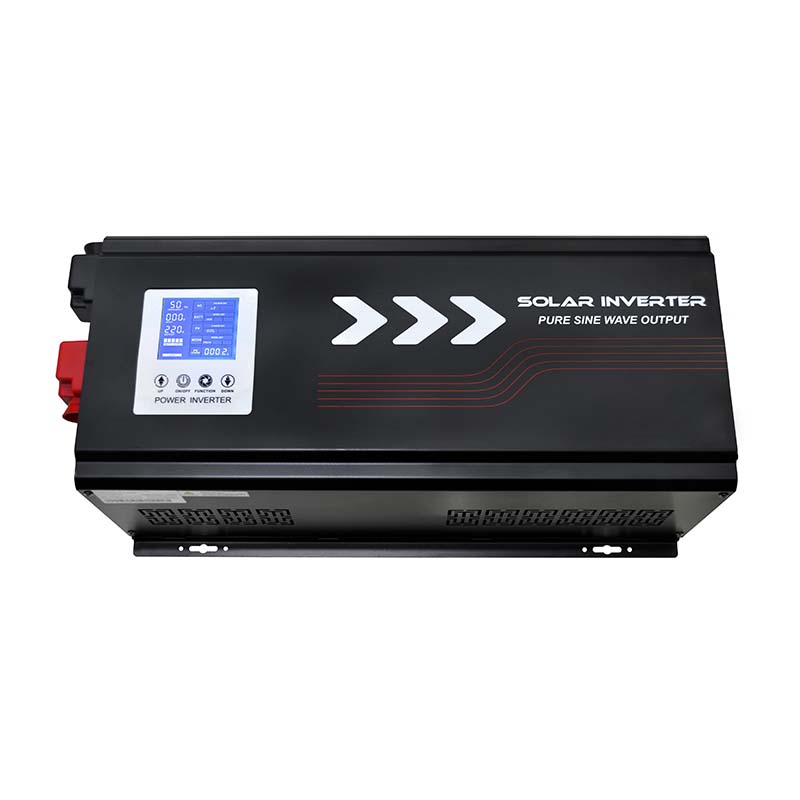

◆ Integrated LCD display; One-button start with an external display screen( optional);
◇ Three types working modes:AC first, DC first, energy-saving mode;
◆ Supports diesel or gasoline generator, adapt anytough electricity situation;
◇ Various communication ports and remote controls (RS232/RS485/APP/SNMP/GSM optional).
Inverter With Charge Controller Specifications
|
Specification |
|||||
|
Model W10 |
40224/48 |
50248 |
60248 |
70248/96 |
|
|
Rated Power |
4000W |
5000W |
6000W |
7000W |
|
|
Peak Power（20ms) |
12000W |
15000W |
18000W |
21000W |
|
|
Start Motor |
3HP |
4HP |
4HP |
5HP |
|
|
Battery Voltage |
24/48VDC |
48VDC |
48/96VDC |
||
|
Size(L*W*Hmm) |
647*315*235 |
||||
|

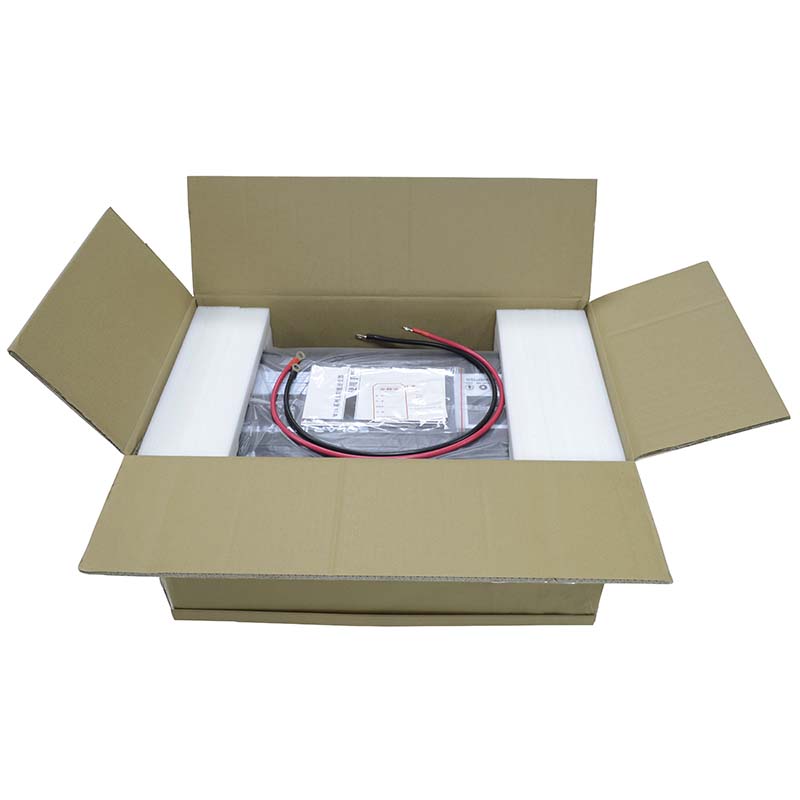

Packing Size(L*W*Hmm) |
715*385*350 |
||||
|
N.W.(kg) |
41.5 |
42.5 |
45.5 |
48 |
|
|
G.W.(kg)（Carton Packing） |
45 |
46 |
49 |
52 |
|
|
Installation Method |
Wall-Mounted |
||||
|
Parameter |
|||||
|
Input |
DC Input Voltage Range |
10.5-15VDC（Single battery voltage） |
|||
|
AC Input Voltage Range |
85VAC~138VAC 170VAC~275VAC |
||||
|
AC Input Frequency Range |
45Hz~65Hz |
||||
|
Max AC charging current |
30A/25A |
30A |
30A |
30A/20A |
|
|
AC charging method |
Three-stage (constant current, constant voltage, floating charge) |
||||
|
Output |
Efficiency(Battery Mode) |
≥85% |
|||
|
Output Voltage(Battery Mode) |
110VAC±2% / 220VAC±2% |
||||
|
Output Frequency(Battery Mode) |
50/60Hz±1% |
||||
|
Output Wave(Battery Mode) |
Pure Sine Wave |
||||
|
Efficiency(AC Mode) |
>99% |
||||
|
Output Voltage(AC Mode) |
110VAC±10% / 220VAC±10% |
||||
|
Output Frequency(AC Mode) |
Tracking Automatically |
||||
|
Output waveform distortion(Battery Mode) |
≤3%（Linear load） |
||||
|
No load loss(Battery Mode) |
≤1% rated power |
||||
|
No load loss(AC Mode) |
≤2% rated power（ charger does not work in AC mode） |
||||
|
No load loss(Energy saving Mode) |
≤10W |
||||
|
Battery Type |
LEAD |
Charge Voltage：14V；Float Voltage:13.8V（12V system; 24V system x2; 48V system x4; 96V system x8） |
|||
|
OP-LE |
Charge Voltage:14.2V; Float Voltage:13.8V（12V system; 24V system x2; 48V system x4; 96V system x8） |
||||
|
LITHIUM |
Charge Voltage: 12.6V(NMC battery 3S) (12V system; 24V system x2; 48V system x4; 96V system x8) |
||||
|
Customize battery |
Charge and discharge parameters of different types of batteriescan be customized according to user requirements. |
||||
|
Protection |
Battery undervoltage alarm |
11V; LITHIUM 9.5V(NMC battery 3S)（12V system; 24V system x2; 48V system x4; 96V system x8） |
|||
|
Battery undervoltage protection |
10.5V; LITHIUM 9V(NMC battery 3S)（12V system; 24V system x2; 48V system x4; 96V system x8） |
||||
|
Battery overvoltage alarm |
Lead acid battery: 15V(12V system; 24V system x2; 48V system x4; 96V system x8) |
||||
|
Battery overvoltage protection |
Lead acid battery: 17V(12V system; 24V system x2; 48V system x4; 96V system x8) |
||||
|
Battery overvoltage recovery voltage |
Lead acid battery: 14.5V(12V system; 24V system x2; 48V system x4; 96V system x8) |
||||
|
Overload power protection |
Automatic protection (battery mode), circuit breaker or insurance (AC mode) |
||||
|
Output short circuit protection |
Automatic protection (battery mode), circuit breaker or insurance (AC mode) |
||||
|
Temperature protection |
>90°C（Shut down output） |
||||
|
Alarm |
A |
Normal working condition, buzzer has no alarm sound |
|||
|
B |
Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection |
||||
|
C |
When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal. |
||||
|
Inside Solar controller |
Charging Mode |
MPPT or PWM |
|||
|
Charging current |
12V/24V/48V System：10A/20A/30A/40A/50A/60A |
||||
|
PV Input Voltage Range |
PWM: 30V-44V(24V system);
60V-88V(48V system) |
||||
|
Max PV Input Voltage |
PWM: 50V(24V system), 100V(48V system); MPPT: 150V |
||||
|
PV Array Maximum Power |
24V system:
280W/560W/840W/1120W/1400W/1680W; |
||||
|
Standby loss |
≤3W |
||||
|
Maximum conversion efficiency |
>95% |
||||
|
Working Mode |
Battery First/AC First/Saving Energy Mode |
||||
|
Transfer Time |
≤4ms |
||||
|
Display |
LCD（External LCD Display(Optional)） |
||||
|
Thermal method |
Cooling fan in intelligent control |
||||
|
Communication |
RS232/RS485/APP/SNMP/GSM(Optional) |
||||
|
Environment |
Operating temperature |
-10℃~40℃ |
|||
|
Storage temperature |
-15℃~60℃ |
||||
|
Noise |
≤55dB |
||||
|
Elevation |
2000m（More than derating） |
||||
|
Humidity |
0%~95% ,No condensation |
||||
|
Warranty |
1 year |
||||
|
Note: All specifications are subject to change without prior notice |
|||||
1. Home backup system:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.
