Xindun portable solar generator can be used in household appliances and other loads with total power not exceeding 350w 500w 1kw.

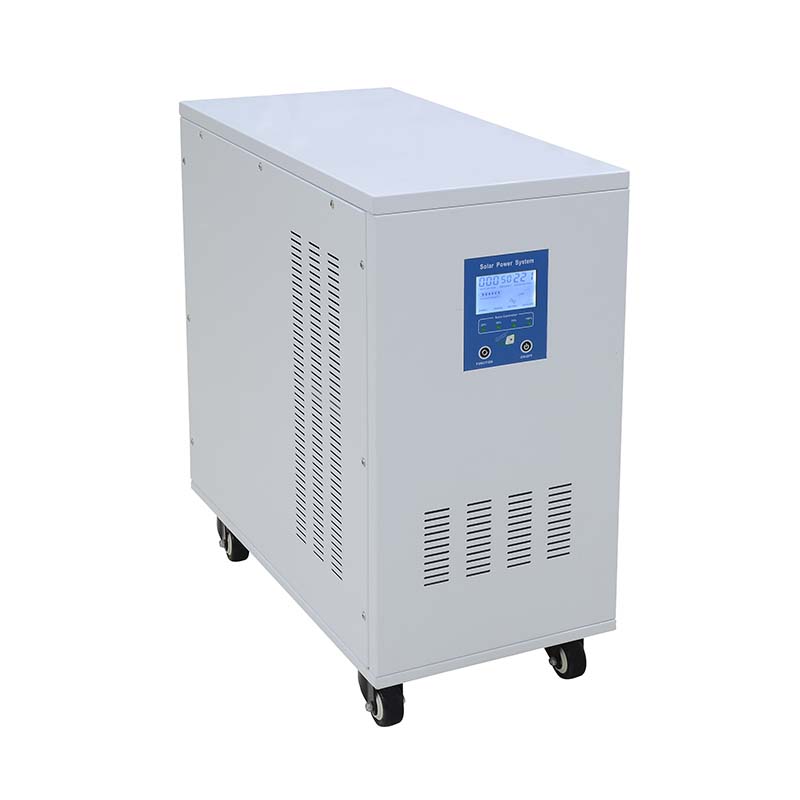

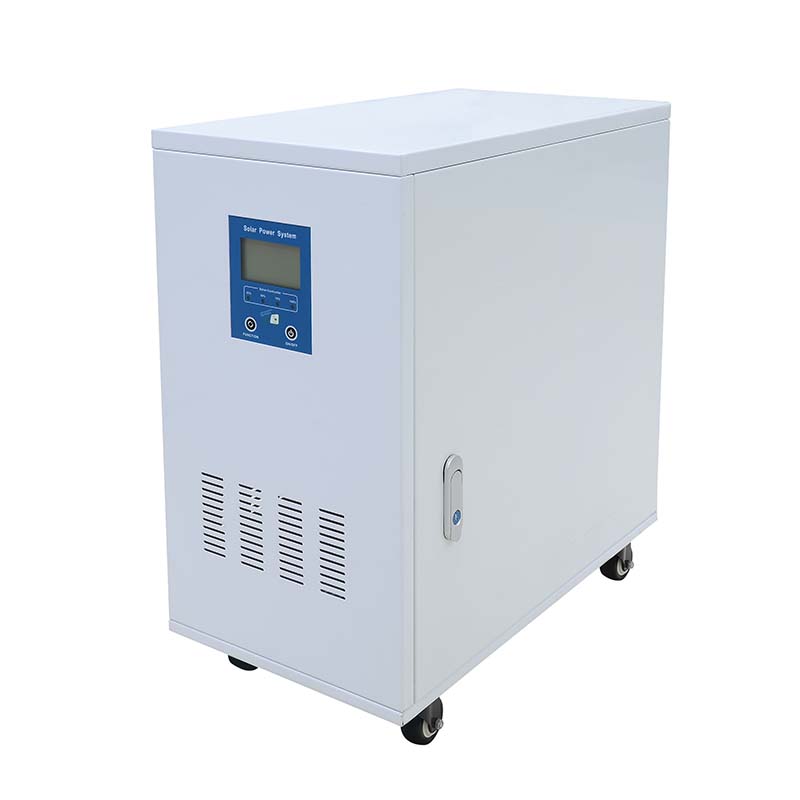

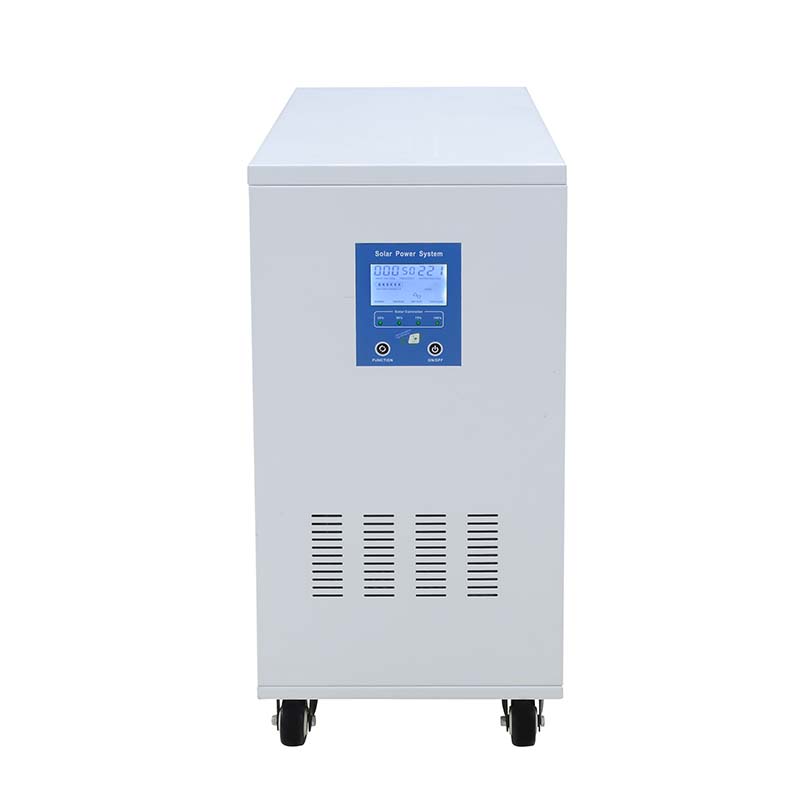

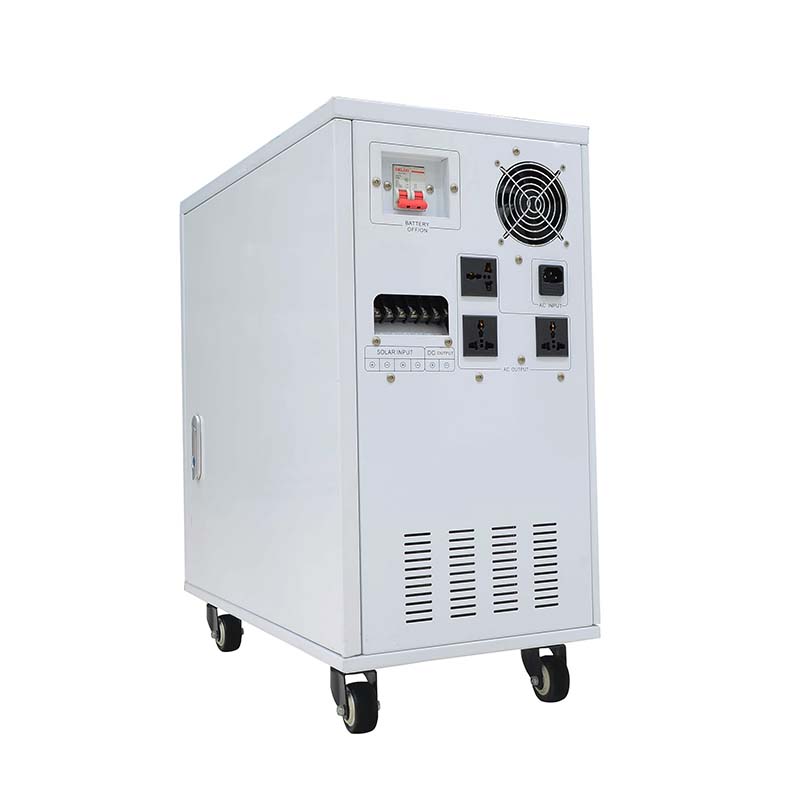

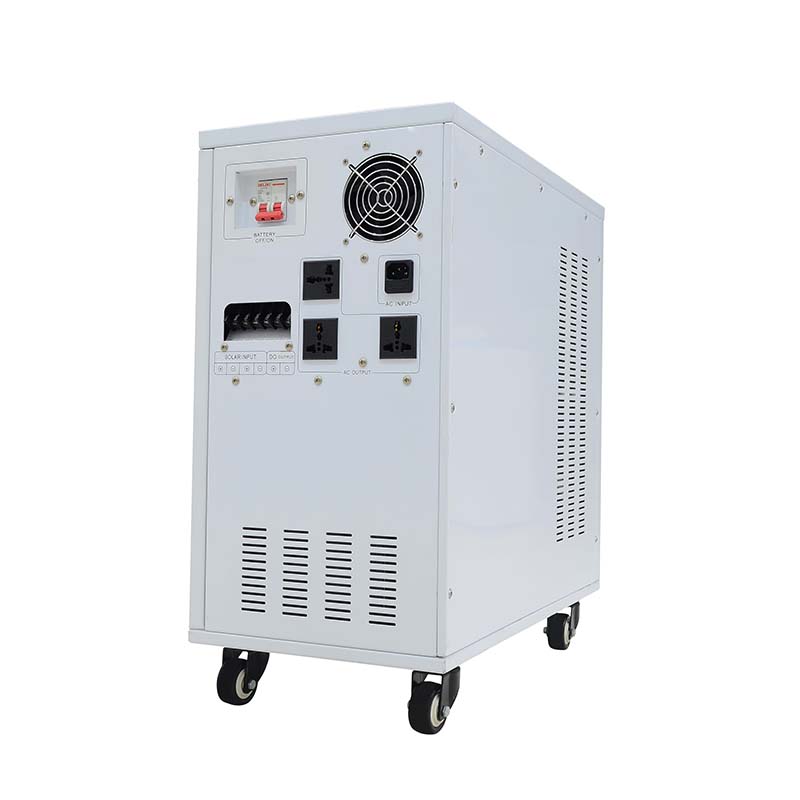

TYN Solar Generator 350W 500W 1000W (12V 100Ah*2)

Low frequency all in one inverter 350w 500w 1000w solar generator cabinet with inverter controller and battery built-in.

  • Rated Power : 350W 500W 1000W
  • AC input frequency : 45Hz-65Hz
  • Output frequency : 50/60Hz±1%
  • Output wave : Pure sine wave
  • AC output frequency : Tracking automatically
  • AC charging current : 6A~15A (Depending on the model)

350W 500W 1000W Solar Generator Feature

◆ Pure sine wave output.

◇ AVR function, AC charge.

◆ LCD & LED integration display

◇ AC first and battery first optional

◆ Inverter, controller and battery are all in one cabinet.

◇ Protection: Low voltage, over voltage, short circuit,over load and over temperature etc.


350W 500W 1000W Solar Generator Parameters

Specification

Model TYN

35124

50124

10224

Rated Power

350W

500W

1000W

Peak Power20ms)

1050W

1500W

3000W

Start Motor

0.3HP

0.5HP

1HP

Battery Voltage

24VDC

Inside Battery Capacity

100Ah*2

100Ah*2

100Ah*2

Size(L*W*Hmm)

500*240*765

Package Size (L*W*Hmm)

560*300*890

N.W.(kg) Without Battery

29

31

36

G.W.(kg) Without Battery (Wooden Packing)

36

38

43

Installation Method

Tower

Parameter

Input

DC Input Voltage Range

10.5-15VDCSingle battery voltage

AC Input Voltage Range

73VAC~138VAC / 145VAC~275VAC

AC Input Frequency Range

45Hz~65Hz

Max AC charging current

6A~15A (Depending on the model)

AC charging voltage

LEAD batteryCharge Voltage :14V; Float Voltage:13.8VSingle battery voltage

AC charging method

Three-stage (constant current, constant voltage, floating charge)

Output

Efficiency(Battery Mode)

85%

Output Voltage(Battery Mode)

110VAC±2% / 220VAC±2%

Output Frequency(Battery Mode)

50/60Hz±1%

Output Wave(Battery Mode)

Pure Sine Wave

Efficiency(AC Mode)

>99%

Output Voltage(AC Mode)

110VAC±10% / 220VAC±10%

Output Frequency(AC Mode)

Tracking Automatically

Output waveform distortion(Battery Mode)

3%Linear load

No load loss(Battery Mode)

1% rated power

No load loss(AC Mode)

2% rated power charger does not work in AC mode

No load loss(Energy saving Mode)

10W

Battery Type

Customize battery

Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.)
can be customized according to user requirements

Protection

Battery undervoltage alarm

11VSingle battery voltage

Battery undervoltage protection

10.5VSingle battery voltage

Battery overvoltage alarm

15VSingle battery voltage

Battery overvoltage protection

17VSingle battery voltage

Battery overvoltage recovery voltage

14.5VSingle battery voltage

Overload power protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Output short circuit protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Temperature protection

>90°CShut down output

Alarm

A

Normal working condition, buzzer has no alarm sound

B

Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection

C

When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal

Inside Solar controller
(Optional)

Charging Mode

MPPT or PWM

Charging current

10A/20A/30A/40A/50A/60A

PV Input Voltage Range

PWM: 30V-44V / MPPT: 30V-120V

Max PV Input Voltage(At 25)

PWM: 50V / MPPT: 150V

PV Array Maximum Power

280W/560W/840W/1120W/1400W/1680W

Standby loss

3W

Maximum conversion efficiency

>95%

Working Mode

Battery First/AC First/Saving Energy Mode

Transfer Time

4ms

Display

LCD

Thermal method

Cooling fan in intelligent control

Communication

RS232(Optional)

Environment

Operating temperature

-10~40

Storage temperature

-15~60

Noise

55dB

Elevation

2000mMore than derating

Humidity

0%~95% ,No condensation

Warranty

1 year

Note: All specifications are subject to change without prior notice

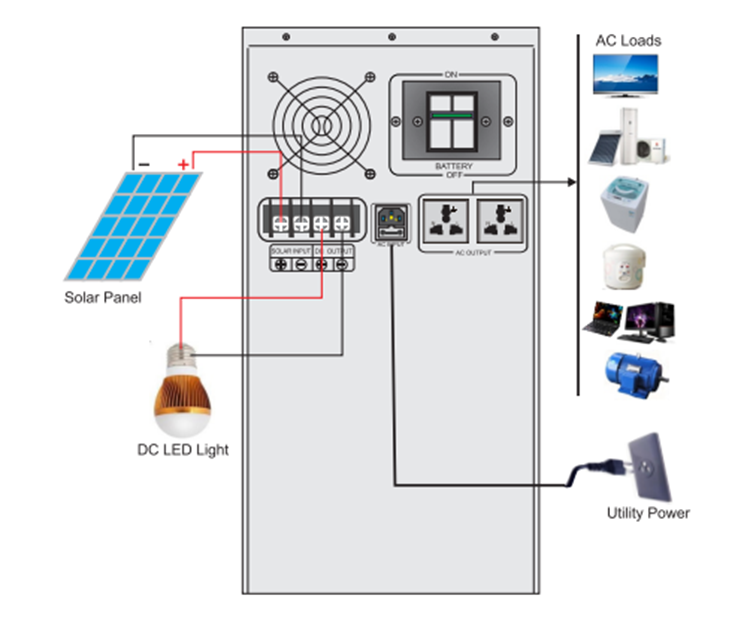

350W 500W 1000W Solar Generator\'s Diagram

连接350-1000 100ah

连接图


350W 500W 1000W Solar Generator Application

TYN Solar Generator


350W 500W 1000W Solar Generator Workshop

750


Why Choose US?

1. We are a professional manufacturer of power inverter and controller with over 10 years experience. Best productioncapability, best quality control, best service.

2. 100% QC inspection and testing before shipment.

3. CE listed, competitive price.

4. 11 years of high-level OEM experience

5. 16,000 square meters factory size (Sq.meters)

5. 200,000pcs monthly capacity

7. Export percentage: 80%
