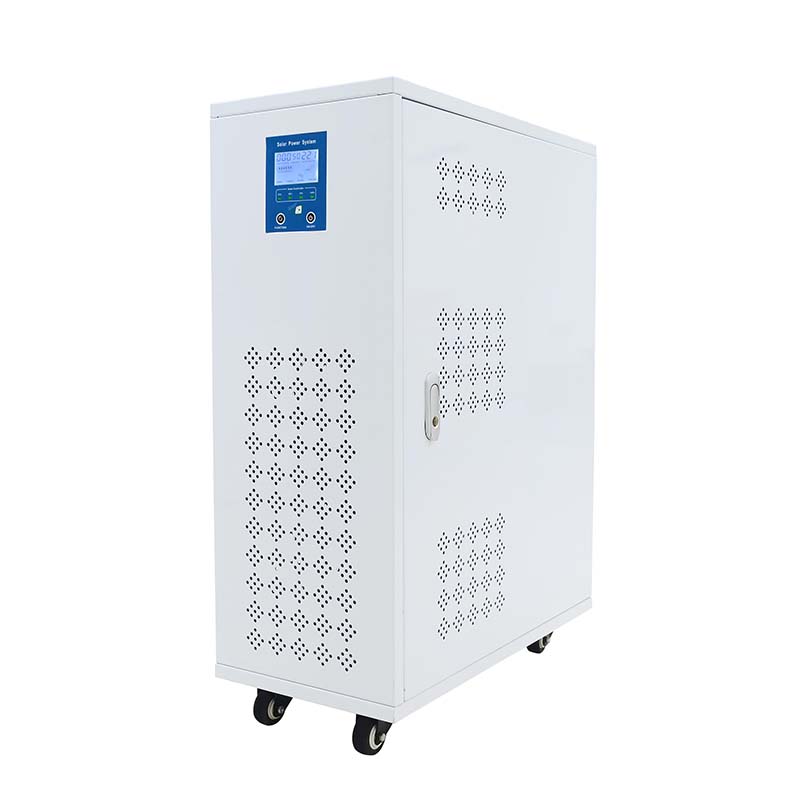

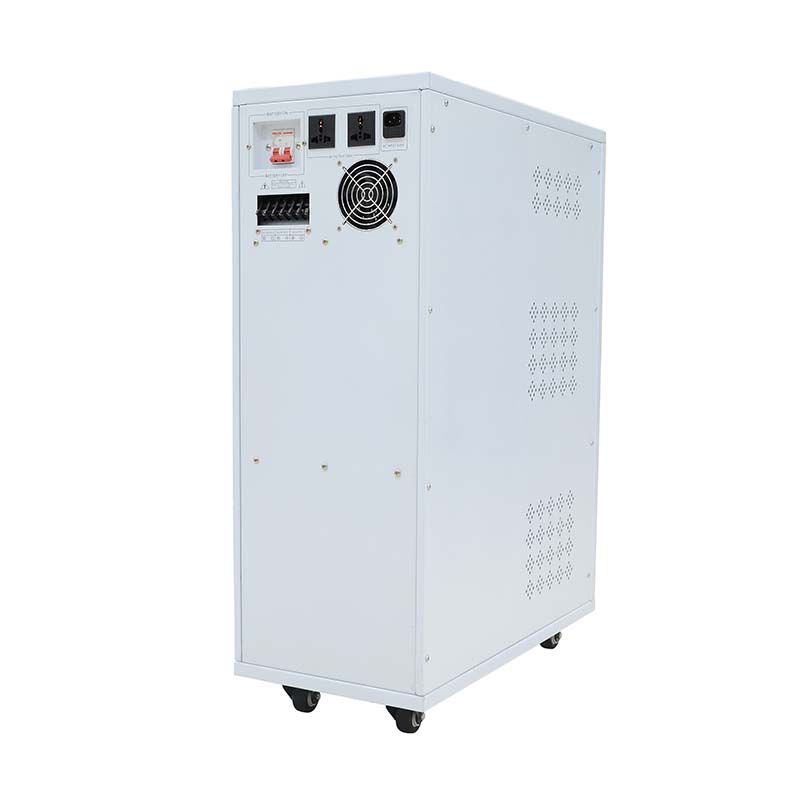

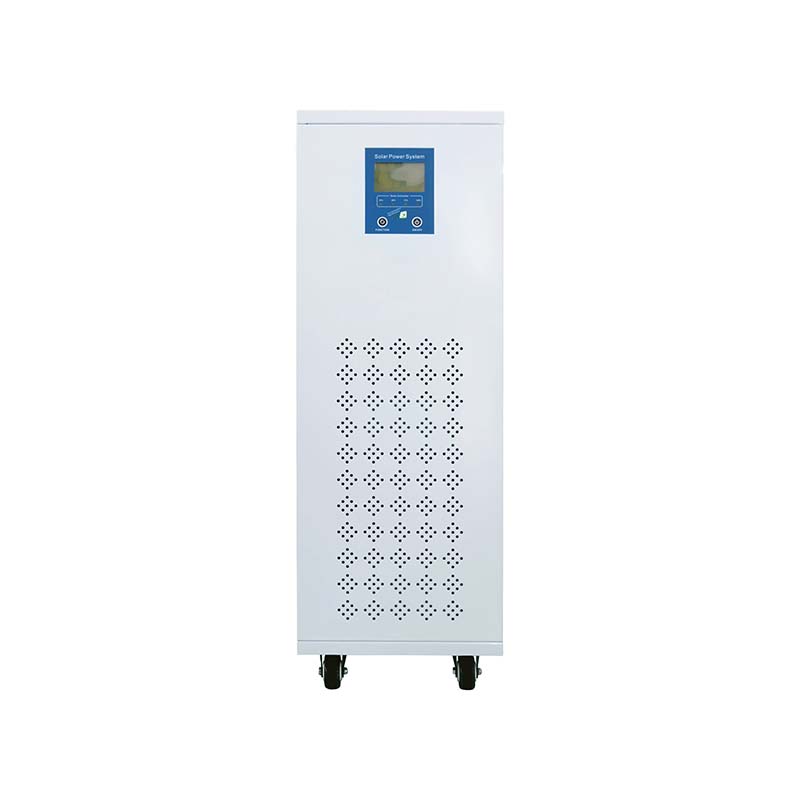

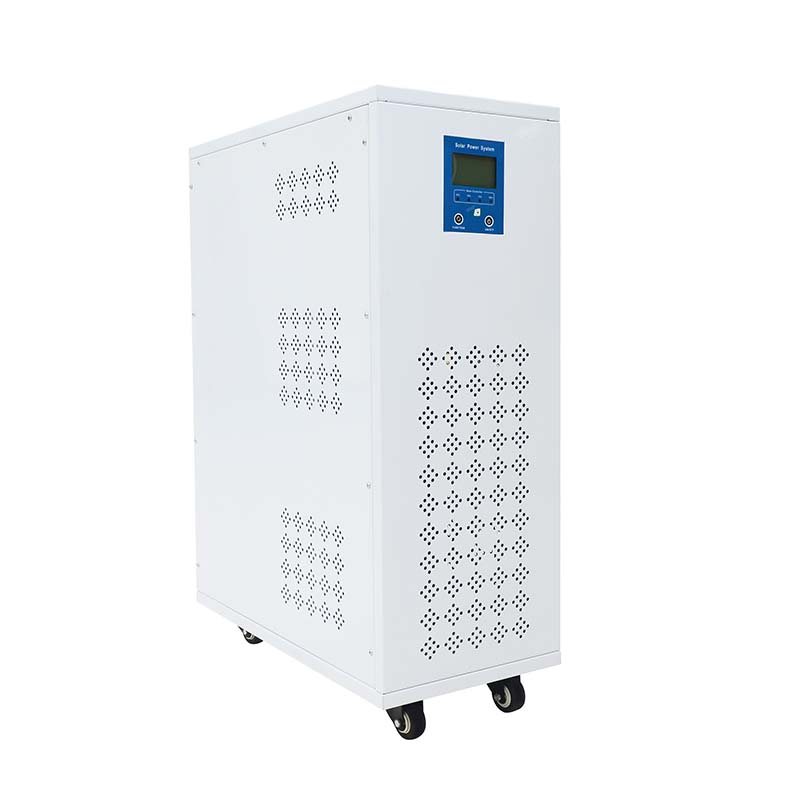

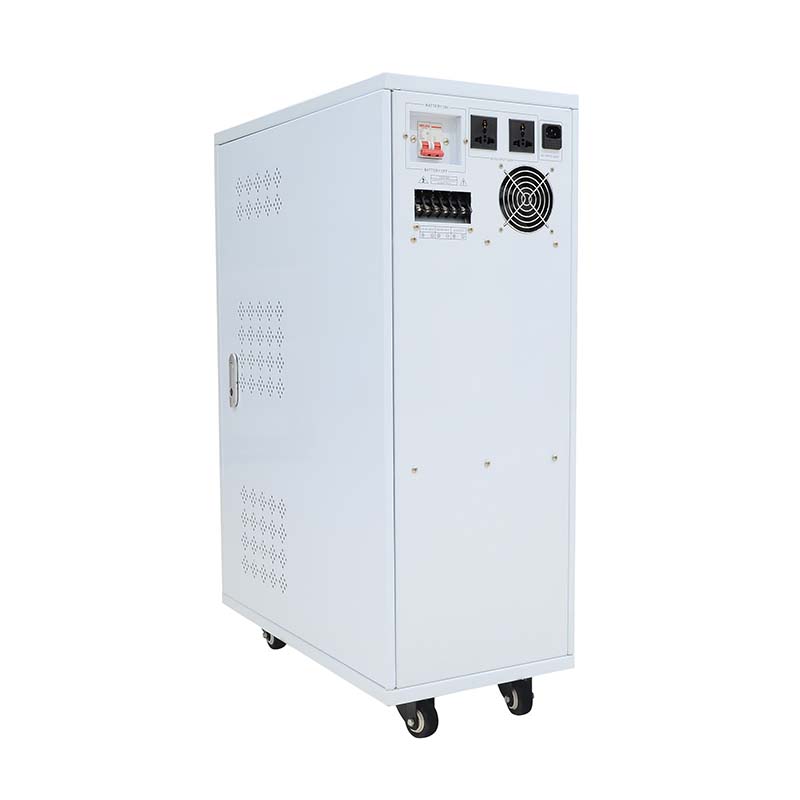

Low frequency all in one inverter 2000w solar generator cabinet with inverter controller and battery built-in.
Product
2KW Solar Generator Feature
◆ Pure sine wave output.
◇ AVR function, AC charge.
◆ LCD & LED integration display
◇ AC first and battery first optional
◆ Inverter, controller and battery are all in one cabinet.
◇ Protection: Low voltage, over voltage, short circuit,over load and over temperature etc.
2KW Solar Generator Parameters
|
Specification |
||
|
Model TYN |
20224 |
|
|
Rated Power |
2000W |
|
|
Peak Power（20ms) |
6000W |
|
|
Start Motor |
2HP |
|
|
Battery Voltage |
24VDC |
|
|
Inside Battery Capacity |
200Ah*2 |
|
|
Size(L*W*Hmm) |
600*300*860 |
|
|

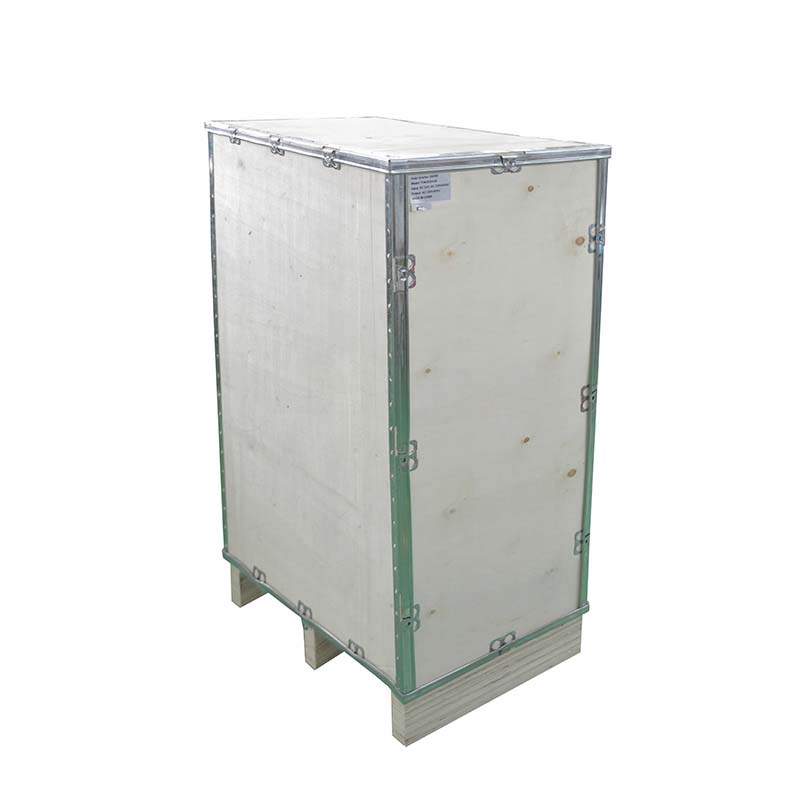

Package Size (L*W*Hmm) |
675*375*985 |
|
|
N.W.(kg) Without Battery |
46 |
|
|
G.W.(kg) Without Battery Carton Packing |
57 |
|
|
Installation Method |
Tower |
|
|
Parameter |
||
|
Input |
DC Input Voltage Range |
10.5-15VDC（Single battery voltage） |
|
AC Input Voltage Range |
73VAC~138VAC / 145VAC~275VAC |
|
|
AC Input Frequency Range |
45Hz~65Hz |
|
|
Max AC charging current |
6A~15A (Depending on the model) |
|
|
AC charging voltage |
LEAD battery：Charge Voltage :14V; Float Voltage:13.8V（Single battery voltage） |
|
|
AC charging method |
Three-stage (constant current, constant voltage, floating charge) |
|
|
Output |
Efficiency(Battery Mode) |
≥85% |
|
Output Voltage(Battery Mode) |
110VAC±2% / 220VAC±2% |
|
|
Output Frequency(Battery Mode) |
50/60Hz±1% |
|
|
Output Wave(Battery Mode) |
Pure Sine Wave |
|
|
Efficiency(AC Mode) |
>99% |
|
|
Output Voltage(AC Mode) |
110VAC±10% / 220VAC±10% |
|
|
Output Frequency(AC Mode) |
Tracking Automatically |
|
|
Output waveform distortion(Battery Mode) |
≤3%（Linear load） |
|
|
No load loss(Battery Mode) |
≤1% rated power |
|
|
No load loss(AC Mode) |
≤2% rated power（ charger does not work in AC mode） |
|
|
No load loss(Energy saving Mode) |
≤10W |
|
|
Battery Type |
Customize battery |
Charge and discharge parameters of
different types of batteries (such as lithium batteries, etc.) |
|
Protection |
Battery undervoltage alarm |
11V（Single battery voltage） |
|
Battery undervoltage protection |
10.5V（Single battery voltage） |
|
|
Battery overvoltage alarm |
15V（Single battery voltage） |
|
|
Battery overvoltage protection |
17V（Single battery voltage） |
|
|
Battery overvoltage recovery voltage |
14.5V（Single battery voltage） |
|
|
Overload power protection |
Automatic protection (battery mode), circuit breaker or insurance (AC mode) |
|
|
Output short circuit protection |
Automatic protection (battery mode), circuit breaker or insurance (AC mode) |
|
|
Temperature protection |
>90°C（Shut down output） |
|
|
Alarm |
A |
Normal working condition, buzzer has no alarm sound |
|
B |
Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection |
|
|
C |
When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal |
|
|
Inside Solar controller |
Charging Mode |
MPPT or PWM |
|
Charging current |
10A/20A/30A/40A/50A/60A |
|
|
PV Input Voltage Range |
PWM: 30V-44V / MPPT: 30V-120V |
|
|
Max PV Input Voltage(At 25℃) |
PWM: 50V / MPPT: 150V |
|
|
PV Array Maximum Power |
280W/560W/840W/1120W/1400W/1680W |
|
|
Standby loss |
≤3W |
|
|
Maximum conversion efficiency |
>95% |
|
|
Working Mode |
Battery First/AC First/Saving Energy Mode |
|
|
Transfer Time |
≤4ms |
|
|
Display |
LCD |
|
|
Thermal method |
Cooling fan in intelligent control |
|
|
Communication |
RS232(Optional) |
|
|
Environment |
Operating temperature |
-10℃~40℃ |
|
Storage temperature |
-15℃~60℃ |
|
|
Noise |
≤55dB |
|
|
Elevation |
2000m（More than derating） |
|
|
Humidity |
0%~95% ,No condensation |
|
|
Warranty |
1 year |
|
|
Note: All specifications are subject to change without prior notice |
||

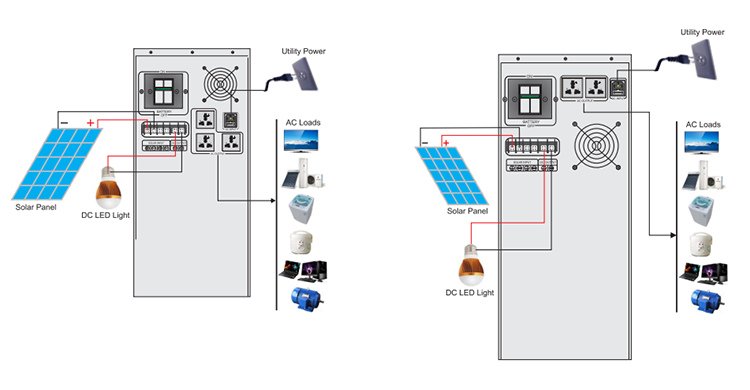

2KW Solar Generator\'s Diagram

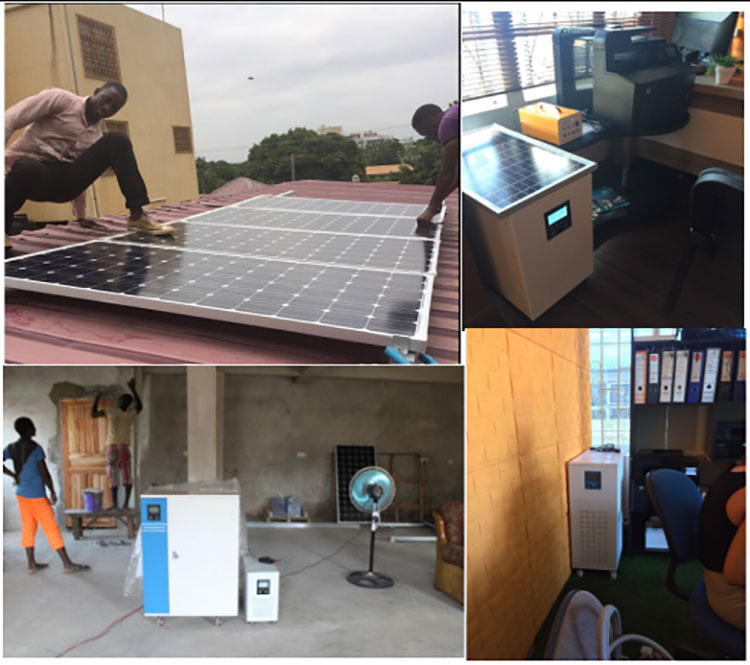

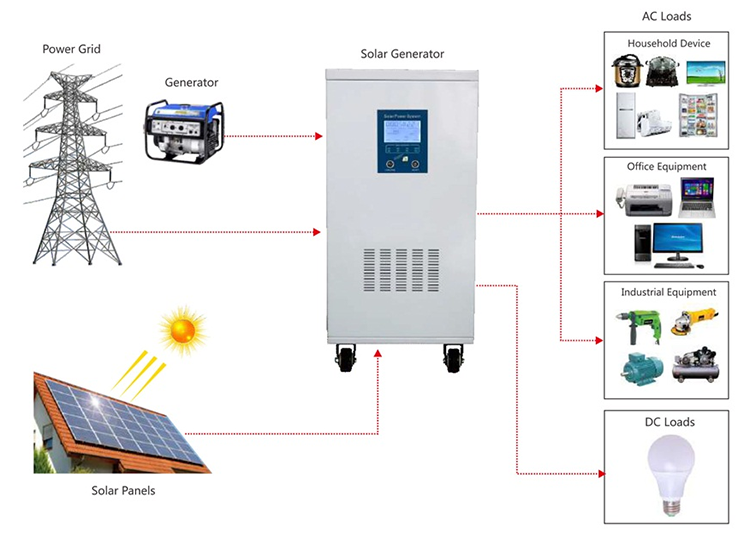

2KW Solar Generator Application

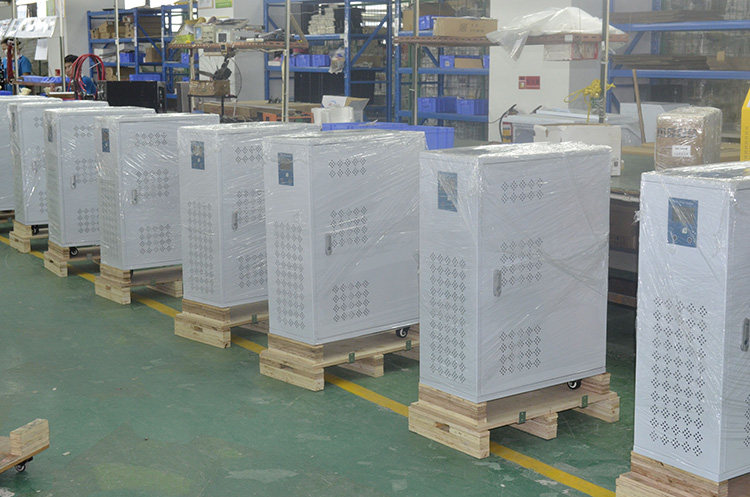

2KW Solar Generator Workshop
Why Choose US?
1. We are a professional manufacturer of power inverter and controller with over 10 years experience. Best productioncapability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 11 years of high-level OEM experience
5. 16,000 square meters factory size (Sq.meters)
5. 200,000pcs monthly capacity
7. Export percentage: 80%
