Xindun 1000w/1500w/2000w/3000w dc to ac inverters are popular in industrial use. Sine wave inverter, low frequency toroidal transformer, inbuilt charge controller.
2000w dc to ac inverter
2000w dc to ac inverter
industrial dc to ac inverter
1500w dc to ac inverter
3000w dc to ac inverter
1000w dc to ac inverter
dc to ac inverter for sale

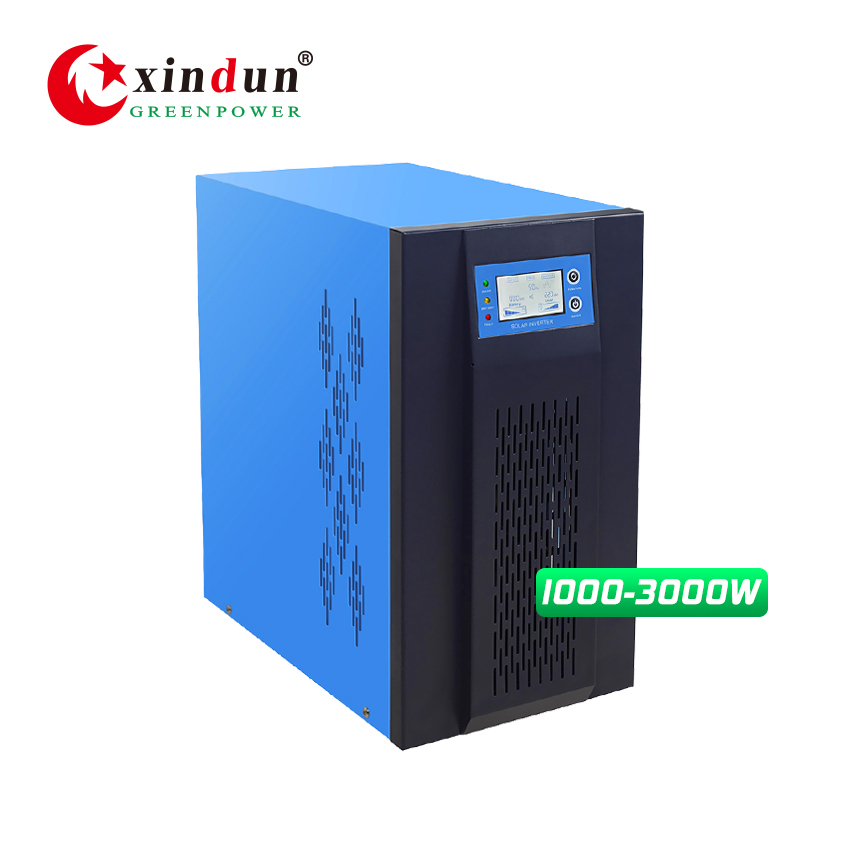

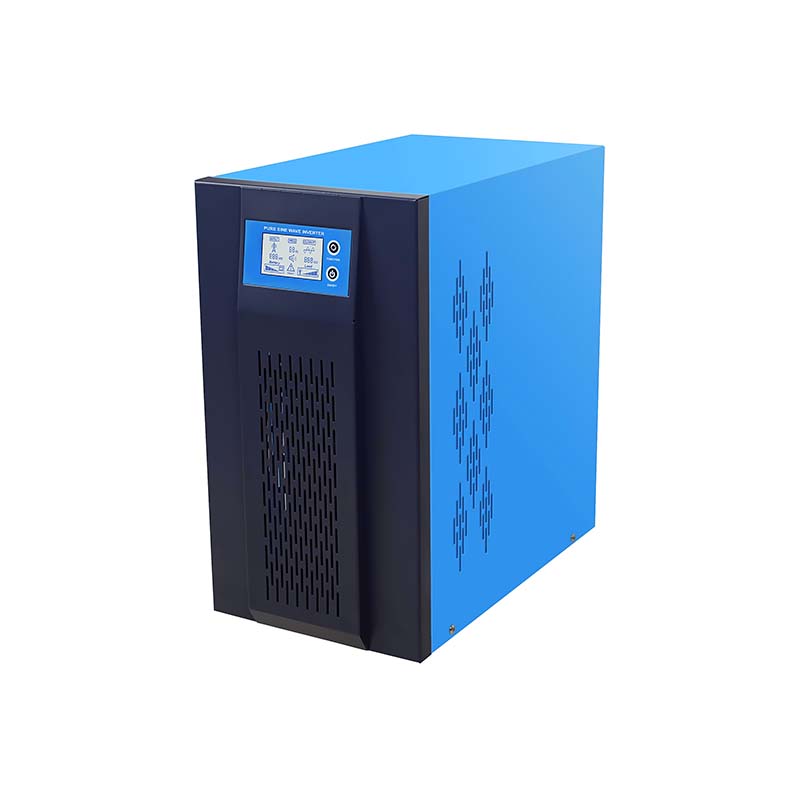

PD Industrial DC To AC Inverter 1000W-3000W 12V-48V

1000w/1500W/2000w/3000w, 12v/24v/48V dc to ac 110v/220v | Industrial dc to ac inverter | Chinese inverter for sale

  • Types : DC to AC Inverters
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 50 pcs
  • OEM : Accepted

Industrial DC To AC Inverter Feature



◇ Built-in solar charge controller.
◆ Pure sine wave output.
◇ Low frequency toroidal transformer lower loss.
◆ LCD/LED&LCD real-time display working status.
◇ AC charging function, maximum charge current up to 15A, AVR AC output.
◆ Auto select working modes: AC first, battery first and energy-saving mode.
◇ RS232 communication port optional.


Industrial DC To AC Inverter Specification


Specification

Model PD

10212

15212/24

20224/48

30224/48

Rated Power

1000W

1500W

2000W

3000W

Peak Power20ms)

3000W

4500W

6000W

9000W

Start Motor

1HP

1.5HP

2HP

3HP

Battery Voltage

12VDC

12/24VDC

24/48VDC

24/48VDC

Size(L*W*Hmm)

360*210*380

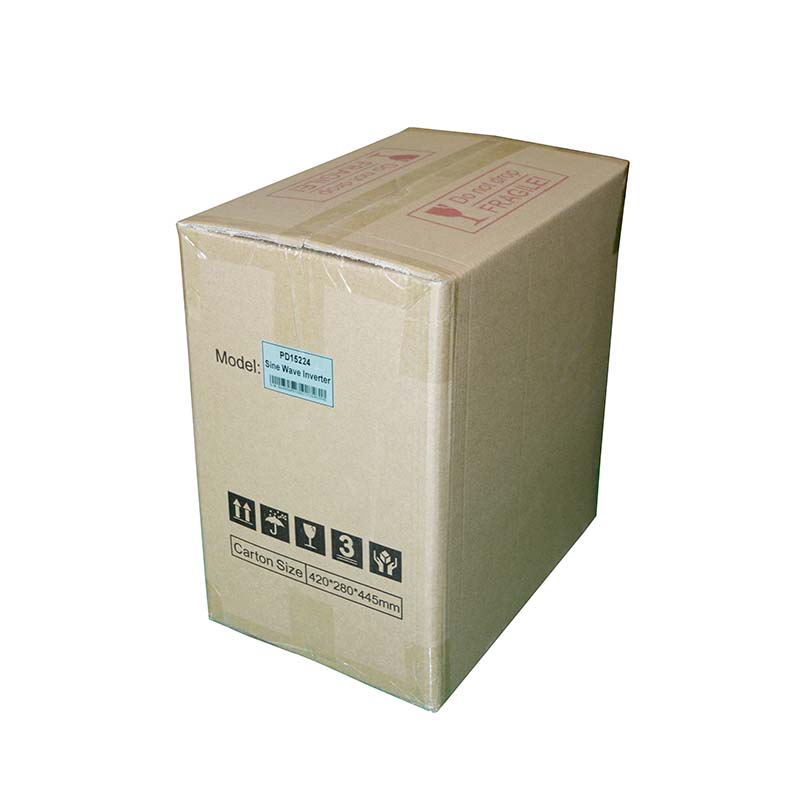

Packing Size(L*W*Hmm)

420*280*445

N.W.(kg)

13

14

16

20

G.W.(kg)Carton Packing

14

15

17

21

Installation Method

Tower

Parameter

Input

DC Input Voltage Range

10.5VDC-15VDCSingle battery voltage

AC Input Voltage Range

85~138VAC/170~275VAC

AC Input Frequency Range

45HZ-65HZ

Max AC charging current

15A MAXDepending on the model

AC charging voltage

LEAD batteryCharge Voltage :14V; Float Voltage:13.8VSingle battery voltage

AC charging method

Three-stage (constant current, constant voltage, floating charge)

Output

Efficiency(Battery Mode)

85%

Output Voltage(Battery Mode)

110VAC±2% / 220VAC±2%

Output Frequency(Battery Mode)

50/60HZ±1%

Output Wave(Battery Mode)

Pure Sine Wave

Efficiency(AC Mode)

>99%

Output Voltage(AC Mode)

110VAC±10% / 220VAC±10%

Output Frequency(AC Mode)

Tracking Automatically

Output waveform distortion(Battery Mode)

3%Linear load

No load loss(Battery Mode)

0.8% rated power

No load loss(AC Mode)

2% rated power charger does not work in AC mode

No load loss(Energy saving Mode)

10W

Battery Type

Customize battery

Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.)
can be customized according to user requirements

Protection

Battery undervoltage alarm

11VSingle battery voltage

Battery undervoltage protection

10.5VSingle battery voltage

Battery overvoltage alarm

15VSingle battery voltage

Battery overvoltage protection

17VSingle battery voltage

Battery overvoltage recovery voltage

14.5VSingle battery voltage

Overload power protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Output short circuit protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Temperature protection

>90°CShut down output

Alarm

A

Normal working condition, buzzer has no alarm sound

B

Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection

C

When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal

Working Mode

Battery First/AC First/Saving Energy Mode

Transfer Time

4ms

Display

LCD

Thermal method

Cooling fan in intelligent control

Communication

RS232(Optional)

Environment

Operating temperature

-10~40

Storage temperature

-15~60

Noise

55dB

Elevation

2000mMore than derating

Humidity

0%~95% ,No condensation

Warranty

1 year

Note: All specifications are subject to change without prior notice



Industrial DC To AC Inverter Details

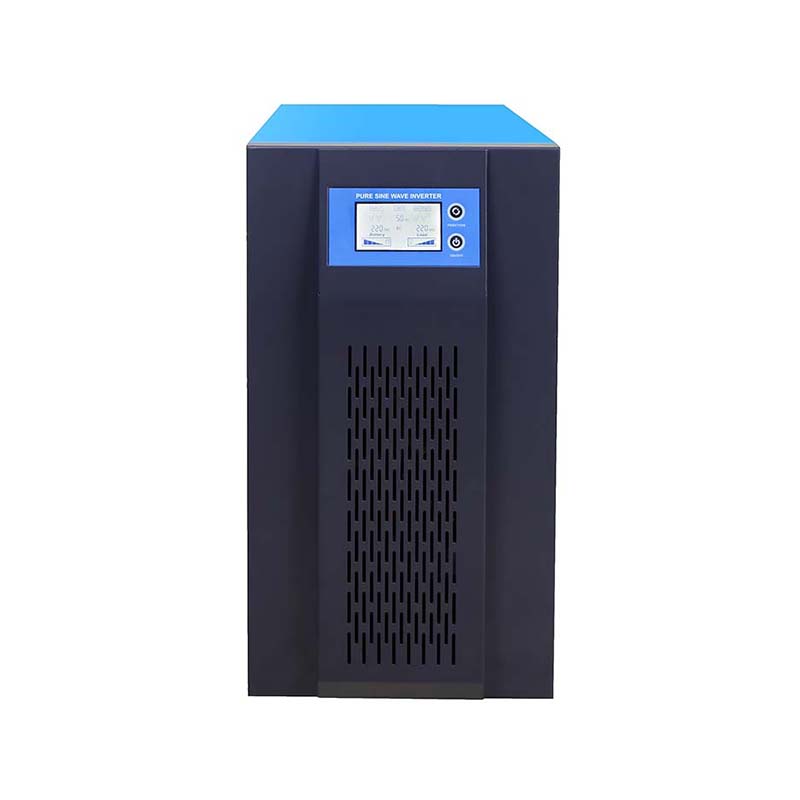

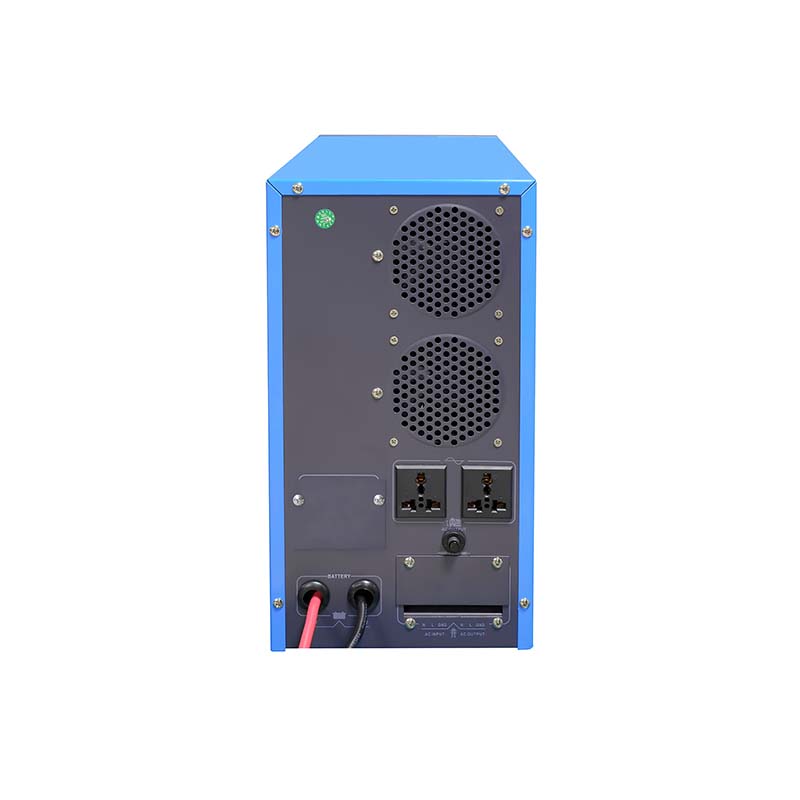

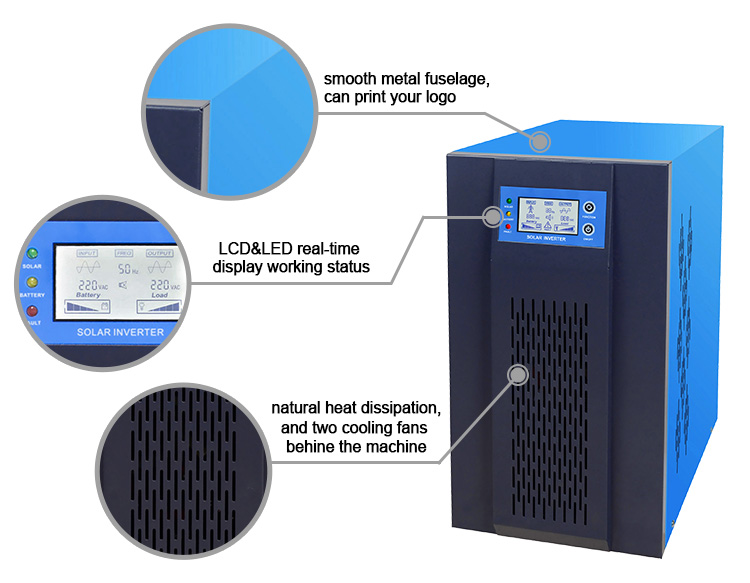

Industrial DC To AC Inverter Appearance Details 01

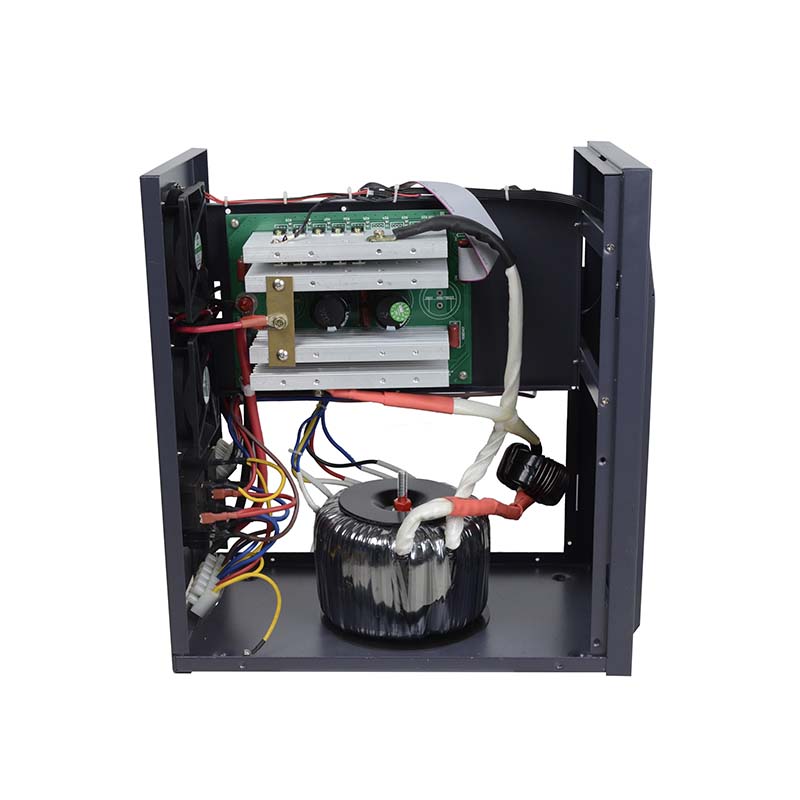

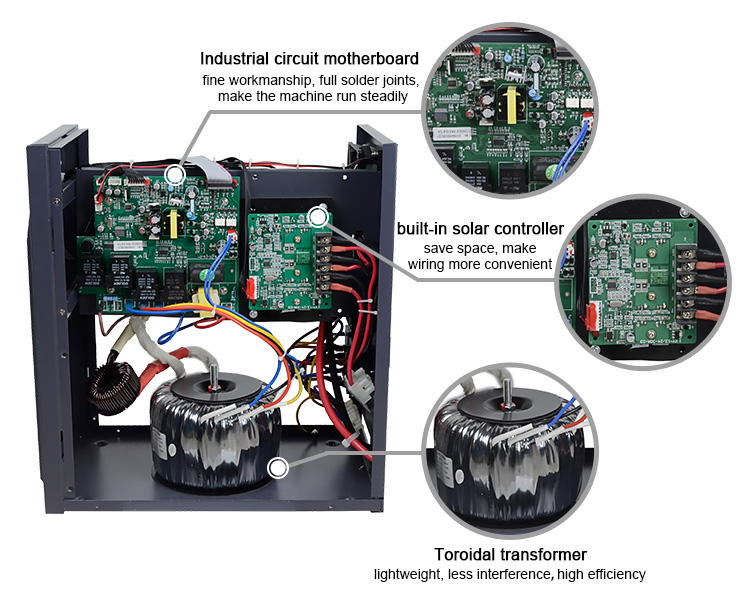

Industrial DC To AC Inverter Circuit Board Details 02

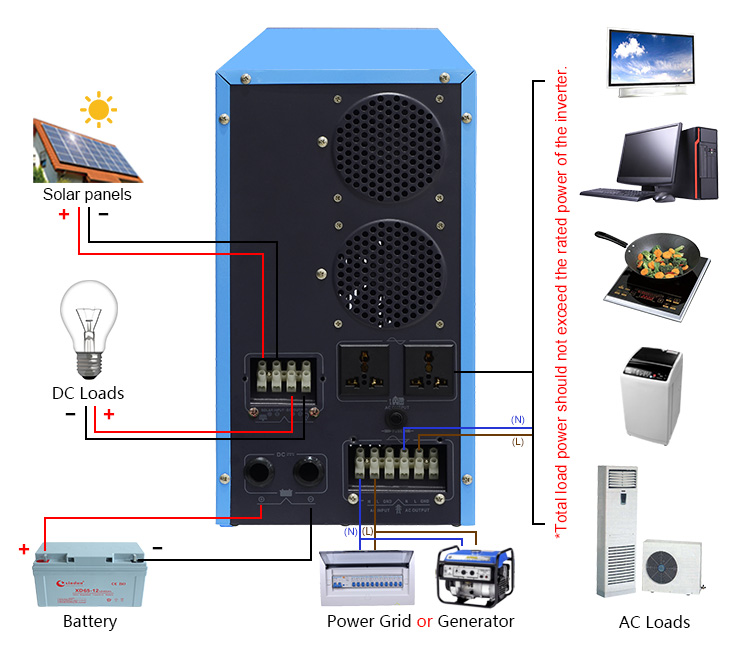

How does DC To AC inverter work?


How does DC To AC inverter work?


1. Home backup system:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power system:
Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.

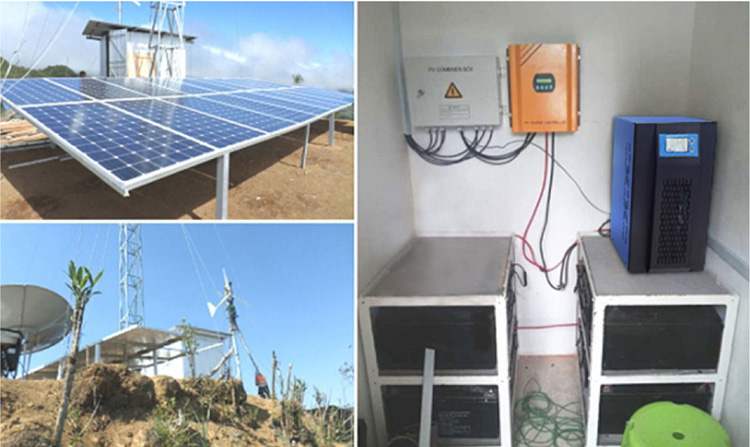

DC To AC Inverter Application



DC To AC Inverter Application



Why Choose US?


1. We are a professional manufacturer of dc to ac inverter and solar controller with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 12 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
6. 200,000pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.
