Pure Sine Wave Inverter
Xindun power factory sales inverter 48v to 220v, 48v to 240v, 48vdc to 230vac. AC inverters high frequency design, high power density, high efficiency, low no-load loss.
48v inverter
48v inverter
48v to 220v inverter
48v inverter 240v
48v dc to ac inverter
48v to 230v inverter

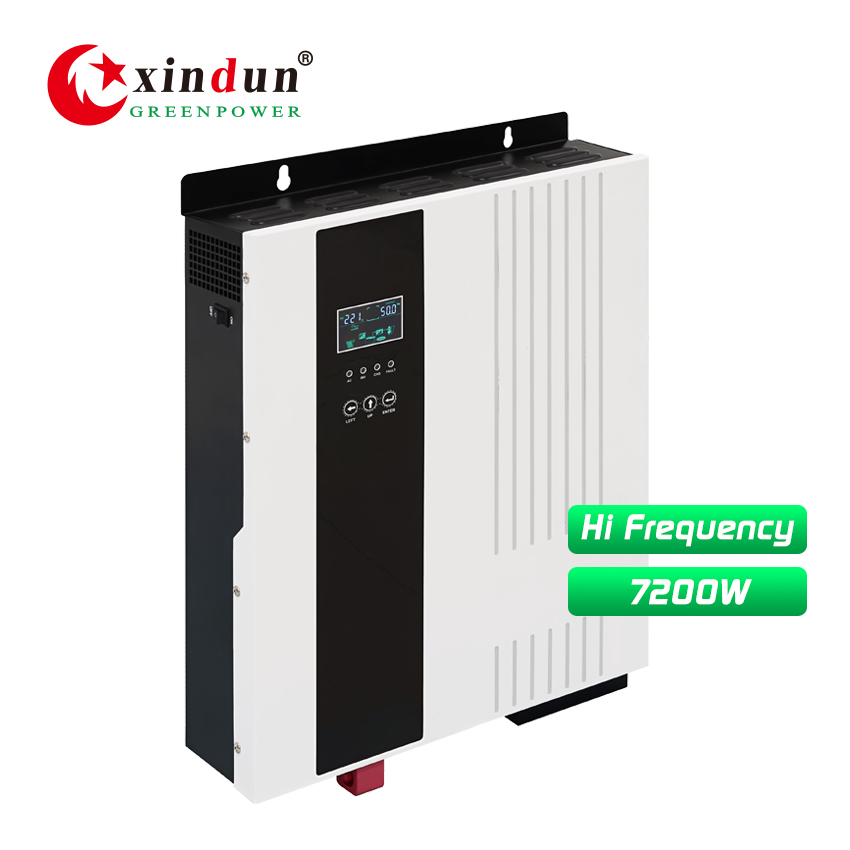

HP DC to AC Inverters 7200W 48V Factory

7200W 48VDC to 220V/230V/240VAC | Pure Sine Wave Inverter High Frequency Design

  • OEM : Custom for Distributor/Dealer/Wholesaler
  • Type : DC to AC Off-Grid Inverter
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 6 pcs

Xindun dc to ac inverters agents


In the past 14 years, Xindun has provided solar power products and services to more than 100 countries around the world.

We provide dc to ac inverters OEM services for thousands of agents.


HP 48v dc to 230v 220v ac inverter 240v



DC to AC Inverter Feature



1 Inverter high frequency design, high power density, high efficiency, low no-load loss.
2 Pure sine wave output, adapt any types of loads.
3 Battery charge and discharge voltage parameters adjustable,suitable for different types of batteries,can prolong the life of the battery and improve system performance.
4 AC charge current 0~60A adjustable,battery capacity configuration more flexible.
5 Three working modes adjustable:AC first,Battery first,PV first.
6 Output voltage/frequency adjustable function,adapt to different grid environment.
7 Extra wide voltage and frequency input range, support mains or generator.
8 LED+LCD display, easy operation and data checking,can set each function and data directly.
9 Multi-protection function(overload,over temperature,short circuit protection and so on).
10 RS485 communication port/APP(WIFI or GPRS) optional.



DC to AC Inverter Specification



Specification
Model: HP 72248
Rated Power 7200W
Peak Power(20ms) 21.6KVA
Battery Voltage 48VDC
Product Size(L*W*Hmm) 538x388x118
Package Size(L*W*Hmm) 561X454X167
N.W(Kg) 16
G.W(Kg) 17.5
Installation Method Wall-Mounted
Input DC Input Voltage Range 42VDC-60VDC
Rated AC input voltage 220VAC / 230VAC / 240VAC
AC Input Voltage Range 170VAC~280VAC (UPS mode)/ 120VAC~280VAC(INV mode)
AC Input Frequency Range 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz)
Output Output efficiency(Battery/PV Mode) 94%(Peak value)
Output Voltage(Battery/PV Mode) 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery/PV Mode) 50Hz±0.5 or 60Hz±0.5
Output Wave(Battery/PV Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) Follow input
Output Frequency(AC Mode) Follow input
Output waveform distortion
Battery/PV Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤1% rated power
No load loss(AC Mode) ≤1% rated power(charger does not work in AC mode)
Battery Battery
Type
VRLA Battery Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage)
Customize battery Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
Maximum charging current (Mains or PV or mains + PV)(Built-in MPPT controller model) 60A
Maximum charging current
(Built-in PWM controller model)
Mains60A+PWM controller charging current
Charging method Three-stage (constant current, constant voltage, floating charge)
Protection Battery low voltage alarm Battery undervoltage protection value+0.5V(Single battery voltage)
Battery low voltage protection Factory default: 10.5V(Single battery voltage)
Battery over voltage alarm Constant charge voltage+0.8V(Single battery voltage)
Battery over voltage protection Factory default: 17V(Single battery voltage)
Battery over voltage recovery voltage Battery overvoltage protection value-1V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Working Mode Mains priority/Solar priority/Battery priority(Can be set)
Transfer Time ≤4ms
Display LCD+LED
Thermal method Cooling fan in intelligent control
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature -10℃~40℃
Storage temperature -15℃~60℃
Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% (No condensation)

Note: All specifications are subject to charge without prior notice.


DC to AC Inverter Details

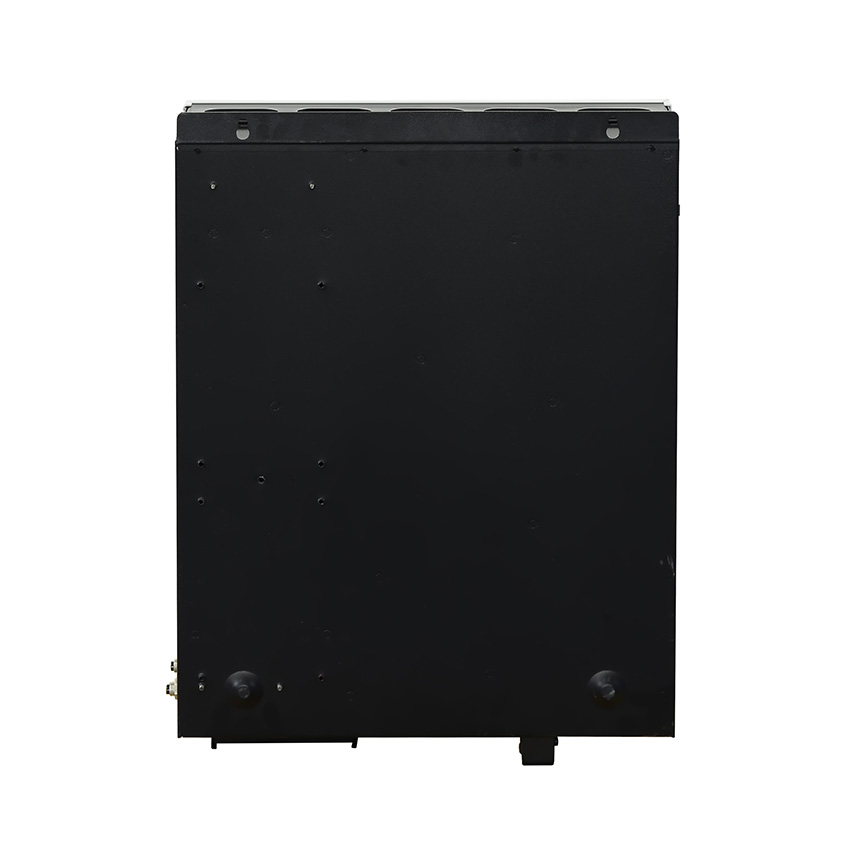

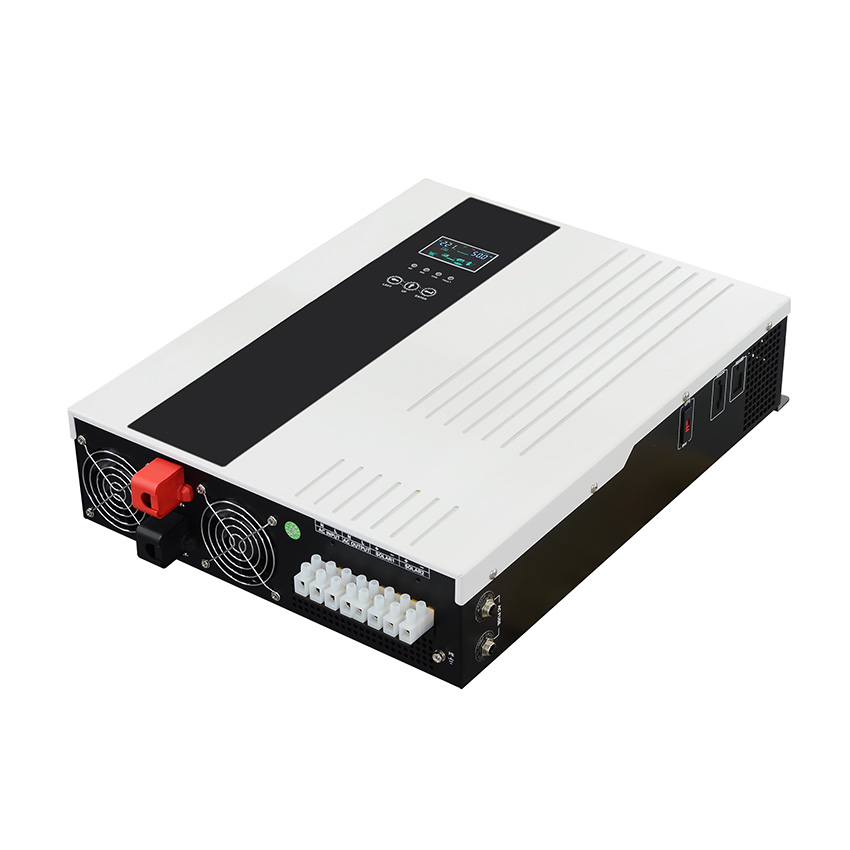

48vdc to 220vac inverter details_01

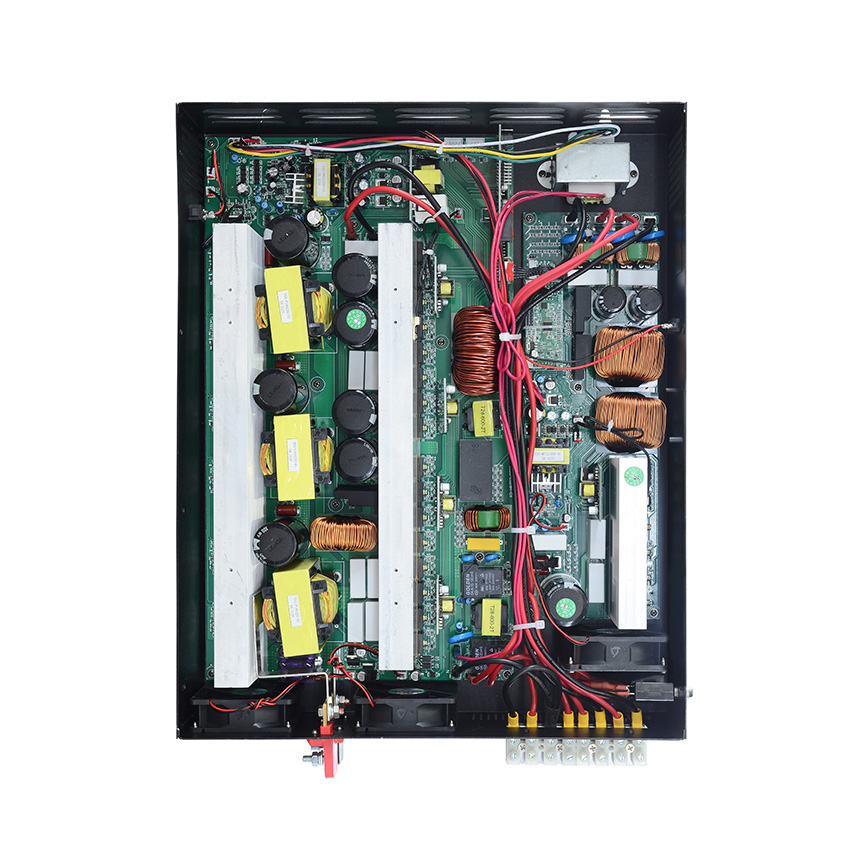

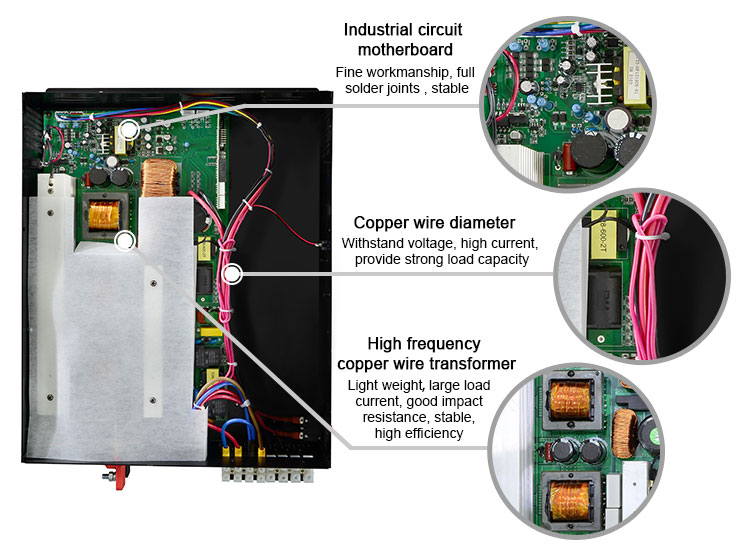

48vdc to 220vac inverter circuit board details_02



DC to AC Inverter Wiring Diagram

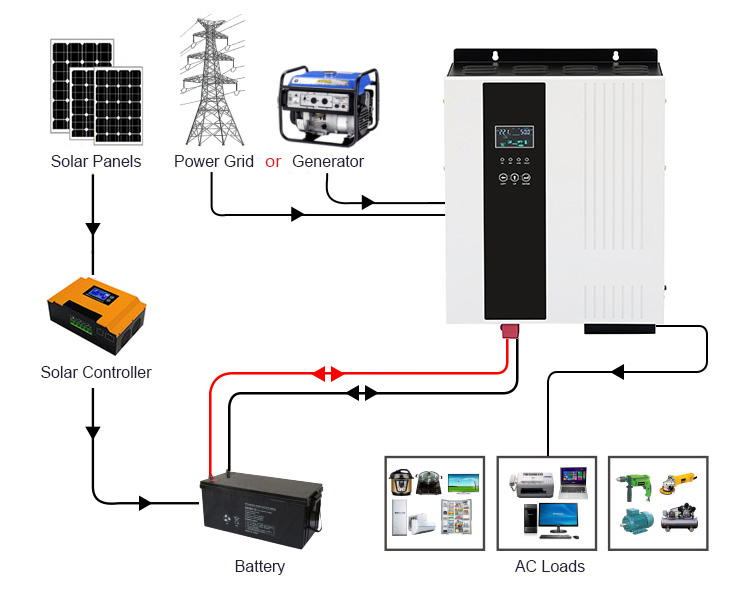

inverter 48vdc to 230vac wiring diagram


We offer 3 optional inverter working modes (transfer time≤4ms):

1) AC priority mode (d0)
A. When the mains power is normal (in line with the inverter power input voltage range), on the one hand, the mains power charges the battery (if built-in solar controller, the mains power and solar energy charge the battery at the same time); on the other hand, only the mains power supplies power to the load (the load does not consume solar and battery energy);
B. When the mains power is abnormal (the mains power is beyond the working range of the inverter or the mains power is interrupted), the inverter will switch to the battery mode, and the battery will supply power to the load (if built-in solar controller, when the solar power is greater than the load power, the load will be completely supplied by the solar energy, and the excess energy will charge the battery; when the solar energy is less than the load power, the insufficient part will be supplemented by the battery. The load is supplied by solar energy and battery together).

2) PV priority mode (d1)
A. When the solar is normal (in line with the solar input voltage range of the inverter), if the solar power is greater than the power of the load, the load is completely powered by solar, and the solar excess enengy charges the battery, when the solar power is less than the power of the load, the insufficient part is supplemented by the battery, and the solar and the battery supply power to the load together. If the battery is low volage due to the load, then the inverter will turn to the AC mode for power supply, and the solar will only charge the battery;
B. When the solar is abormal (the solar volage exceeds the working range of the inverter or the solar is interrupted, the inverter will directly switch to the AC mode for power supply, and the mains power will charge the battery.

3) Battery priority mode (d2)
A. When the inverter has no low-voltage battery alarm, even if the mains power input is normal, the inverter will switch to the battery mode, and the battery will supply power to the load. When the solar power is greater than the load power, the solar power will supply power to the load completely. and the excess enengy will charge the battery. When the solar power is less than the load power, the insufficient part will be supplemented by the battery, and the solar and battery will supply power to the load together;
B. When the battery is low voltage (i.e. the voltage of a conventional single battery is 11vdc) and the mains power input is normal, the inverter will switch to the AC mode and the mains power will supply power to the load completely, while the solar energy will charge the battery but the mains power does not charge the battery.



Inverter Package and Delivery

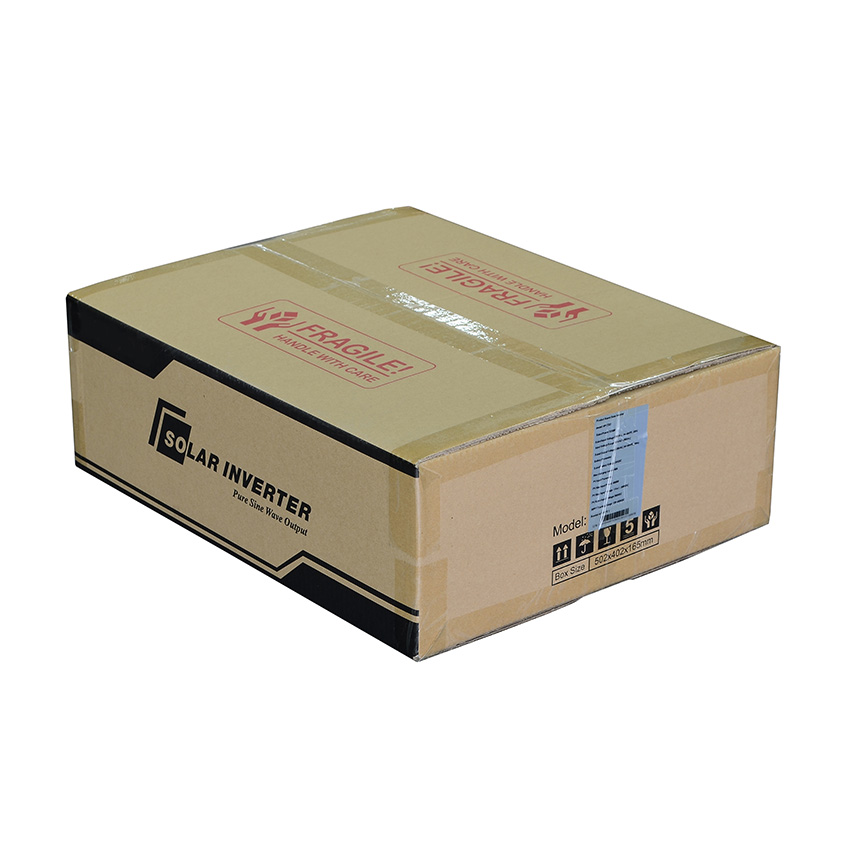

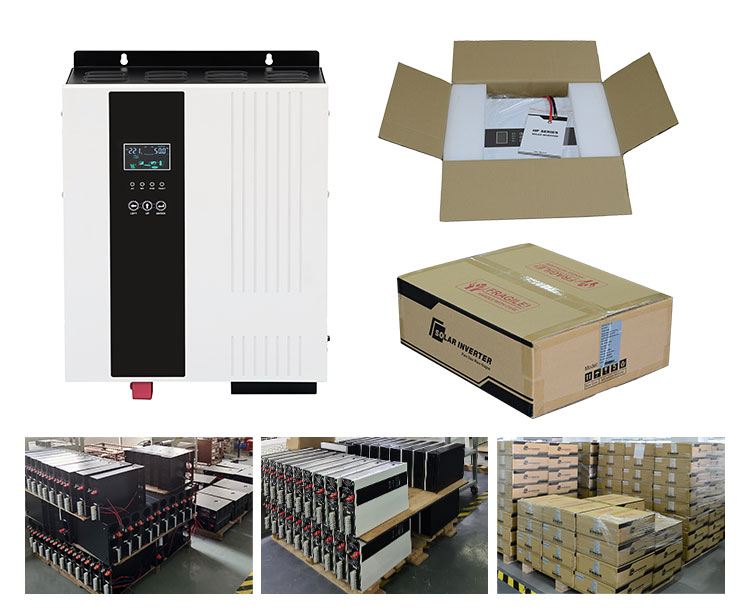

inverter 48v to 240v package



Why Choose Us?



why choose xindun - 48v dc to ac inverter manufacturer


1. We are a professional manufacturer of dc to ac inverter with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 14 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000 pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.



About Xindun Power



about xindun - 48v dc to ac inverter manufacturer picture

about xindun - 48v dc to ac inverter manufacturer introduction



Inverter Factory



Xindun 48v dc to ac inverter factory



Qualifications and Certificates



Xindun qualifications and certificates



Global Solar Exhibitions



Xindun global solar exhibitons



FAQ



Q1: Are you a factory?

A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.

Q2: What is the price of dc to ac inverter?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. DC to AC inverters factory direct sales, no middlemen earn price difference.

Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!

Q4: What\'s the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the public power grid, even better. Low repaired rate, long lifespan, without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output inverter has a negative impact on appliances and can\'t load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don\'t like the modified wave.

Q5: How to solve the dc to ac inverters technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
