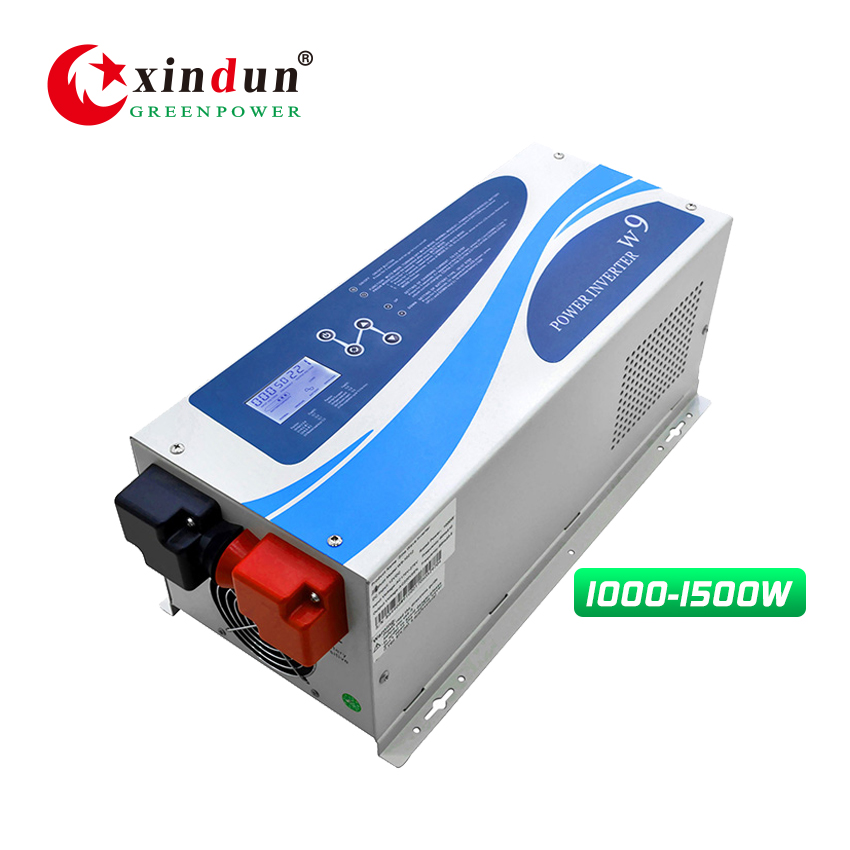

1000W/1500W DC12V/24V/48V to AC110V/220V | Pure Sine Wave Inverter for Solar Car Use | One Of The Best Inverter Manufacturers in China
Product
■ Feature of The Best Pure Sine Wave Inverter
1 Inverter pure sine wave output;
2 AC charge current 0-30A adjustable;
3 Air-cooled type radiator, great energy-saving effect;
4 Strong loading capacity; Peak power more than 3 times;
5 Working modes: AC first, battery first, energy-saving;
6 RS232 communication port optional.
■ Parameter of The Best Pure Sine Wave Inverter
| Specification | |||
| Model W9 | 10212/24 | 15212/24/48 | |
| Rated Power | 1000W | 1500W | |
| Peak Power（20ms) | 3000W | 4500W | |
| Start Motor | 1HP | 1.5HP | |
| Battery Voltage | 12/24VDC | 12/24V/48VDC | |
| Size(L*W*Hmm) | 485*218*184 | ||

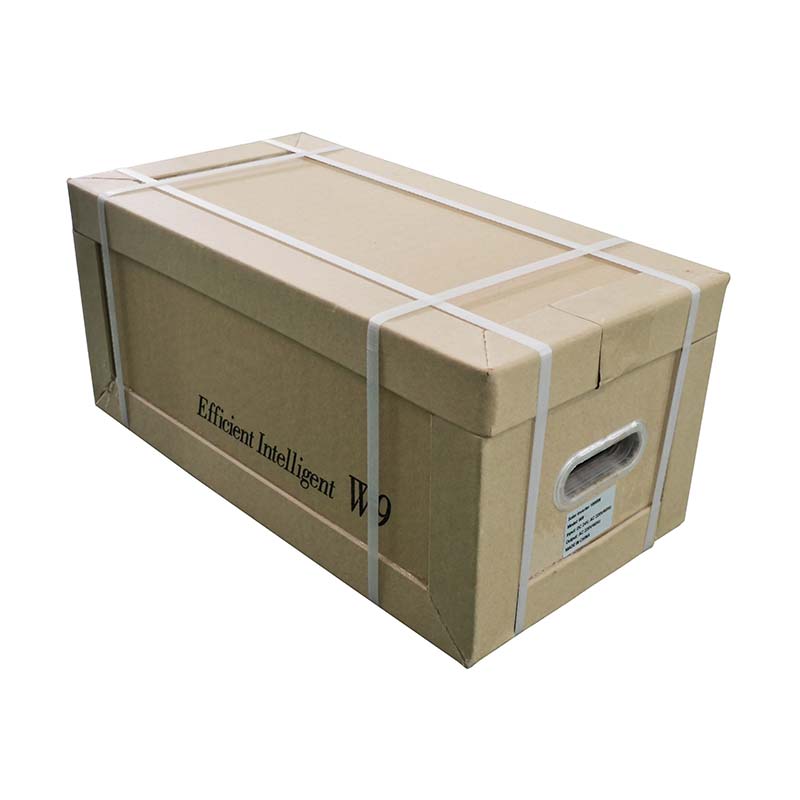

| Packing Size(L*W*Hmm) | 540*280*240 | ||
| N.W.(kg) | 15 | 17 | |
| G.W.(kg)（Carton Packing） | 17 | 19 | |
| Installation Method | Wall-Mounted | ||
| Paramater | |||
| Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | |
| AC Input Voltage Range | 85VAC~138VAC / 170VAC~275VAC | ||
| AC Input Frequency Range | 45Hz~65Hz | ||
| Max AC charging current | 25A/15A | 30A/20A/10A | |
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||
| Output | Efficiency(Battery Mode) | ≥85% | |
| Output Voltage(Battery Mode) | 110VAC±2% / 220VAC±2% | ||
| Output Frequency(Battery Mode) | 50/60Hz±1% | ||
| Output Wave(Battery Mode) | Pure Sine Wave | ||
| Efficiency(AC Mode) | >99% | ||
| Output Voltage(AC Mode) | 110VAC±10% / 220VAC±10% | ||
| Output Frequency(AC Mode) | Tracking Automatically | ||
|
Output waveform distortion
(Battery Mode)
|
≤3%（Linear load） | ||
| No load loss(Battery Mode) | ≤2.5% rated power | ||
| No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | ||
| No load loss(Energy saving Mode) | ≤10W | ||
| Protection | Battery undervoltage alarm | 11V（Single battery voltage） | |
| Battery undervoltage protection | 10.5V（Single battery voltage） | ||
| Battery overvoltage alarm | 15V（Single battery voltage） | ||
| Battery overvoltage protection | 17V（Single battery voltage） | ||
| Battery overvoltage recovery voltage | 14.5V（Single battery voltage） | ||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||
| Output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||
| Temperature protection | >90°C（Shut down output） | ||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal. | ||
|
Battery type
(Optional)
|
U0: Gel U.S.A | Charge Voltage：14V；Float Voltage：13.7V（Single battery voltage） | |
| U1: A.G.M.1 | Charge Voltage：14.1V；Float Voltage：13.4V（Single battery voltage） | ||
| U2: A.G.M.2 | Charge Voltage：14.6V；Float Voltage：13.7V（Single battery voltage） | ||
| U3: Sealed lead Acid | Charge Voltage：14.4V；Float Voltage：13.6V（Single battery voltage） | ||
| U4: Gel European | Charge Voltage：14.4V；Float Voltage：13.8V（Single battery voltage） | ||
| U5: Open lead Acid | Charge Voltage：14.8V；Float Voltage：13.5V（Single battery voltage） | ||
| U6: Calcuim(open) | Charge Voltage：15.1V；Float Voltage：13.6V（Single battery voltage） | ||
| U7: Sulphation cycle | 15.5V for 4hrs | ||
| customize battery |
Charge
and discharge parameters of different types of batteries (such as lithium
batteries, etc.)
can be customized according to user requirements.
|
||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||
| Transfer Time | ≤4ms | ||

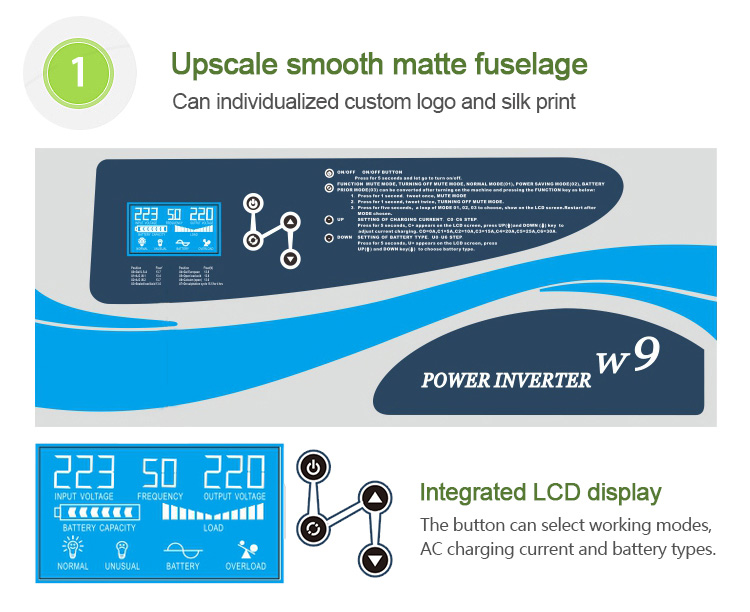

| Display | LCD | ||
| Thermal method | Cooling fan in intelligent control | ||
| Communication | RS232（Optional） | ||
| Environment | Operating temperature | -10℃~40℃ | |
| Storage temperature | -15℃~60℃ | ||
| Noise | ≤55dB | ||
| Elevation | 2000m（More than derating） | ||
| Humidity | 0%~95% ,No condensation | ||
| Warranty | 1 year | ||
| Note: All specifications are subject to change without prior notice | |||

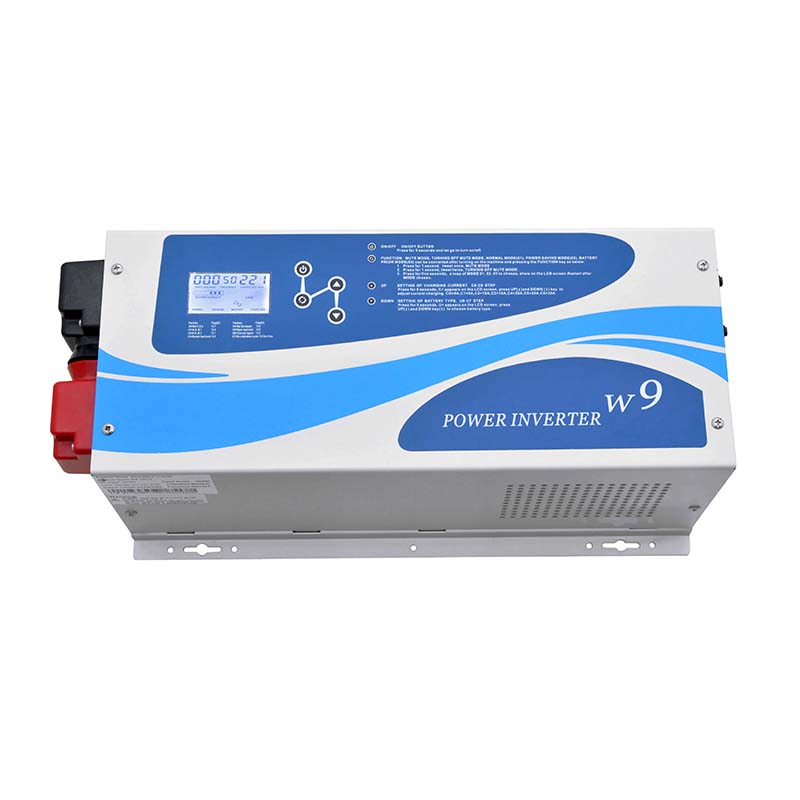

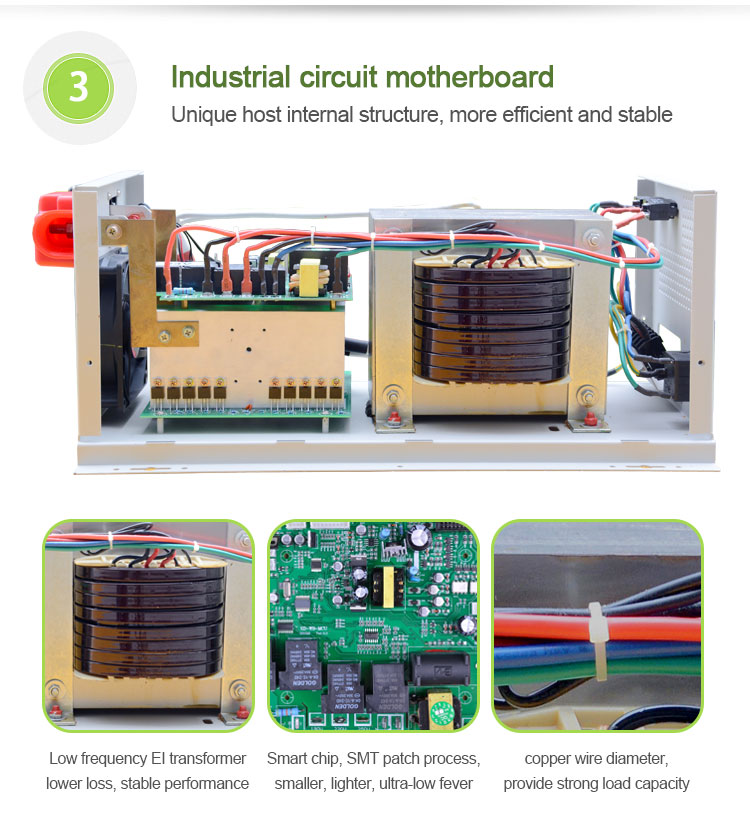

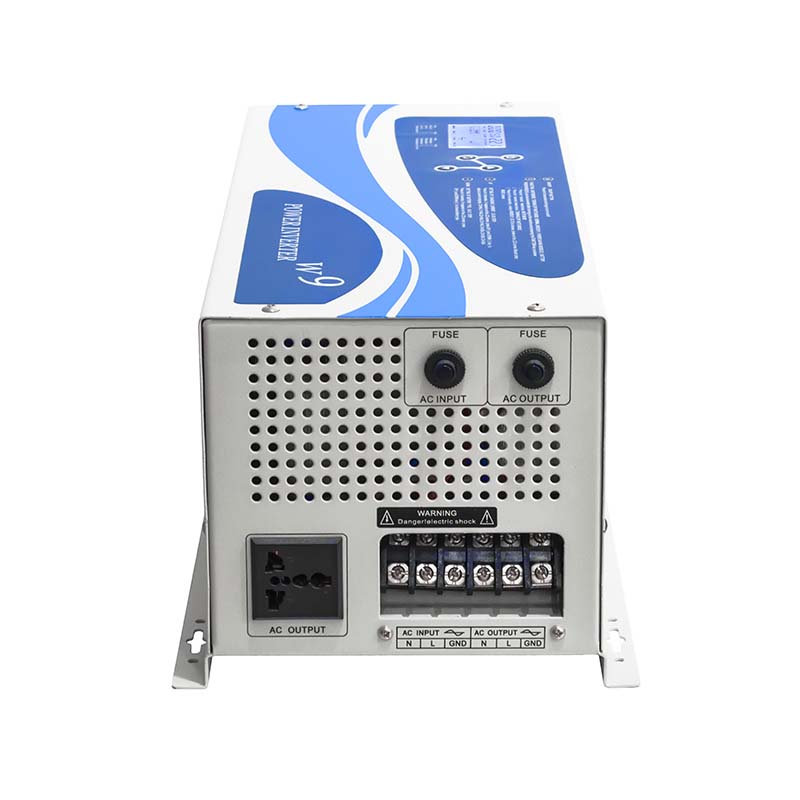

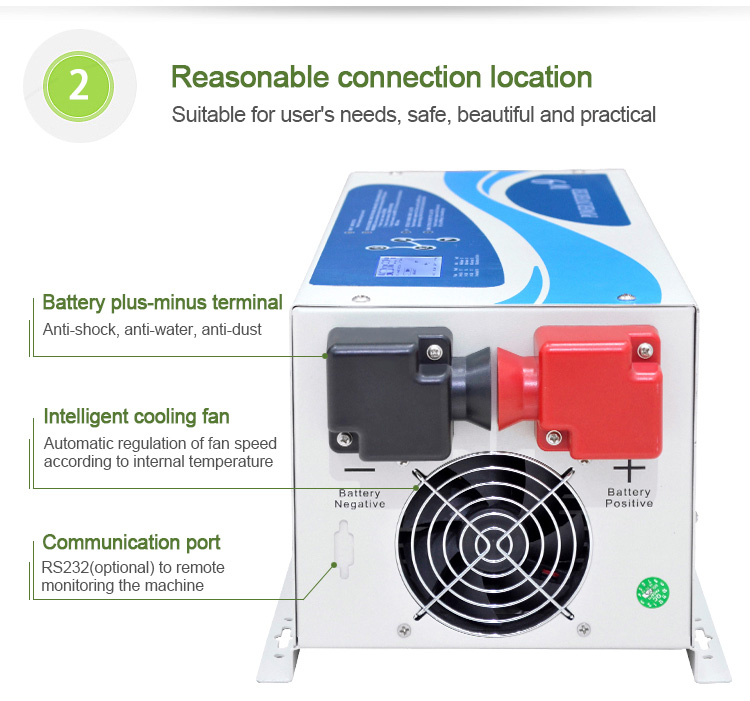

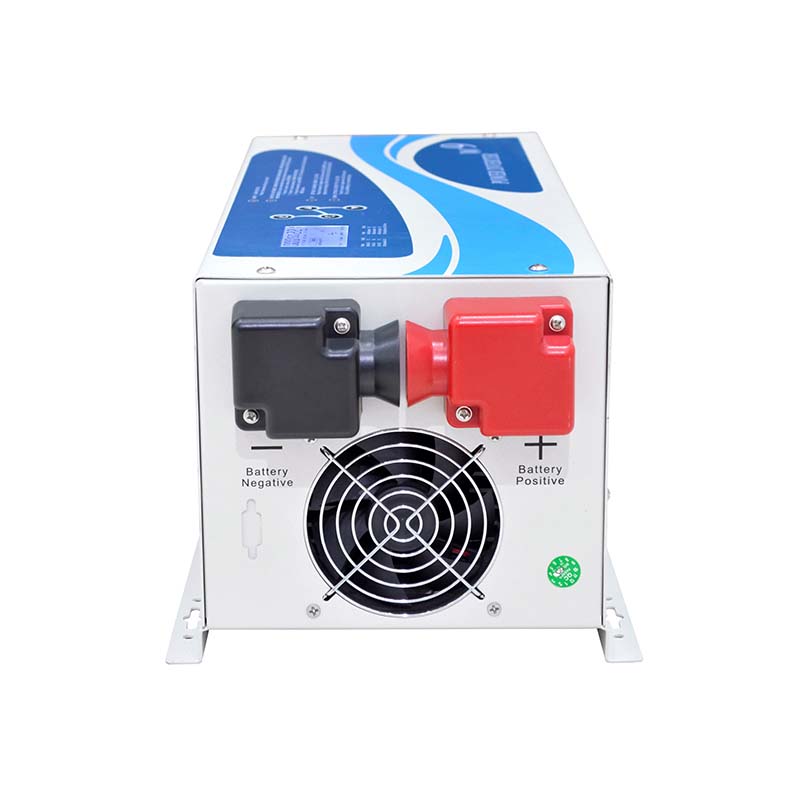

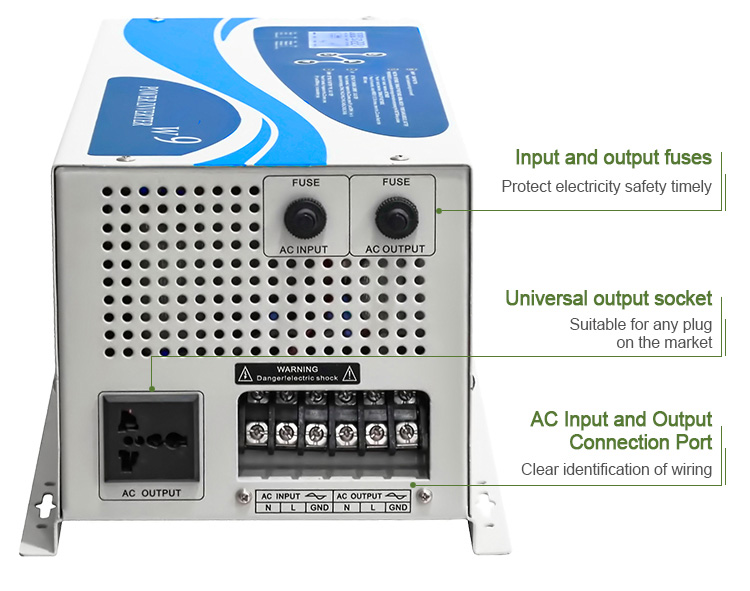

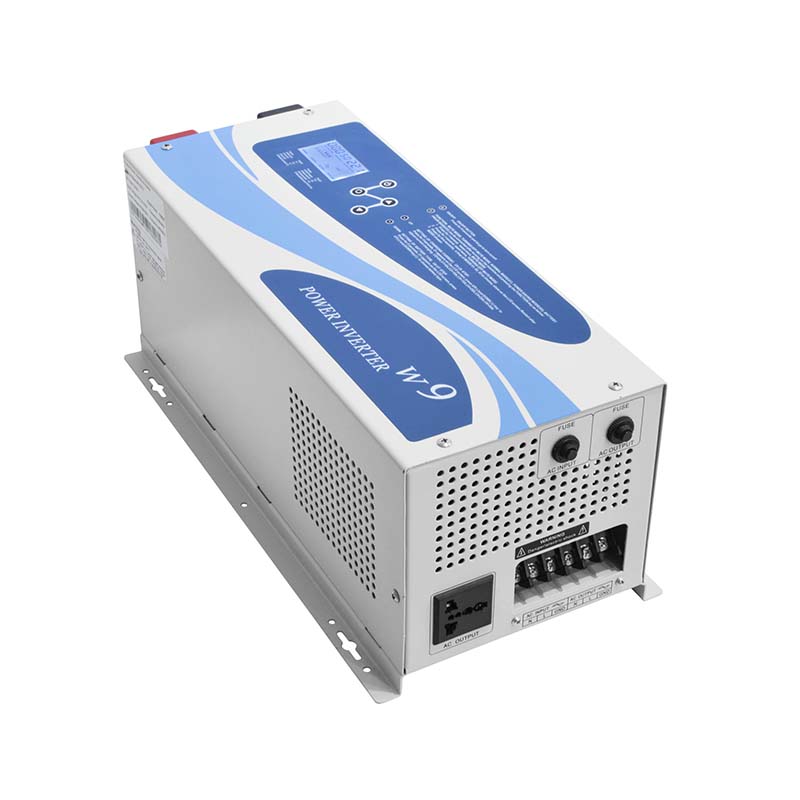

■ Details of The Best Pure Sine Wave Inverter
■ How does the best pure sine wave inverter work?
1. Wind or Solar Power system:
Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.

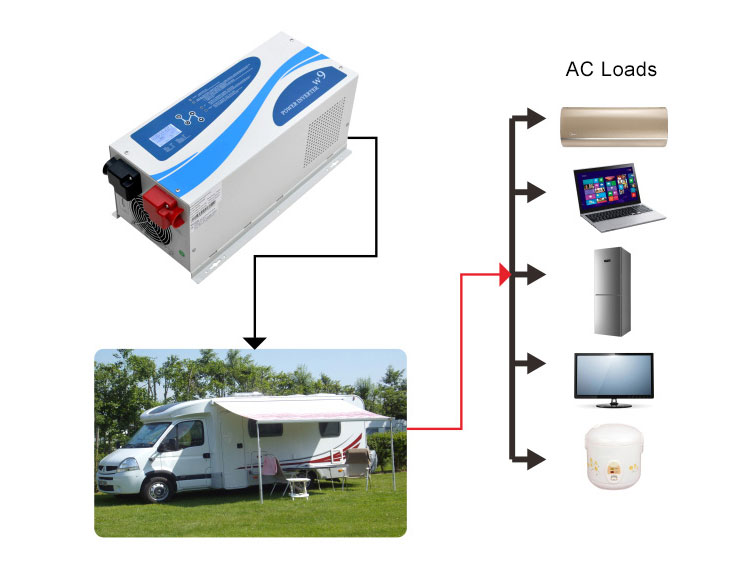

2. Home/Car backup system:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.
■ Application of The Best Pure Sine Wave Inverter
■ Why Choose Us？
1. We are a professional manufacturer of the best pure sine wave inverter and solar controller with over 10 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 11 years of high-level OEM experience
5. 16,000 square meters factory size (Sq.meters)
5. 200,000pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.
