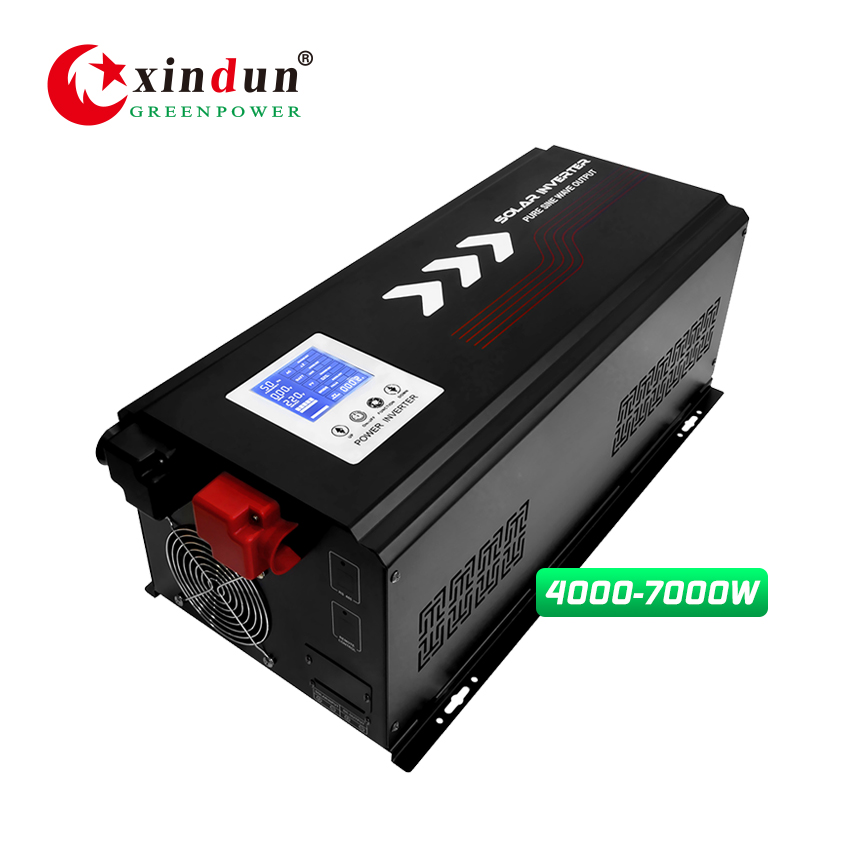

W10 Solar Power Inverter Charger 4000W-7000W 24V-96V

4000w/5000w/6000w/7000w 24v/48v/96vdc to 110v/220vac, solar power inverter with battery charger and transfer switch

  • Types : DC to AC Off-Grid Inverters
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 50 pcs
  • OEM : Accepted

Solar Power Inverter Charger Feature



Power inverter charger pure sine wave output;

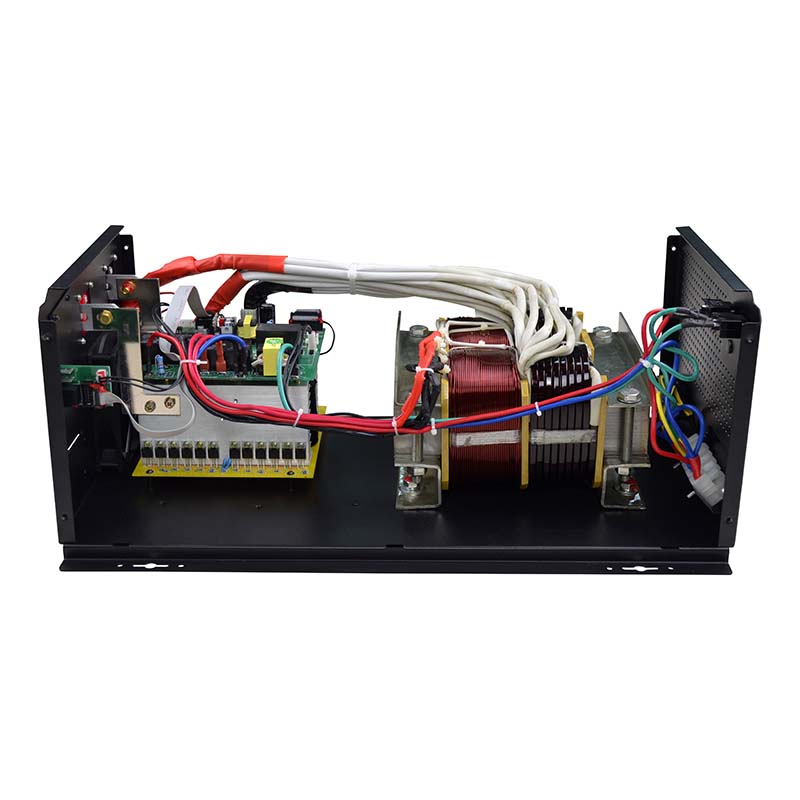

◇ Industrial high efficiency I-shape transformer;
◆ AC charge current 0-30A adjustable; AVR output;
◇ Integrated LCD display; One-button start with an external display screen( optional);
◆ Three types working modes:AC first, DC first, energy-saving mode;
◇ Supports diesel or gasoline generator, adapt anytough electricity situation;
◆ Various communication ports and remote controls.


Solar Power Inverter Charger Specification


Specification
Model W10 40224/48 50248 60248 70248/96
Rated Power 4000W 5000W 6000W 7000W
Peak Power(20ms) 12000W 15000W 18000W 21000W
Start Motor 3HP 4HP 4HP 5HP
Battery Voltage 24/48VDC 48VDC 48/96VDC
Size(L*W*Hmm) 647*315*235

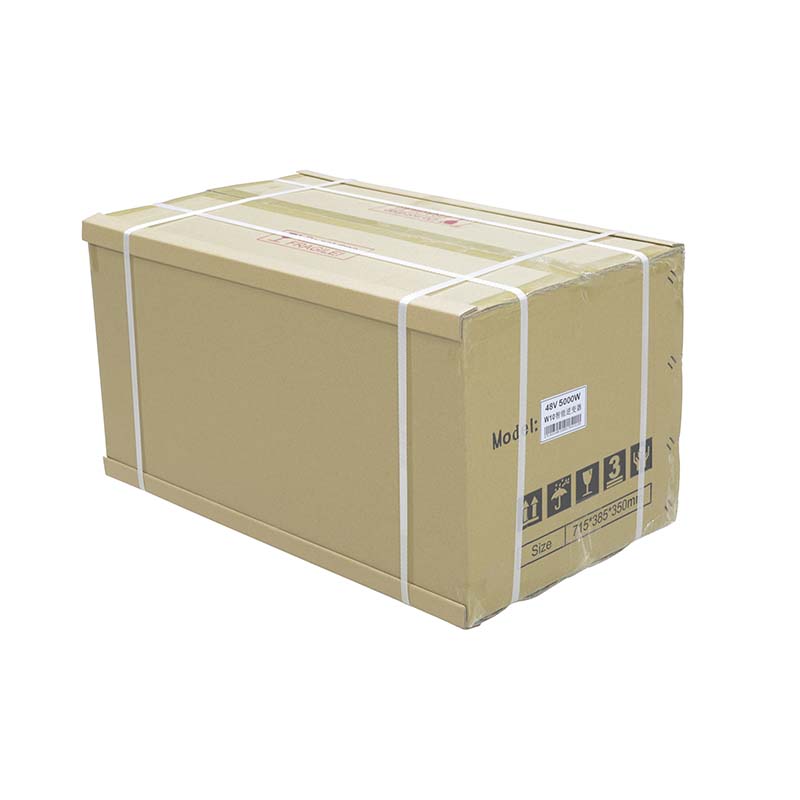

Packing Size(L*W*Hmm) 715*385*350
N.W.(kg) 41.5 42.5 45.5 48
G.W.(kg)(Carton Packing) 45 46 49 52
Installation Method Wall-Mounted
Parameter
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 85VAC~138VAC 170VAC~275VAC
AC Input Frequency Range 45Hz~65Hz
Max AC charging current 30A/25A 30A 30A 30A/20A
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2% / 220VAC±2%
Output Frequency(Battery Mode) 50/60Hz±1%
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) 110VAC±10% / 220VAC±10%
Output Frequency(AC Mode) Tracking Automatically
Output waveform distortion(Battery Mode) ≤3%(Linear load)
No load loss(Battery Mode) ≤1% rated power
No load loss(AC Mode) ≤2% rated power( charger does not work in AC mode)
No load loss(Energy saving Mode) ≤10W
Battery Type
(selectable)
LEAD Charge Voltage:14V;Float Voltage:13.8V(12V system; 24V system x2; 48V system x4; 96V system x8)
OP-LE Charge Voltage:14.2V; Float Voltage:13.8V(12V system; 24V system x2; 48V system x4; 96V system x8)
LITHIUM Charge Voltage: 12.6V(NMC battery 3S) (12V system; 24V system x2; 48V system x4; 96V system x8)
Customize battery Charge and discharge parameters of different types of batteriescan be customized according to user requirements.
Protection Battery undervoltage alarm 11V; LITHIUM 9.5V(NMC battery 3S)(12V system; 24V system x2; 48V system x4; 96V system x8)
Battery undervoltage protection 10.5V; LITHIUM 9V(NMC battery 3S)(12V system; 24V system x2; 48V system x4; 96V system x8)
Battery overvoltage alarm Lead acid battery: 15V(12V system; 24V system x2; 48V system x4; 96V system x8)
Battery overvoltage protection Lead acid battery: 17V(12V system; 24V system x2; 48V system x4; 96V system x8)
Battery overvoltage recovery voltage Lead acid battery: 14.5V(12V system; 24V system x2; 48V system x4; 96V system x8)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal.
Storage temperature -15℃~60℃
Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Warranty 1 year
Note: All specifications are subject to change without prior notice

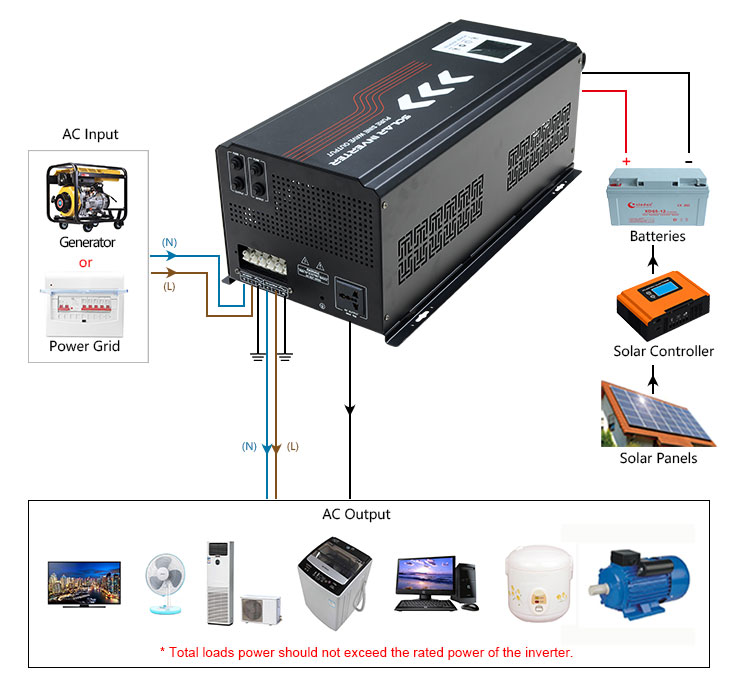

How does solar power inverter charger work?



1. Home backup system:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power system:
Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.



how does solar power inverter and charger work?

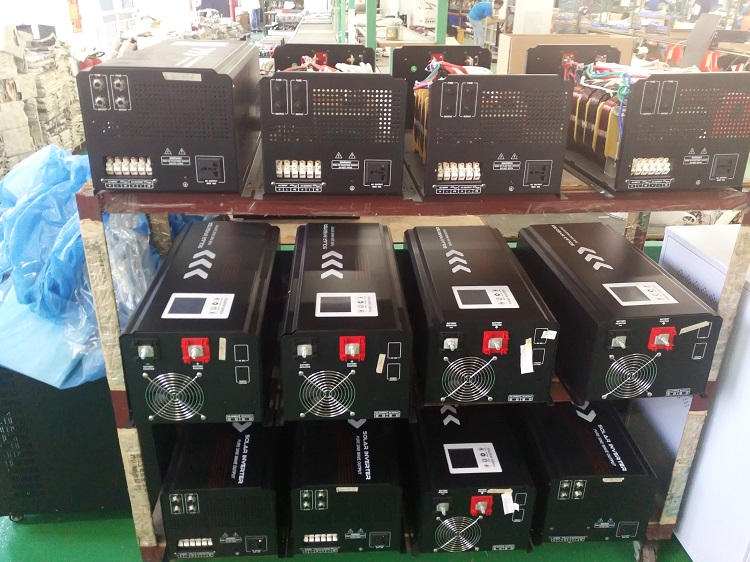

Solar Power Inverter Charger Factory



W10 Solar Power Inverter Charger Factory



Why Choose US?



1. We are a professional manufacturer of solar power inverter charger and solar controller with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 12 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
6. 200,000pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.
