Ac 12v 24v 48v to dc 110v 220v 120v 220v 230v 240v single p...

  • 253
  • Jimmy at
  • December 24, 2018

3

Feature:

Pure sine wave output.

AC charge current 0-30A adjustable.

Air-cooled type radiator, great energy-saving effect.

Strong loading capacity; Peak power more than 3 times.

Working modes: AC first, battery first, energy-saving.

RS232 communication port optional.

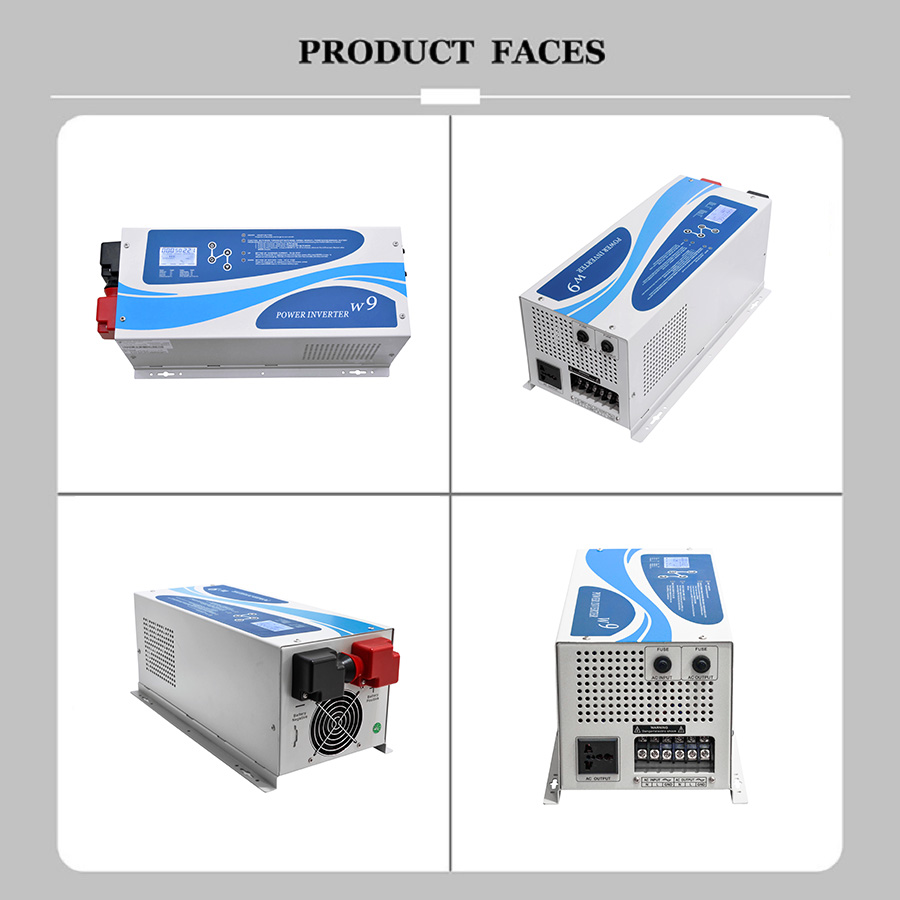

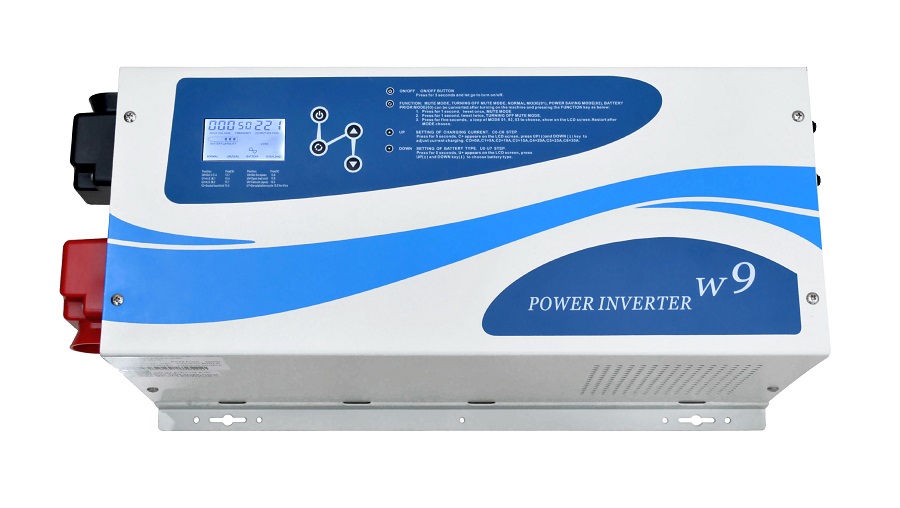

w9

General features

1. Low frequency transformer, pure sine wave output, strong load capacity

2. AVR, wide input voltage (+/0-35%)

3. Intelligent LCD display

4. UPS function

5. Self protection against under voltage, overload and short circuit

Exclusive features

1. Self option AC charging current (0~30A)

2. Self option working mode (AC/PV priority)

3. Self option battery type



   Model

W9-10212/24

1000W

W9-15212/24

1500W

W9-20212/24/48

2000W

W9-30224/48

3000W

Other
Nominal battery voltage 12VDC/24VDC 12VDC/24VDC 12VDC 24VDC 48VDC 24VDC 48VDC
  DC input voltage range 10.5-15VDC (single battery voltage)
Mains input voltage range 170-275VAC
