Inverter With Charge Controller
Xindun factory supply solar inverter charger at a cheap price. Hybrid inverter 2kw 3kw inside solar charge controller, suitable for home solar power systems to provide AC power.
3kw inverter
3kw inverter
2kw inverter
3kw solar inverter
2kw solar inverter
2kw inverter price
3kw inverter price

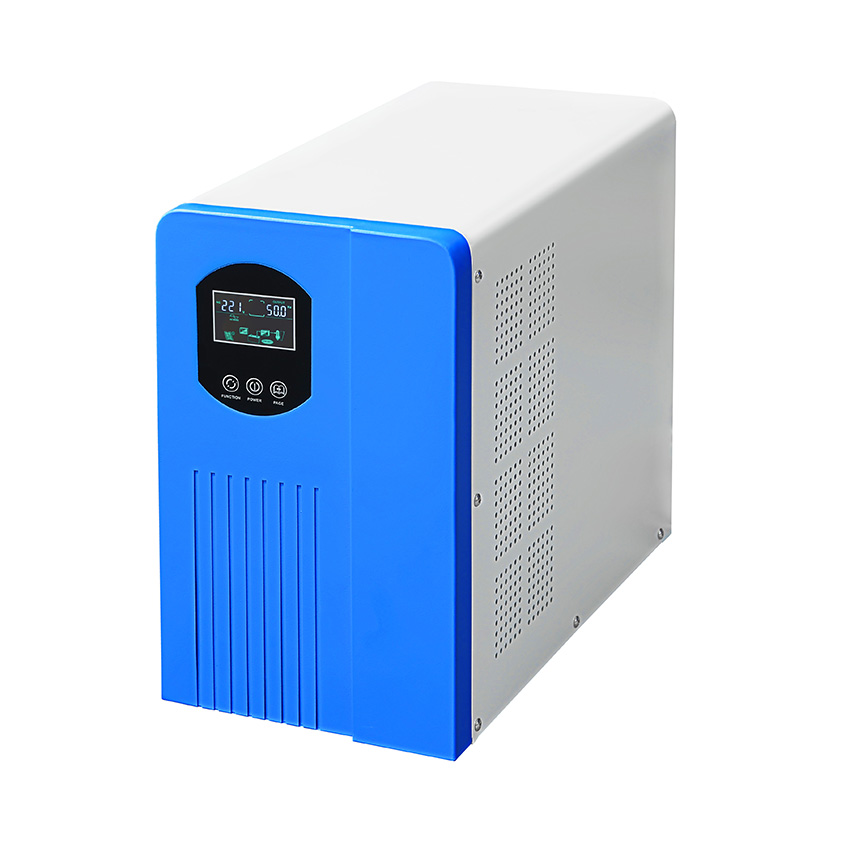

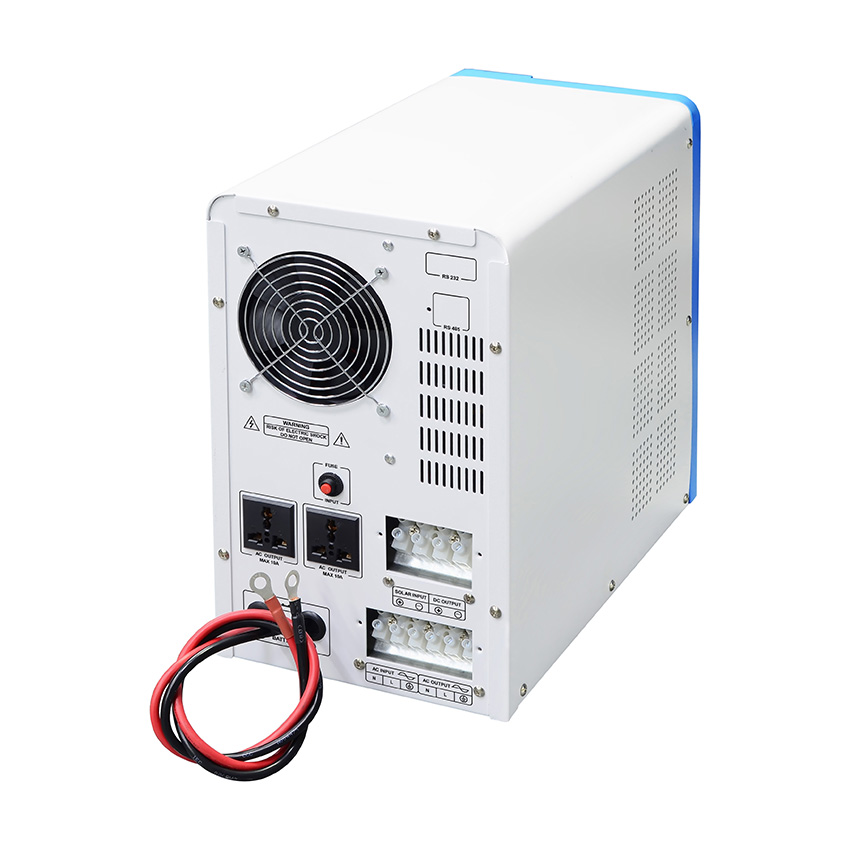

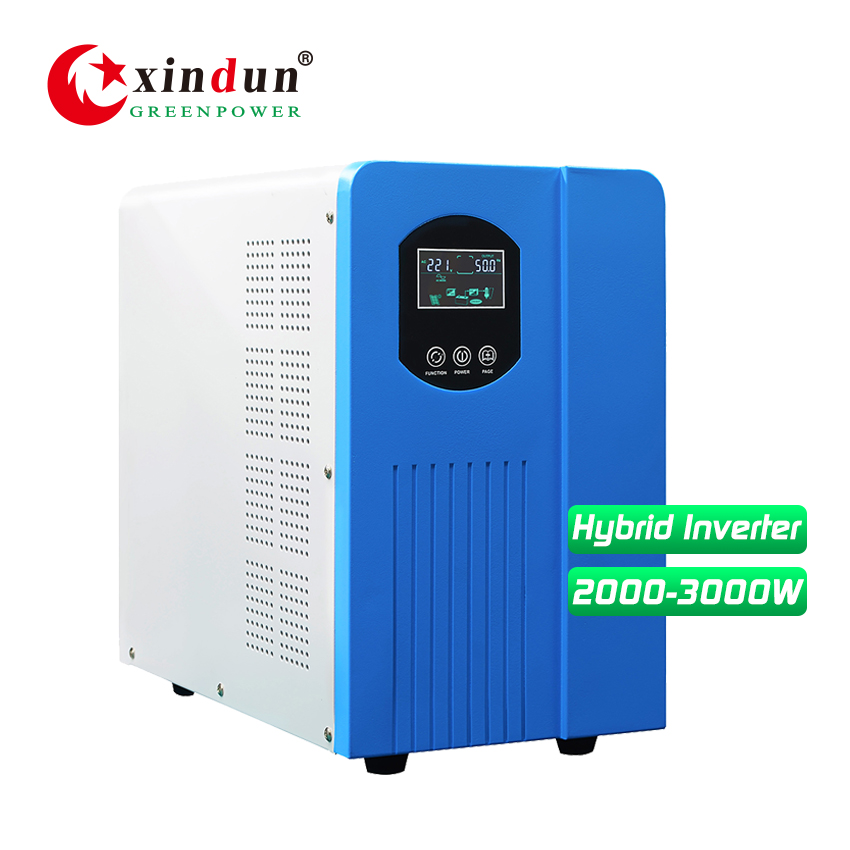

WPT Solar Inverter Charger 2KW/3KW 24V/48V

2KW/3KW, DC24V/48V to AC110V/120V/220V/230V/240V | Inverter with 10A-100A PWM/MPPT Charge Controller | Wholesale Solar Inverter Charger at Cheap Price

  • Type : DC to AC Off-Grid Inverter
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 6 pcs
  • OEM : Yes
WP Hybrid 2kw 3kw solar inverter charger price



Solar Inverter Feature



1. Solar inverter charger with built-in PWM or MPPT solar controller optional;
2. Adopt EI transformer, strong impact resistance ability;
3. Pure sine wave output adapt a variety type of loads ;
4. Intelligent LCD integrated display, real-time view of operating status and setting data;
5. AC charging current 0~20A adjustable, more flexible user battery capacity configuration;
6. 3 type working modes (AC first / Battery first / Saving energy mode);
7. Adding fault code interrogate function, easy for real-time operating status monitoring;
8. Supports diesel or gasoline generator, adapt any tough electricity occasions;
9. Protection against overload, overheat, short circuits, safety and reliable;
0. Support RS485 communication port / mobile APP (optional).



Solar Inverter Specification



Specification
Model WP-T 20224/48 30224/48 35248/96
Rated Power 2KW 3KW 3.5KW
Peak Power(20ms) 6KVA 9KVA 10.5KVA
Start Motor 2HP 3HP 3HP
Battery Voltage 24/48VDC 24/48VDC 48/96VDC
Size(L*W*Hmm) 410*225*390
Packing Size(L*W*Hmm) 470*285*460
N.W.(kg) 21 26 30
G.W.(kg) 24 29 33
Installation Method Tower
Parameter
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range
73VAC~138VAC(110VAC) / 83VAC~148VAC(120VAC) / 145VAC~275VAC(220VAC) /
155VAC~285VAC(230VAC) / 165VAC~295VAC( 240VAC)
AC Input Frequency Range 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
Max AC charging current 0A~20A(Depending on the model,The maximum charging power is 1/4 of the rated power)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery Mode) 50Hz±0.5 or 60Hz±0.5
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) Follow input
Output Frequency(AC Mode) Tracking Automatically
Output waveform
distortion(Battery Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤2.5% rated power
No load loss(AC Mode) ≤2% rated power( charger does not work in AC mode)
No load loss
(Energy saving Mode)
≤10W
Battery Type VRLA Battery Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize battery
Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection Battery undervoltage alarm Factory default: 11V(Single battery voltage)
Battery undervoltage protection Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm Factory default: 15V(Single battery voltage)
Battery overvoltage protection Factory default: 17V(Single battery voltage)
Battery overvoltage recovery voltage Factory default: 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller
(Optional)
Charging Mode PWM or MPPT
charging current 24/48V(PWM:10A~60A/MPPT:10A~100A)
PV Input Voltage Range PWM: 30V-44V(24V system); 60V-88V(48V system) / MPPT: 30V-120V(24V system); 60V-120V(48V system)
Max PV Input Voltage(Voc)
(At the lowest temperature)
PWM: 50V(24V system); 100V(48V system) / MPPT: 150V(24V/48V system)
PV Array Maximum Power
12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A);
24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A);
48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A)
Standby loss ≤3W
Maximum conversion efficiency >95%
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature -10℃~40℃
Storage temperature -15℃~60℃
Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice



Solar Inverter Details



2kw 3kw solar inverter charger lcd display details_1

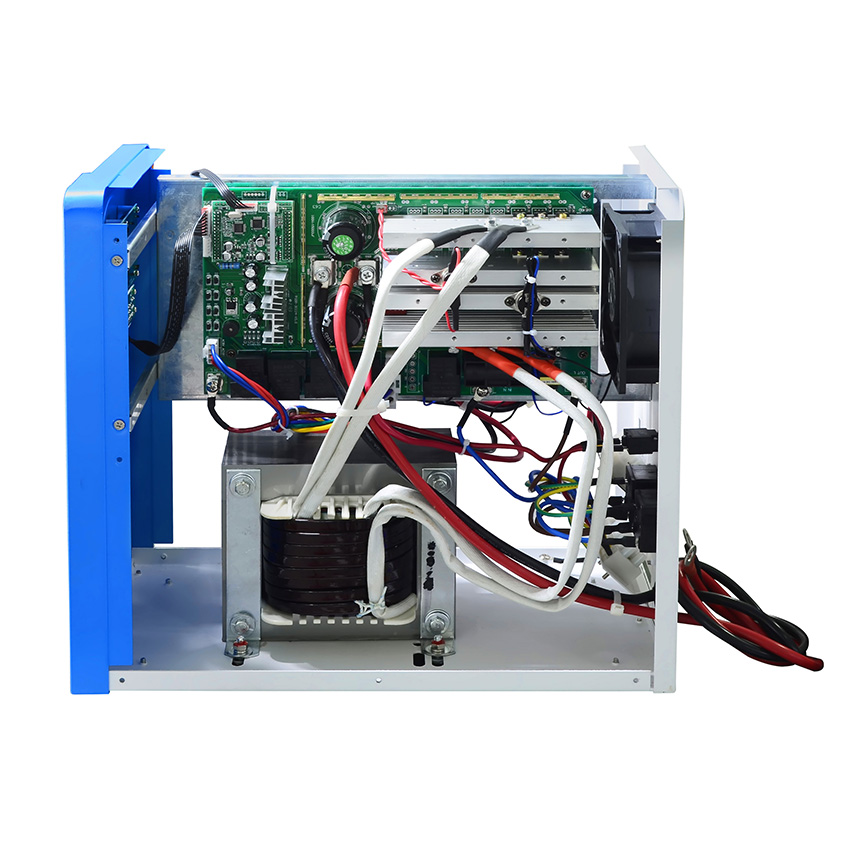

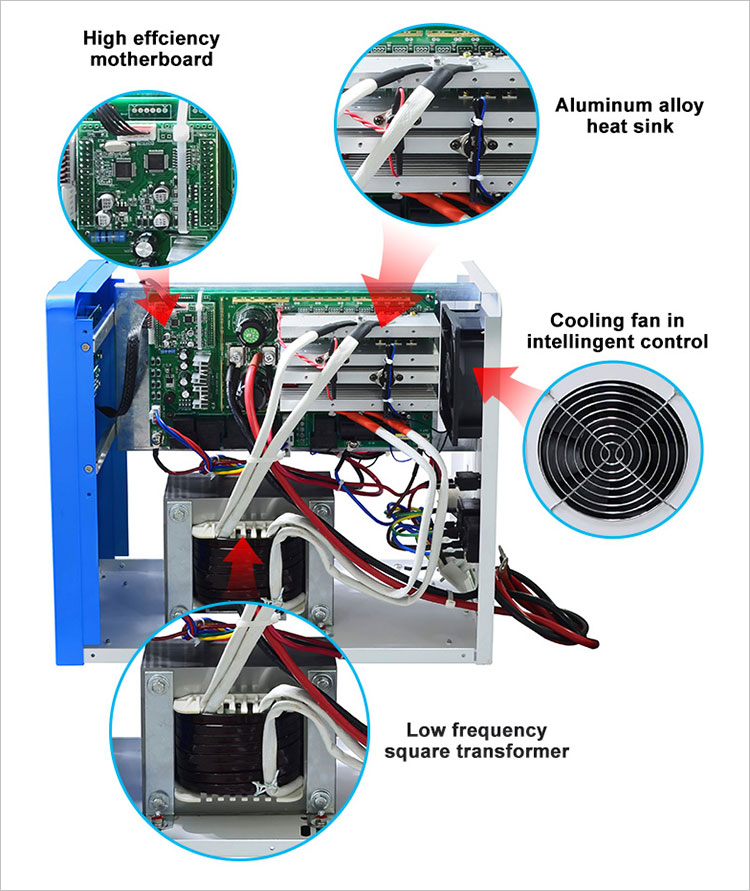

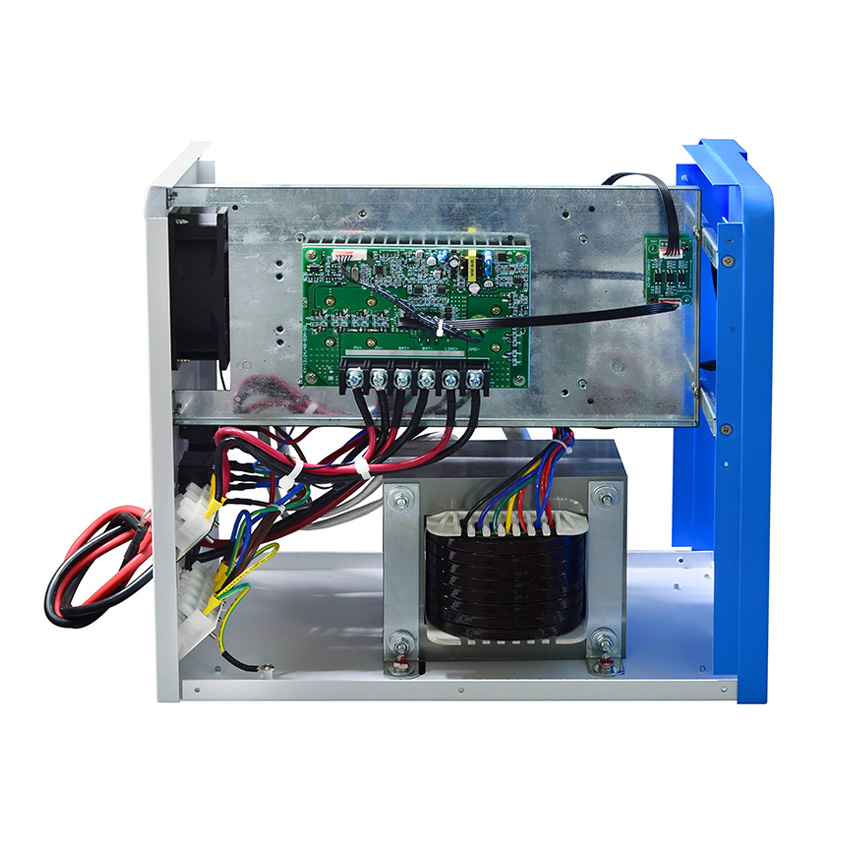

2kw 3kw solar inverter charger circuit details_2

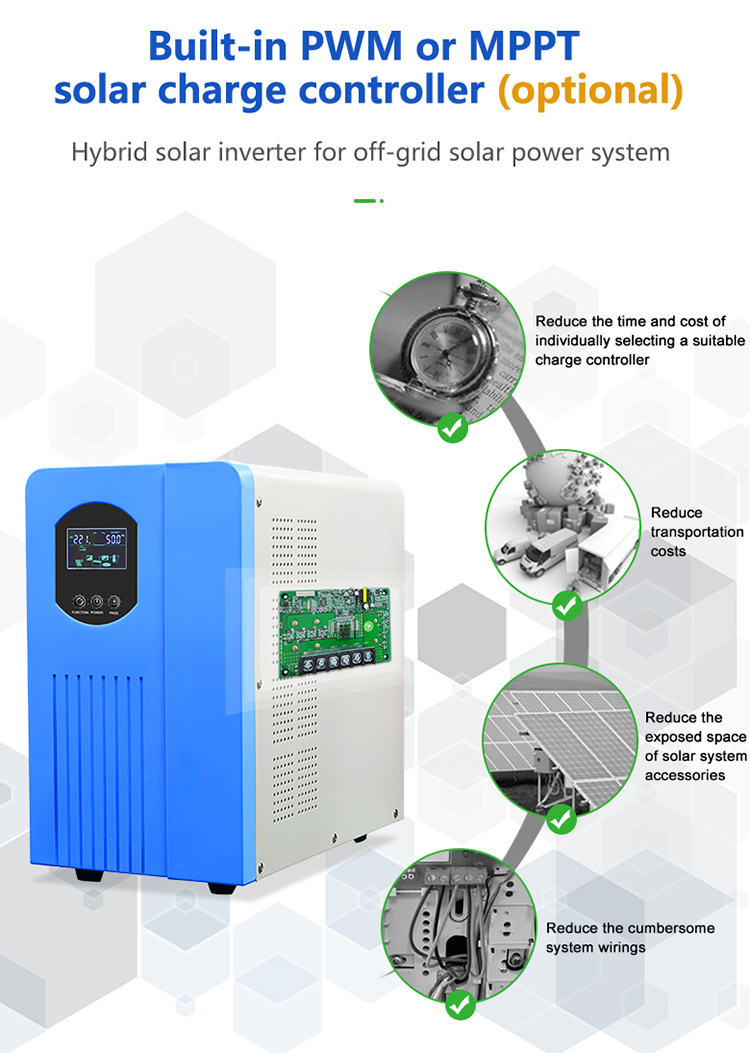

2kw 3kw solar inverter charger with charge controller details_3


2kw 3kw solar inverter charger communication software details_4



Solar Inverter Wiring Diagram

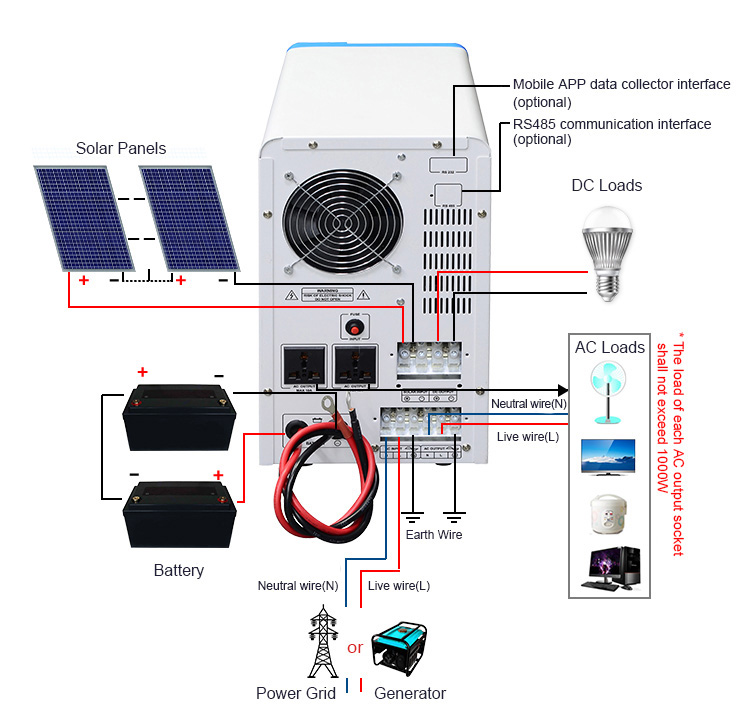

2kw 3kw solar inverter charger wiring diagram



Solar Inverter Application



2kw 3kw solar inverter charger application


Xindun solar inverter charger usually has two application methods:

1. Home backup system:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass and stable voltage through inverter to home appliances, such as light, refrigerator, kettle, television, air-conditioner. When AC grid power is off, inverter will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Energy system:
The electricity generated by solar or wind energy is DC (direct current), then inverter will convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.



Inverter Package and Delivery



3kw 2kw solar inverter charger package



Xindun is looking for solar sales agent in Solar Inverter Charger



Why Choose Us?



why choose xindun - 2kw 3kw solar inverter charger supplier



About Xindun Power



about xindun - 2kw 3kw solar inverter charger supplier image

about xindun - 2kw 3kw solar inverter charger supplier introduction



Inverter Factory



Xindun 2kw 3kw solar inverter charger factory



Qualifications and Certificates



Xindun qualifications and certificates



Global Solar Exhibitions



Xindun global solar exhibitons



FAQ



Q1: Are you a factory?

A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.

Q2: What is the price of solar inverter?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Solar inverter factory direct sales, no middlemen earn price difference.

Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!

Q4: What\'s the difference between solar inverter and hybrid inverter?
A: Inverter is design to convert DC (Direct Current) into AC (Alternating Current). Both solar inverter and hybrid inverter are widely used in PV solar energy into electric energy. Hybrid inverter contains the function of a solar inverter, also adds a built-in solar charge controller. Also it can be a combination of off grid and grid tie inverter in one machine with same description as you called hybrid inverter.

Q5: How to solve the solar inverter technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
